Central Dust Removing System Air Purifying Tower





Product photos





























Featurs


Self-circulation purifying tower has innovative design appearance, three-dimensional multi-faceted adjustable design; Intelligent control and multi-gear adjustment of air volume, reduce operating energy consumption, it not only can cope with the complex and changing working environment, but also does not require complex construction pipelines. It's a machine with multiple uses and flexible mobility. Applicable to the field of dust purification in the integral industrial processing plant, solve the problems that large parts in the plant cannot be treated locally, and not easy to arrange the dust removal pipelines on site. It's not affected by manual operation habits, the lifting, transfer, and occupation of the workpiece are not affected either; The equipment has low noise and can also be used in civil fields or public places.





Introduction

Self-circulation purifying tower has innovative design appearance, three-dimensional multi-faceted adjustable design; Intelligent control and multi-gear adjustment of air volume, reduce operating energy consumption, it not only can cope with the complex and changing working environment, but also does not require complex construction pipelines. It's a machine with multiple uses and flexible mobility. Applicable to the field of dust purification produced by welding, cutting and grinding in the integral industrial processing plant, solve the problems that large parts in the plant cannot be treated locally, and not easy to arrange the dust removal pipelines on site. It's not affected by manual operation habits, the lifting, transfer, and occupation of the workpiece are not affected either; The equipment has low noise and can also be used in civil fields or public places.



• Independent R & D, high efficiency and energy saving.


• Intelligent control multi-gear adjustment, air volume controllable, wind direction 360° adjustable wide angle.


• No piping, simple clean.


• Easy to clean ash, automatic ash cleaning, ensure continuity and high efficiency of production.


• Dust collection, container loading and unloading convenient, and filter funnel connection is sealed, do not leak dust.


• Intelligent control, can be equipped with automatic frequency converter, remote linkage function.


• PLC control system control, operation panel humanized design, easy to use.


• Use imported high-quality polyester filter material, filter surface covered with PTFE high-precision film, higher filtration accuracy, higher filtration efficiency.






Parameters




Parameters

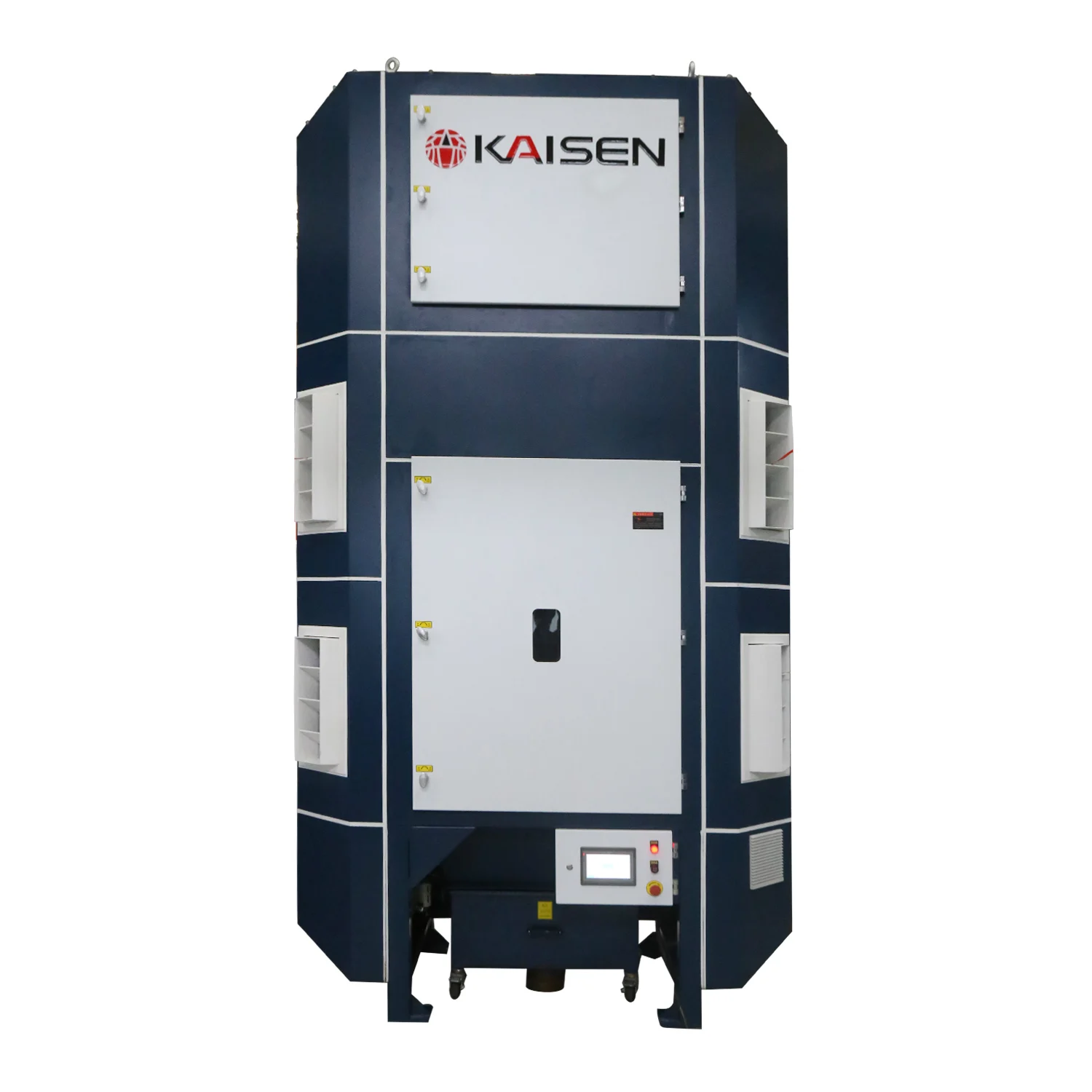

Model



KSZTA-12004



KSZTA-12006



Inlet Air Flow



7000/8500/13000±500 m3/h



8500/15000/19000±500 m3/h



Motor Power



5.5/7.5/11 kW



7.5/11/15 kW



Power Supply



3x 380V/50Hz



3x 380V/50Hz



Filter Material



Polyester + PTFE



Polyester + PTFE



Filtration Area



144 m²



216 m²



Filtration Efficiency



≥99.9%



≥99.9%



Filtration Precision



≥0.3μm



≥0.3μm



Filter Cartridge



4 PCS



6 PCS



Cleaning Method



Automatic Cleaning



Automatic Cleaning



Compressed Air



0.5~0.6 MPa



0.5~0.6 MPa



Noise Level



≤75±5 dB



≤75±5 dB



Dimension(WxDxH)



1900×1280×3600 mm



1900×1690×3600 mm



Weight



1410±50 kg



1410±50 kg
