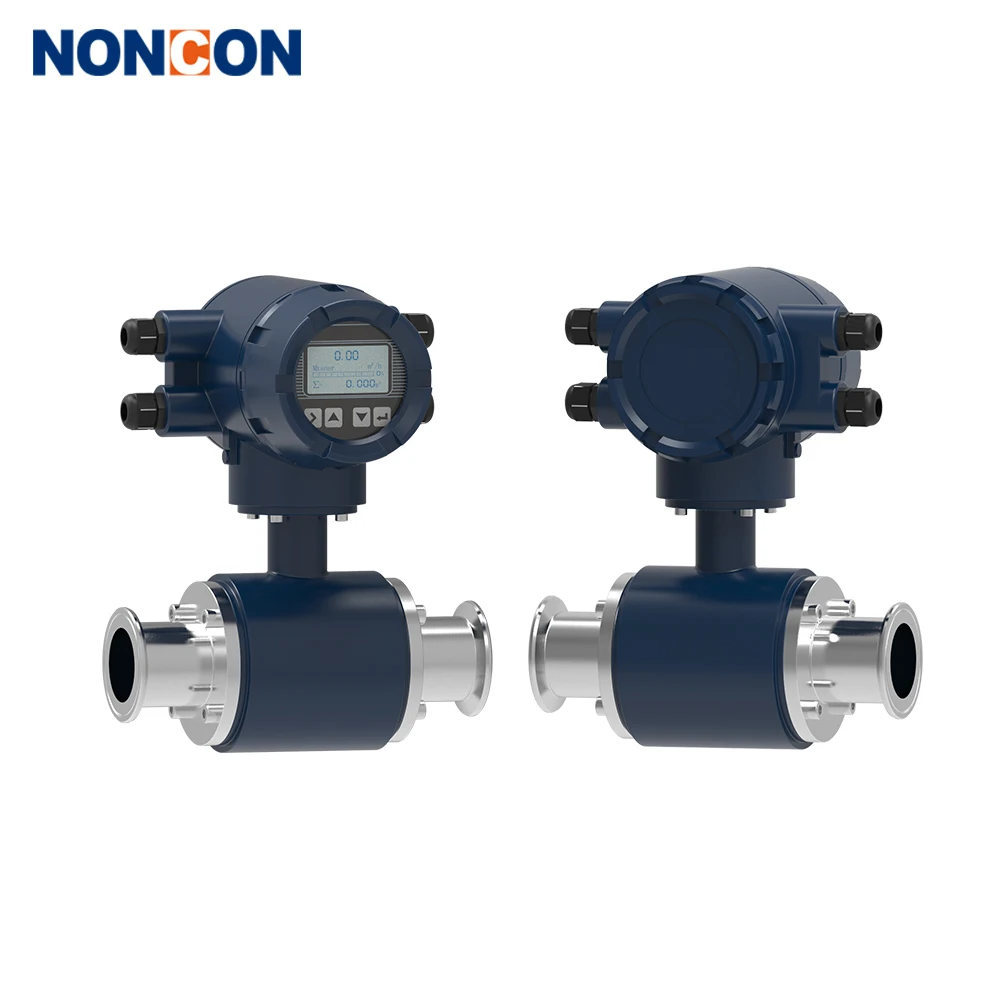

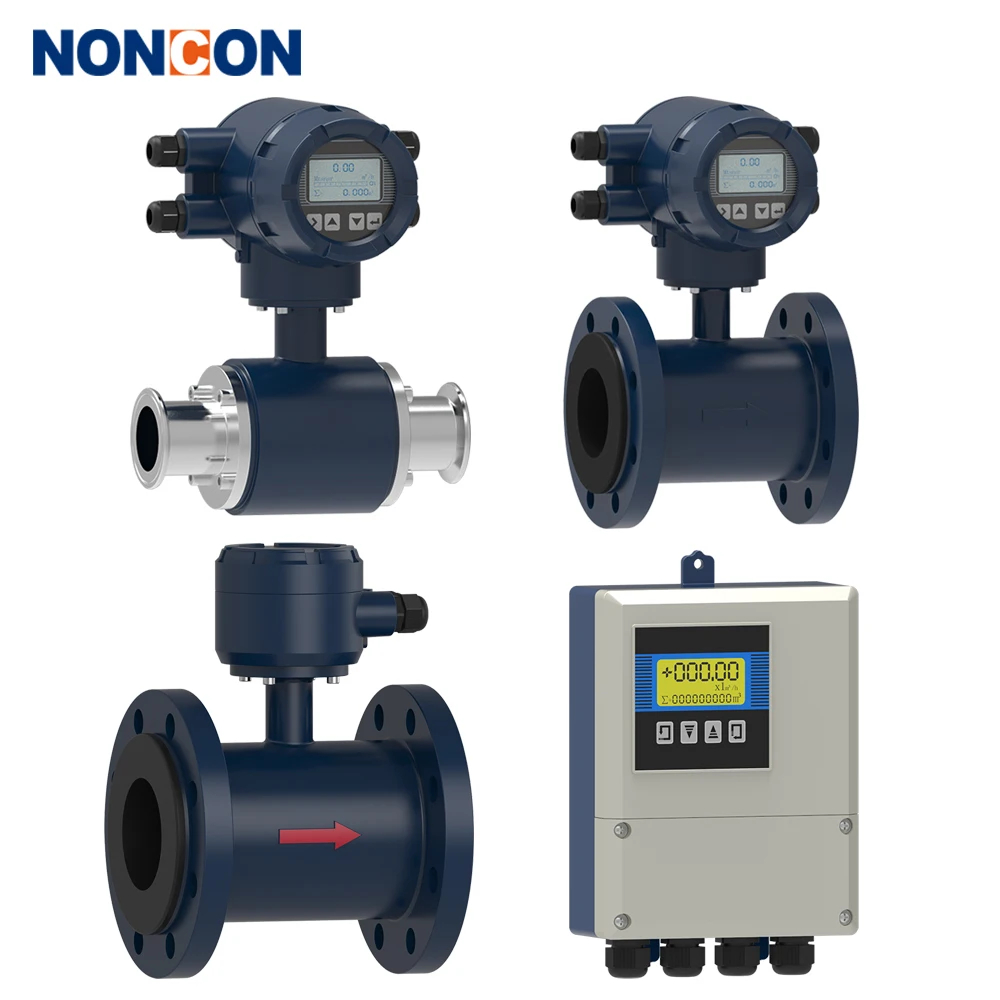

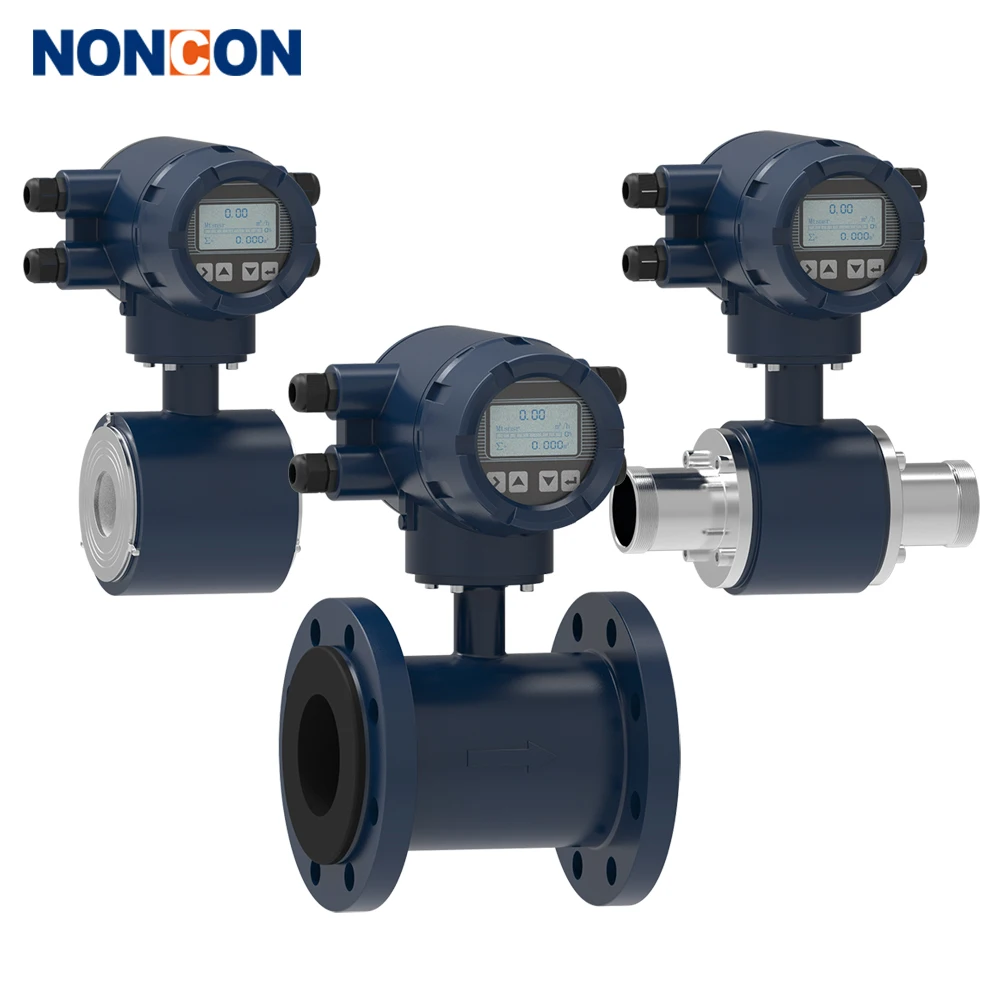

smart digital electromagnetic flow meter magnetic transmitter water flow meter electromagnetic magnetic flowmeter
- Category: >>>
- Supplier: Hubei Nankong Instrument Technology Co. Ltd.
Share on (1600201269256):
Product Overview
Description
Product Description
Electromagnetic flow meter flow range and flow rate comparison
Calibler(mm) | 0.5 m/s | 1 m/s | 2 m/s | 4 m/s | 5 m/s | 6 m/s | 8 m/s | 9 m/s | 10 m/s |
10 | 0.14 | 0.28 | 0.57 | 1.1 | 1.4 | 1.7 | 2.3 | 2.5 | 2.8 |
15 | 0.32 | 0.64 | 1.3 | 2.5 | 3.2 | 3.8 | 5.1 | 5.7 | 6.3 |
20 | 0.57 | 1.1 | 2.3 | 4.5 | 5.7 | 6.8 | 9.0 | 10 | 11 |
25 | 0.88 | 1.8 | 3.5 | 7.1 | 8.8 | 11 | 14 | 16 | 17.6 |
32 | 1.4 | 2.9 | 5.8 | 12 | 14 | 17 | 23 | 26 | 28.9 |
40 | 2.3 | 4.5 | 9.0 | 18 | 23 | 27 | 36 | 41 | 45.2 |
50 | 3.5 | 7.1 | 14 | 28 | 35 | 42 | 57 | 64 | 70 |
65 | 6.0 | 12 | 24 | 48 | 60 | 72 | 96 | 107 | 119 |
80 | 9.0 | 18 | 36 | 72 | 90 | 109 | 145 | 163 | 180 |
100 | 14 | 28 | 57 | 113 | 141 | 170 | 226 | 254 | 282 |
125 | 22 | 44 | 88 | 177 | 221 | 265 | 353 | 397 | 441 |
150 | 32 | 64 | 127 | 254 | 318 | 382 | 209 | 572 | 636 |
200 | 57 | 113 | 226 | 452 | 565 | 678 | 904 | 1017 | 1131 |
250 | 88 | 177 | 353 | 707 | 883 | 1060 | 1413 | 1590 | 1767 |
300 | 127 | 254 | 509 | 1017 | 1272 | 1526 | 2035 | 2289 | 2545 |
350 | 173 | 346 | 692 | 1385 | 1731 | 2077 | 2769 | 3116 | 3464 |
400 | 226 | 452 | 904 | 1809 | 2261 | 2713 | 3617 | 4069 | 4523 |
450 | 286 | 572 | 1145 | 2289 | 2861 | 3434 | 4578 | 5150 | 5725 |
500 | 353 | 707 | 1413 | 2826 | 3553 | 4239 | 5652 | 6359 | 7069 |
600 | 509 | 1017 | 2035 | 4069 | 5087 | 6104 | 8139 | 9156 | 10180 |
700 | 692 | 1385 | 2769 | 5539 | 6924 | 8308 | 11078 | 12463 | 13847 |
Product selection
model | Model | Description | |
LDB- | Full pipe type electromagnetic flowmeter | ||
LDC- | Plug-in type electromagnetic flowmeter | ||
Nominal diameter | 10-2200mm | ||
Assembly | S | Integrated type | |

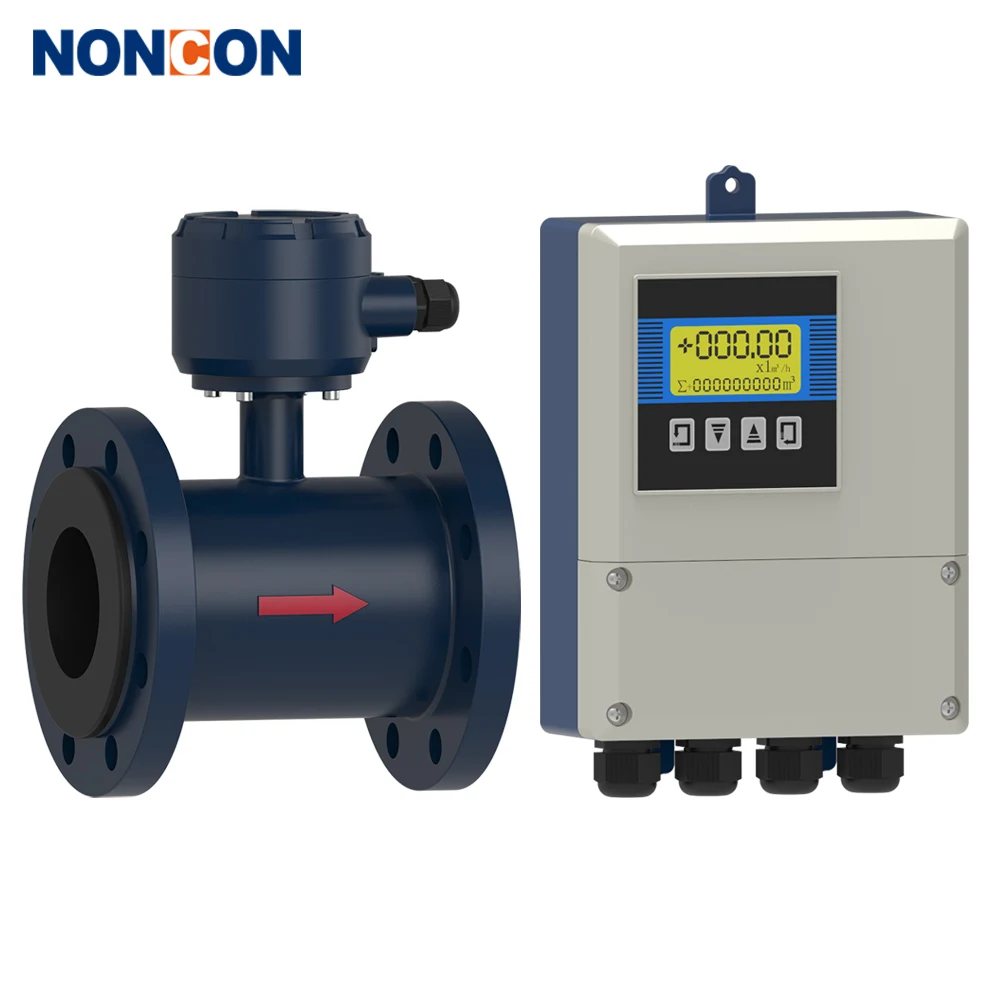

L | Separate type | ||
Electrode material | M | Stainless steel | |
T | Ti (titanium) | ||
D | Ta(tantalum) | ||
H | Hastelloy | ||
P | Pt platinum | ||
N | Ni nickel | ||
Output signal | 0 | No output | |
1 | 4-20mA/1-5KHz | ||
2 | 4-20mA | ||
Lining material | X | Rubber | |
F | PTFE | ||
P | Polyethylene | ||
J | Polyurethane rubber | ||
Local display | 0 | No local display | |
1 | Local display | ||
Communication | 0 | No communication | |
1 | RS485 communication (MODBUS protocol) | ||
2 | HART communication | ||
3 | GPRS wireless communication | ||
Grounding ring | 0 | Without grounding ring | |
1 | With grounding ring | ||
2 | Ground electrode | ||
Upper limit flow | (n) | Upper limit flow (range) m3/h | |
