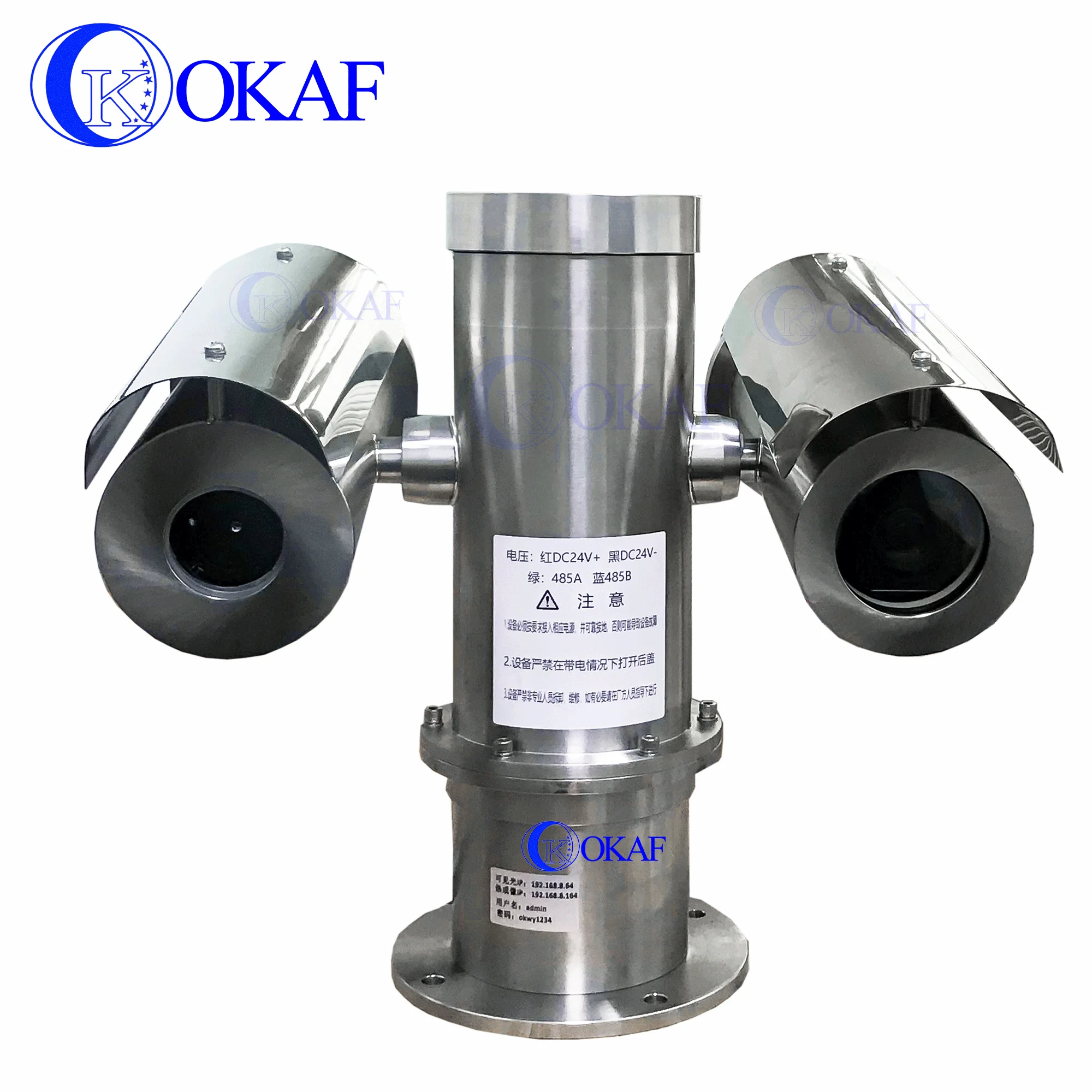

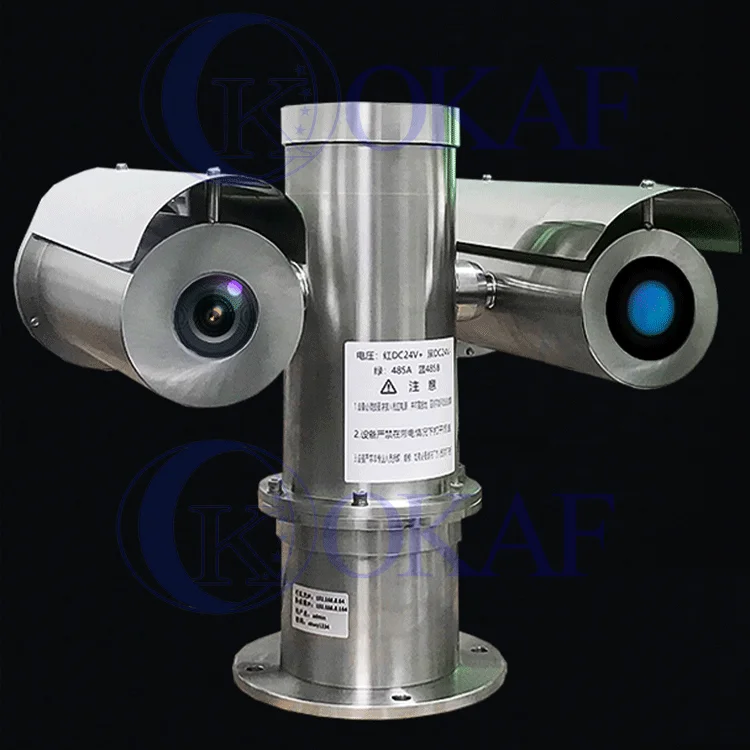

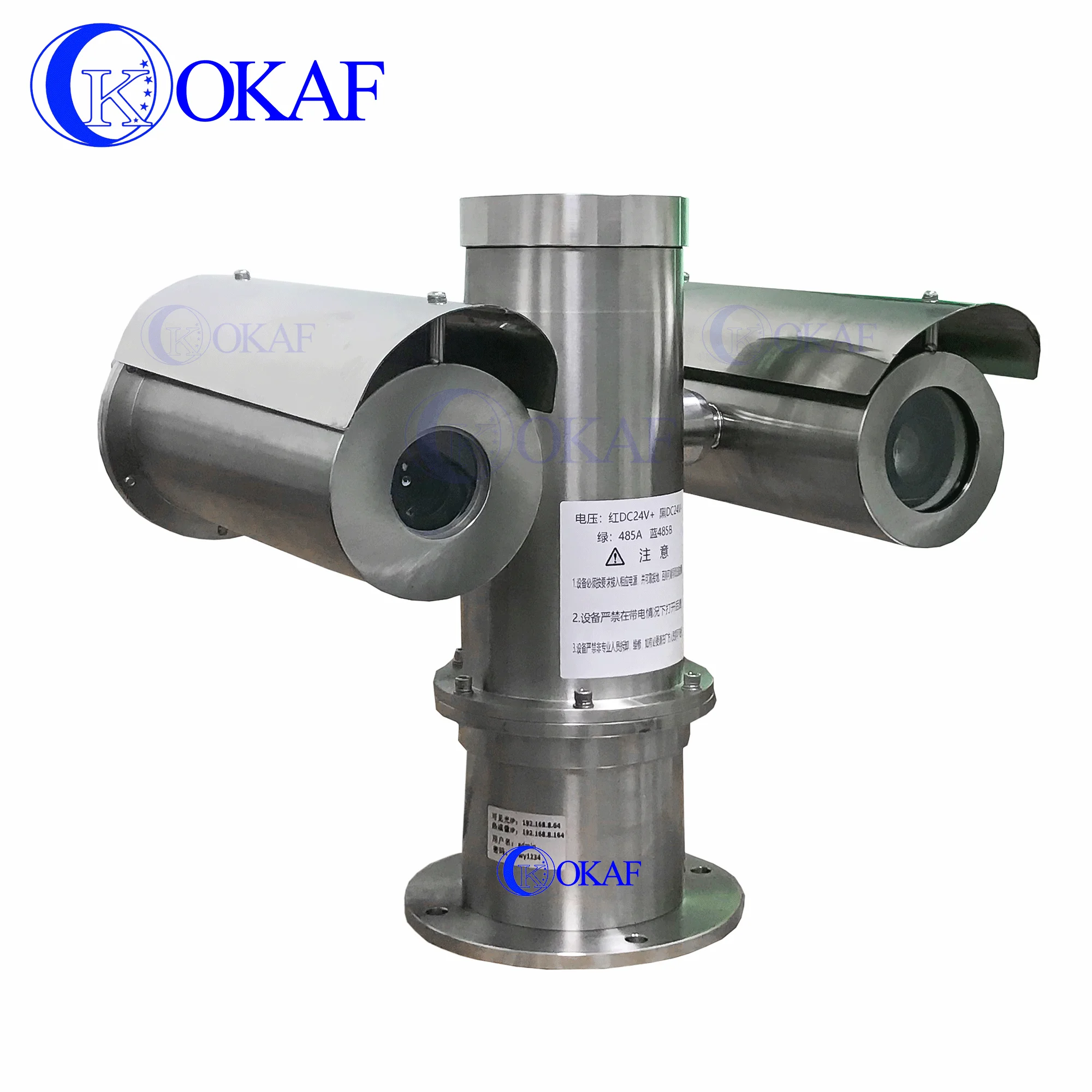

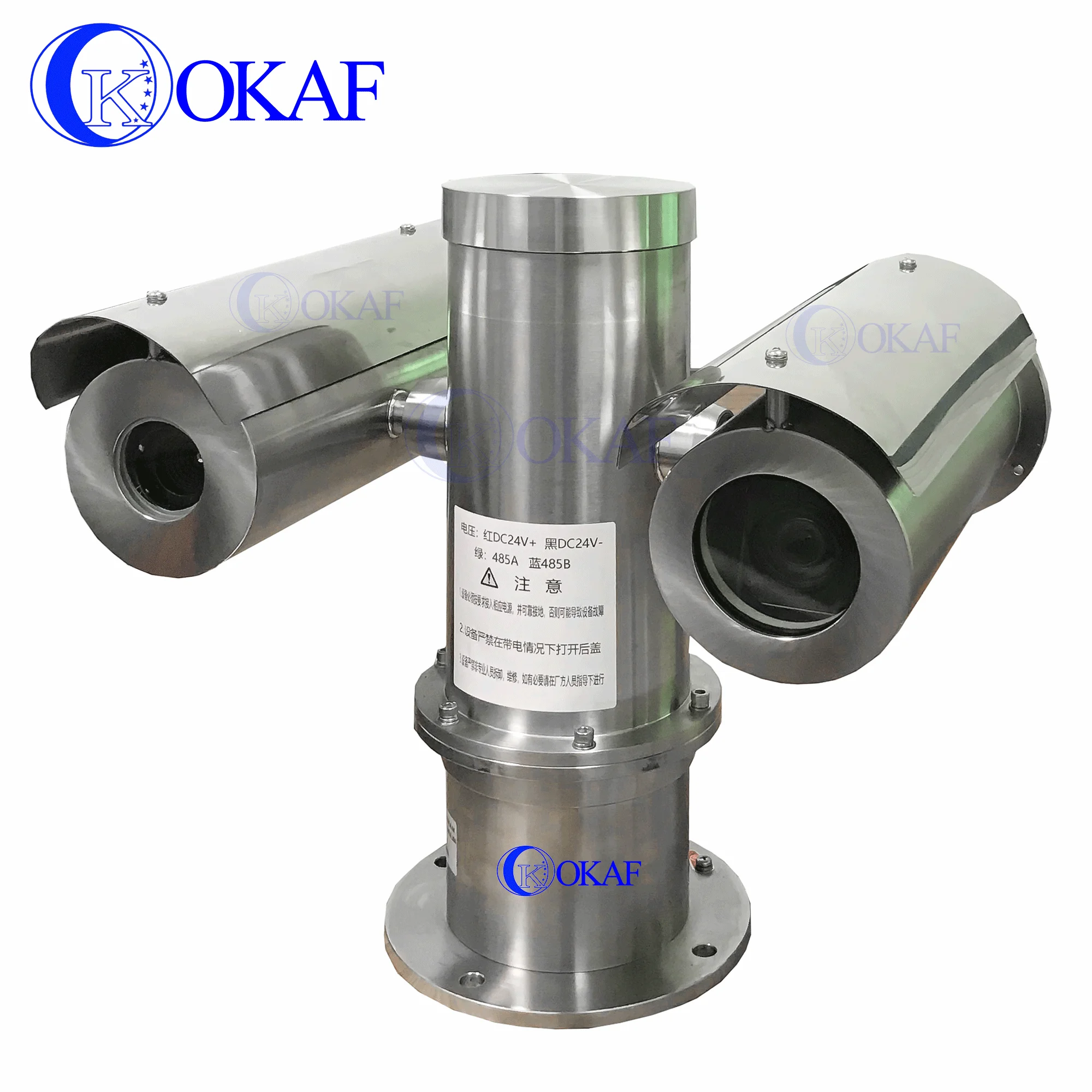

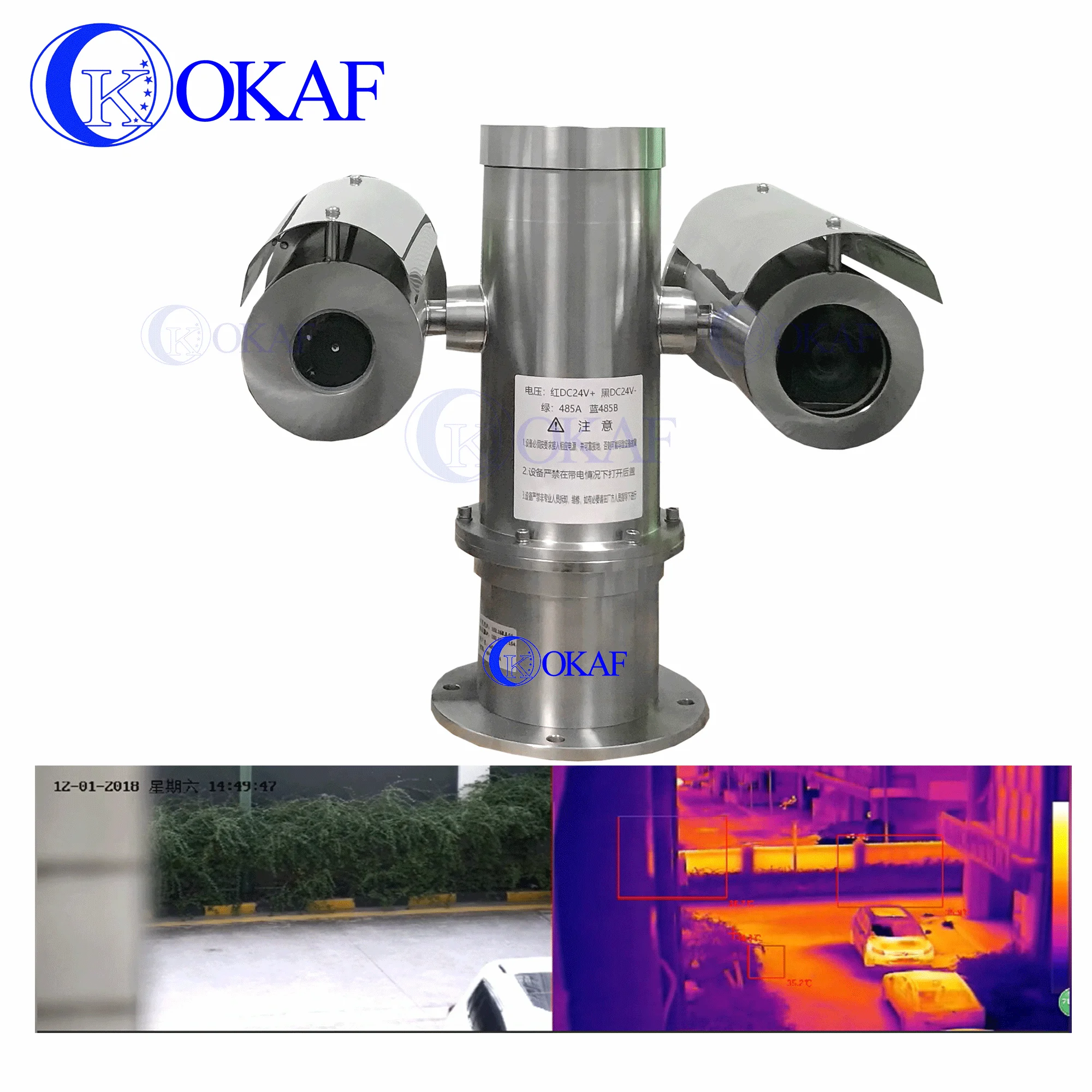

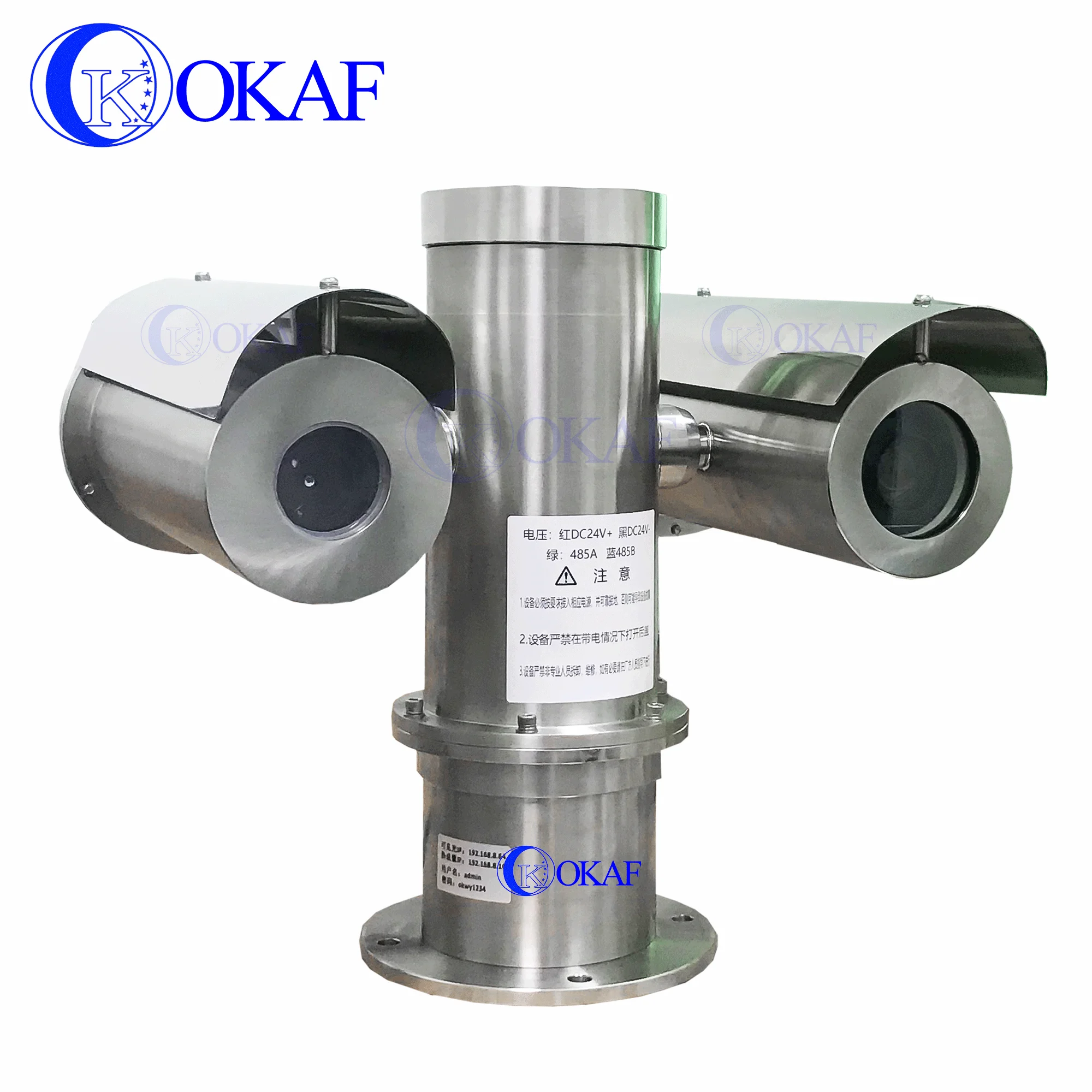

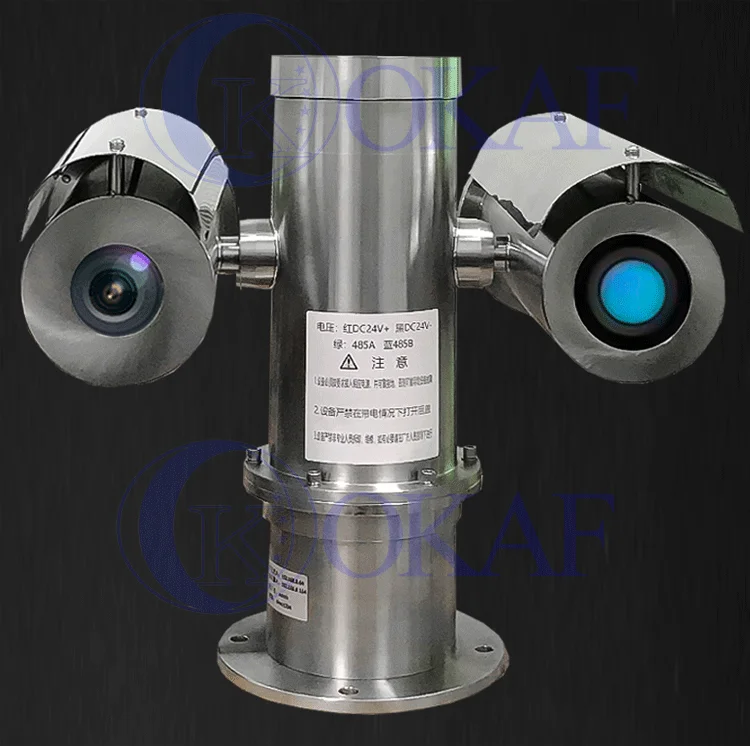

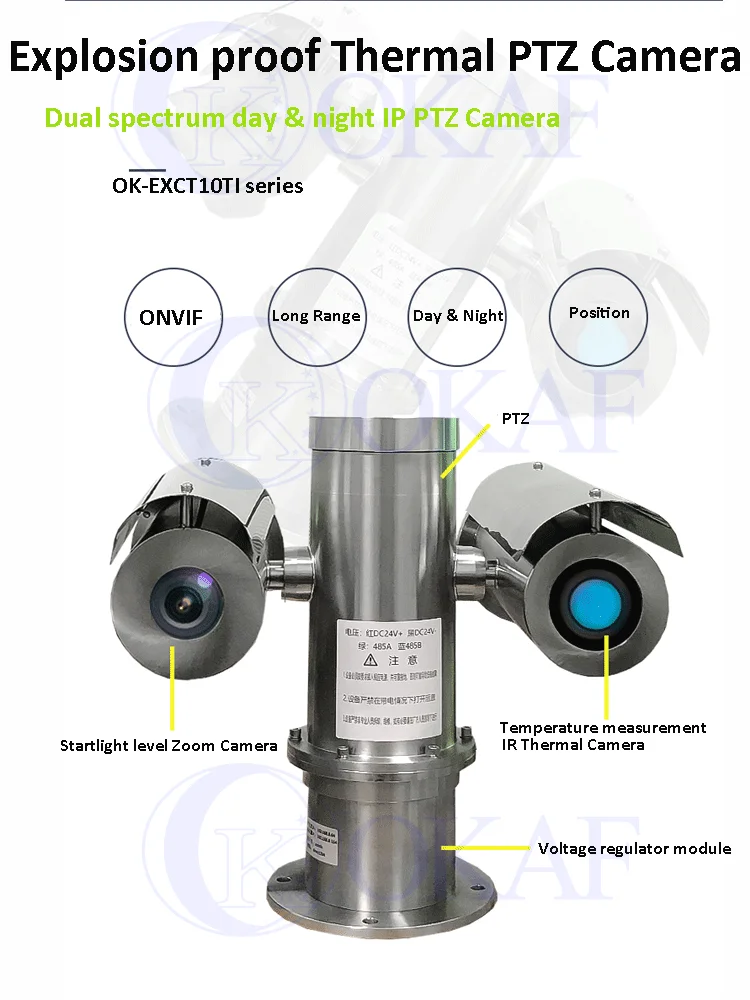

Long Range Night Vision Explosion Proof Stainless Steel Thermal PTZ camera CCTV Security Thermal Camera

 Specification

• Stainless Steel explosion-proof material.

•  Integrated infrared thermal camera, visible light camera,PTZ control system, day and night omnidirectional video surveillance.

• Using thermometer, no light source limitation, clear imaging.

• Day camera 2.0 megapixel starlight level low illuminance color camera for detail observation.

• The zoom camera and the thermal imaging camera are managed and set by the same IE or client.

• Support standard ONVIF protocol, back-end compatible with market standard onvif recorder recording and control.

• 3D positioning function, which can realize frame selection amplification and click centering function,  easy operation and improve equipment usability.

• The universal variable speed pan/tilt realizes all-round blind angle monitoring and achieves high-precision positioning.

• The first independent defogging and defrosting module . Solves the fogging of the camera lens caused by the temperature difference in the outdoor environment.

 • The PTZ comes standard with an original voltage regulator module that filters the instantaneous unstable current of the vehicle and keeps the gimbal stable.

Thermal Camera

♦ Excellent thermal image effect 384*288 / 640*480 resolution.

♦ AGC automatic gain adjustment, 3D noise reduction, DDE image detail enhancement.

♦ Black hot / white hot / iron red / rainbow and other fake colors (14 kinds of pseudo color adjustable).

♦ Accurate temperature measurement, the highest temperature cross positioning.

♦ Support 1 line temperature measurement 10 box temperature measurement and 10 point temperature measurement.

♦ Temperature range: -40 ℃ -550℃ temperature measurement accuracy: ± 2 ℃ (or ± 2% of the range).

♦ Abnormal temperature alarm, support 2 hardware alarm input, 2 alarm output.

♦ Support standard ONVIF protocol and support SDK.

Zoom camera

♦ Resolution 2 megapixel HD, 1920 * 1080P.

♦  20x/30x optical zoom optional.

♦ Standard ONVIF protocol. Support H.264 & H.265.

PTZ

♦ 360° continuous rotation in the horizontal direction, vertical 60°~-90°, keying speed level 0.1°-110°/s vertical 0.1°-50°/s.

♦ 256 preset positions with preset point video freeze function.

♦ The camera compartment uses high-quality heating parts to make the entire warehouse body work together to form an effective anti-fog and defogging pattern.

♦ The pan/tilt adopts the integrated structure of the upper and lower spindles, so that the camera head and infrared bin of the gimbal will not be bumped and misplaced.

♦ The PTZ is equipped with an original voltage regulator module to filter the instantaneous unstable current of the vehicle and keep the PTZ stable.

Manufacturing standard:

•  GB3836.1-2010 "Electrical Equipment for Explosive Gas Atmosphere Part 1: General Requirements"

• GB3836.2-2010 "Electrical Equipment for Explosive Gas Atmosphere Part 2: Flameproof Type "d"

• GB 12476.1-2013 "Electrical Equipment for Combustible Dust Environment Part 1/Part 5: General Requirements, Enclosure Protection Type "tD".

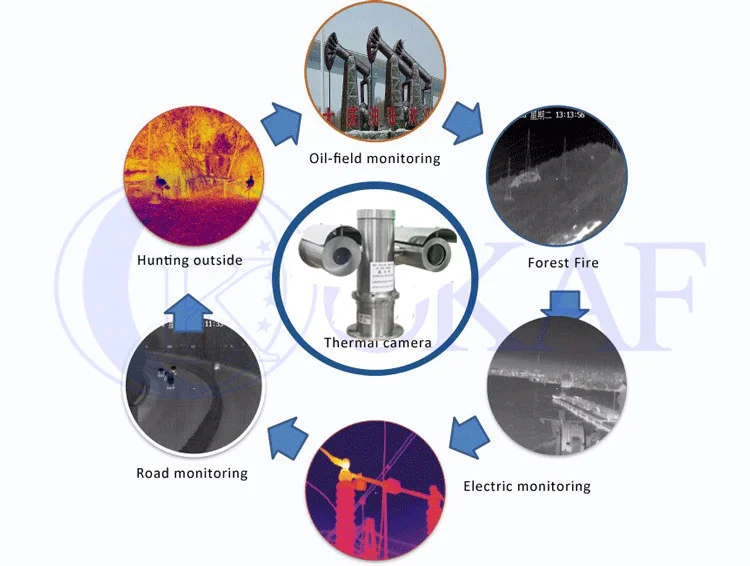

 Okaf Explosion proof thermal ptz cameras have been widely applicable to petroleum, chemical industry, docks, oil depots, ships, drilling platforms, gas stations, mines, ports, aerospace, industry, medicine, steel, fireworks production, machinery, food processing and storage, etc.

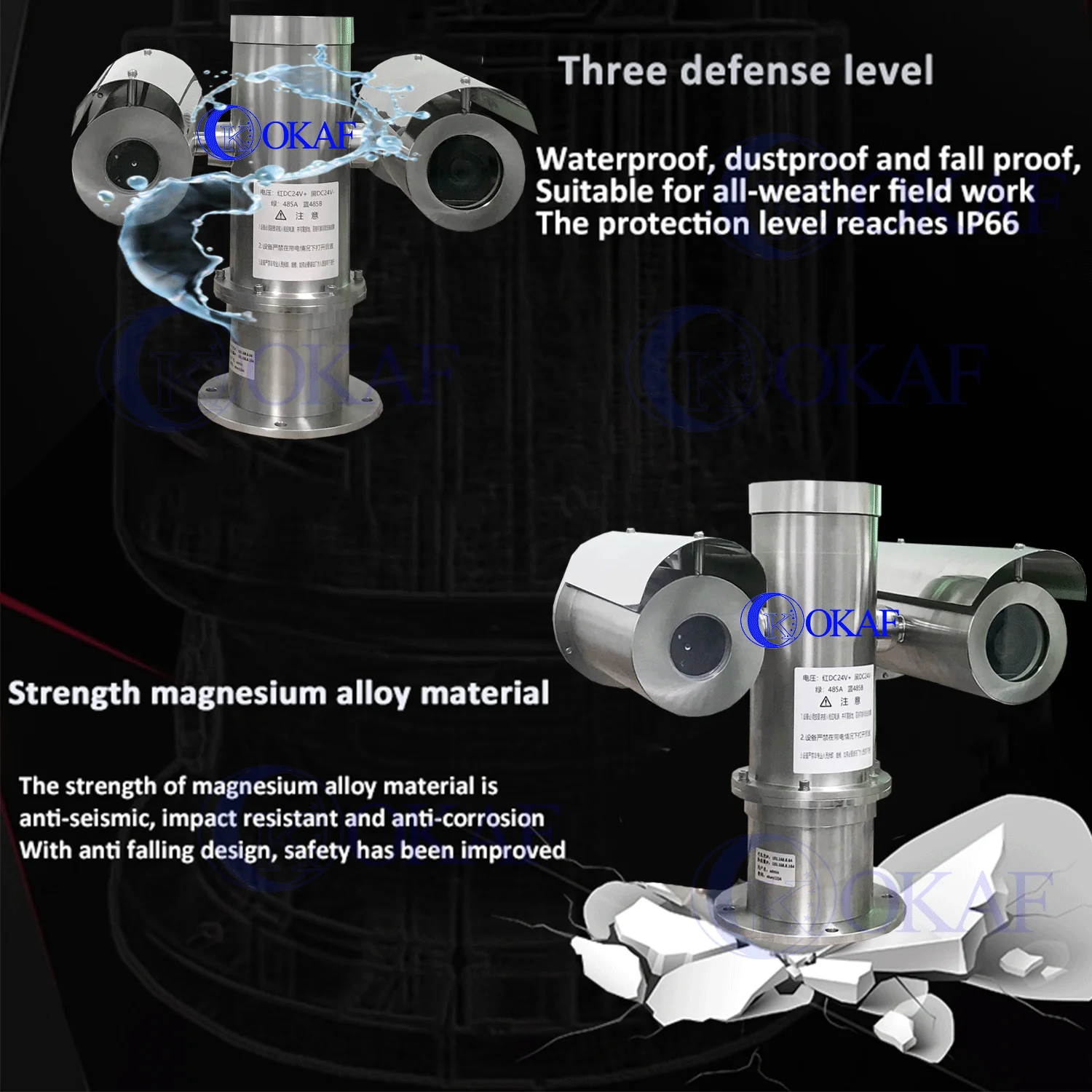

The shell is made of stainless steel, and the window is made of double-sided waterproof film coated tempered glass, which has a reasonable structure and a simple appearance. It has functions such as preset position, automatic scanning, automatic cruise, tracking, and watch position. Can be widely used in important fields such as border defense, industry, warehouses, ships, and dangerous goods production.

Technical data

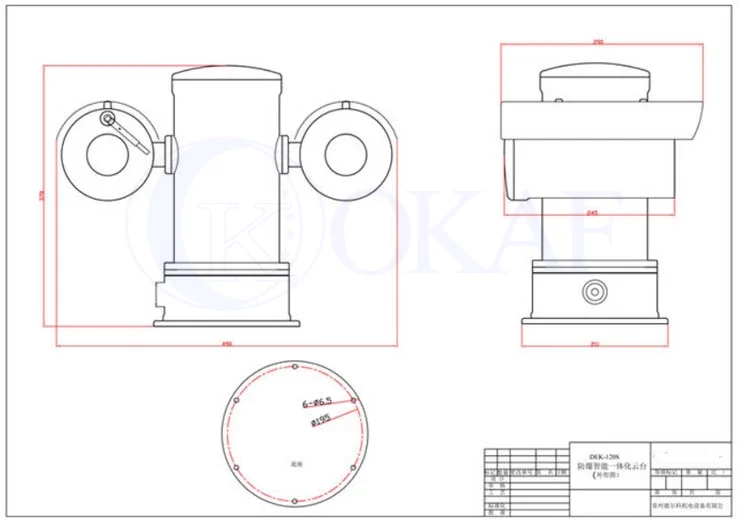

Dimension of OKAF Explosion proof thermal ptz camera

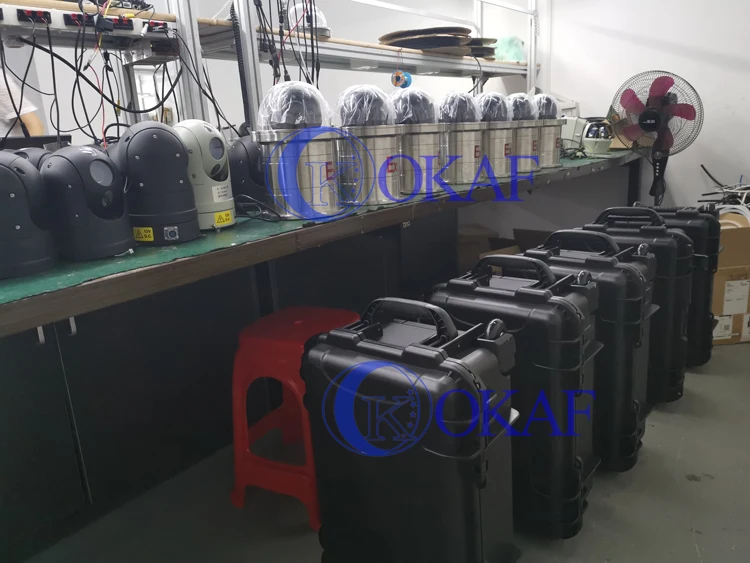

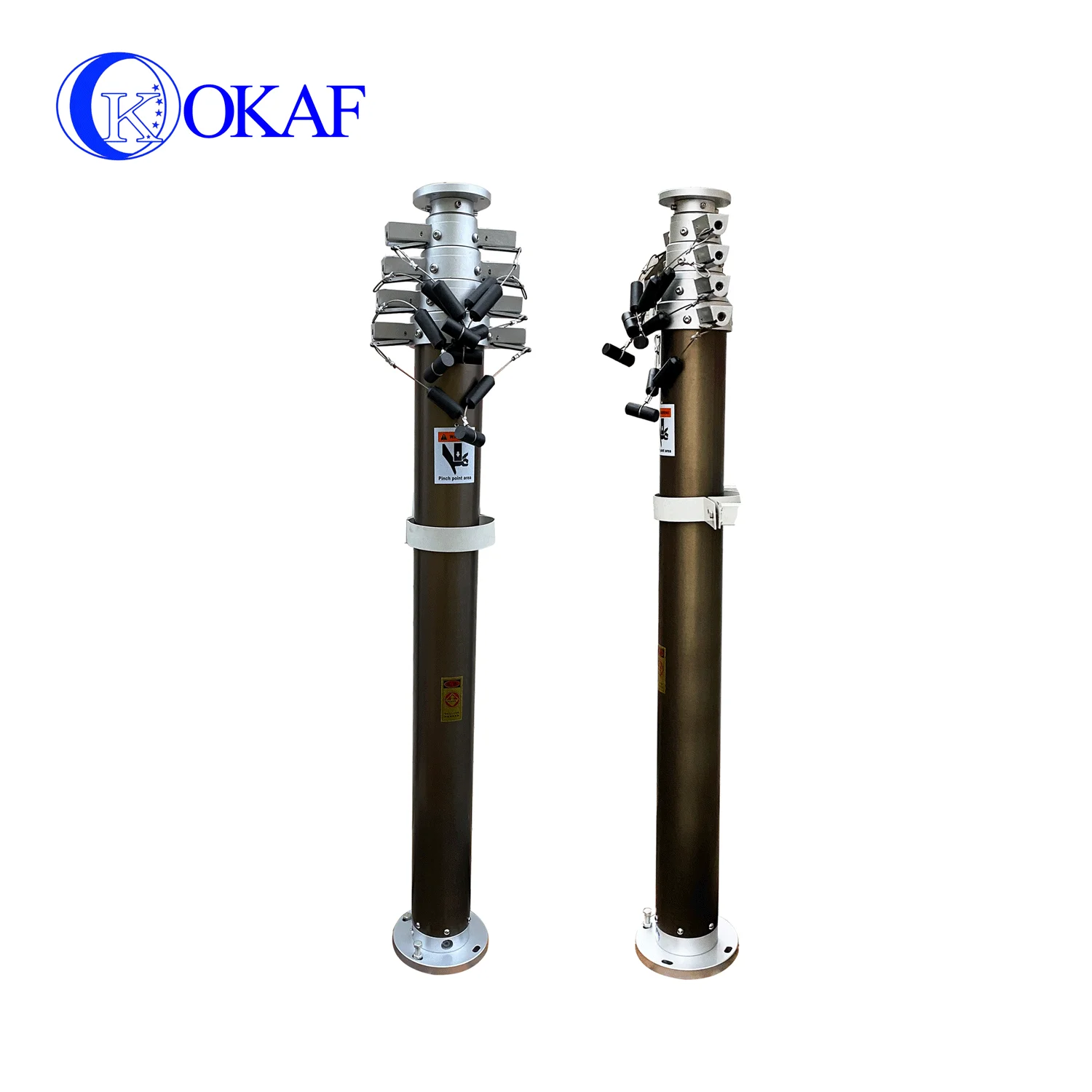

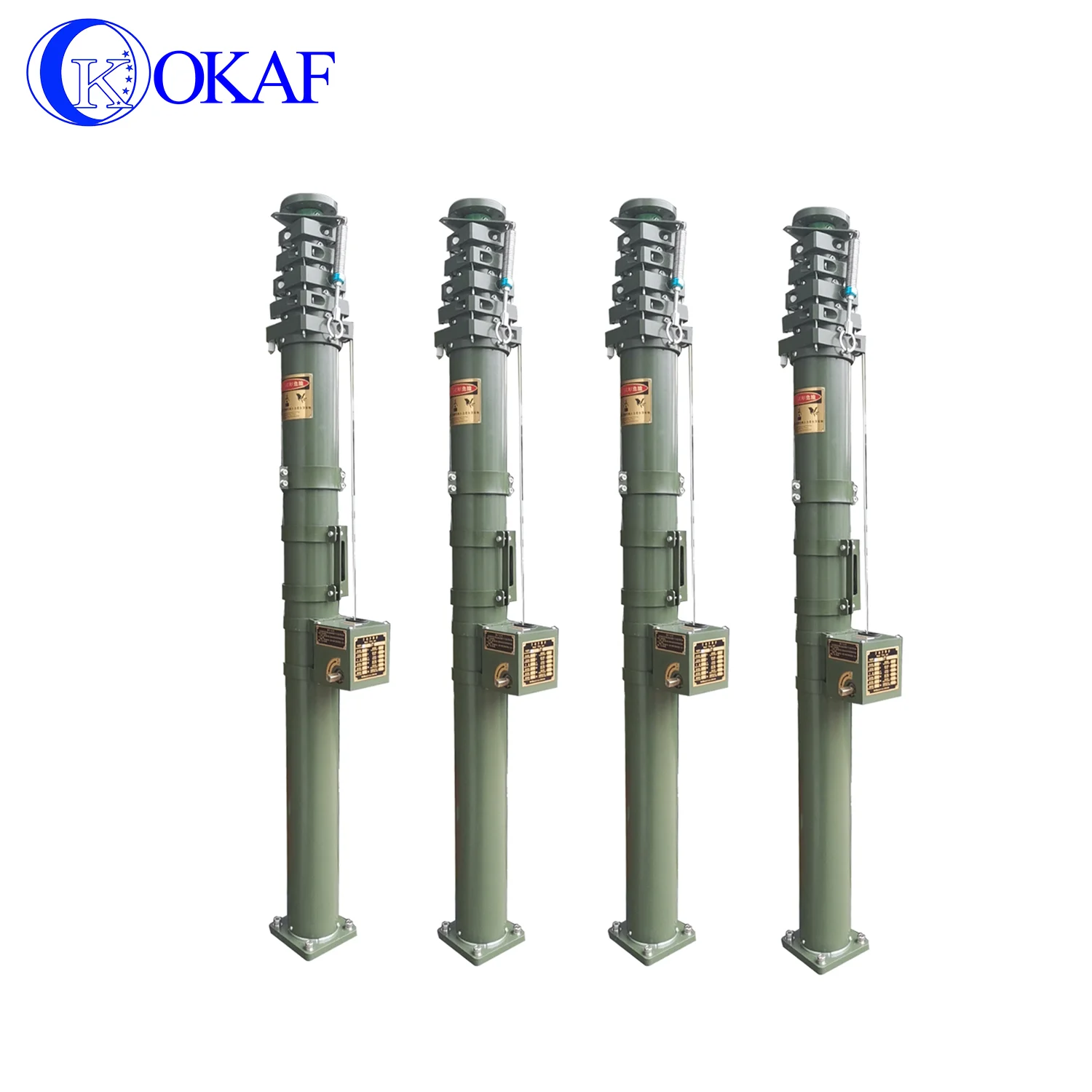

Shenzhen Okaf Technology Co., Ltd has specialized in CCTV surveillance products such as vehicle PTZ Camera, 4G deployment dome camera, telescopic mast since 2005. It is one of the most professional CCTV surveillance system developer & manufacturer in China nowadays. Our main products apply to public security departments such as: vehicle PTZ Camera, 4G deployment dome camera, vehicle mobile lifter, vehicle mobile lighting devices, dynamic forensics system, highway patrol and rescue system, fire emergency rescue system, urban management law enforcement system, mobile commanding system, operation commanding system etc.

Q1.: How far the detection distance of your Vehicle mounted explosion proof thermal image camera ?

A1.: The detection distance of the thermal camera depends on the size of the lens. For 15mm lens, the human detection distance would be about 590m, and vehicle detection distance would be about 800m. We have difference sizes of the lens for optional.

Q2. Does your thermal imaging explosion proof PTZ camera have a temperature measurement function?

A2. Yes. Our thermal ptz camera have a temperature measurement function which could show the temperature of objects.

Q3. Is there a zoom camera too ?

A3. Yes. There is a zoom camera( 2.0MP 20x optical zoom) and a thermal camera. and the camera is 360 degree rotation.

Q4. Can I have a sample first ?

A4. Sure. Sample order is welcome.
