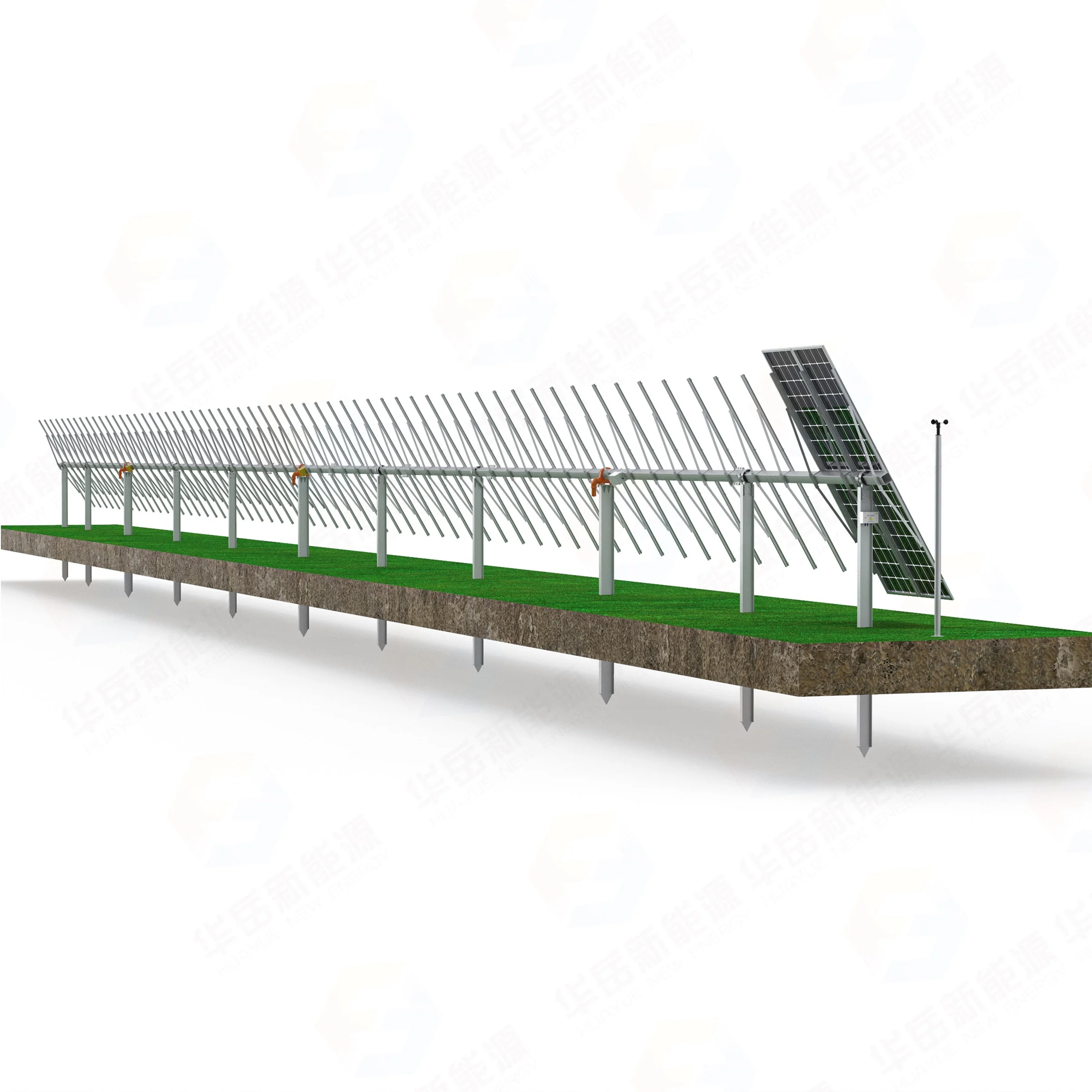

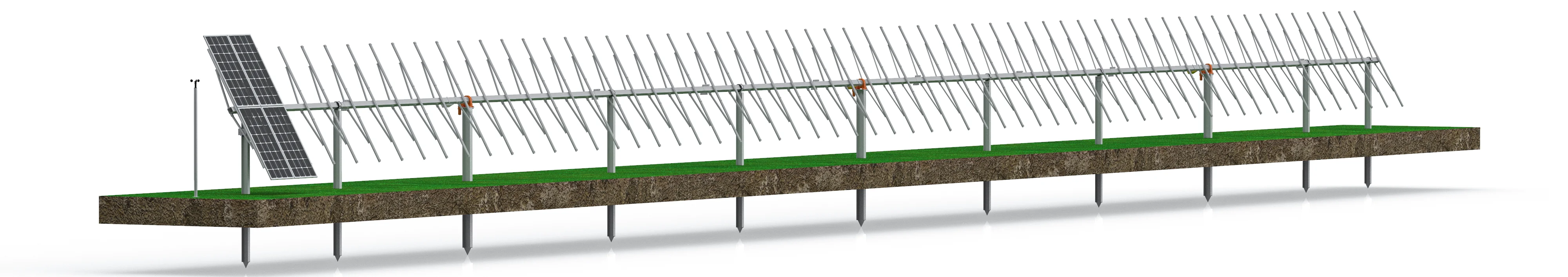

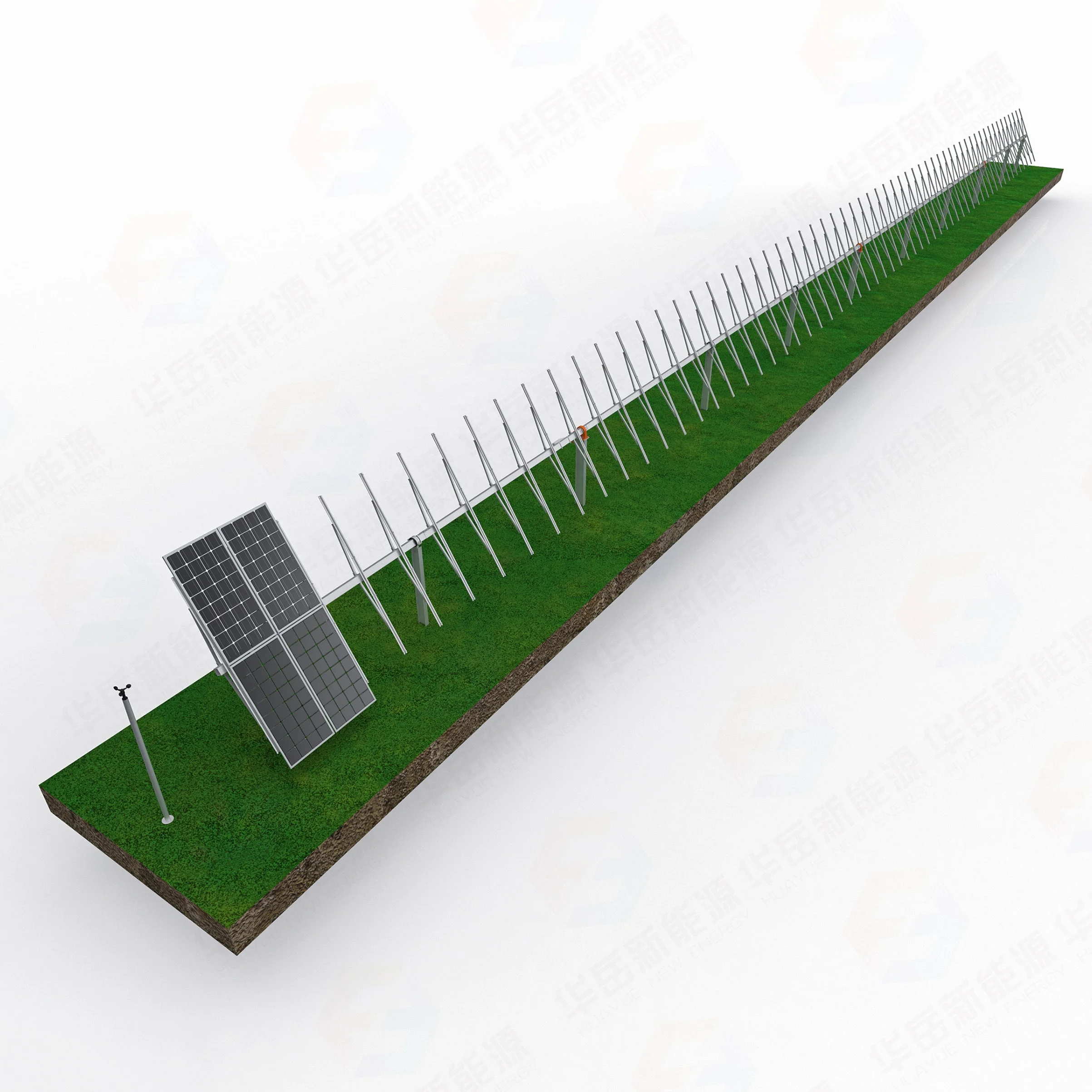

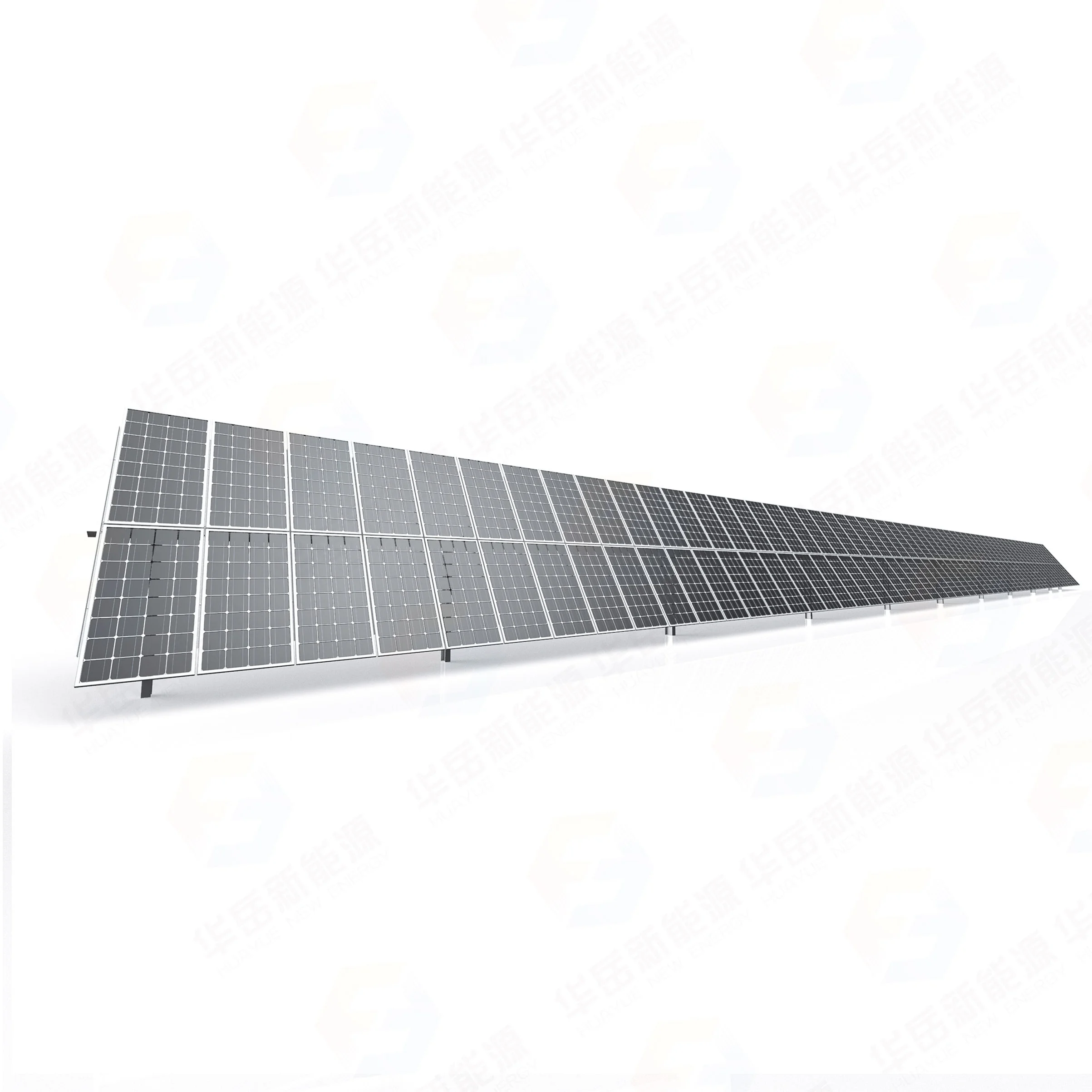

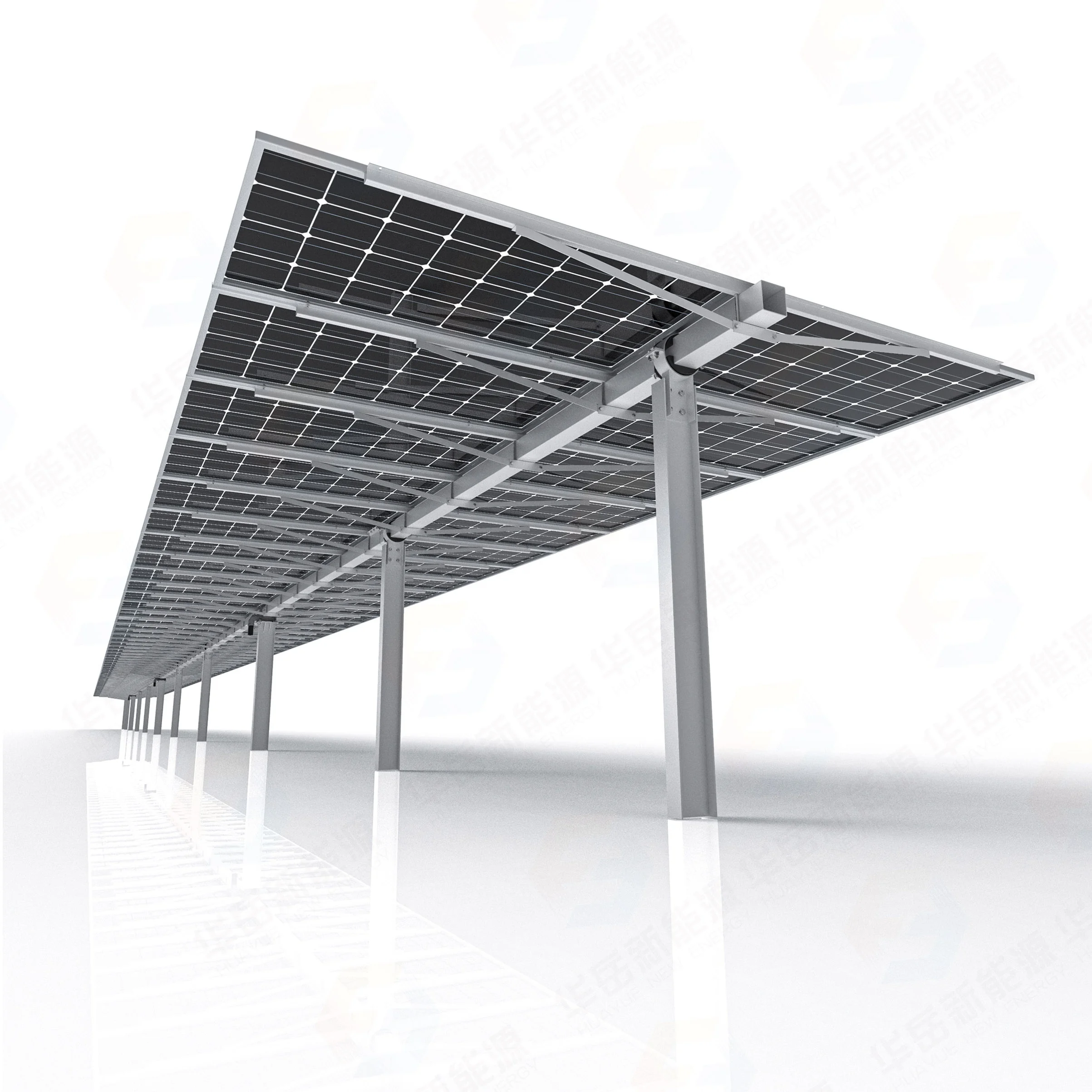

53kw HYP 2 120PV 78 IR M 3SD GPS Solar Tracking Renewable Energy Saving Solar Tracking Bracket Single Axis Sun Tracker
- Category: Solar Tracker >>>
- Supplier: Shandong Huayue New Energy Co. Ltd.
Share on (1600201366243):
Product Overview
Description
Power generation comparison
Hot Products Environmental Protection New Energy 1 Axis Sun Tracker Bracker
1.The structure is simple, the parts are highly pre assembled, and the construction time is saved.

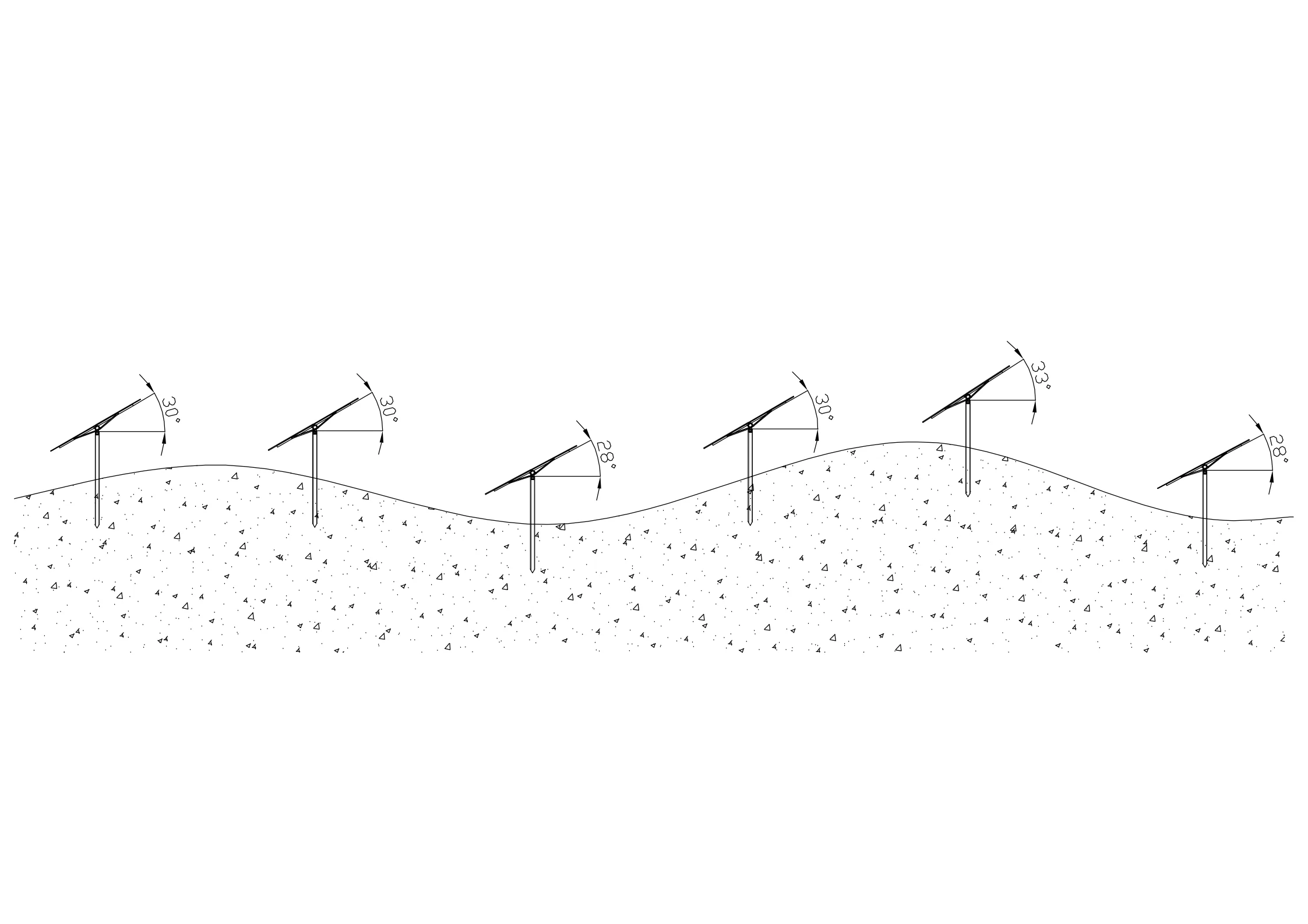

2.Independent driving single row design, no linkage rod, strong terrain adaptability, high plot ratio.
3.Strong wind protection, optional with rain cleaning mode, automatic snow removal mode.
4.IP66 grade aviation plug connection is adopted, and the system is free of debugging.
5.It can communicate with the inverter in real time, read the output data of the inverter and calculate the best tracking angle.
6.Photovoltaic power generation can be increased by 20-35%.
6.Photovoltaic power generation can be increased by 20-35%.

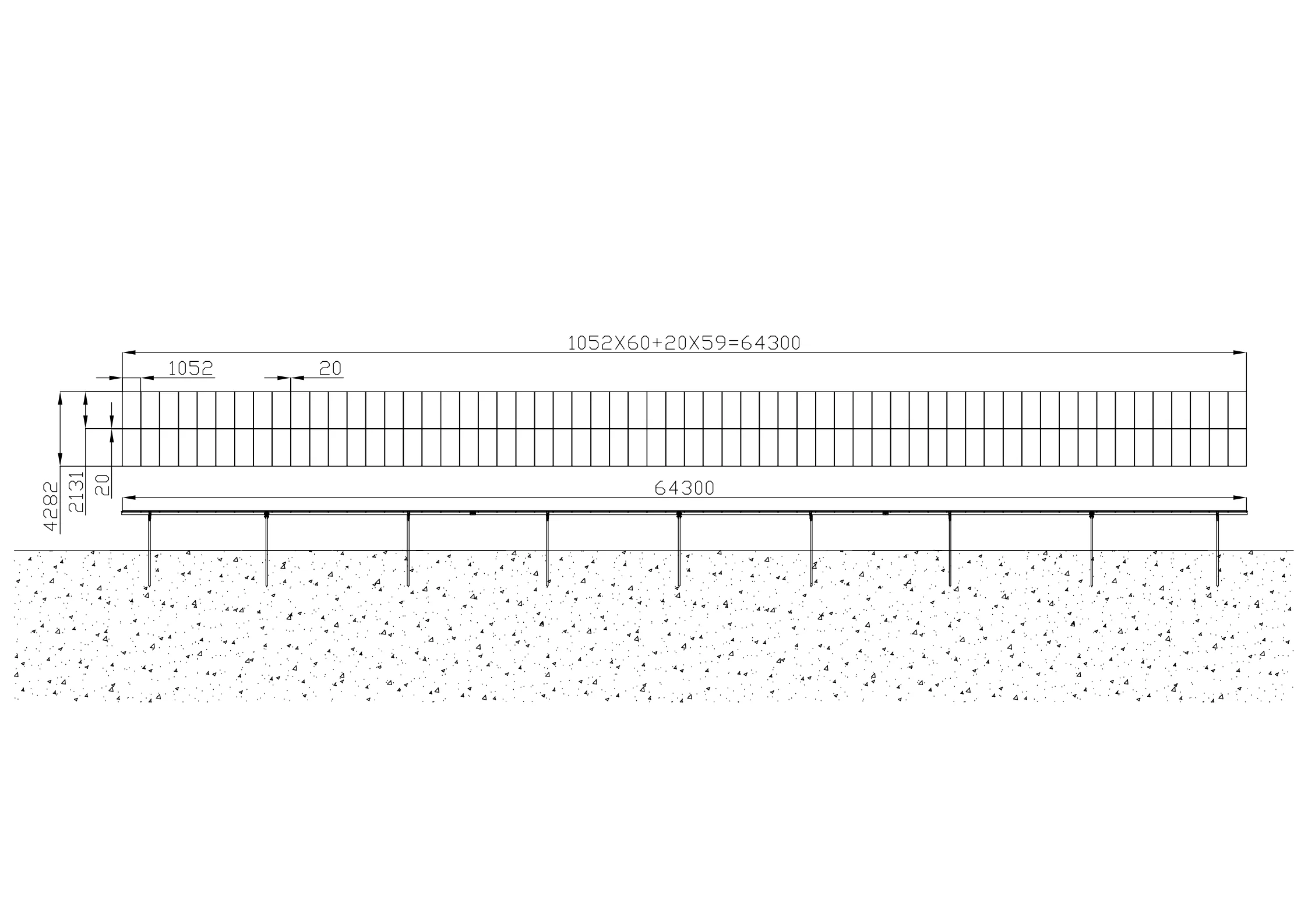

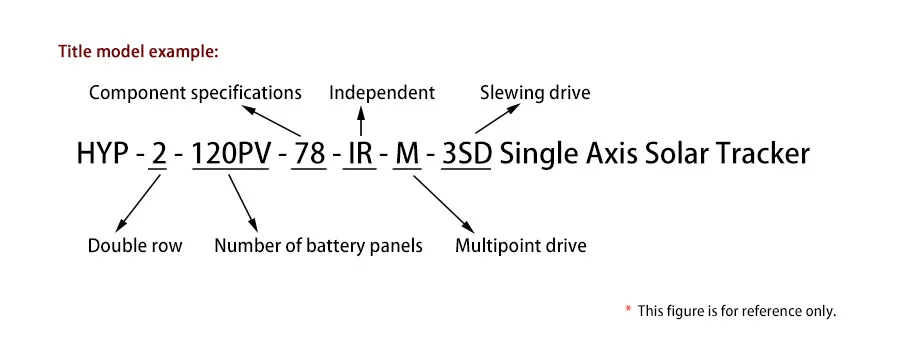

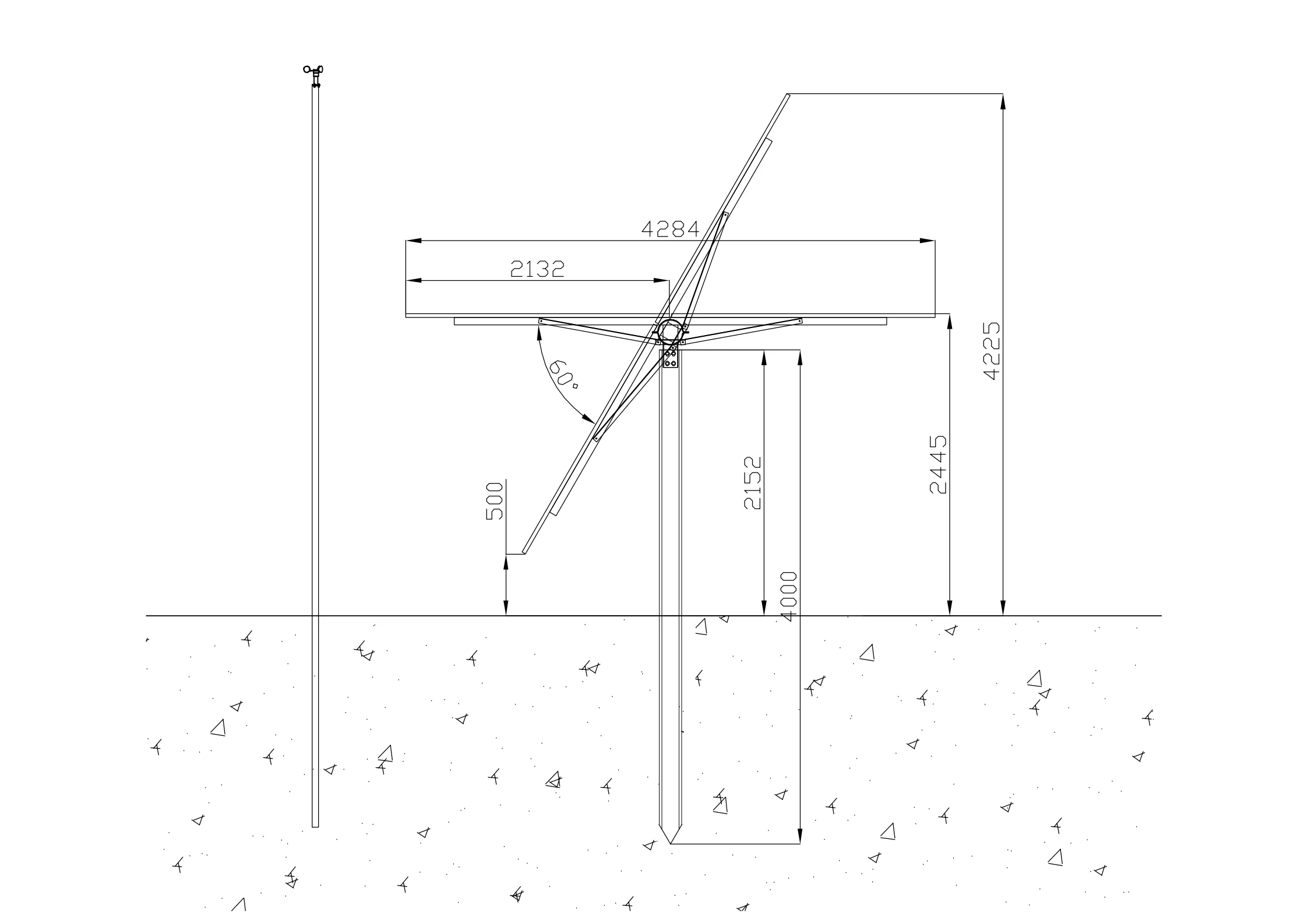

HYP-2-120PV-78-IR-M-3SD Single Axis Solar Tracker Structural Parameters | ||||||
Solar Panel Type | Fully compatible, double-sided components are recommended | |||||
Installed Capacity | 48～65kw | Number Of Solar Panels | 120 tablets | |||
Solar Panel Arrangement | Horizontal and vertical (2*60P) | Ground Clearance | 400mm (customizable) | |||
Grid Area (㎡) | ≈270㎡ | Area | 1.1-1.4 (HA) / MW | |||
Number Of Units Per MW | 15~21 sets/MW | System Weight | ≈2900kg/set | |||
North South Slope (°) | < 20° (customizable) | East West Slope | No restrictions | |||
Bracket Material | Hot dip galvanized steel | Main Material | Q235B / Q355B | |||
Galvanizing Thickness | ＞85um | Fastener Material | 304 stainless steel | |||
Protection Of Wind Speed | 17 m/s | Snow Load | 0.8KN/㎡ | |||
Mechanical Design Life (y) | ＞25 years | Basic Form | Integrated steel pile rammed | |||
Survival Wind Speed | 37 ~ 50M / S (ASCE7-10,other wind speeds can be customized) | |||||
Design Specification | ASCE7 EN1991 AS1170 GB50009-2012 | |||||
Warranty | Whole machine 5 years (except for man-made damage and force majeure) | |||||
Working Temperature (℃) | General default configuration -30℃ ~ +70℃ special customized configuration -50℃ ~ +85℃ | |||||
Single Axis Tracker Controller Parameters | ||||||
Control Algorithm | Astronomical algorithm + position sensor closed loop control | |||||
Controller Type | MCU | Control Core | MCU（32bit) | |||
Communication Type | RS485+CAN | Power Supply | External power supply (customizable self-powered) | |||
Night return Mode | Have | Backtracking Algorithm | Have | |||
Inverter Intelligent Tracking | Customizable | Protection Level | IP66 | |||
Anemometer | Have | Tracker SCADA | Customizable | |||
GPS | Have | Heavy Rain Cleaning Mode | Optional | |||
Snow Removal Mode | Optional | Drive Type | Multi-point drive design | |||
Driving Device | Slewing drive*3 | Azimuth Tracking Range (°) | -60°～+60°(customizable) | |||
Tracking Accuracy (°) | ≤1° | Power Supply Mode | have | |||
Driving Power (W) | 450W | Self-consumption Per Day | ≤0.5kWh | |||
Drive Protection | Have | |||||
Network Communication Type | WiFi / Bluetooth / wired / 4G （optional） | |||||
Network Communication Mode | RS485/LoRa | |||||
Rotation Position Protection Mode | Sensor protection + software protection | |||||
System Power Supply | L+N (two-phase input) 100V～240VAC (wide voltage input) (The PV string can be customized to take power from 1000～1500V lithiumbattery backup) | |||||

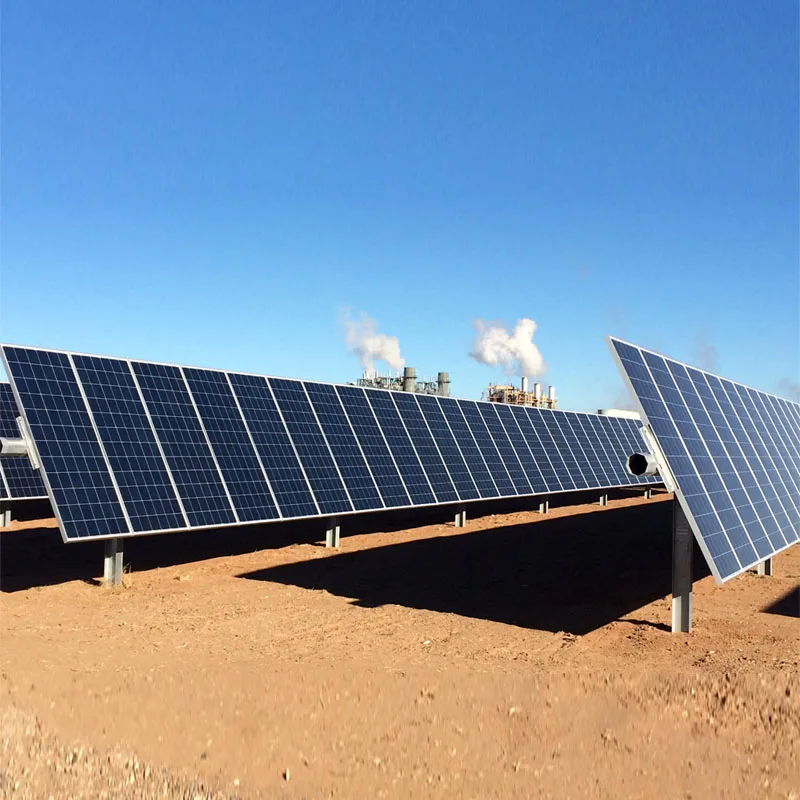

Examples of Project

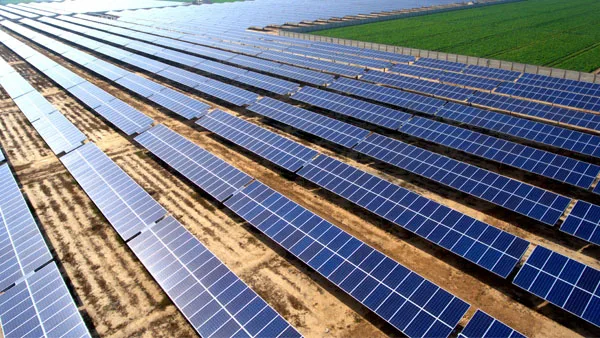

QingHai Project
Gansu Project
Certifications
About Us

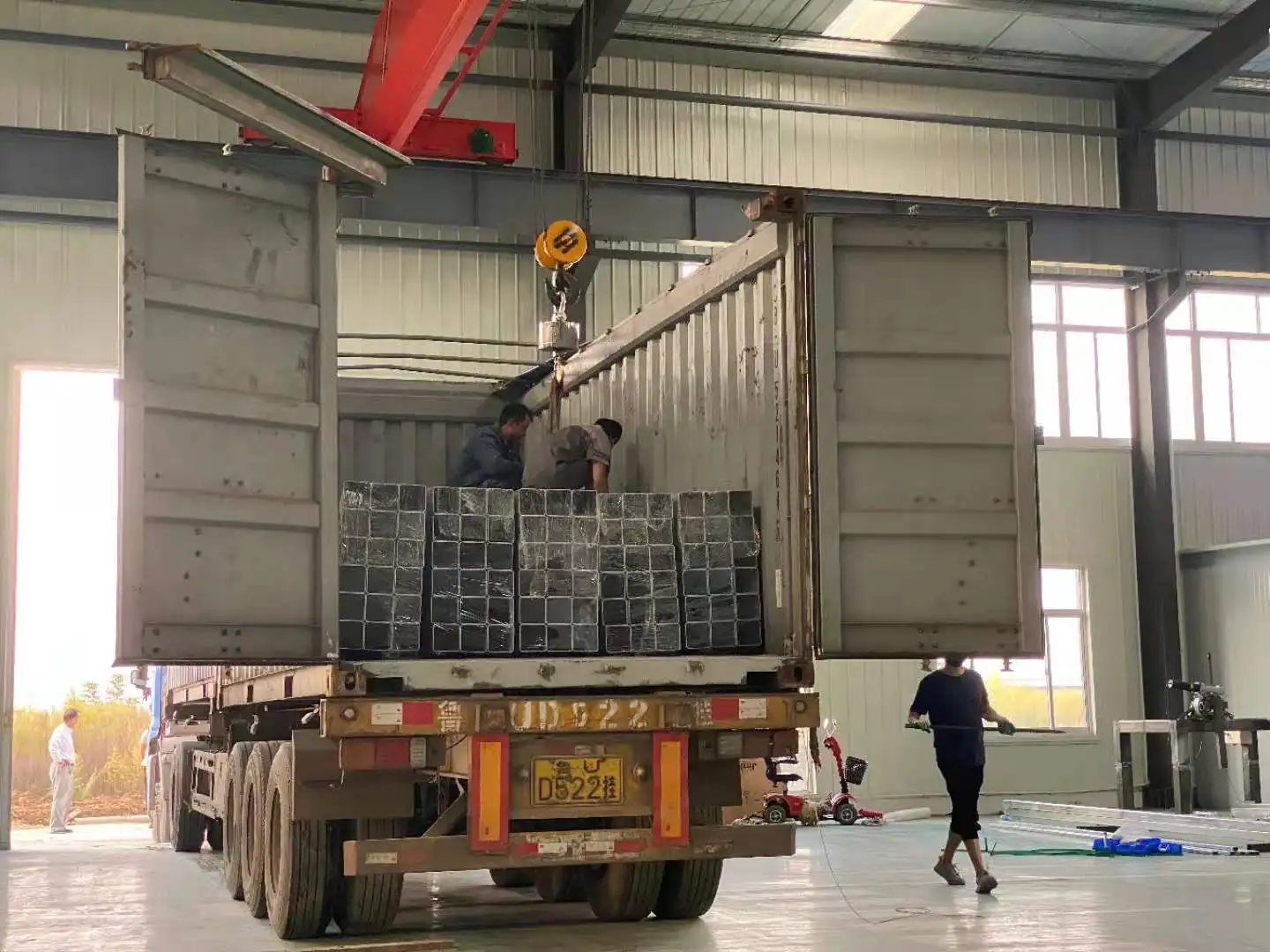

Packaging&Delivery
