Solid Waste Recycling drum sieve rotary trommel screen for sale
- Category: >>>
- Supplier: Zhengzhou Huaqiang Heavy Industry Technology Co. Ltd
Share on (1600201397226):
Product Overview
Description

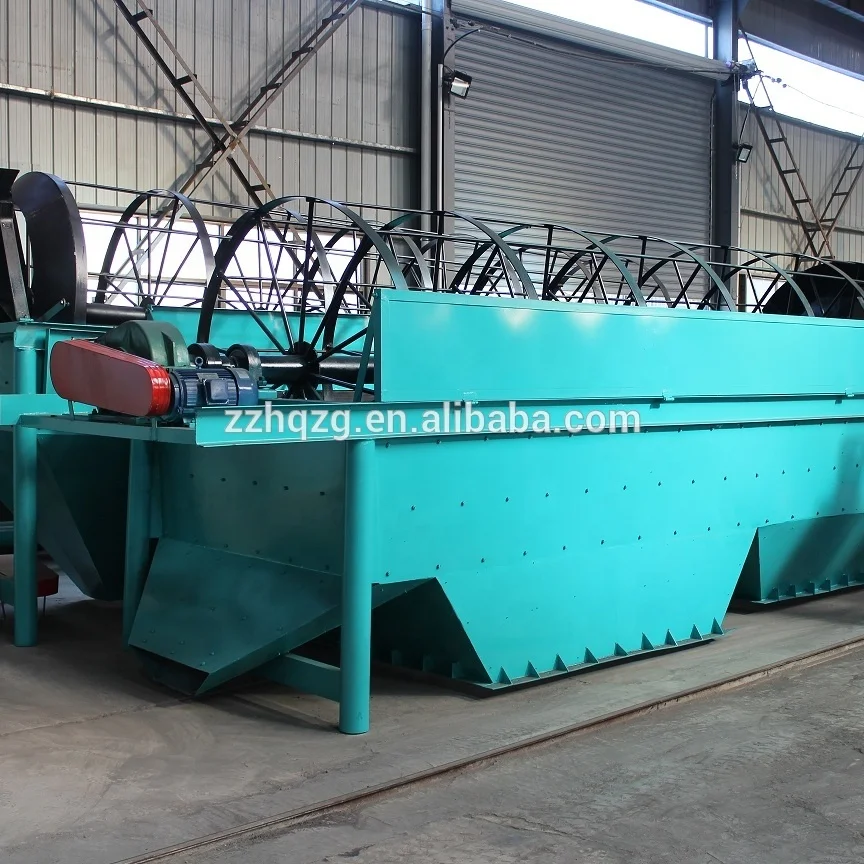

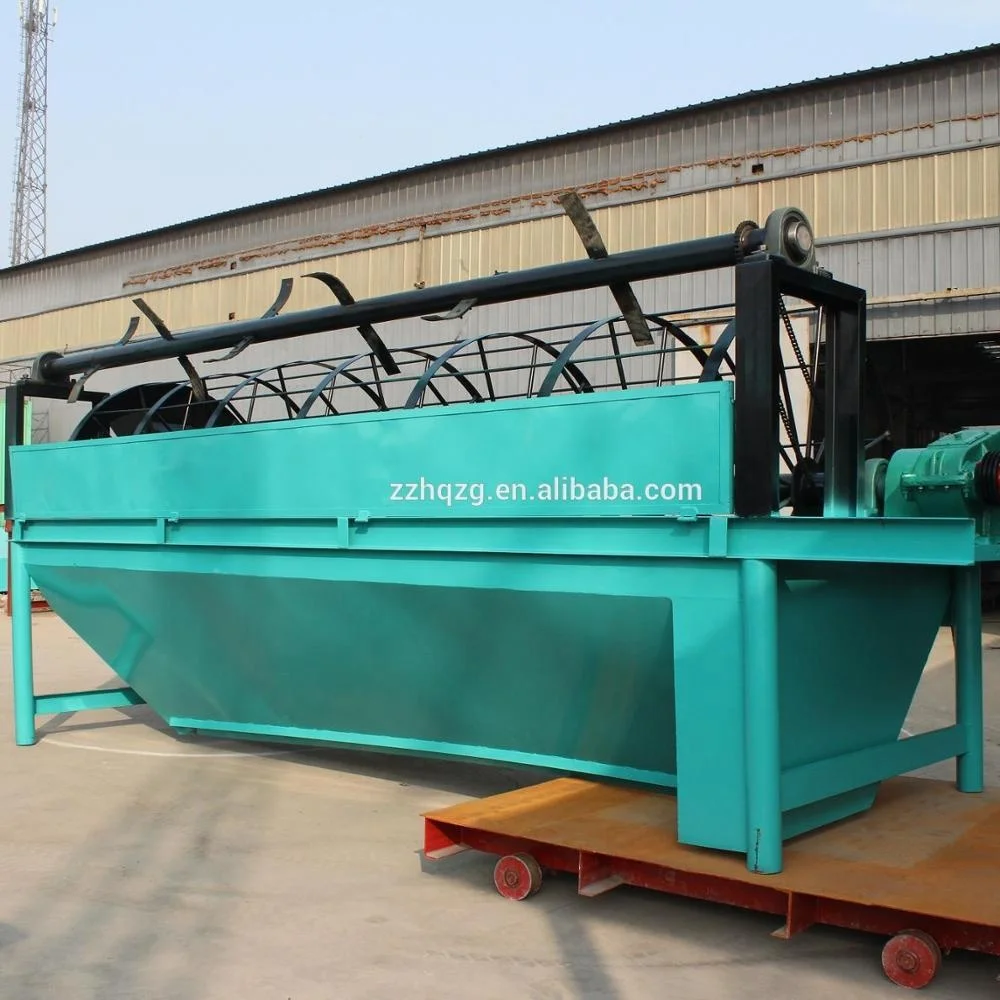

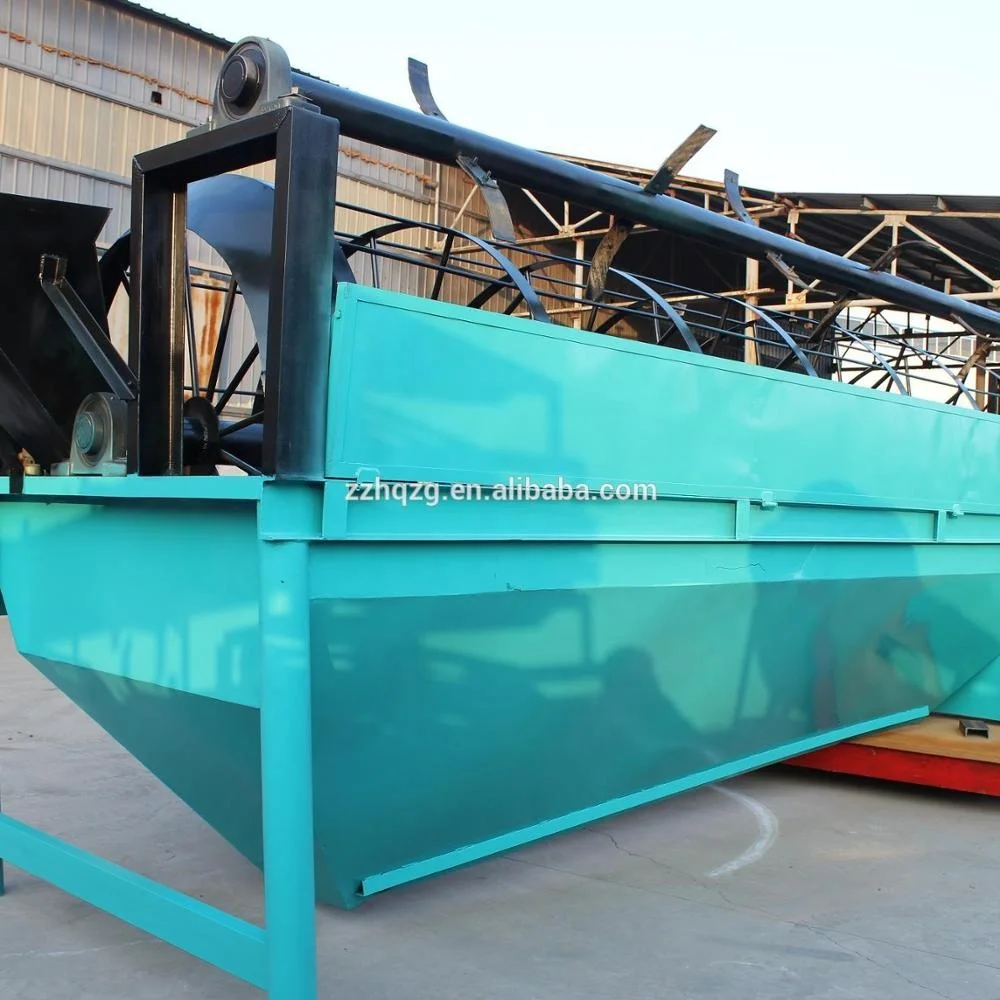

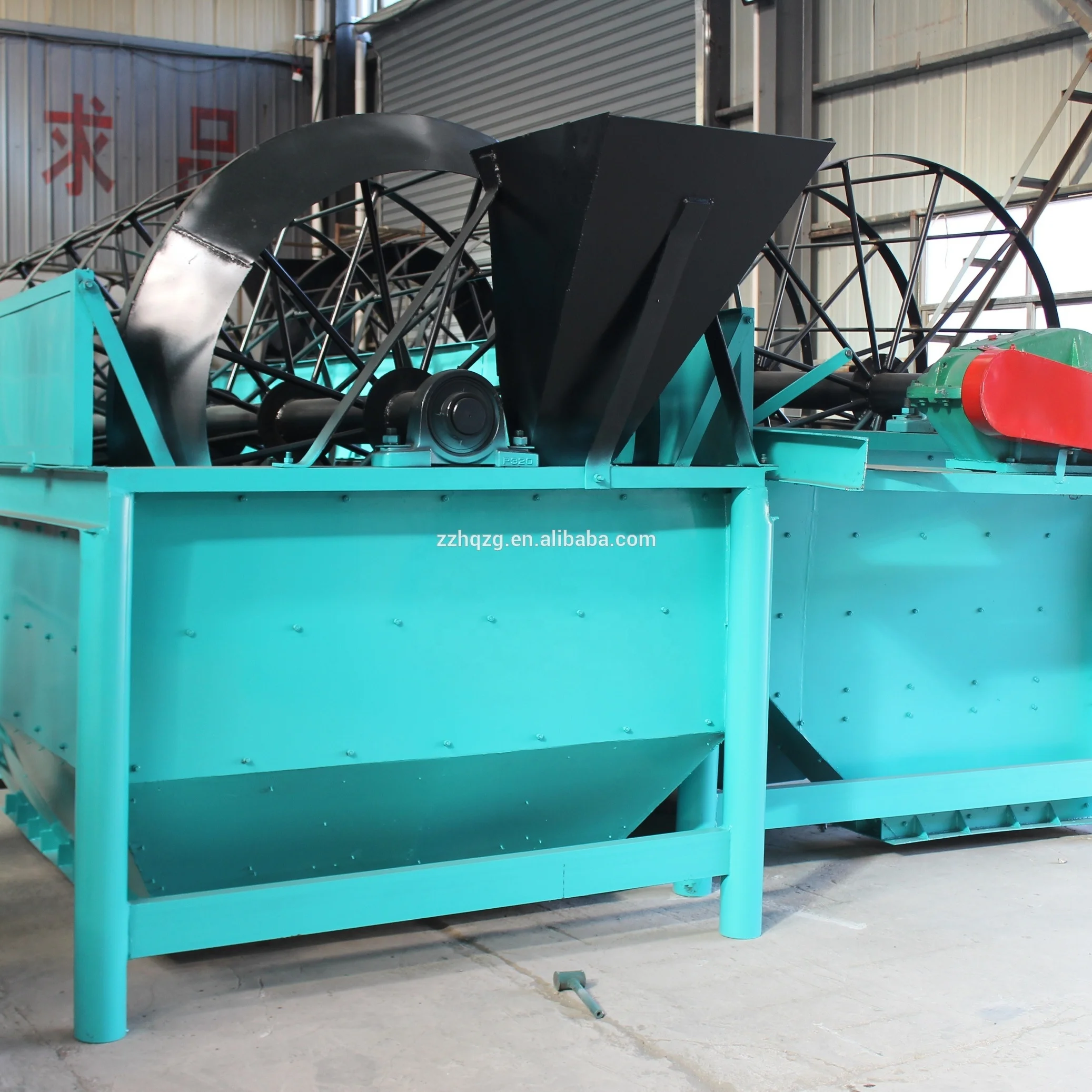

Solid Waste Recycling drum sieve rotary trommel screen for sale
Product Description
Introduction of Solid Waste Recycling drum sieve rotary trommel screen
Drum screener machine is a common equipment in the production of compound fertilizer, which is mainly used for the separation of finished products and reclaimed materials, and can also realize the classification of products, so that the finished products can be evenly classified. The machine adopts a combined screen for easy maintenance and replacement. It has the advantages of simple structure, convenient operation and smooth operation. It is an ideal equipment for the production of compound fertilizer.
Structure of Solid Waste Recycling drum sieve rotary trommel screen
- Rack part: The machine frame is welded by high carbon steel plate and channel steel, and through strict product certification and specific technical requirements, it has reached the purpose of the machine.
Transmission and screening part: This part uses a combined screen mesh, which is transmitted through a coupling to the main shaft by a transmission wheel, which is installed and welded on the roller cage of the main shaft. The material is entered from the feed end, and the roll cage is continuously turned and graded, and the outlet is outflow evenly from the bottom, which effectively separations the finished product from the Re-material, thus improving the working efficiency.
Transmission connection part: The motor drives the pulley, the triangle belt and the reducer to make the spindle rotating. In which the drive reducer and the main working part of the main engine are driven by the axle pin couple, it is convenient to assemble and maintain.
Fertilizer coating machine
Rotary coating machine
Parameter of Solid Waste Recycling drum sieve rotary trommel screen
| Barrel | Rotation Speed (r/min) | Inclination(°) | Power(kw) | Capacity(t/h) | Dimensions |
| |
Diameter(mm) | Length(mm) | L× W ×H(mm) | ||||||
GS1.0×3.0 | 1000 | 3000 | 22 | 2-2.5 | 2.2 | 1-3 | 3.5×1.3×2.2 | 1.5 |
GS1.2×4.0 | 1200 | 4000 | 16 | 2-2.5 | 4 | 2-4 | 5.2×1.5×2.4 | 2.3 |
GS1.2×4.5 | 1200 | 4500 | 17 | 2-2.5 | 4 | 3-5 | 5.7×1.5×2.4 | 2.5 |
GS1.5×5.0 | 1500 | 5000 | 14 | 2-2.5 | 5.5 | 5-10 | 6.5×1.8×3.0 | 3.8 |
GS1.6×6.0 | 1600 | 6000 | 12 | 2-2.5 | 7.5 | 6-12 | 7.5×1.9×3.1 | 4.7 |
GS1.8×6.0 | 1800 | 6500 | 11.5 | 2-2.5 | 11 | 8-20 | 7.6×2.2×3.2 | 6 |
Company Profile
Company Information:
Zhengzhou Huaqiang Heavy Industry Technology Co., Ltd. specializes in the production of fermentation compost turner machine, fertilizer granulator, fertilizer crusher and other organic fertilizer machines. We also provide a complete set of organic fertilizer production process, npk fertilizer manufacturing process, biofertilizer production process, BB fertilizer production equipment. We have been stepping forward the pace of machine progress, hoping to use the best fertilizer equipment to feed back our users!
Our company promises:
Pre sales services:
1. Selection of equipment model
2. Design and manufacture products according to customers' special requirements
3. Train technicians for customers.
4. The company arranges engineering technicians to the user's site for free to plan the site for the user and design more reasonable processes and schemes.
Service in sale:
1. Product acceptance
2. Assist the client to draw up the construction plan
After-sale service:
1. Free assignment of professional after-sales service personnel, arrived at the site to guide the customer installation and commissioning.
2. Train operators on site.
3. After the installation of the complete set of equipment, technical personnel shall be left to assist the customer in field production for free until the customer is satisfied.
Product quality:
Except for wearing parts, quality assurance within one year!
We adhere to the market-oriented, innovation and development, quality and survival, to improve after-sales service to obtain customer trust.
Our Services
Our company promises:
Pre sales services:
1. Selection of equipment model
2. Design and manufacture products according to customers' special requirements
3. Train technicians for customers.
4. The company arranges engineering technicians to the user's site for free to plan the site for the user and design more reasonable processes and schemes.
Service in sale:
1. Product acceptance
2. Assist the client to draw up the construction plan
After-sale service:
1. Free assignment of professional after-sales service personnel, arrived at the site to guide the customer installation and commissioning.
2. Train operators on site.
3. After the installation of the complete set of equipment, technical personnel shall be left to assist the customer in field production for free until the customer is satisfied.
Product quality:
Except for wearing parts, quality assurance within one year!
We adhere to the market-oriented, innovation and development, quality and survival, to improve after-sales service to obtain customer trust.
Customer show
Customer show:
Our company's products have been sold at home and abroad, and enjoy a certain market reputation. We are also constantly working to continuously improve ourselves and create a good atmosphere for our sales market.
Qualification certif
Qualification certificates:
Our products have been verified by many parties and meet the safety and qualification standards. We firmly believe that quality priority is the basis for progress.
