VIDO 160 amp ac dc mma automatic inverter welder welding machine

Product Overview

Description

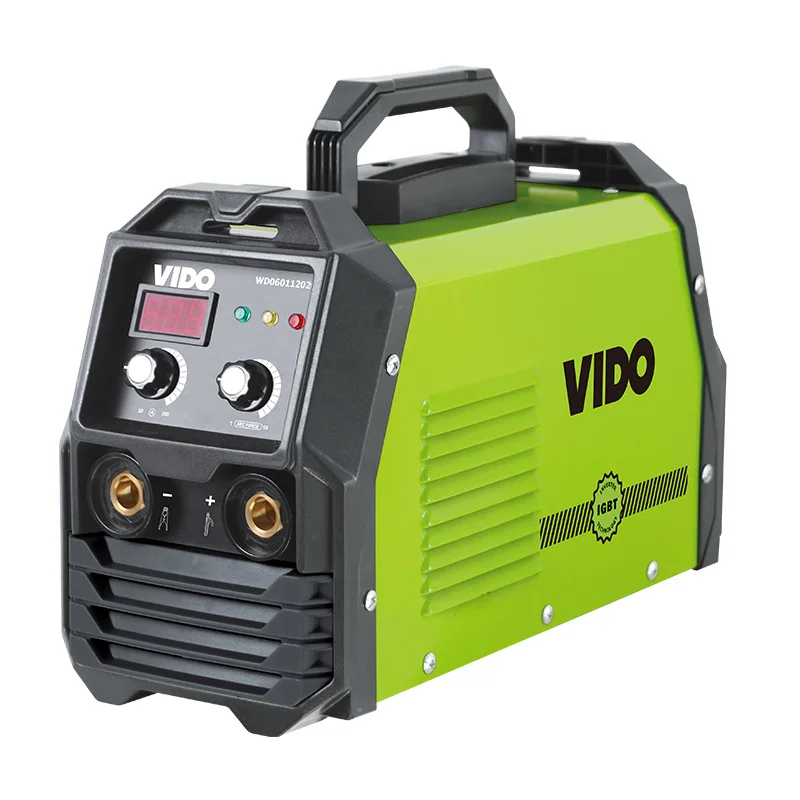

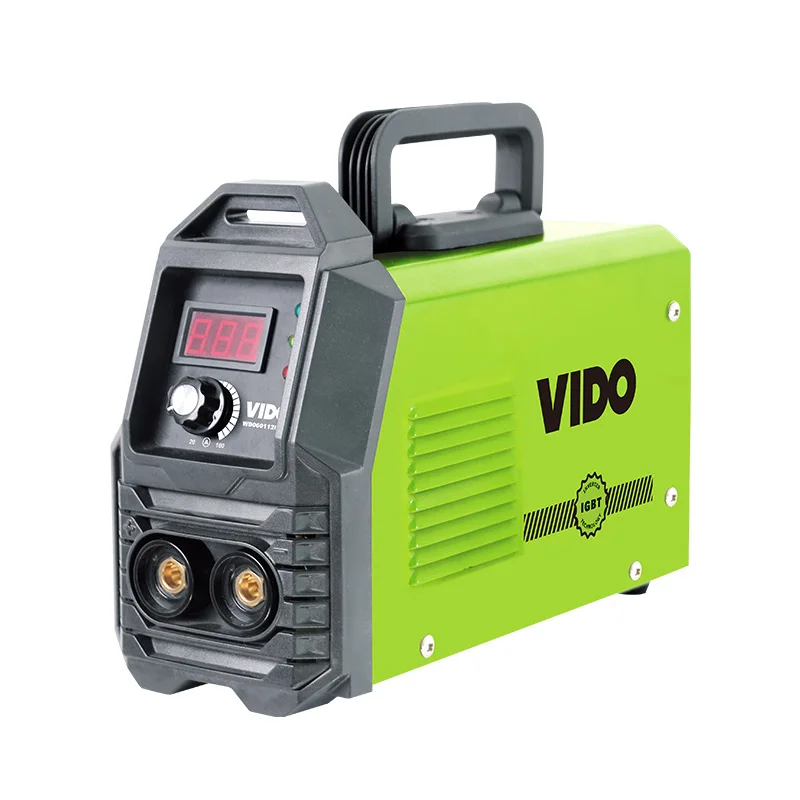

VIDO 160A Welding Machine

Inverter MMA DC Welding Machine
Model	WD060121016	WD060121020	WD060121025
Input capacity	6.16KVA	8.36KVA	9.0KVA
Rated voltage	220-240V~50/60Hz	220-240V~50/60Hz	220-240V~50/60Hz
Output range	10-160A DC	10-200A DC	10-250A DC
No-load voltage	80V DC	80V DC	80V DC
Duty cycle	60%@160A	60%@200A	60%@250A
Electrode diameter	Ø1.6-4.0mm	Ø1.6-5.0mm	Ø1.6-5.0mm
Protection class	IP21S	IP21S	IP21S
Quantity/Carton	2pcs	2pcs	2pcs
Net/Gross weight	11/12Kg	11.2/13.2Kg	13.5/14.5Kg
Carton size	350x325x320mm	390x380x340mm	390x380x340mm
CBM	0.036m3	0.05m3	0.050m3
