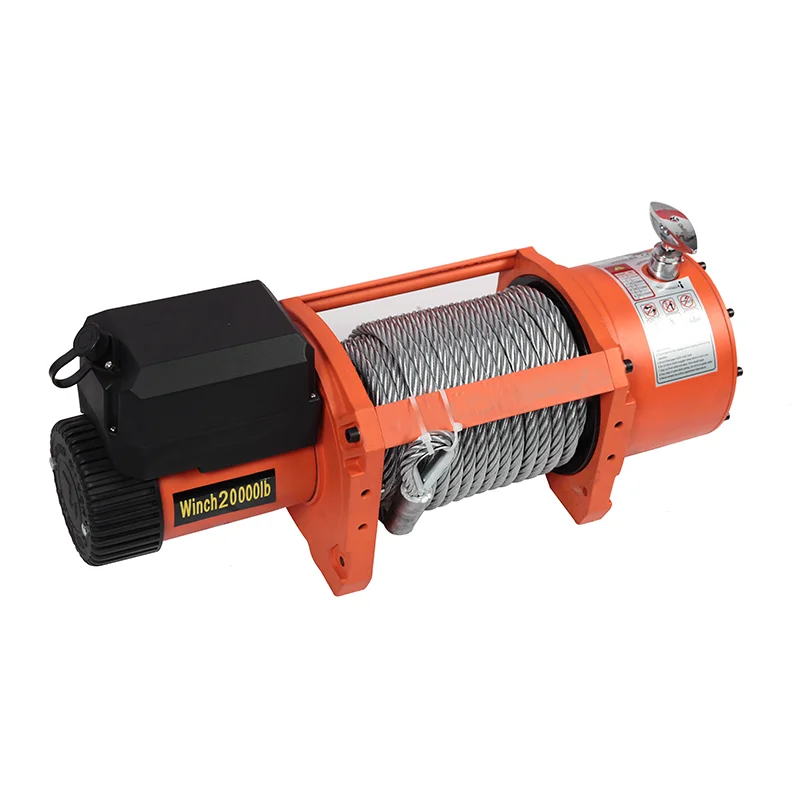

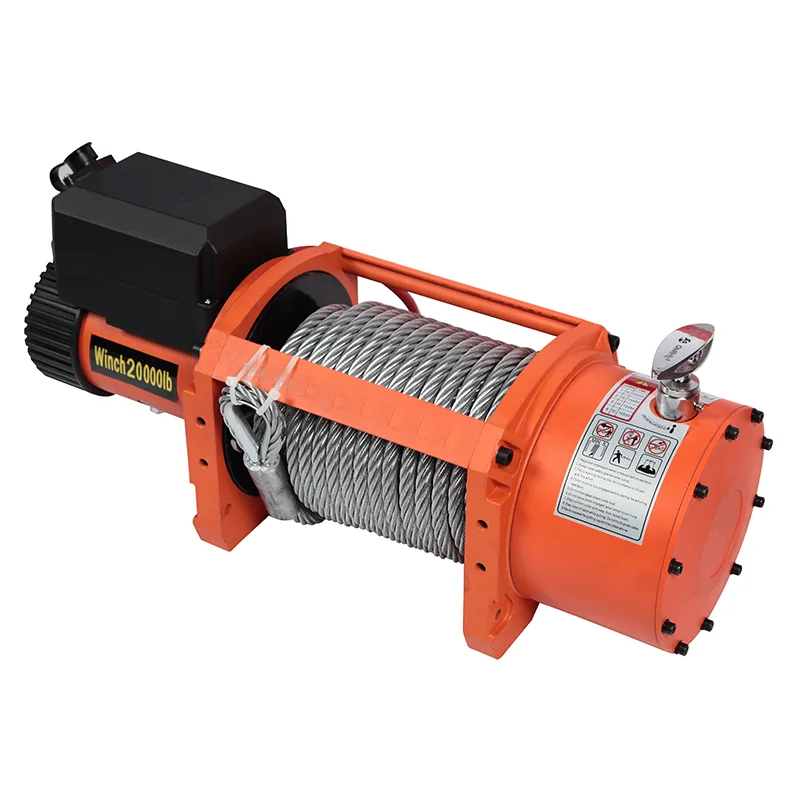

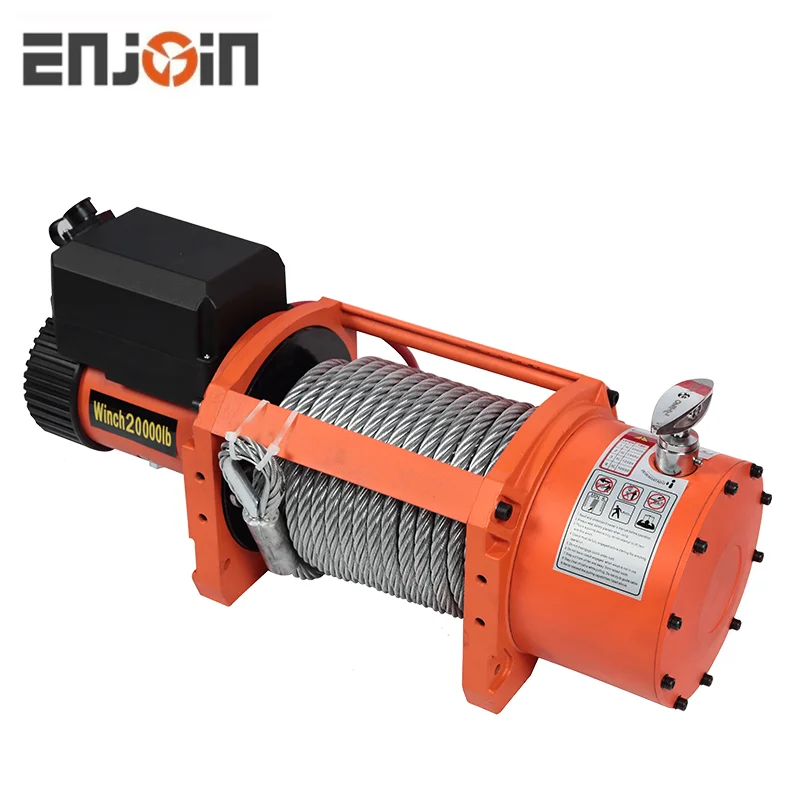

ENJOIN 20000lbs /9090Kg SIngle Line 4WD Winch
- Category: >>>
- Supplier: Enjoin (Shanghai) Industrial Co. Ltd.
Share on (1600201415779):
Product Overview
Description
Product Description
ENJOIN 20000lbs /9090Kg SIngle Line 4WD Winch
20000lbs features and specification
Single Line Rated Pull | 20000lbs(9090kgs) |
Motor | 6.8HP/5.0kw, series wound |
Extra wireless remote control | Optional |
Gear train | 3 stage planetary |
Gear reduction ratio | 430:1 |
Braking | Automatic In the drum |
Drum size | Diameter 3.4”(88mm) x Length 8.8"(224mm) |
Cable | Φ14MM*25M |
Remote control switch | Included |
Battery | Recommended: 650 CCA |
N.W./G.W. | 54/ 55.5kgs |
Overall dimension (length x width x height) | 560x196x268mm |
Mounting bolt pattern | 10" x 4.5" (254 x 114.3mm) |
Pull. Speed, Amps
Line Pull LBS (KG) | Line speed FPM(MPM) | Current A |
0 | 27(8.2) | 74 |
6000(2722) | 7.4(2.3) | 238 |
10000(4536) | 4.4(1.3) | 333 |
12000(5443) | 4.0(1.2) | 371 |
14000(6350) | 3.2(0.98) | 419 |
18000(8181) | 2.8(0.85) | 481 |
20000(9090) | 2.4(0.75) | 500 |
Line pull and rope capacity in layer
| Rated line pull LBS(KG) | cable on the drum ft. (m) |
1 | 20000(9090) | 23.20 (7.07) |
2 | 15225(6906) | 48.23 (14.70) |
3 | 13246(6008) | 68.41 (20.85) |
4 | 11524(5227) | 82.02(25.00) |
