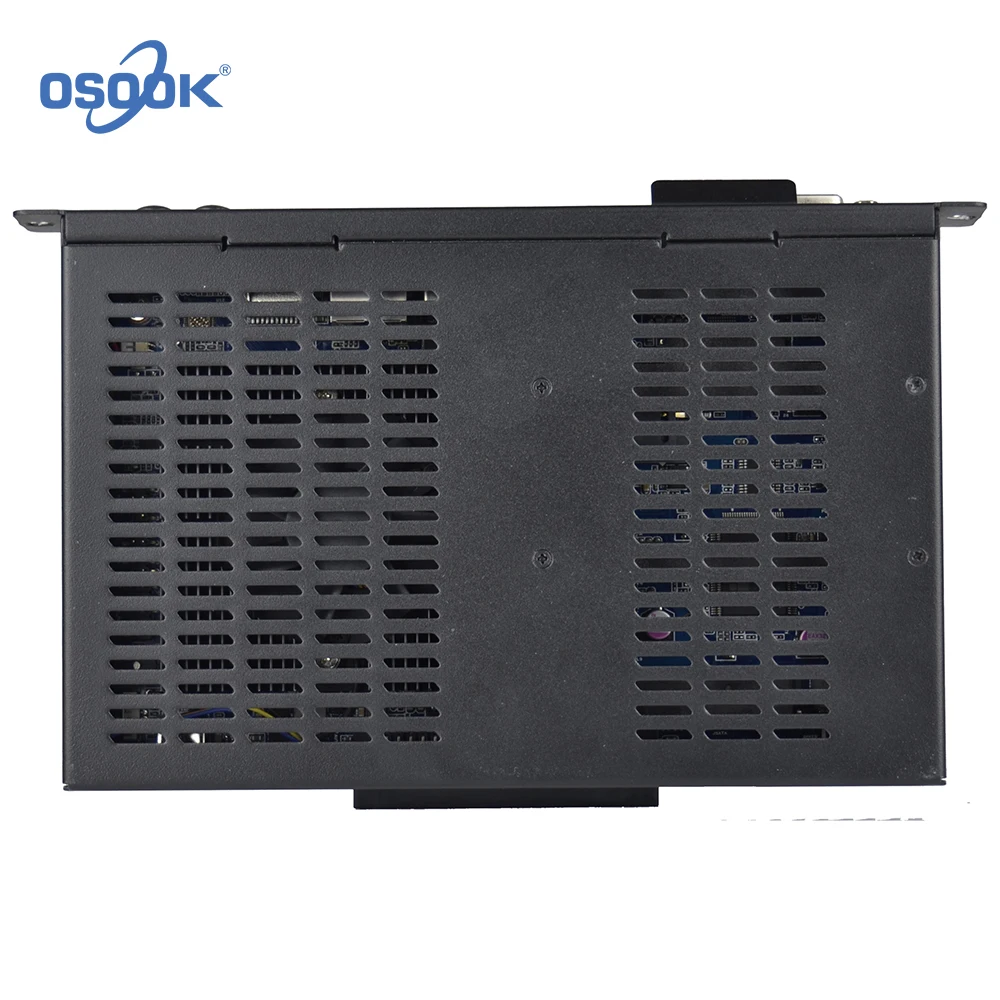

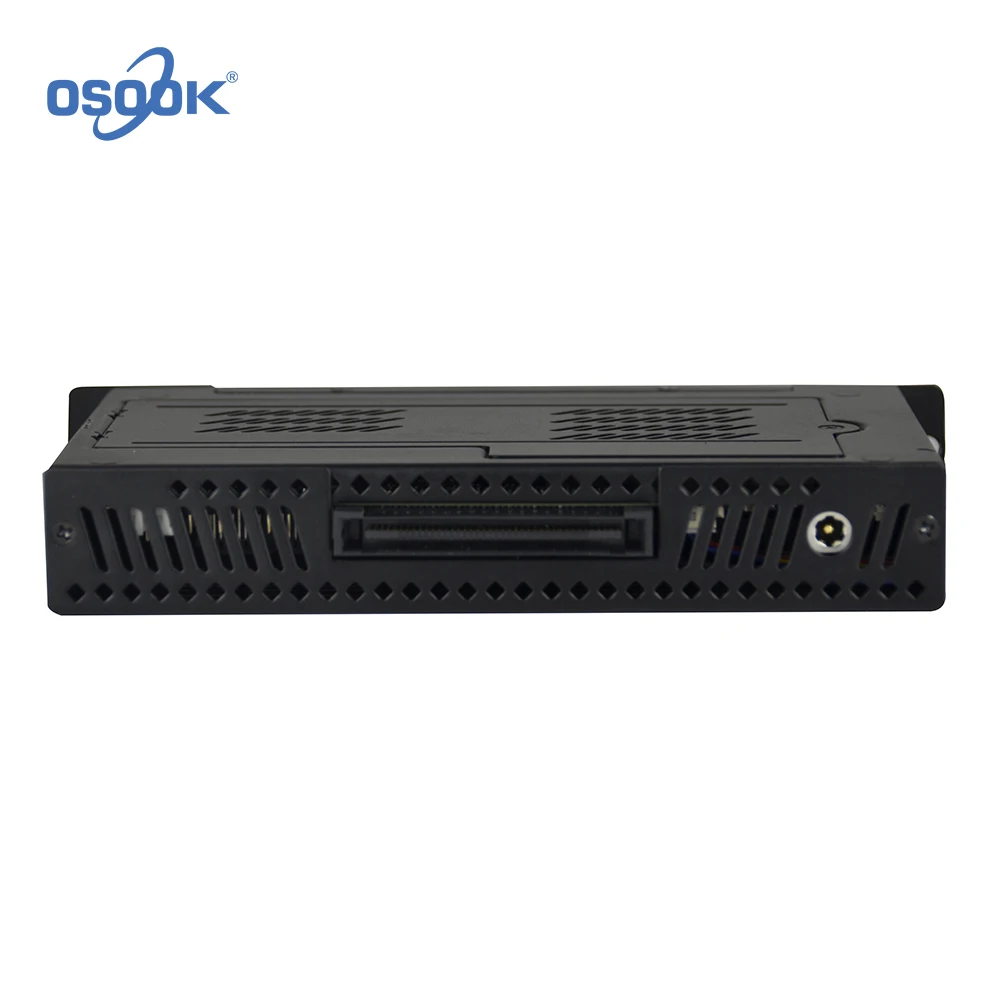

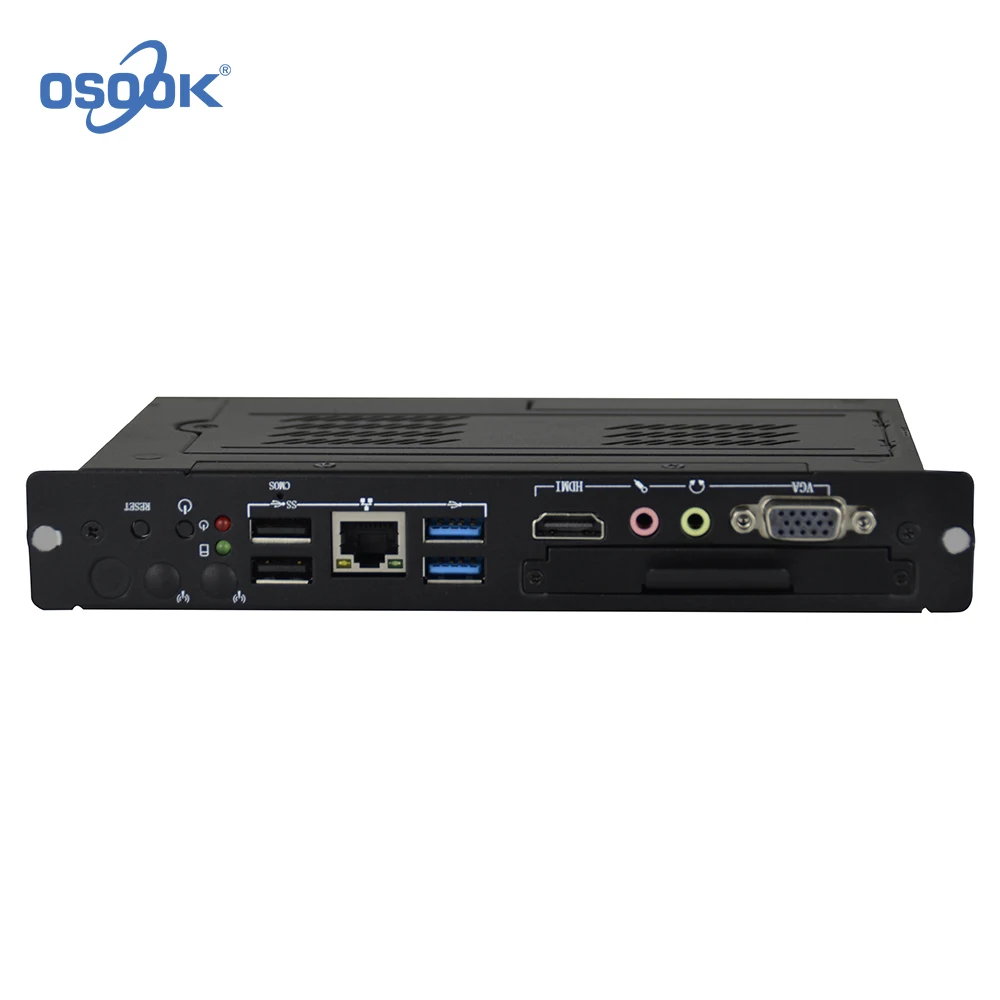

3G ops i5 mini pc computer intel i5 8th generation 8250U 8350U 8550U industrial Windows10 VGA HD Gigabit LAN Mini OPS PC

Share on (1600201434019):


Price:

Quantity:


Product Overview

Description



Product Description

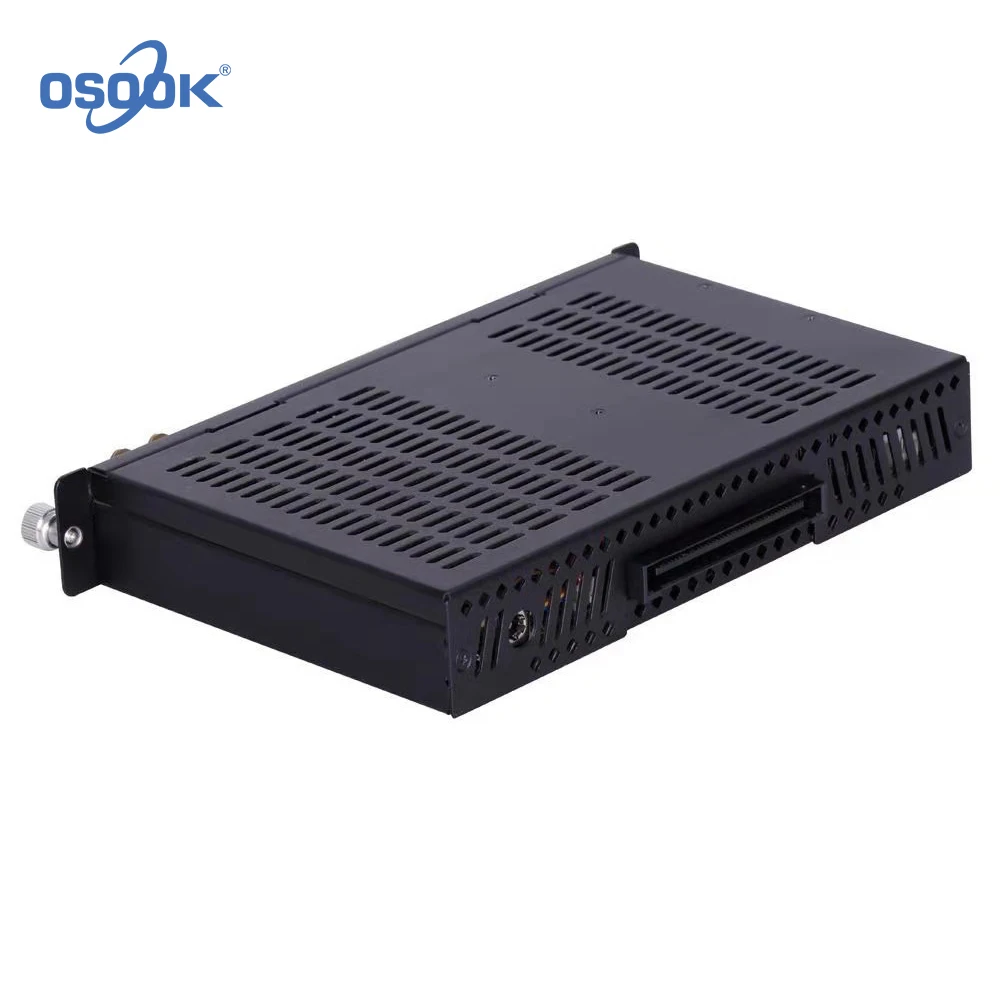

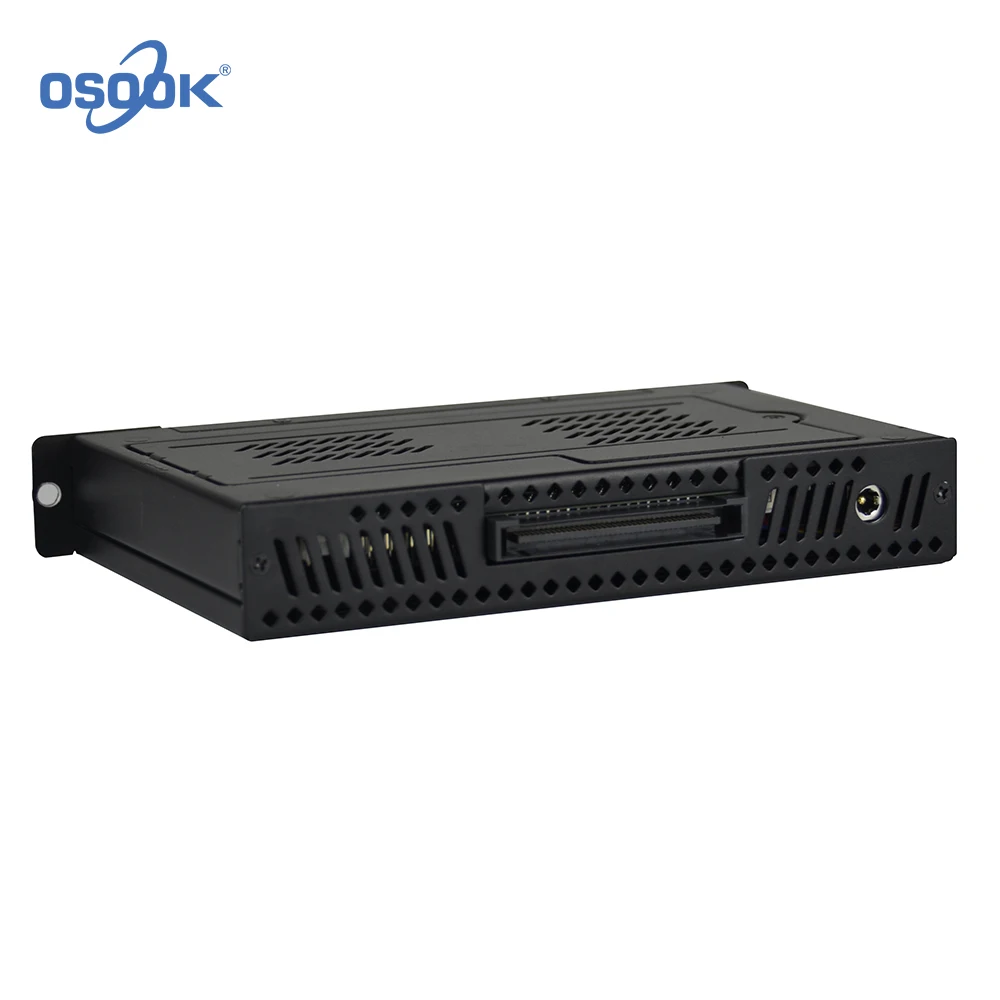

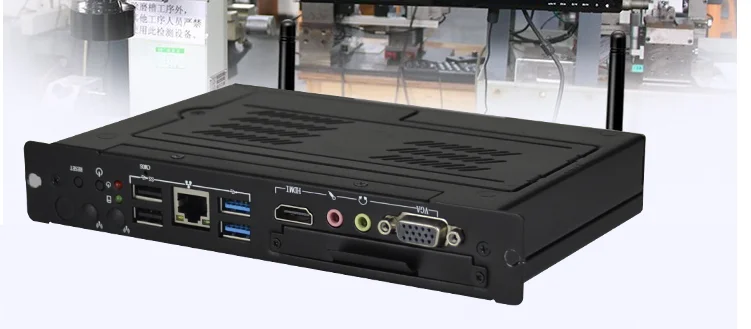

3G ops i5 mini pc computer intel i5 8th generation 8250U 8350U 8550U industrial Windows10 VGA HD Gigabit LAN Mini OPS PC

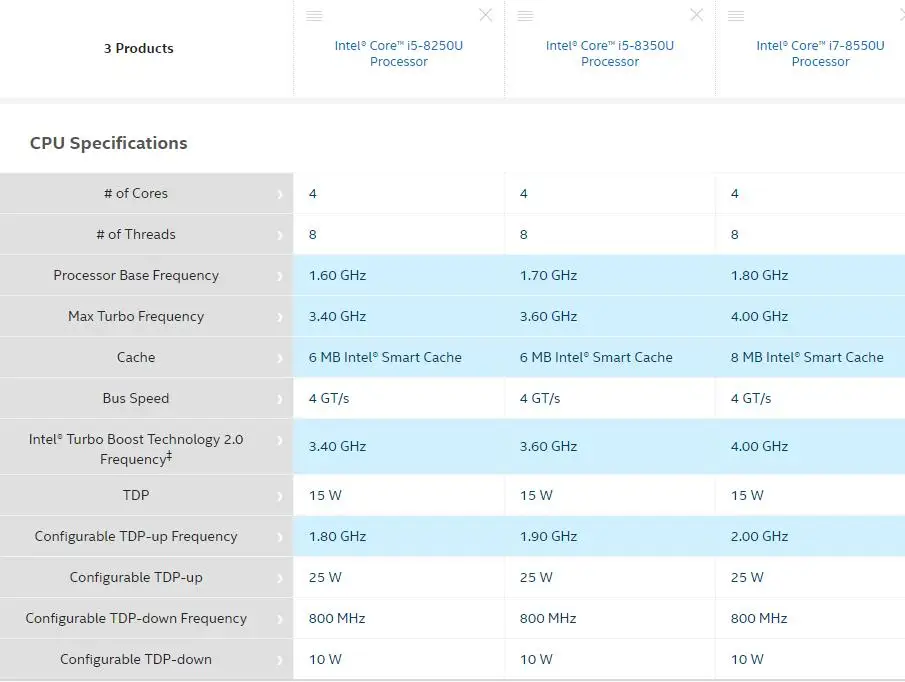

OPS58 is a mini computer powered by Intel® Celeron Core i5 8th generation Processors 8250U 8350U 8550U, quad core , CPU base frequency as following







Main Features


Mini Size: only 119x180x30mm


Ethernet speed: 10/100/1000Mbps auto adaptive


Working mode: Support 24*7 working mode


High compatible: Support MSATA and 2.5 hard drive (support Nvme, OEM order only)


Compatible with Windows and Linux OS


Special boot:


Support PXE boot and auto power on boot


Support Wake on LAN boot


WIFI


Support 802.11n dual band 2.4/5.0ghz


Support 3G (optional)





Operating System: windows10 Pro, windows7, and Linux





Warranty


3 years from purchase date


Quality assurance


CE, FC, ROSH and CCC ISO certification




































































































































Item



OPS Computer



Processor



CPU



Intel® Core(TM) i5 8250U processor,


4Cores 8Threads @1.6GHz Up to 3.4GHz



Graphics



GPU



Intel® Kaby Lake



Cache



CPU Cache



4 MB Intel® Smart Cache



O/S



Win/Linux



Support Windows 7/10Linux



Memory



RAM



DDR4 RAM 4GB/8GB/16GB 2400MHz



Storage



SSD



NVME SSD 16GB up to 512GB







HDD



2.5inch SATA HDD, optional



I/O port



Switch



1*Power switch







Audio



1*MIC+1*SPK







LAN



1*RJ45 Gigabit LAN port







Display



1* VGA+1*HD-MI







USB



2*USB3.0+2*USB2.0



WIFI



External WIFI



Dual band Wi-Fi 802.11ac



Reliability



Installation



Mount behind smart board







Working Temp.



0℃~45℃







Storage Temp.



-10℃~60℃







Humidity



5%-90% relative humidity, non-condensing



Chassis



Weight



0.75Kg N.W , 1.0Kg G.W







Dimension



180*119*30mm







Cabinet



Iron metal case



Functions



BIOS functions



POE



Power on LAN



Support power on Ethernet,optional



TPM



Security chip



Support TPM module via BIOS settings, optional



Measures/ Size







Product size: 180*119*30mm


Package size: 40*35*15 CM


Carton size: 55*53*30 CM for 10 pcs inside. G.W 14KG

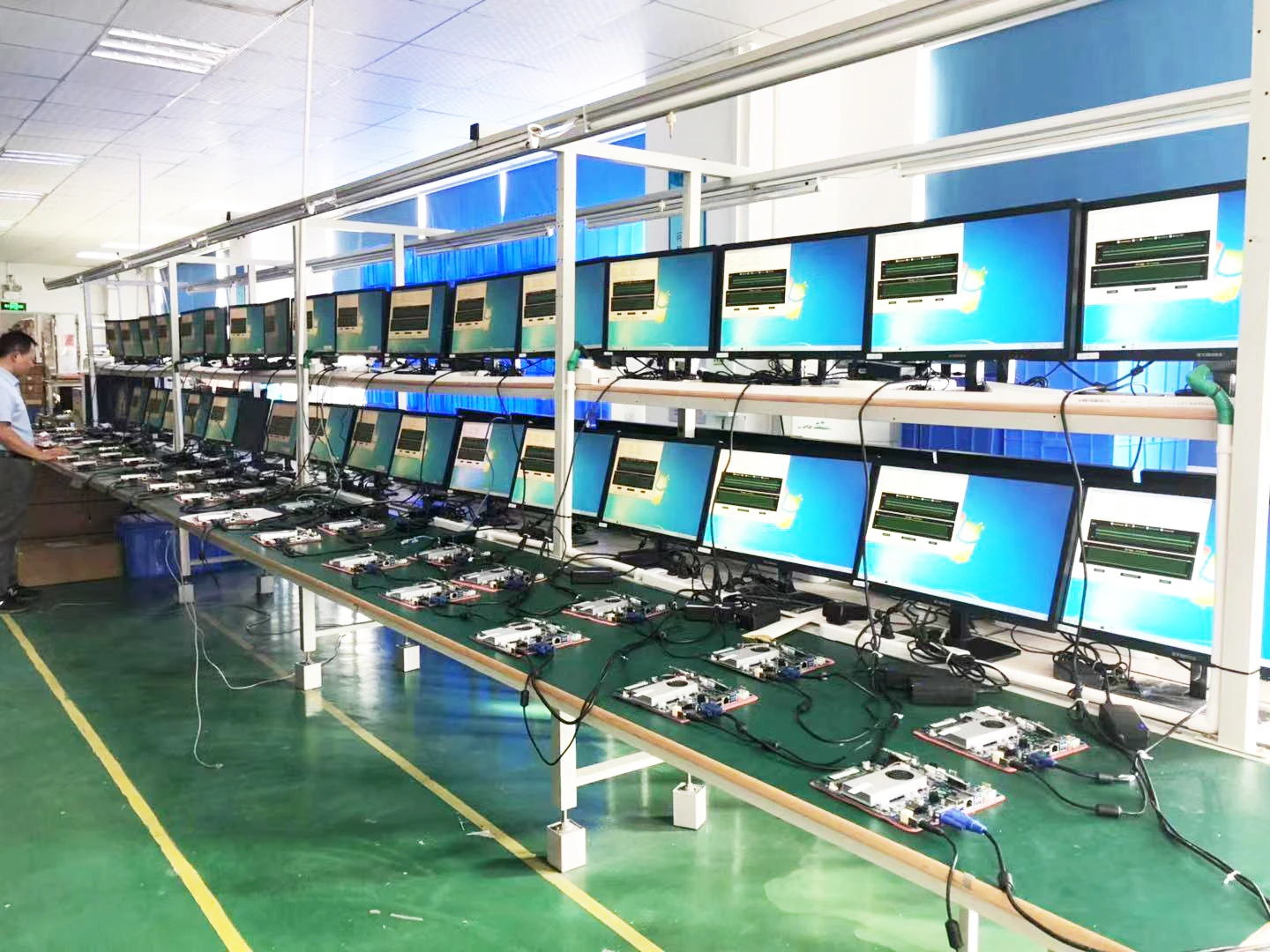

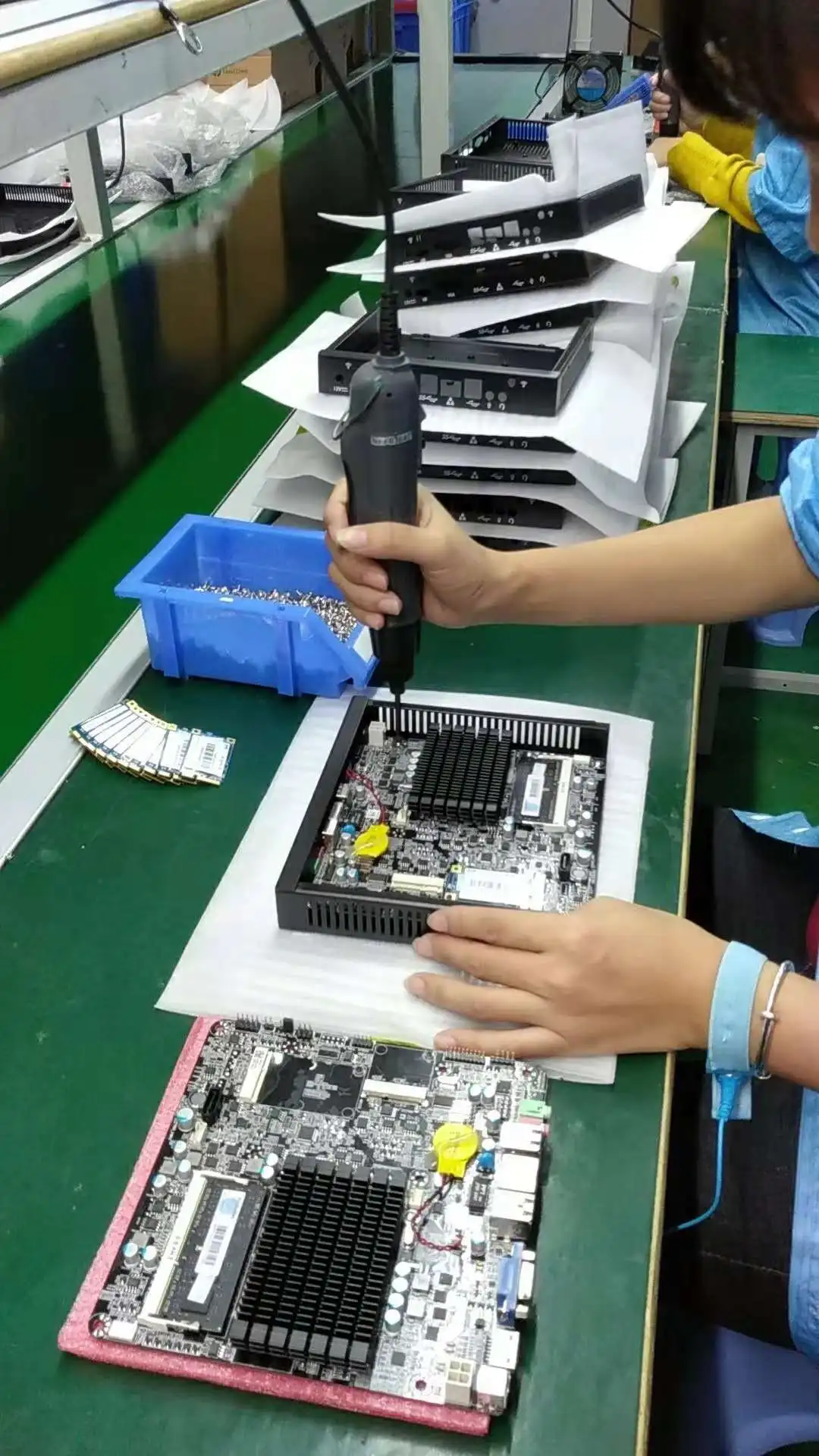

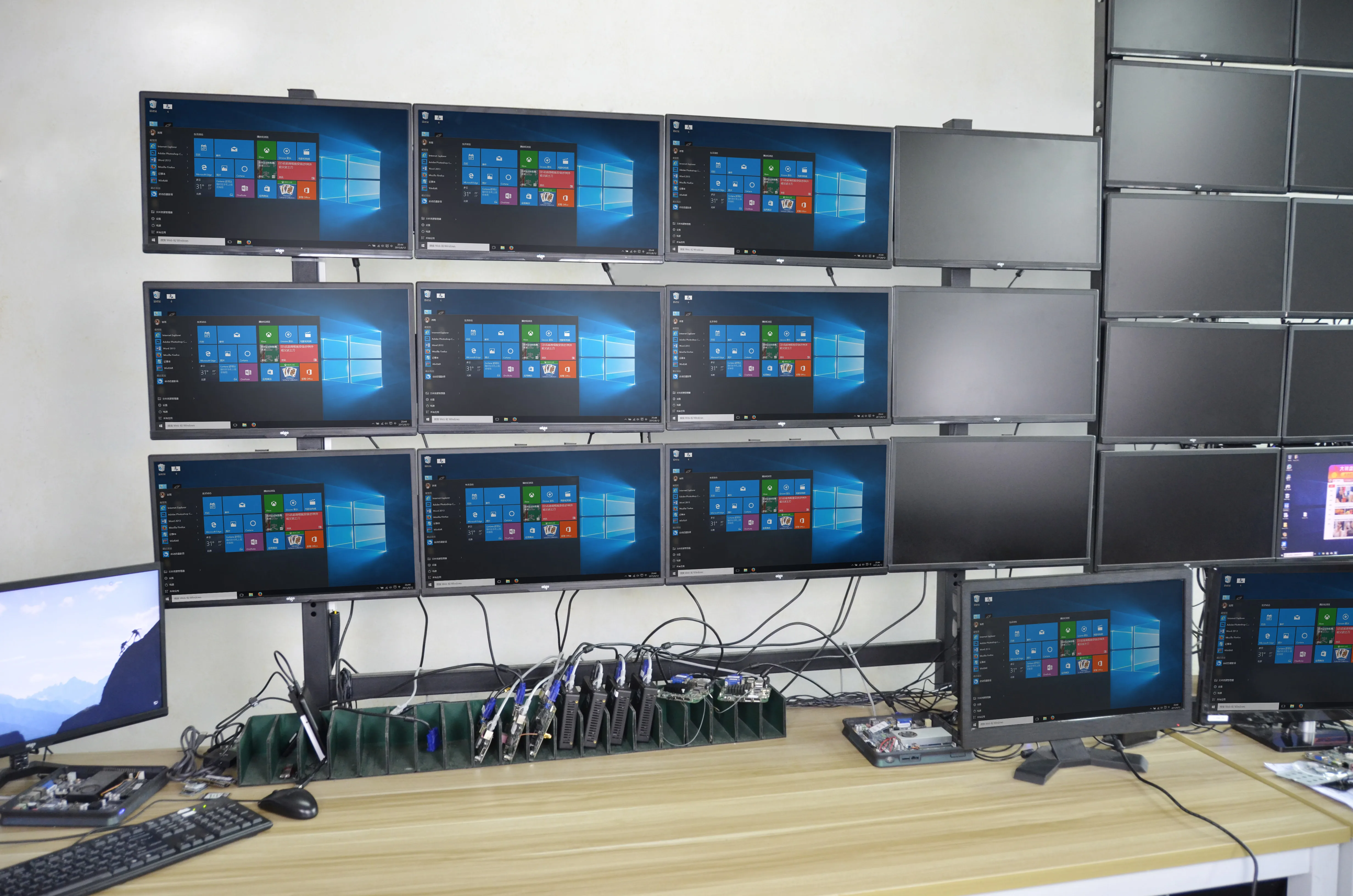

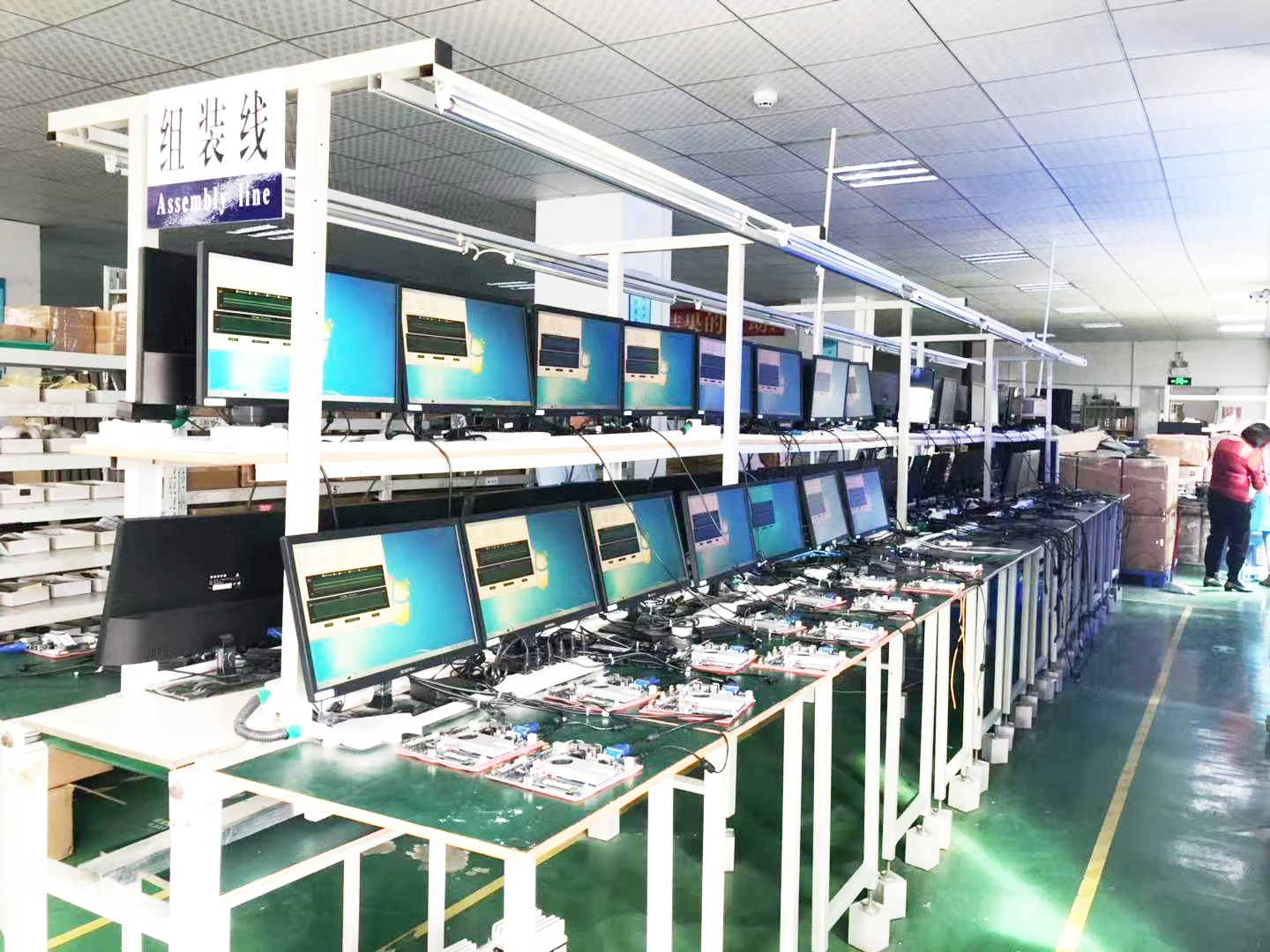

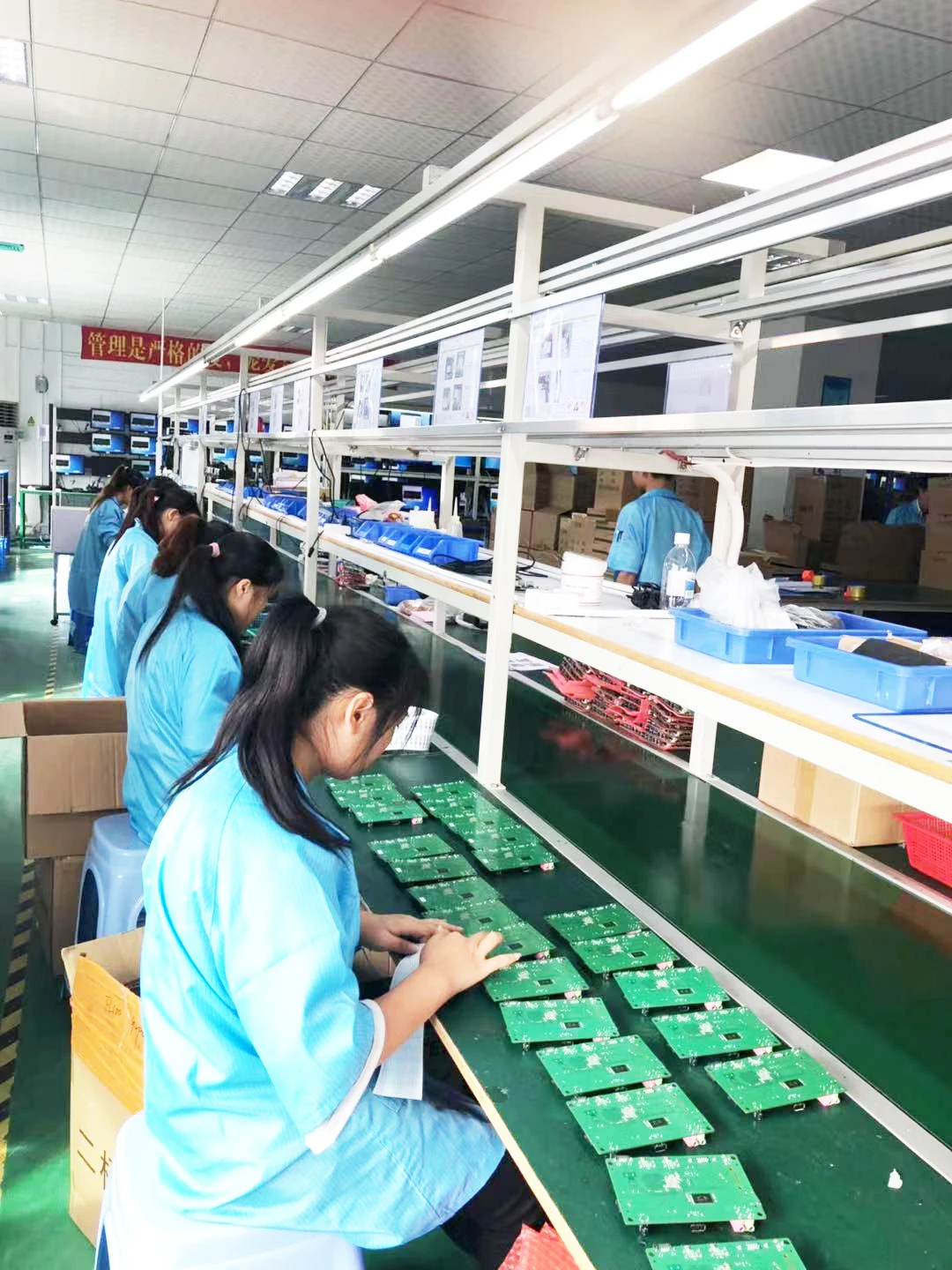

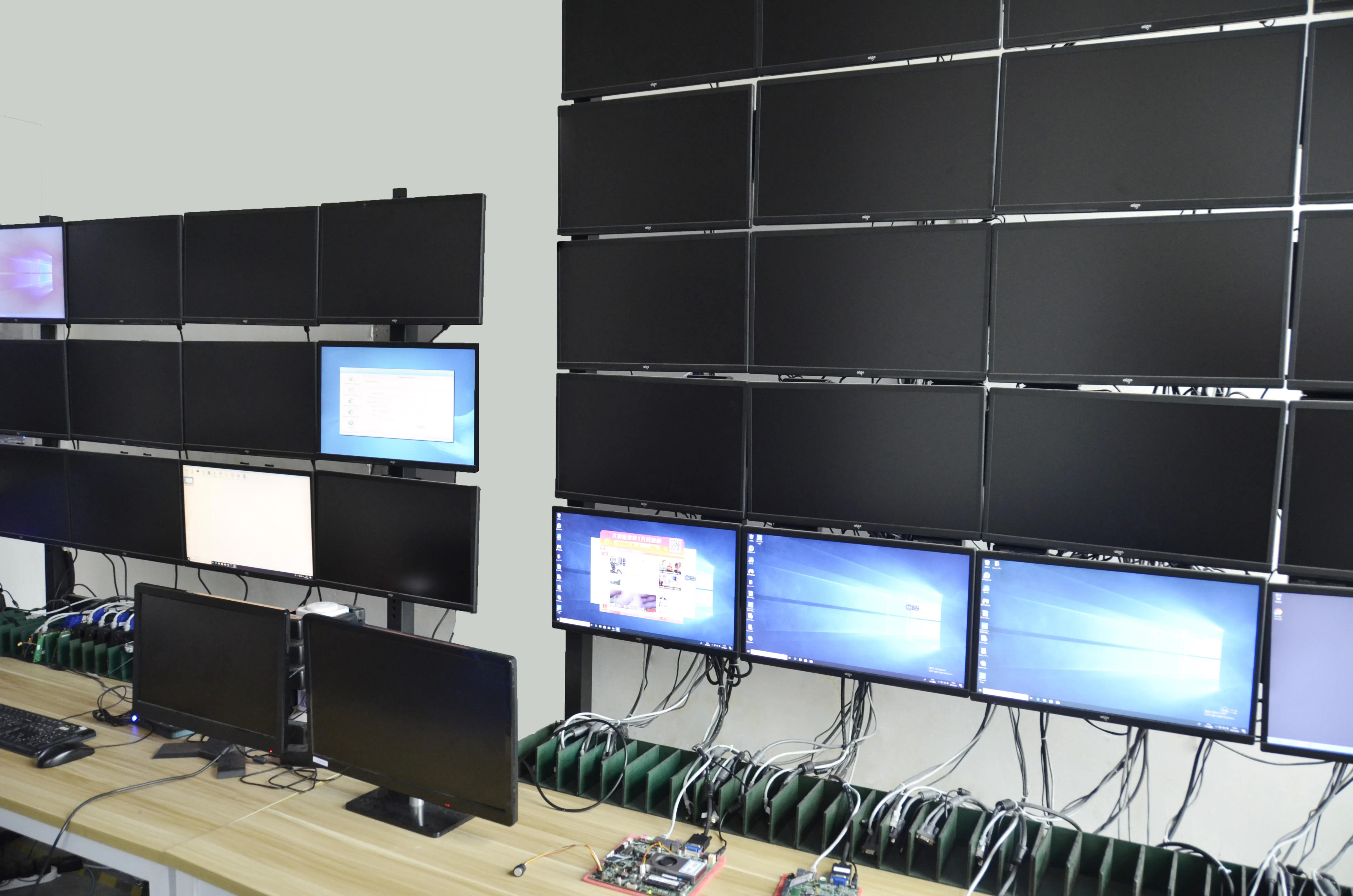

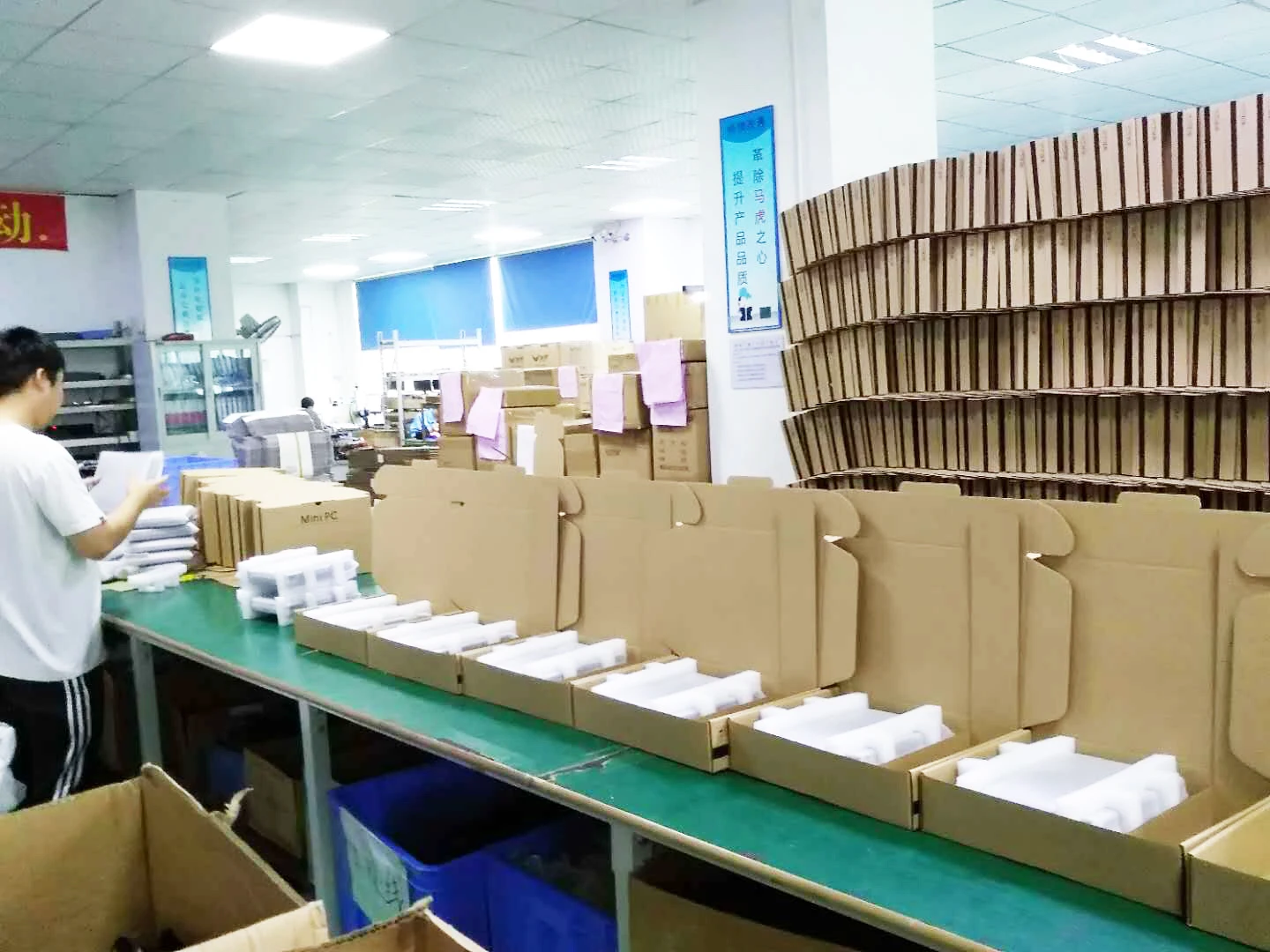

_20210222180324.jpg_20210222180331.jpg_20210222180335.jpg_20210222180339.jpg_20210222180357.jpg_20210222180406.jpg_20210222180410.jpg_20210222180344.jpg





Company Information




.jpg





Our Advantage

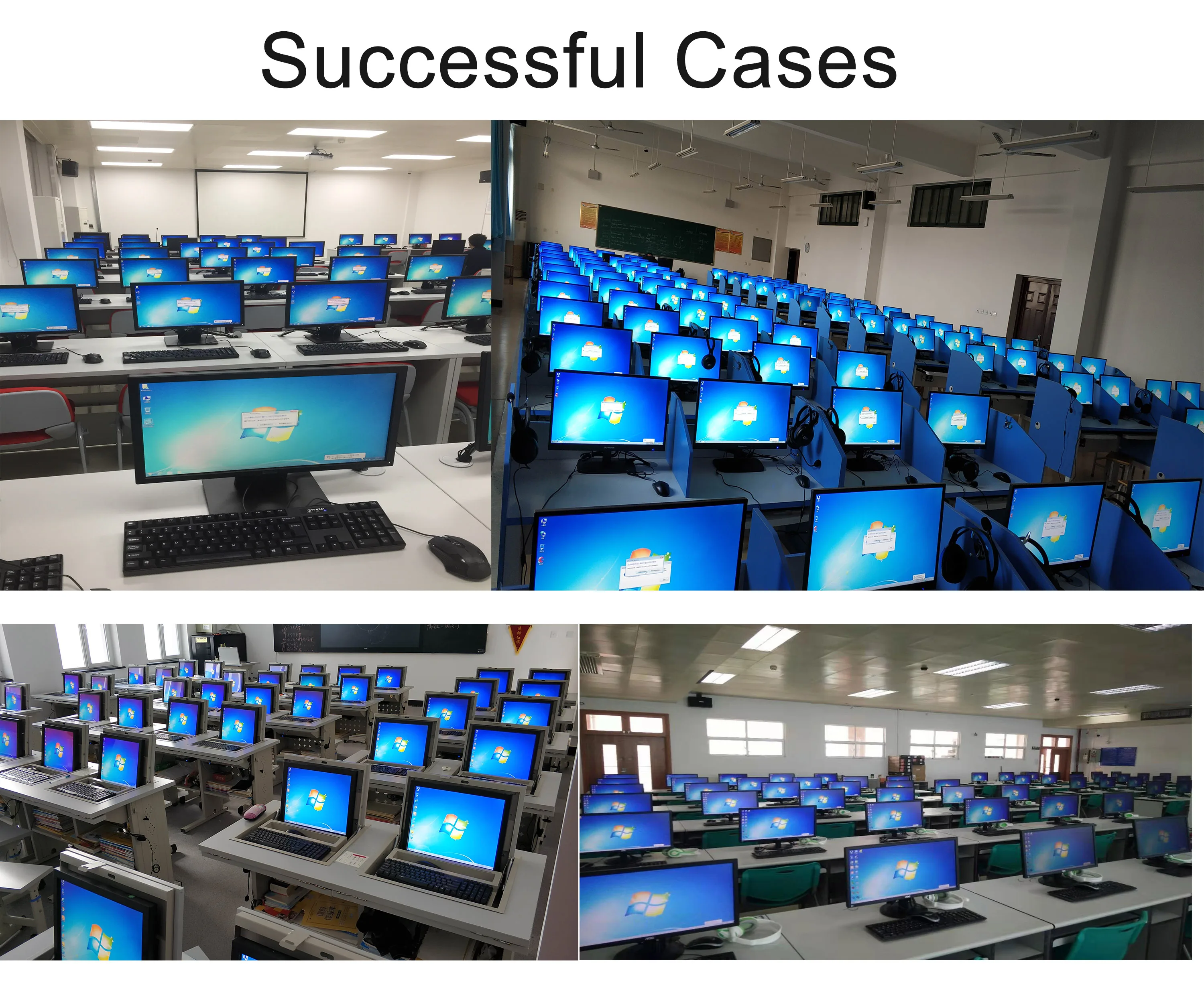

_02.jpg Successful Cases feedback from clients





successful cases.jpg

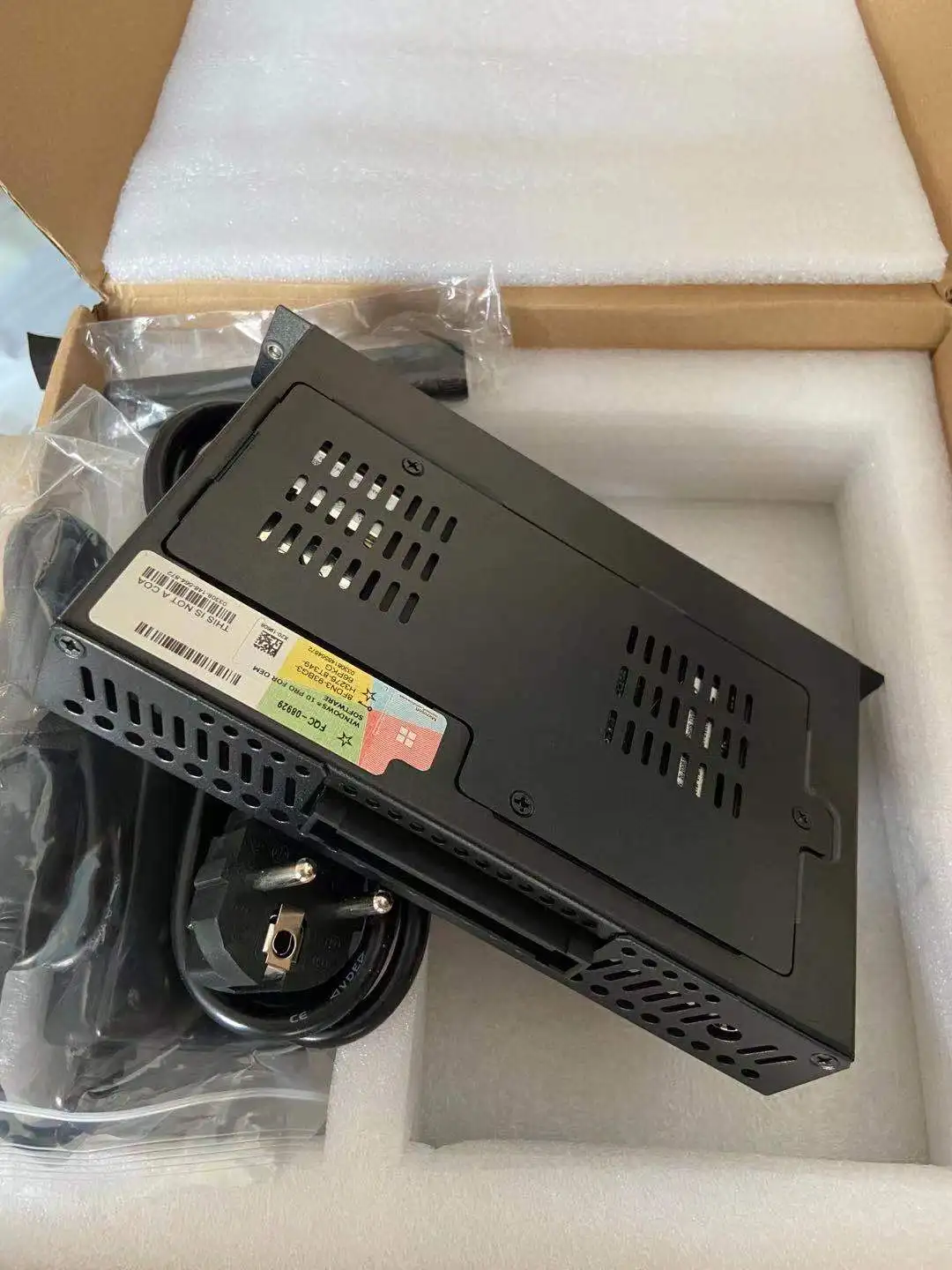

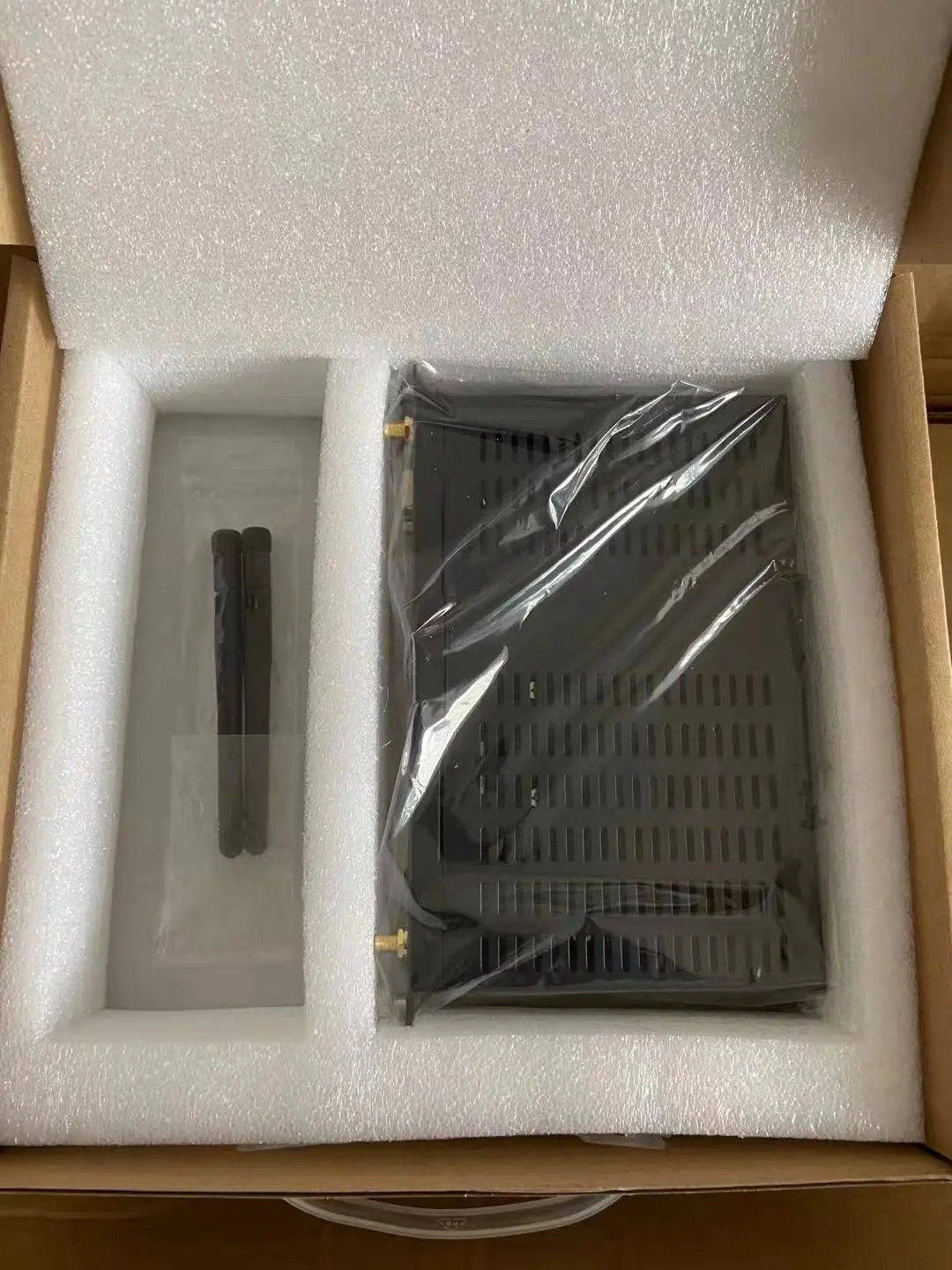

Packaging Display


giftbox.pnggiftbox 22.jpg







FAQ
