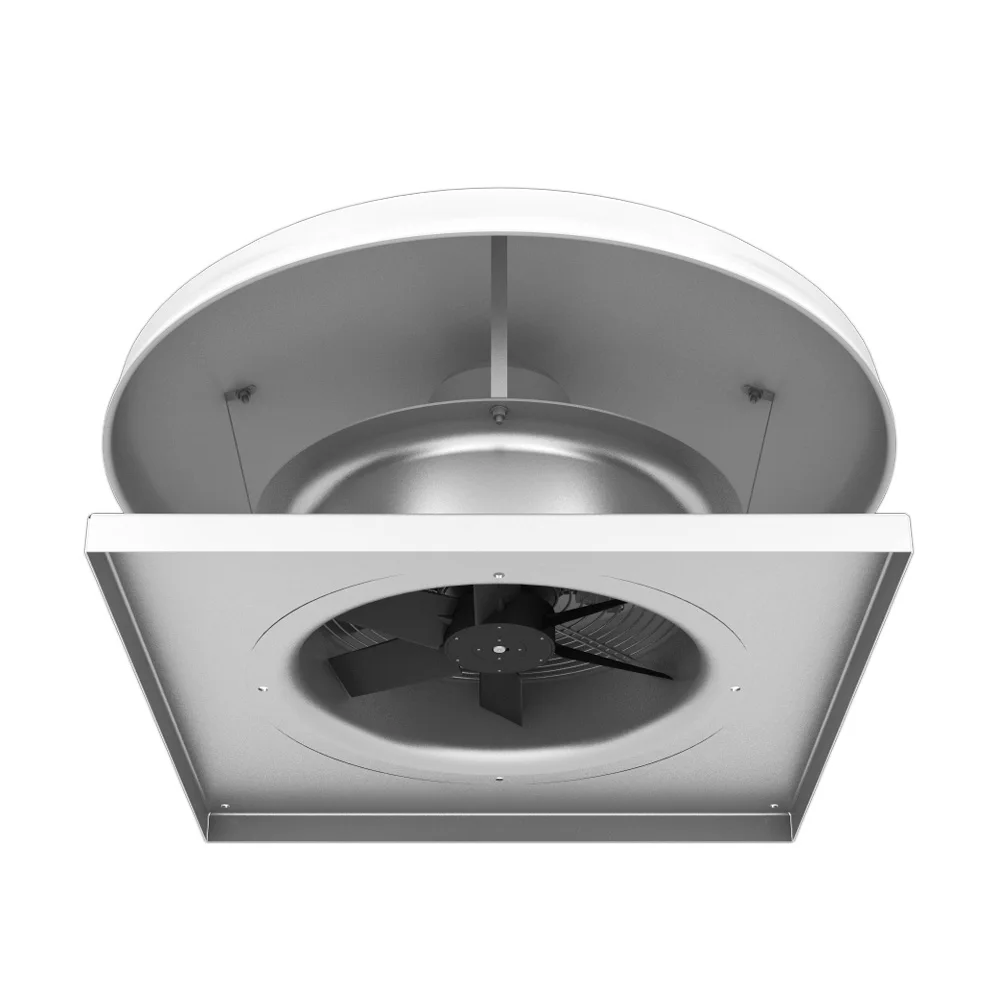

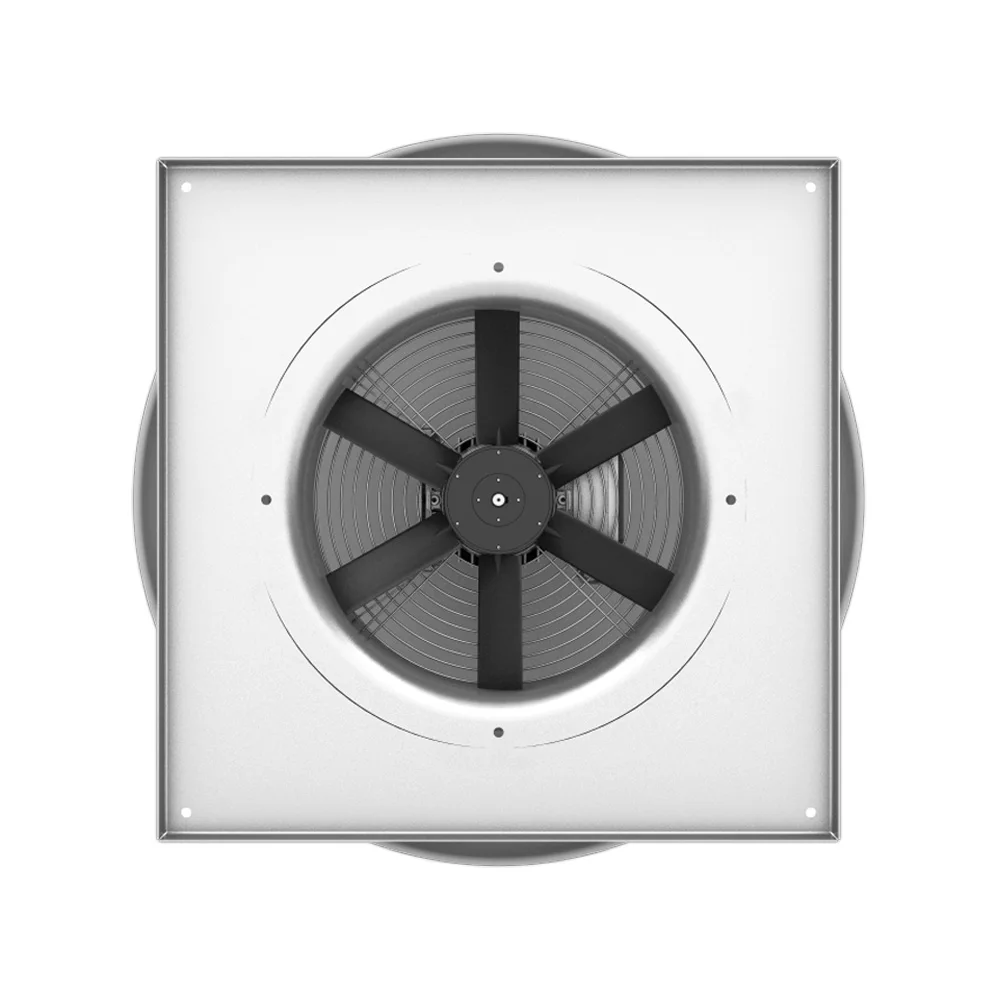

Italian Fan TEE 634 High capacities For ventilation of industrial buildings , stock farms and electrical equipments etc
- Category: >>>
- Supplier: Italsime Macchine Elettriche Srl
Share on (1600201466900):
Product Overview
Description
Product Description
RANGE

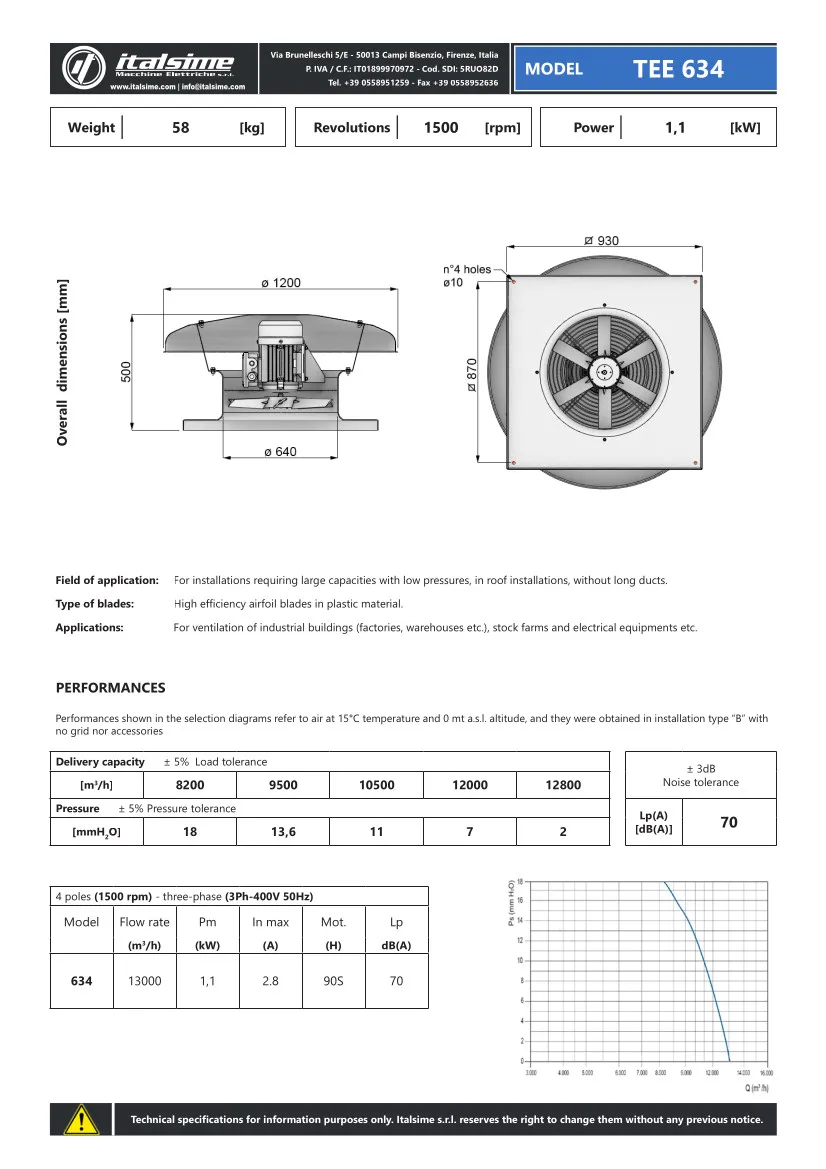

Flow rate: 8200 - 12800 [m3/h] | Pressure: 18 - 2 [mmH2O]
APPLICATIONS
For installations requiring large capacities with low pressures, in roof installations, without long ducts. For instance: ventilation of industrial buildings (factories, warehouses etc.), stock farms and electrical equipments etc.
CONSTRUCTION
■ Ring casing with double wide round shaped nozzle, and base resistant to the atmospheric agents.
■ Upper cover in techno-polymer resistant to the atmospheric agents.
■ Protection grid on outlet side in steel rod, manufactured according to UNI EN ISO 12499.
■ Arrangement 5 or 4 (impeller directly coupled to motor shaft).
TECHNICAL SPECIFICATIONS
■ Conveyed air: clean, not abrasive.
■ Temperature of conveyed air: -20°C / +50°C.
■ Voltage: Three-phase version (T) 400V-3Ph
■ Frequency: 50Hz
■ Working as exhaust fan.
Flow rate: 8200 - 12800 [m3/h] | Pressure: 18 - 2 [mmH2O]
APPLICATIONS
For installations requiring large capacities with low pressures, in roof installations, without long ducts. For instance: ventilation of industrial buildings (factories, warehouses etc.), stock farms and electrical equipments etc.
CONSTRUCTION
■ Ring casing with double wide round shaped nozzle, and base resistant to the atmospheric agents.
■ Upper cover in techno-polymer resistant to the atmospheric agents.
■ Protection grid on outlet side in steel rod, manufactured according to UNI EN ISO 12499.
■ Arrangement 5 or 4 (impeller directly coupled to motor shaft).
TECHNICAL SPECIFICATIONS
■ Conveyed air: clean, not abrasive.
■ Temperature of conveyed air: -20°C / +50°C.
■ Voltage: Three-phase version (T) 400V-3Ph
■ Frequency: 50Hz
■ Working as exhaust fan.
Specification
item | value |
Type | Axial Flow Fan |
Applicable Industries | Farms, INDUSTRY |
Customized support | OEM, ODM, OBM |
Electric Current Type | AC |
Mounting | Roof Fan |
Blade Material | TECHNOPOLYMER |
Place of Origin | Italy |
Brand Name | ITALSIME |
Model Number | TEE634 |
Voltage | 230/400 HZ50 |
Certification | ISO 9001 |
Warranty | 1 Year |
After-sales Service Provided | Online support |
color | black/blu |
Packing & Delivery
Type of packaging and shipment of products
Our products are shipped ready for installation, the packaging varies according to the type of transport.
Road and air transport: the product is fixed on pallets and packed with stretch film.
Ship transport: special packaging is made that protects the product from atmospheric agents.
