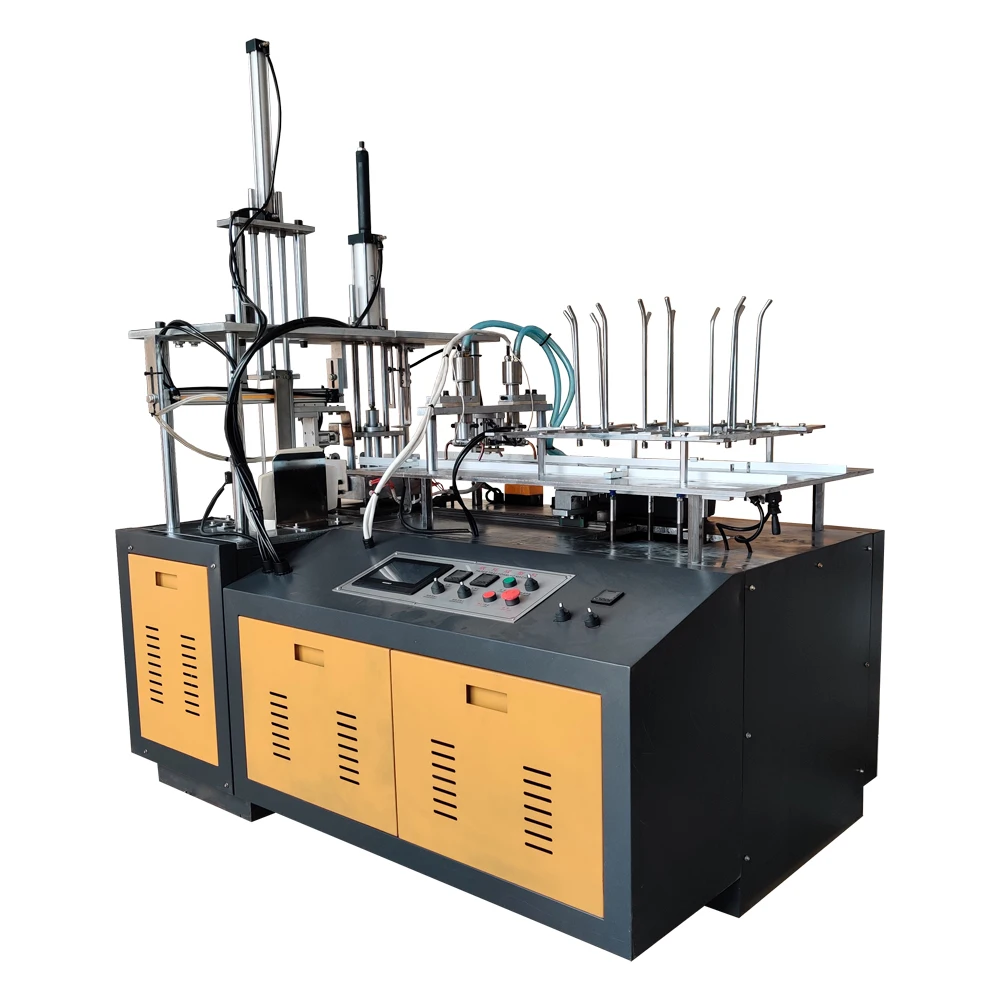

Boway JBZ 800 Paper Lunch Box Machine

Product Overview

Description

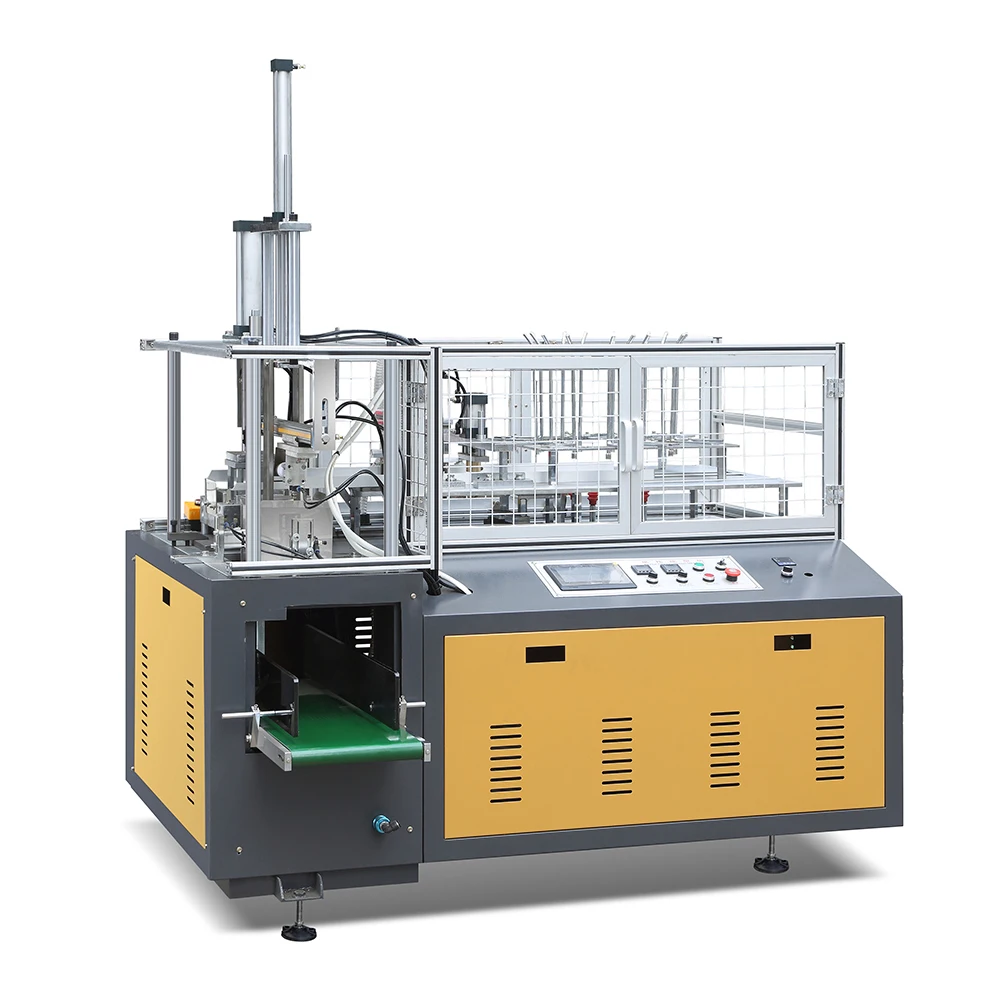

JBZ-800 Paper Lunch Box Machine

Description of the machine:

1. JBZ-800 : mechanical transmission, speed, energy-saving, stable and simple operation, microcomputer detection and domestic advanced technology products.



 2. JBZ-800 full automatic intelligent medium speed cake cup machine is automatic paper molding equipment, has the advantages of high speed, convenient operation etc.. This machine adopts built-in hot air generator, suitable for single PE coated paper.



3. For the production of single-cell disposable paper boxes, paper boxes, cupcakes, food packaging boxes and automatic intelligent medium speed cake cup machine through the automatic feed paper, heating (comes with hot air generating device), hot press molding (adhesive box four corners), automatic points collected, microcomputer control of continuous processes.



4. The fastest working speed is 50 times per minute. Domestic leading speed level,It has the  monitor  computer system .If the fault the machine will stop and alarming

JBZ-800 Advantages:

1 mold can be change to produce the different size or type

2 the raw material is PE coated paper , box and tray can form together without any glue,                    it was called heat sealing, healthy and eco-friendly

3 saved electricity

4 we can customize your wanted size and type.

5 Lower paper wastage

 Work flow:

Blank Raw material paper  → printing (printing machine)  → Die cutting (paper die cutting machine/ punching machine)  → finished paper box (tray) (paper box (tray)forming machine)  → packing (depends)

MAIN PARAMETER:

Max size	380*260mm
Material	single PE coated paper
Thickness of paper	200-450 gsm
Speed	20-30 pcs/ min(1die),
Power supply	380V,50HZ or 220V,50HZ
Total Power	4.0KW
Machine weight	1000kgs
Measure(L*W*H)	2000*1150*2050mm
Air supply	0.5Mpa 0.3-0.4 m3/min(need buy a separate air compressor )

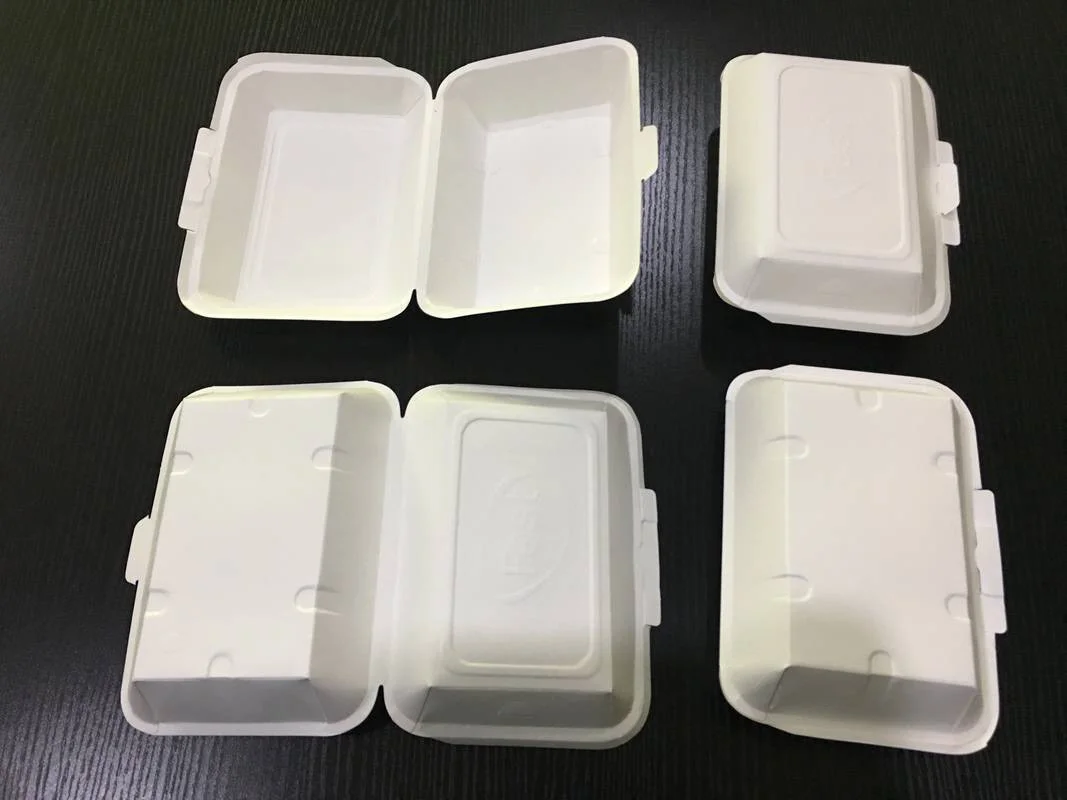

Samples : ( Some box ,tray can work on one machine,but do not suggest buy too many molds with one machine)
