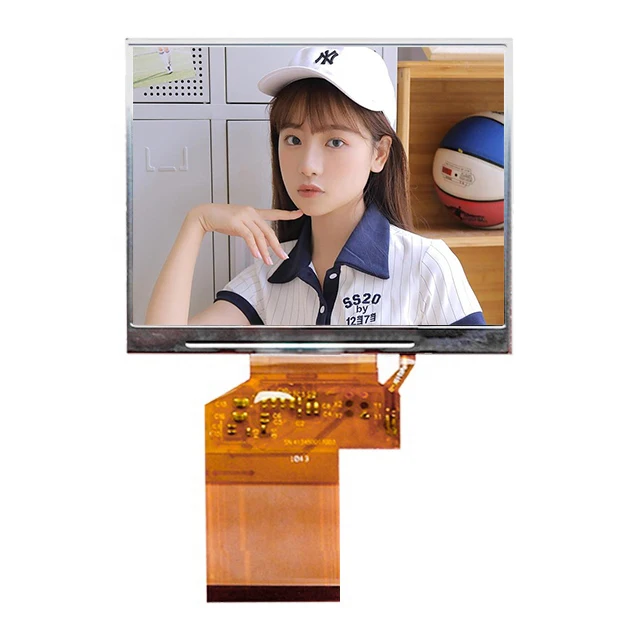

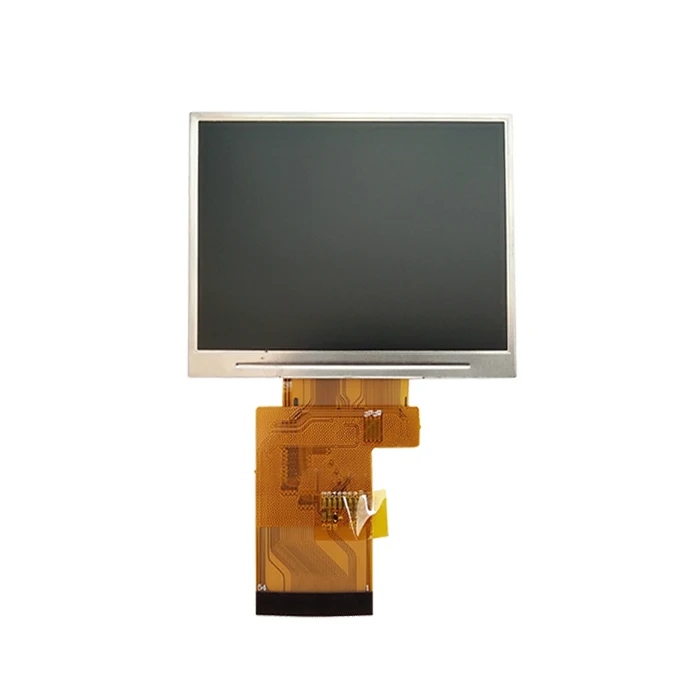

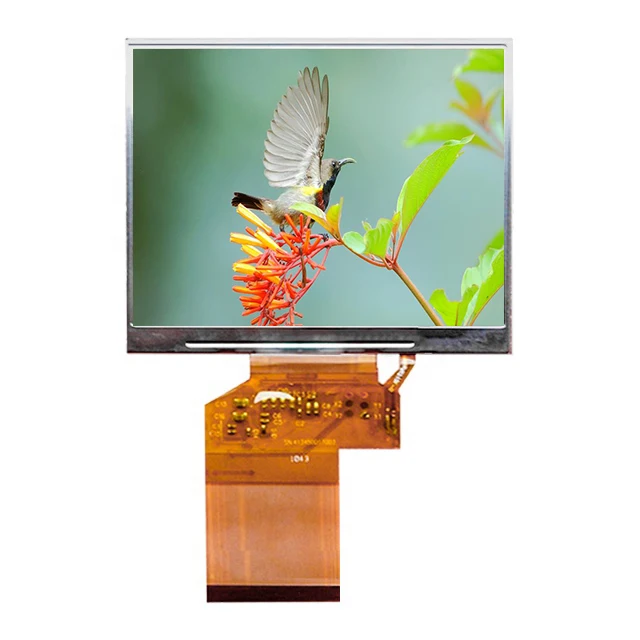

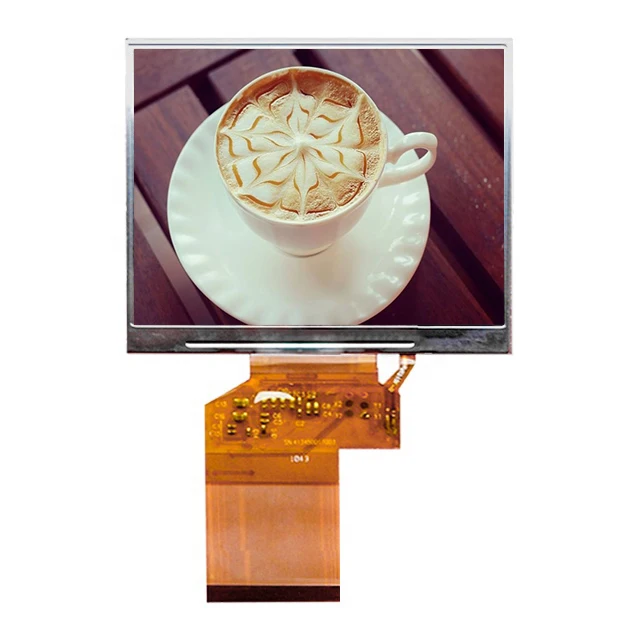

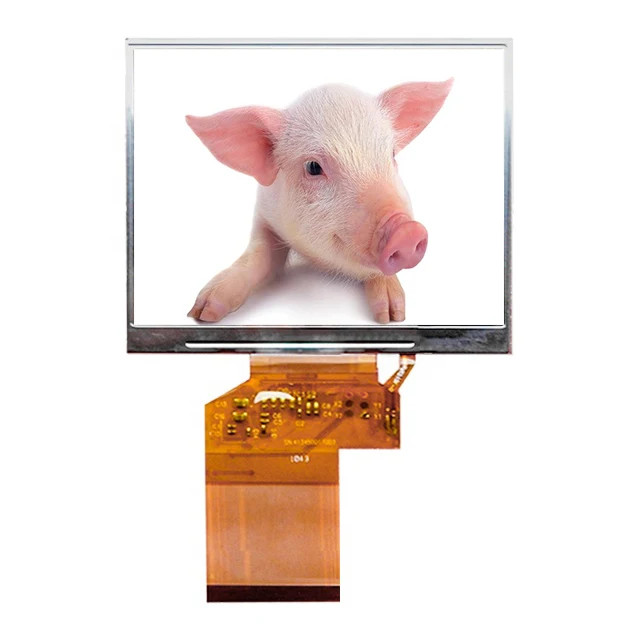

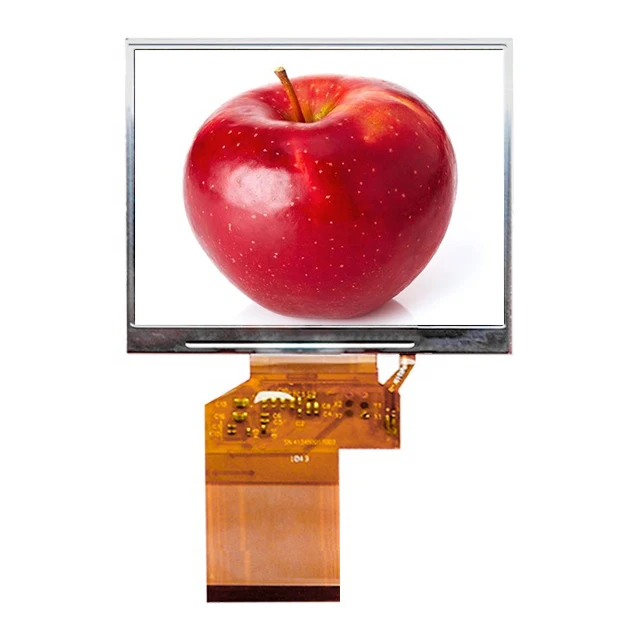

3.5 Inch High Brightness TFT Display IPS 640RGBX480 54 pin RGB touch screen LCD Module

Product Overview

Description

Product model	XBY035MIE660
LCD brand	CTC
Product size	3.5"TFT
Boundary dimension	76.9MM*63.9MM*3.4MM
Display (A, areaA) dimensions	70.08MM x 52.56MM
resolving power	640RGB×480
View direction	IPS
Connection mode	FPC Plug in
Interface	RGB-54PIN
Drive IC	NV3052C
Drive voltage	2.8V
LED current voltage	19.2V/20MA
Brightness: CD / m2	250---1000
Working temperature	-20°~70°
Storage temperature	-30°~80°







Size	Part No.	Boundary dimension	Display  dimensions	resolving power	View direction	Interface	Drive voltage
3.5"	XBY035MGA310	76.84*63.84*3.25MM	70.08 x 52.56MM	320RGB×240	TN	RGB-54PIN	3.3V	click here
	XBY035MIE660	76.9*63.9*3.4MM	70.08 x 52.56MM	640RGB×480	IPS	RGB-54PIN	2.8V	click here
4.0"	XBY040MHF661	76.92*78.55*2.45MM	71.86 x 70.18MM	480RGB×480	IPS	RGB-54PIN	2.8V	click here
4.3"	XBY043MIA631	105.4*67.1*3.05MM	95.04 x 53.86MM	480RGB×272	TN	RGB-40PIN	3.3V	click here
	XBY043MBB673	105.3*67.0*3.0MM	95.04*53.856MM	800RGBX480	IPS	RGB-40PIN	3.3V	click here
4.95"	XBY050FIM008	66.4*120.05*2.1MM	61.56*109.53MM	480RGB×854	IPS	MIPI-40PIN	2.8V	click here
	XBY050FIM001	66.4*120.05*2.1MM	61.56*109.53MM	480RGB×854	IPS	RGB-40PIN	2.8V	click here
5"	XBY050MIB582	120.7*75.8*2.8MM	108x 64.8MM	800RGB×480	TN	RGB-40PIN	3.3V	click here
	XBY050MBB605	120.7*75.8*2.8MM	108x 64.8MM	800RGB×480	TN	RGB-40PIN	3.3V	click here
	XBY050MHB673	120.7*75.8*2.8MM	108x 64.8MM	800RGB×480	IPS	RGB-40PIN	3.3V	click here
6.2"	XBY062MHB570	155.2*88.2*5.0MM	137.52x77.232MM	800RGB×480	TN	RGB-60PIN	3.3V	click here
7.0"	XBY070MBD672-2405AA3	164.9*100*3.55MM	154.21x85.92MM	1024RGB×600	IPS	MIPI-31PIN/30PIN	1.8V/3.3V	click here
	XBY070MBB625-1815AD0	164.9*100*3.5MM	153.8*85.63MM	800RGB×480	TN	RGB-50PIN	3.3V	click here
	XBY070MHD630	165*100*5.7MM	154.21*85.92MM	1024RGB×600	IPS	LVDS-40PIN	3.3V	click here
	XBY070MIB501-2100AA0	165*100*5.7MM	154.08*85.92MM	800RGB×480	TN	RGB-50PIN	3.3V	click here
	XBY070MBD619	164.9*100*2.8MM	154.21*85.92MM	1024RGB×600	IPS	LVDS-40PIN	3.3V	click here
8.0"	XBY080MBI577-2107AA3	114.6*184.15*2.6MM	107.64*172.22MM	800RGB×1280	IPS	MIPI-30PIN	3.3V	click here
	XBY080MID559	183*141*6.3MM	162.05 x 121.54MM	1024RGB×768	IPS	LVDS-40PIN	3.3V	click here
10.1"	XBY101MHC663	234.9x143x4.45MM	222.72x125.28MM	1024RGBx600	TN	LVDS-60PIN	3.3V	click here
	XBY101MID614	142.94*228.54*2.5MM	135.36*216.58MM	800RGB×1280	IPS	MIPI-31PIN	3.3V	click here
	XBY101MIH669	229.46×149.1×2.6MM	216.96x 135.60MM	1280RGB*800	IPS	LVDS-40PIN	3.3V	click here
15.6"	XBY156MBJ685	359.5x223.87x3.52MM	344.16x193.59MM	1920RGB*1080	IPS	EDP-30PIN	3.3V	click here
15.6"	XBY156MBJ702	360x222.35x 5.8MM	344.16 x 193.59MM	1920RGB*1080	IPS	EDP-30PIN	3.3V	click here
Click here for more models		........	........	........	........	........	........	........
