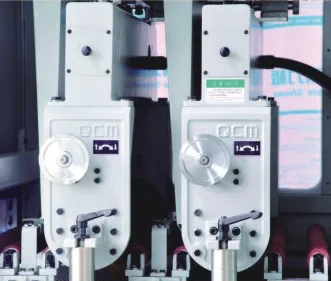

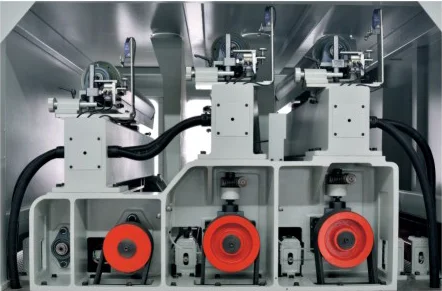

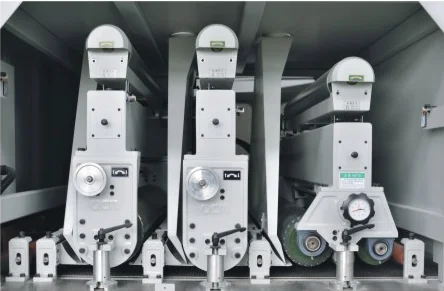

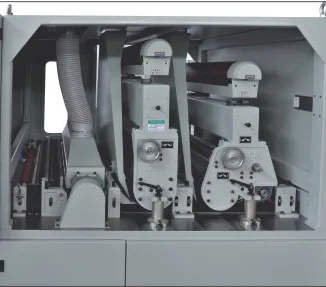

1. Motors for coarse sanding, semi-fine sanding, fine sanding are inside setted , to make cleaning appearance.
2. The second group of idler rollers is anti-reversal roller, to protect the safety of the operator.
3. The support plates are made of high quality casting, which makes our machine more stable and high accuracy.

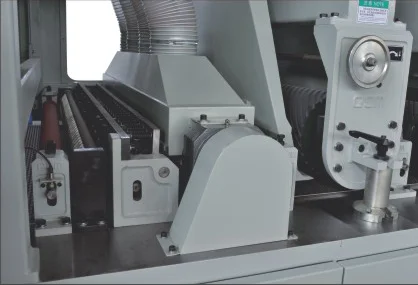

4. Double pressure roller structure to ensure seady and smooth feeding.
5. SPR-RP series configured with precision spiral planing cutter module, and in keyboard type sectional pressuring structure. It's can plan and sanding at the same time, stablly and precisely.
6. SRR630S type is equipped with 8 sets feeding rollers, 3 front, 2 in middle, 3 rear. So it can apply to materails over 230mm length.
QCM SPR-RP1300 Planing And Sanding Machine Wooden Automatic Abrasive Sanding Belt Machine
Technical Parameter
Wood Planer Moulder Four Side Moulder
Specifications
Unit
SPR-RP1300
SPR-RP1000
SRRP1000C
SRRP630C
Sand cutting width
mm
40-1300
40-1000
40-1000
40-630
Sand cutting thickness
mm
3-120
3-160
3-160
3-160
The shortest sand cutting length
mm
520
500
480
500
Planer shaft speed
m/s
36
36
/
/
Speed of 1st sanding belt set
m/s
19
18
20
19
Speed of 2nd sanding belt set
m/s
18.5
16
18
19
Speed of 3rd sanding belt set
m/s
/
/
16
16
Feeding speed
m/min
6-30
6-30
6-30
6-24
Sanding belt size
mm
1330*2200
1030*2200
1030*2200
650*2100
Total motor power
KW/HP
77.12/103
60.62/81
60.62/81
36.5/49
Planer shaft motor
KW/HP
22/30
18.5/25
/
/
1st belt motor
KW/HP
30/40
22/30
22/30
15/20
2nd belt motor
KW/HP
18.5/25
15/20
18.5/25
11/15
3rd belt motor
KW/HP
/
/
15/20
7.5/10
Feeding motor
KW/HP
5.5/7.5
4/5.5
4/5.5
2.2/3
Dust brush motor
KW/HP
0.37/0.5
0.37/0.5
0.37/0.5
0.37/0.5
Workbench lifting motor
kW/HP
0.75/1
0.75/1
0.75/1
0.37/0.5
Vacuum port diameter
mm
9*Φ150
9*Φ150
7*Φ150
7*Φ150
Working pressure
MPa
0.6
0.6
0.6
0.55
Overall dimensions
mm
2850*2050*2200
2770*1770*2170
2750*1770*2170
2470*1270*2050
Weight
kg
5150
4250
4200
2700
Related Products
Company Information
HUZHOU QINGCHENG MACHINERY CO., LTD

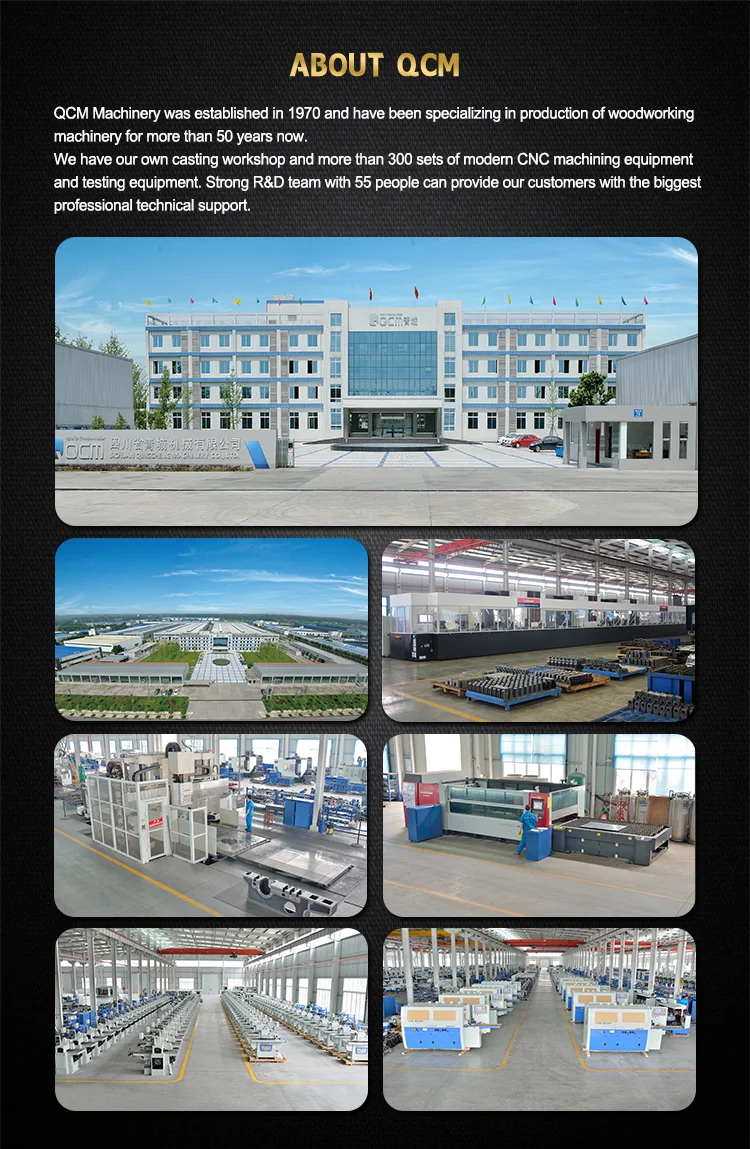

QCM Machinery was established in 1970 and have been specializing in production of woodworking machinery for more than 50 years now.
We have our own casting workshop and more than 300 sets of modern CNC machining equipment and testing equipment. Strong R&D team with 55 people can provide our customers with the biggest professional technical support.
1. Manufacturer or Trading company?
QCM (Qingcheng Machinery) is a professional manufacturer of woodworking machinery since 1970. With more than 50 years experience, we have developed to be the top and most powerful manufacturer of woodworking machinery in China.
2. Payment Term?
TT , 50% advance payment and 50% balance before delivery.
3. Lead Time?
Within 15 days for regular stock machine after receiving advance payment.
45-60 days for customized machines.

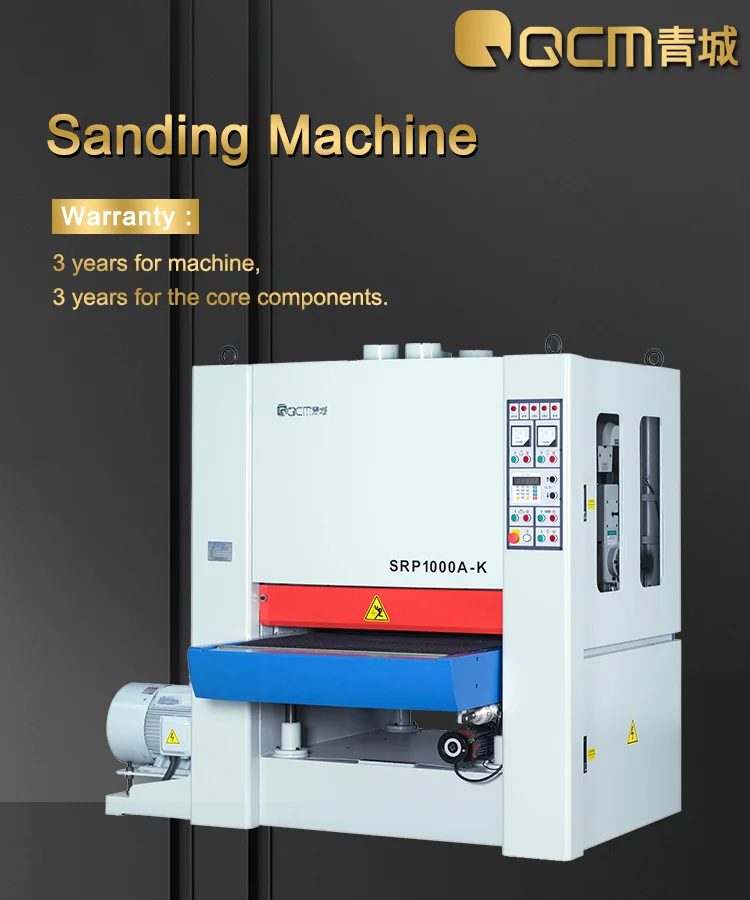

4. Warranty ?
3 years for machine, 3 years for the core components.
5. Spare Parts?
Unified standards spare parts are available anytime. It will not be a problem if you want to replace spare parts of the machine you bought anytime.
6. Pre-sale Service?
As a leader in woodworking machinery field for more than 50 years, professional and efficient proposals can be provided anytime. Our strong R&D team with more than 50 persons are also your team.
7. After-sale Service?
Professional after-sales service team, 24 hours technical support by email, call and video.
If remote support is not workable, our engineer is available to visit at your expenses of accommodation and round tickets.
8. Why us?
1). 50 years experience in wood working machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity by standard configuration.
3). All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy. Spindle is processed in constant temperature workshop to insure high precision and stability, +-0.1mm high accuracy.
4). Warranty: 3 years for machine, 3 years for the core 3 years for machine, 3 years for the core components.
