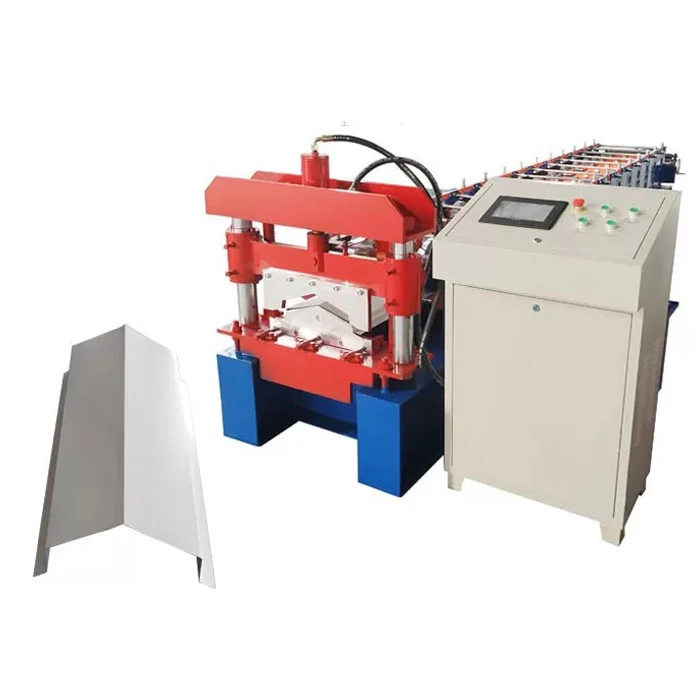

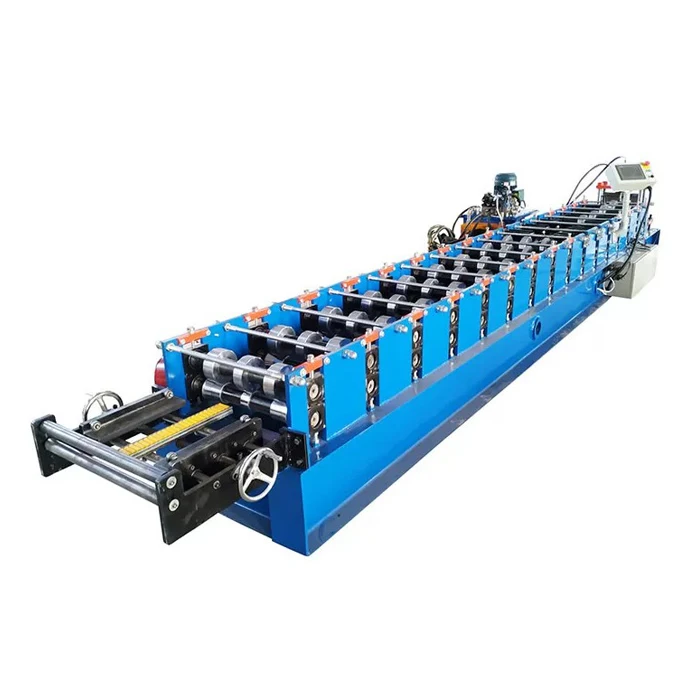

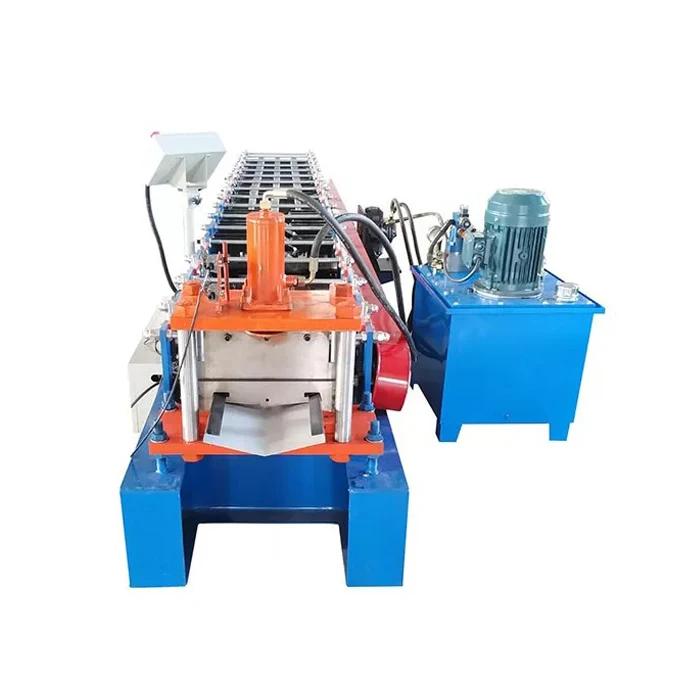

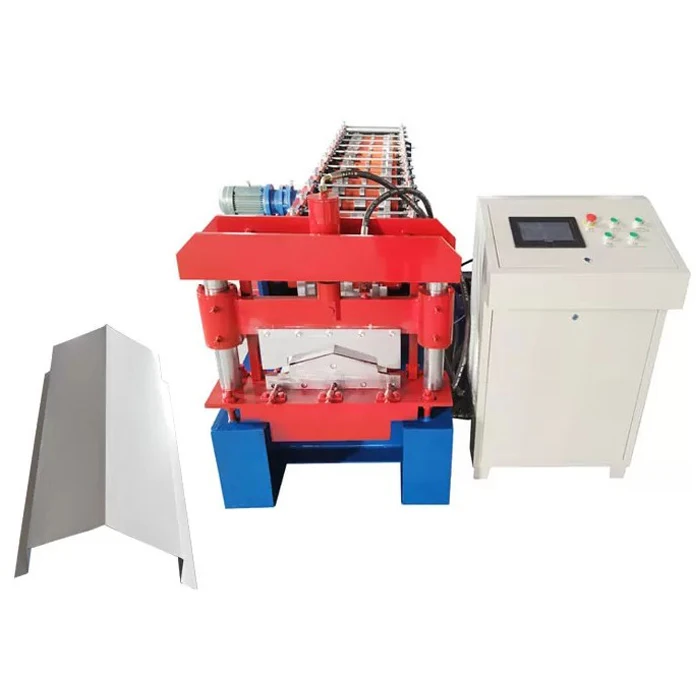

Color steel metal roof ridge sheet roll forming making machine
- Category: >>>
- Supplier: Nanpi County Dingtai Cold-Formed Machinery Equipment Co. Ltd.
Share on (1600201688196):
Product Overview
Description
specification

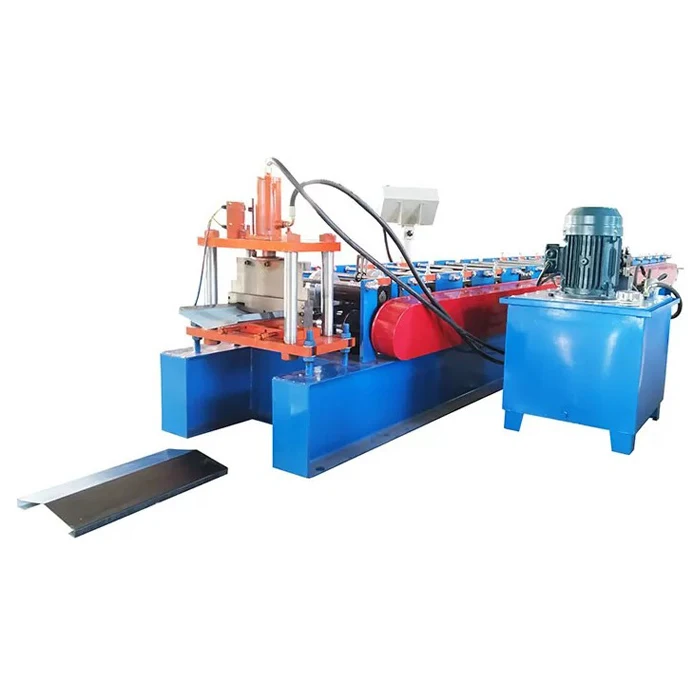

Plc Control Systerm Metal Sheet Roofing Ridge Cap Roll Forming Machine
decoiler |
5tons manual decoiler |
Raw material | color steel sheet ,galvanized sheet or other sheet |
Production speed | 8 - 20m / min |
Transfer method | Chain drive |
Shaft diameter | 80mm |
shaft material | high grade 45# steel |
Roller material | 45 # steel hard chrome plated |

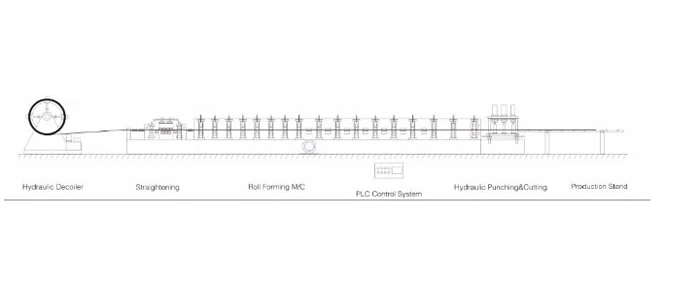

Forming part | manual decoiler +feeding platform.+pre-cutting +roll forming machine body+cutter+receiving table +plc control systerm +pump station |
| PLC control systerm | Delta plc control syeterm ,touch screen operate
|
Forming step | 13station |
Cutter material | high grade GR12 |
Main power | 7.5kw |
Pump power | 4kw |
Voltage | 380V 50Hz or as customer requirement |
Weight | 5tons |
Raw materail thickness | 0.3-0.8mm |
Warranty period | 18months |
Product process
The ridge cap roll forming machine production process

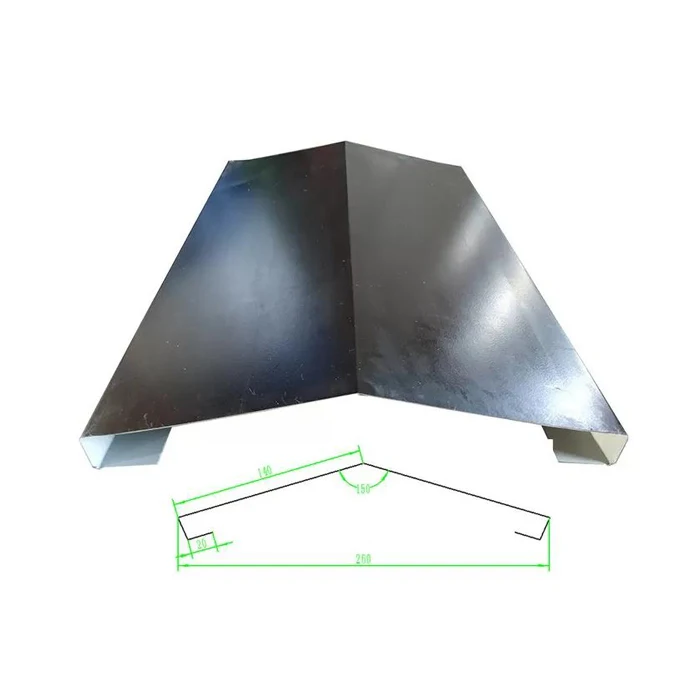

Drawing confirmation: After confirming the final profile with the customer, the team of 6 engineers worked out detail workable parts machine drawings; After 5 recheck, the production manager arrange to product the machine .
Start production: Our company owns 12sets rough lathe machine, 20sets precise lathe machine, and 30 sets shearing machine, all machine parts start to manufacture.
Product Inspection: Our company Own 3sets hard test machine, and 4sets surface thickness Chromium test machine. Roller and shaft: Our Inspect team test 90% wheels and shafts, confirm all parts size precise and performance after processing. Our Inspect team test all roller surface, confirm all part surface paint above 5um. Mainframe and medium plate: Our Inspect team tests the mainframe and plate cutting precise.
Assembling machine: 3 workers assemble and welding one machine body frame by three days.
Machine painting: Putty ensure weld parts surface smoothly, use the environment-friendly paint
Machine test: Confirm the output sheet tolerance within 1mm.
Cutter production: According to the finally manufacture sheet, confirm the blade precise profile, Cr12 MOV steel cutting knife finished by laser cutting.
Spare parts of ridge cap roll forming machine
| manual decoiler | 1set |
| feeding platform | 1set |
| roll forming machine | 1set |
| plc control systerm | 1set |
| hydraulic cutting systerm | 1set |
| exit rack | 1set |
| pump station | 1set |
Product Description
This ridge cap roll forming machine is widely used in many kinds of industrial factory, civilian buildings, It has advantage of pretty appearance, durable using and so on,we aslo make machine as customer requirement .

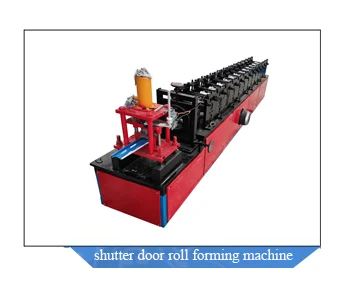

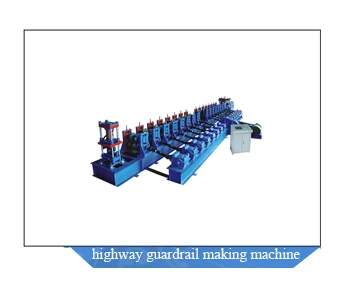

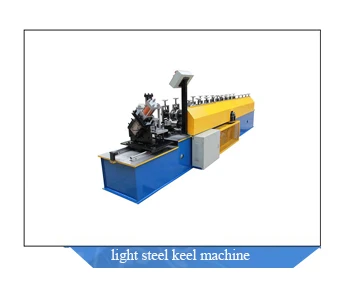

Related Products
Contact US
Packaging & Shipping
Roofing ridge cap roll forming machine details
- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
- 2.This producing line is maintained free of charge for 18 months. when the machine need install ,we will send the professional technician to debug for customer.Buyers should take all the fees for
technicians travelling abroad.
- 3.All the parts in the roll forming machine is free to maintain all the life,if in 18 months our company bear the cost for
exchanged the broken part,if more than 24 month,we also free to maintain the broken parts,but for send the new parts,the buyer need bear the express cost.
- 4.When shipping the roll forming machine,We will also send one set CD and specification(Chinese and English or other language) to you with the machine,they can teach you how to operater the machines,it is easy to operat the machine ,i am online to service 24hours .
FAQ
Q:Are you a manufactuer or trading company?
A:We are a manufacturer specialized in producing all kinds of roll forming machines.
Q:Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world.
Q:What is the payment terms?
A:T/T (30% by TT in advance, the rest 70% to be payed by TT after you inspect the machine in sell s factory before delivery)and T/C.
Q: What can you do if the machine broken?
A: Our machine's quality is very good. And we supply the technical support for the whole life. Because the warranty is 18month, if the broken parts can't repair, we will send you the new parts freely. But you need pay the express cost yourself. Thanks for your understanding. If after the warranty period, we can solve the problems through negotiation.
Q:How to visit your factory
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
Q: How does your factory do regarding quality control?
A: Quality is priority. TY People always attach great importance to qulity control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it’s packed for shipment. Be reassured please.
Q: Can you be responsible for transport?
A: Yes. Please tell me the destination port or address. We have rich experience in transport.
