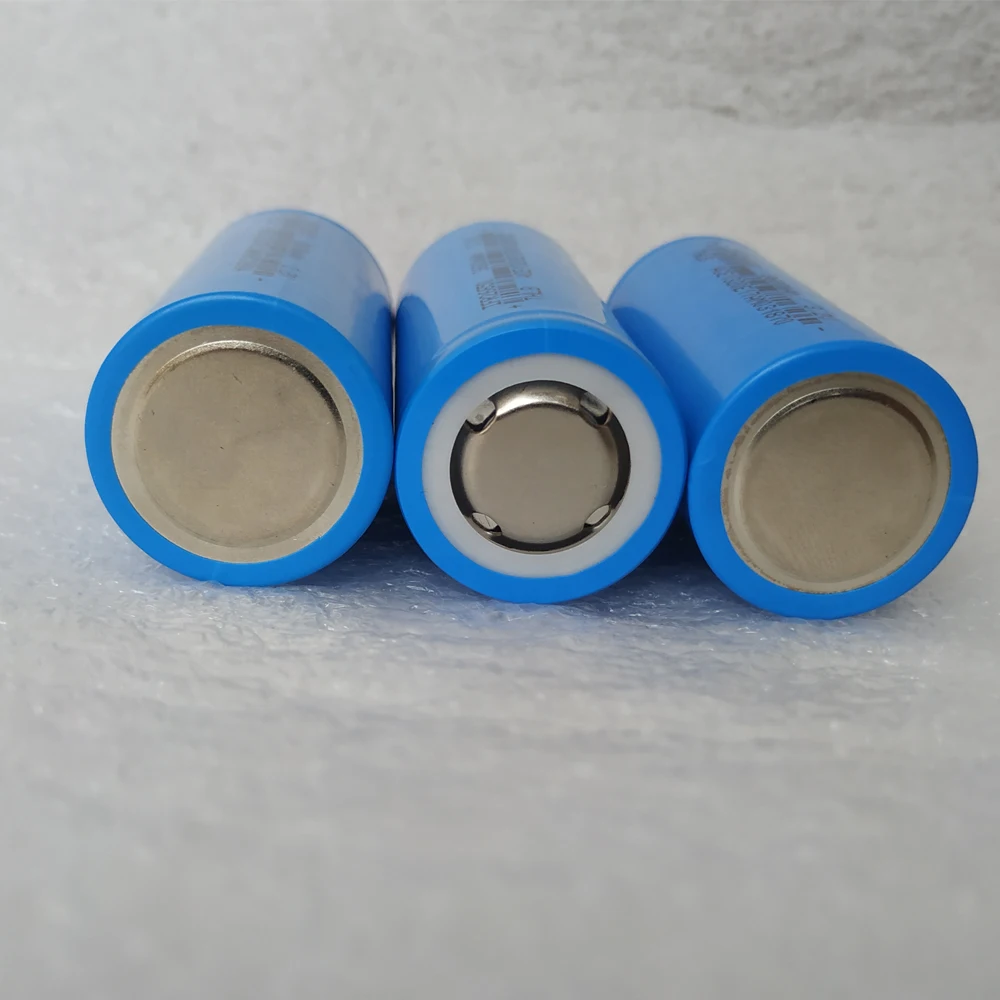

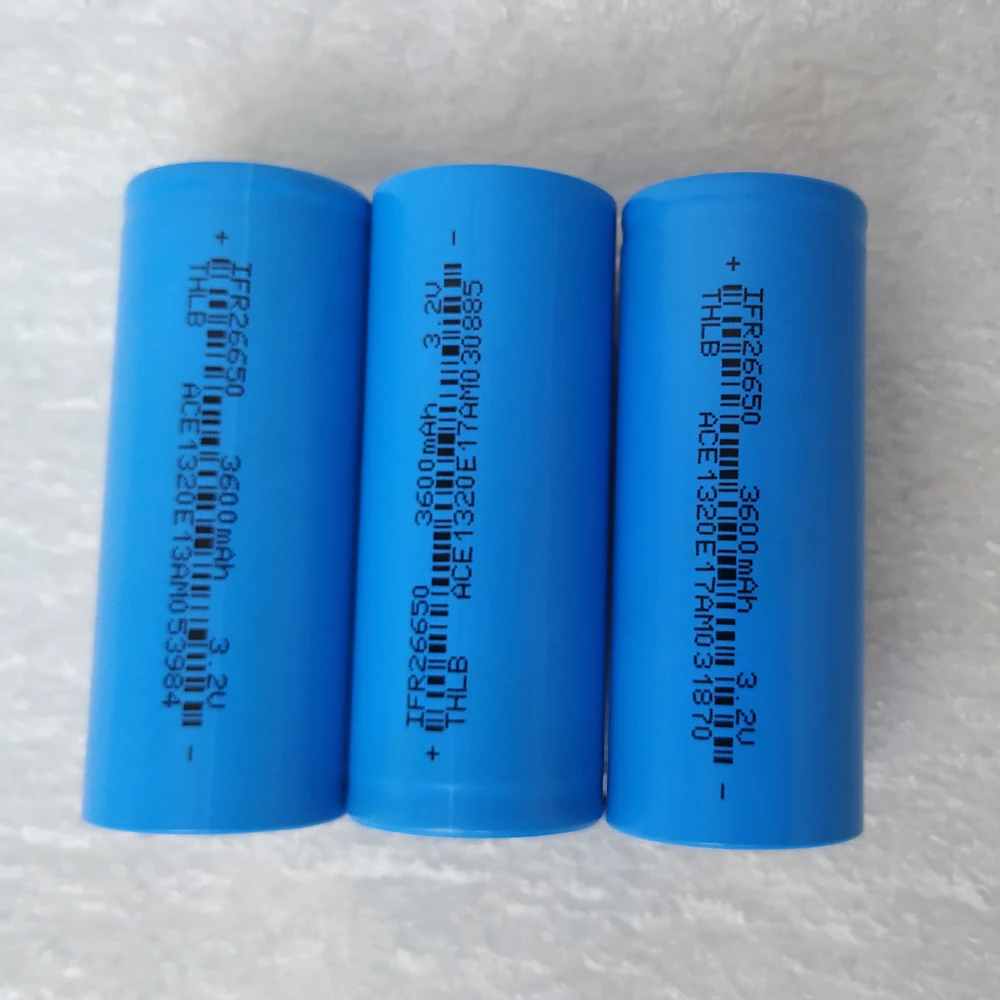

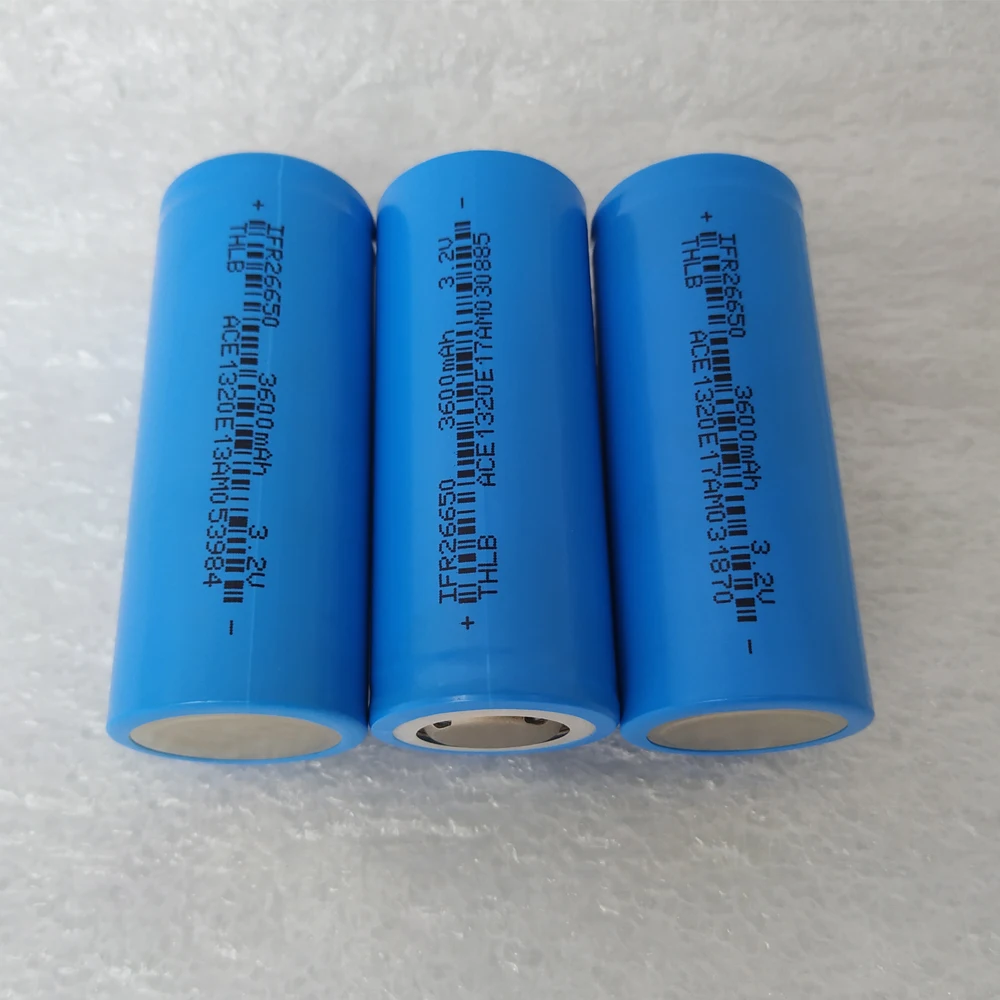

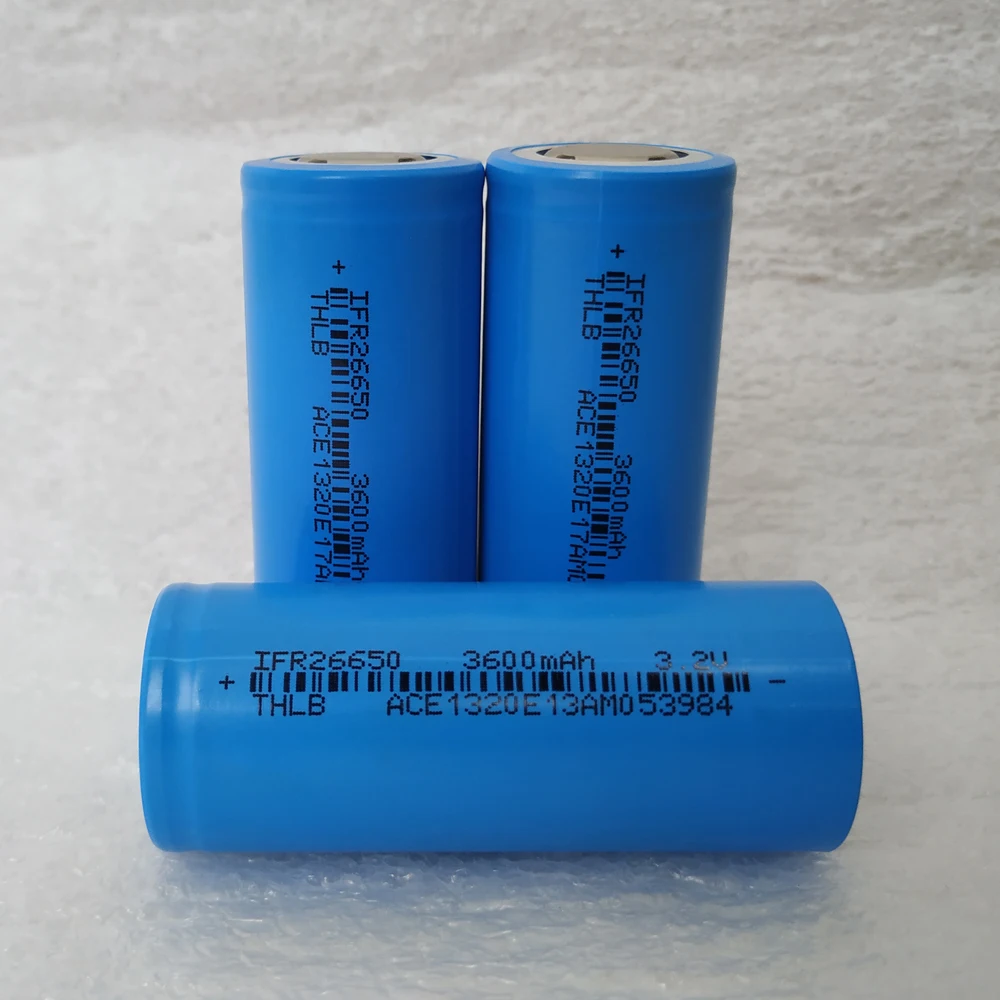

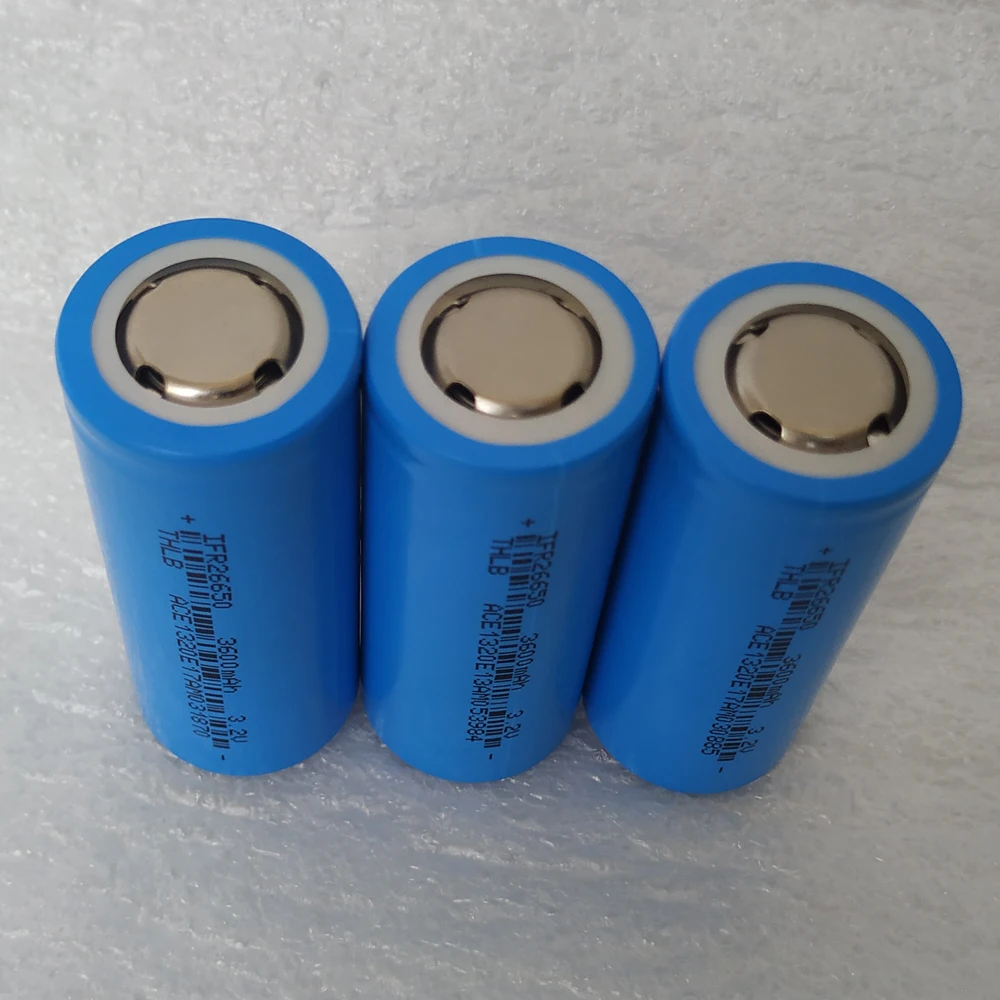

2 years warranty, 26650 LiFePO4 battery cell with 3C discharging rate
- Category: >>>
- Supplier: Shandong Tian Han New Energy Technology Co. Ltd.
Share on (1600201688599):
Product Overview
Description
Product Parameters
1. Specification
No. | Specification | ||||
1 | Capacity | Nominal Capacity | 3600mAh | ||
Minimum Capacity | 3550mAh | ||||
2 | Internal Resistance | 14-16mΩ | |||
3 | Nominal Voltage | 3.2V | |||
4 | Charging Voltage | 3。65V | |||
5 | Standard Charge Conditions (constant current charging and then constant voltage charging | Current | 0.5C | ||
Voltage | 3.65V | ||||
Cut-off Current | 0.02C | ||||
6 | Max. Charging Current | 1C | |||
7 | Standard Discharge Conditions (constant current discharge) | Current | 0.5C | ||
Cut-off Voltage | 2.5V | ||||
8 | Max. Continuous Discharge Current | 3C | |||
9 | Working Temperature | Charge | 0~+55 degree | ||
Discharge | -20~+60 degree | ||||
10 | Storage Temperature | -20~+60 degree | |||
11 | Weight | 87g | |||
12 | Dimension | Diameter: 26.3 Height: 65.2 | |||
2. Advantages
1) Lower internal resistance. adopt double electrode design, very low internal resistance, about 14-16mΩ
2)the most advanced automatic production line to ensure higher consistency
3) very higher matching requirments. <5mv, <3mΩ, <40mAh
4) good discharging rate, 3C max. continuous discharging rate. longer cycles, over 2000 times (80% DOD)

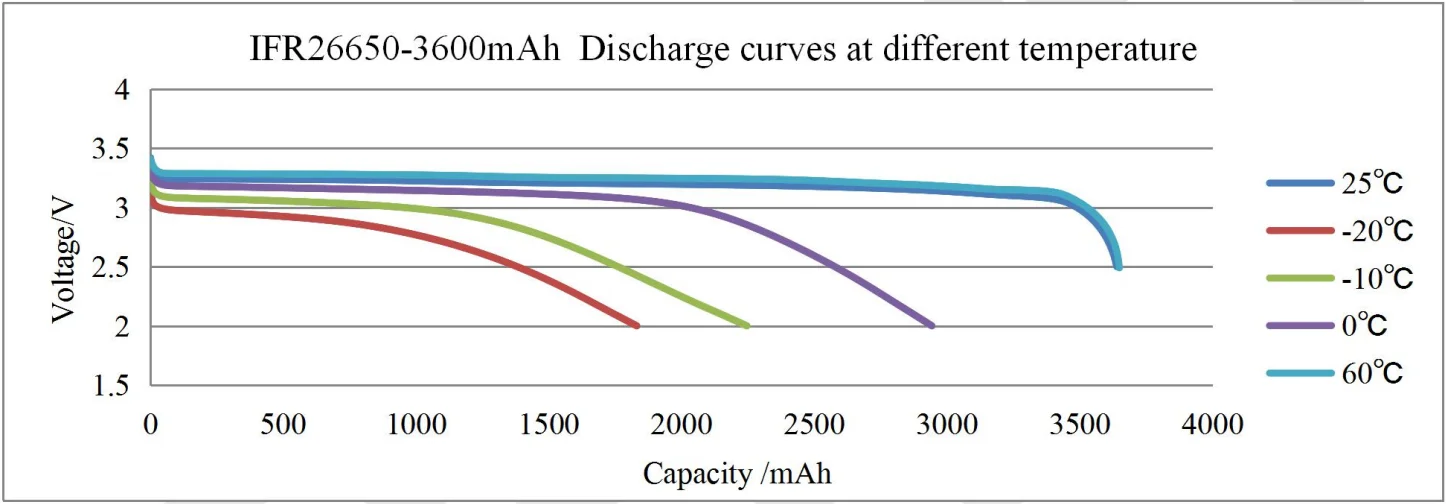

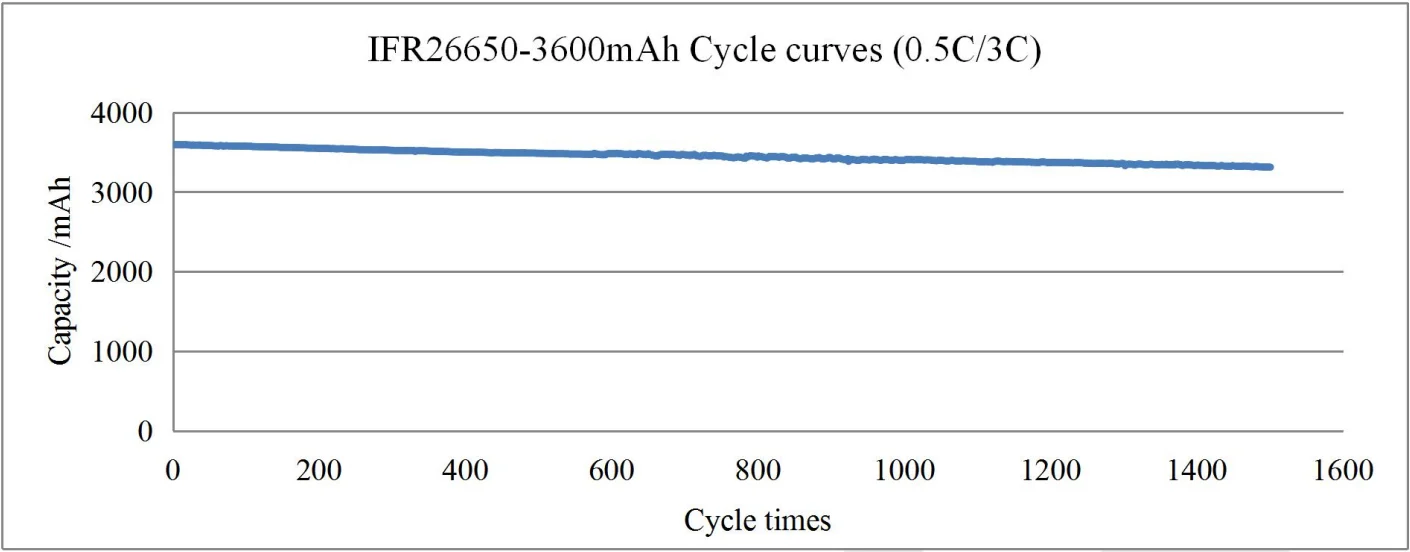

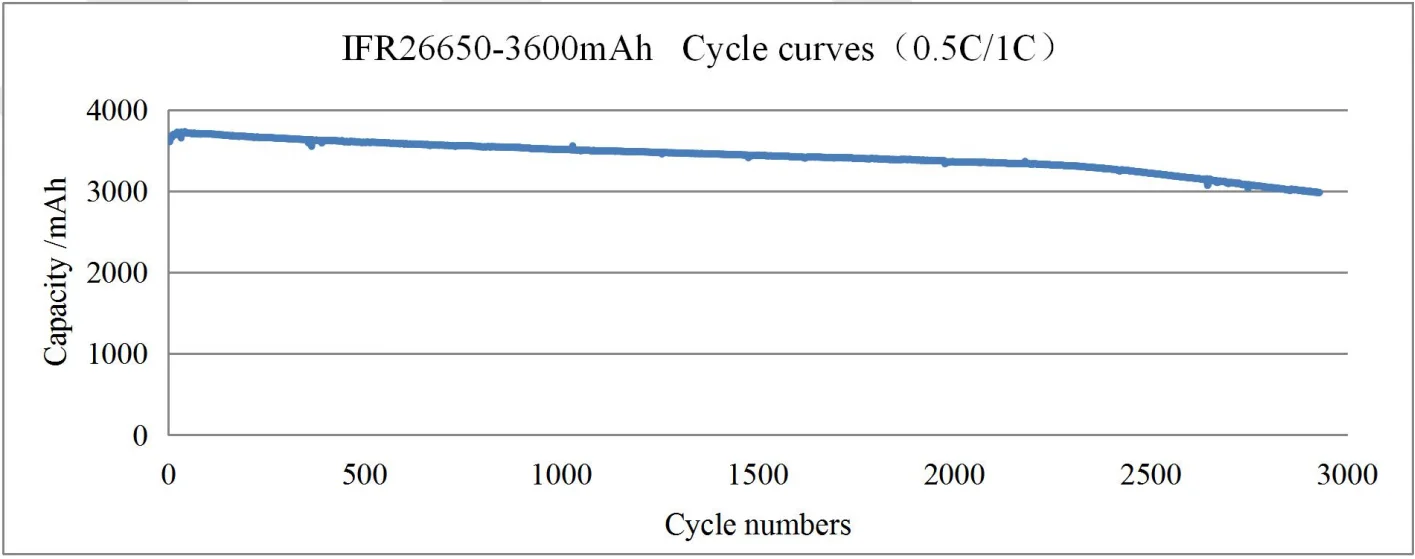

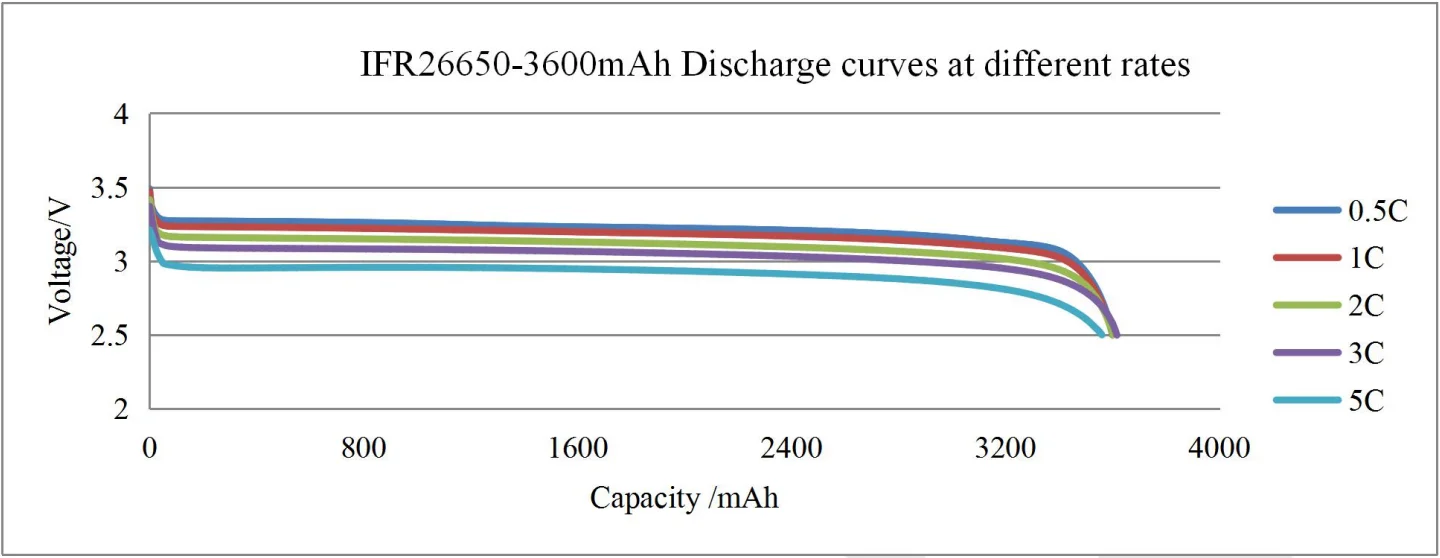

3. Electrical Curves

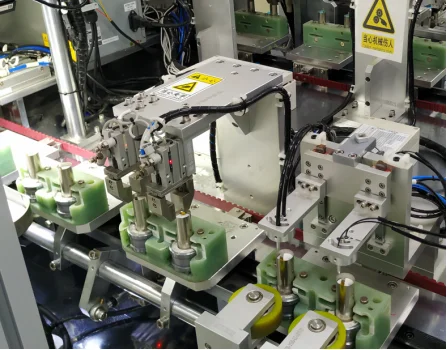

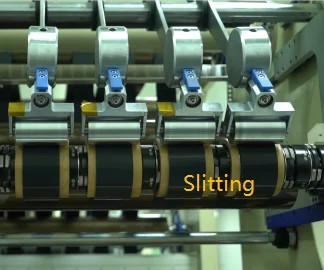

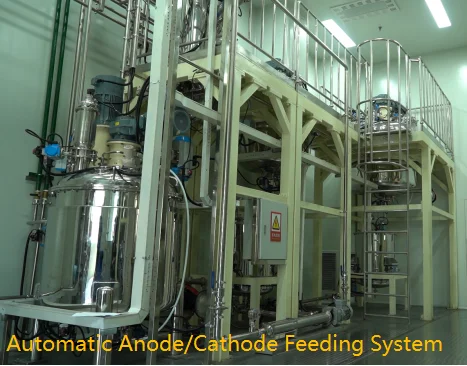

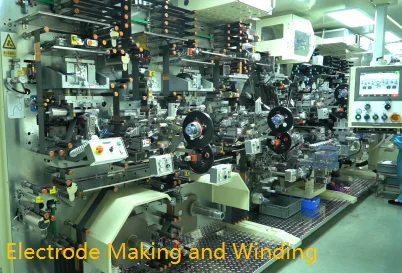

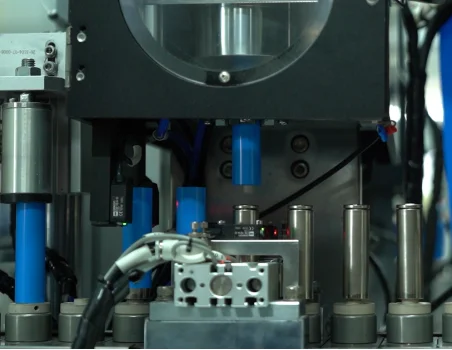

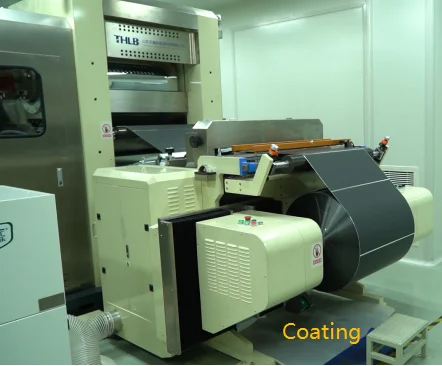

4. Automatic Cell Production Line

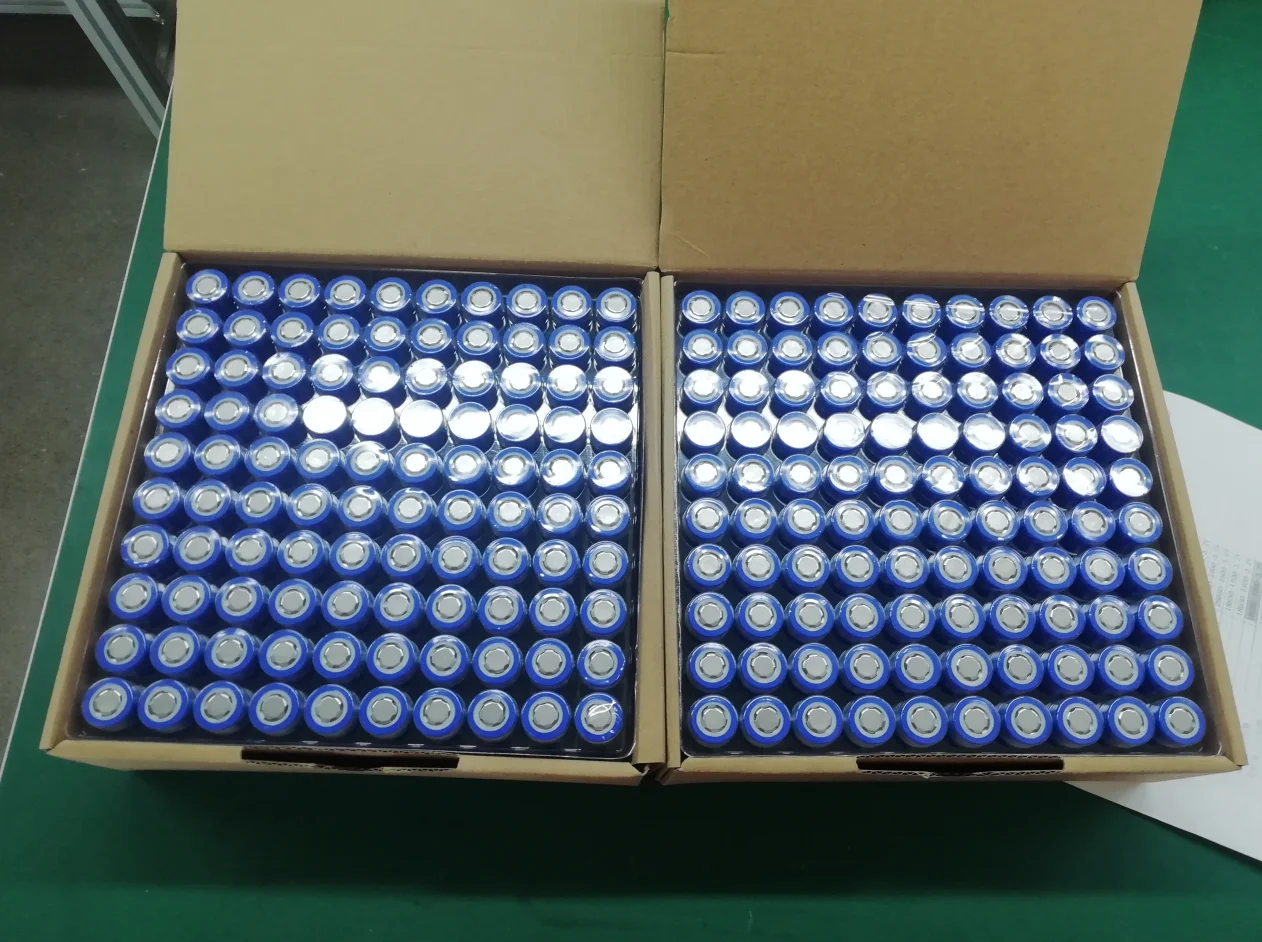

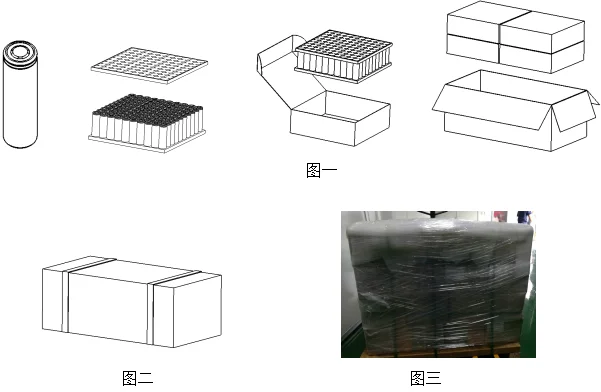

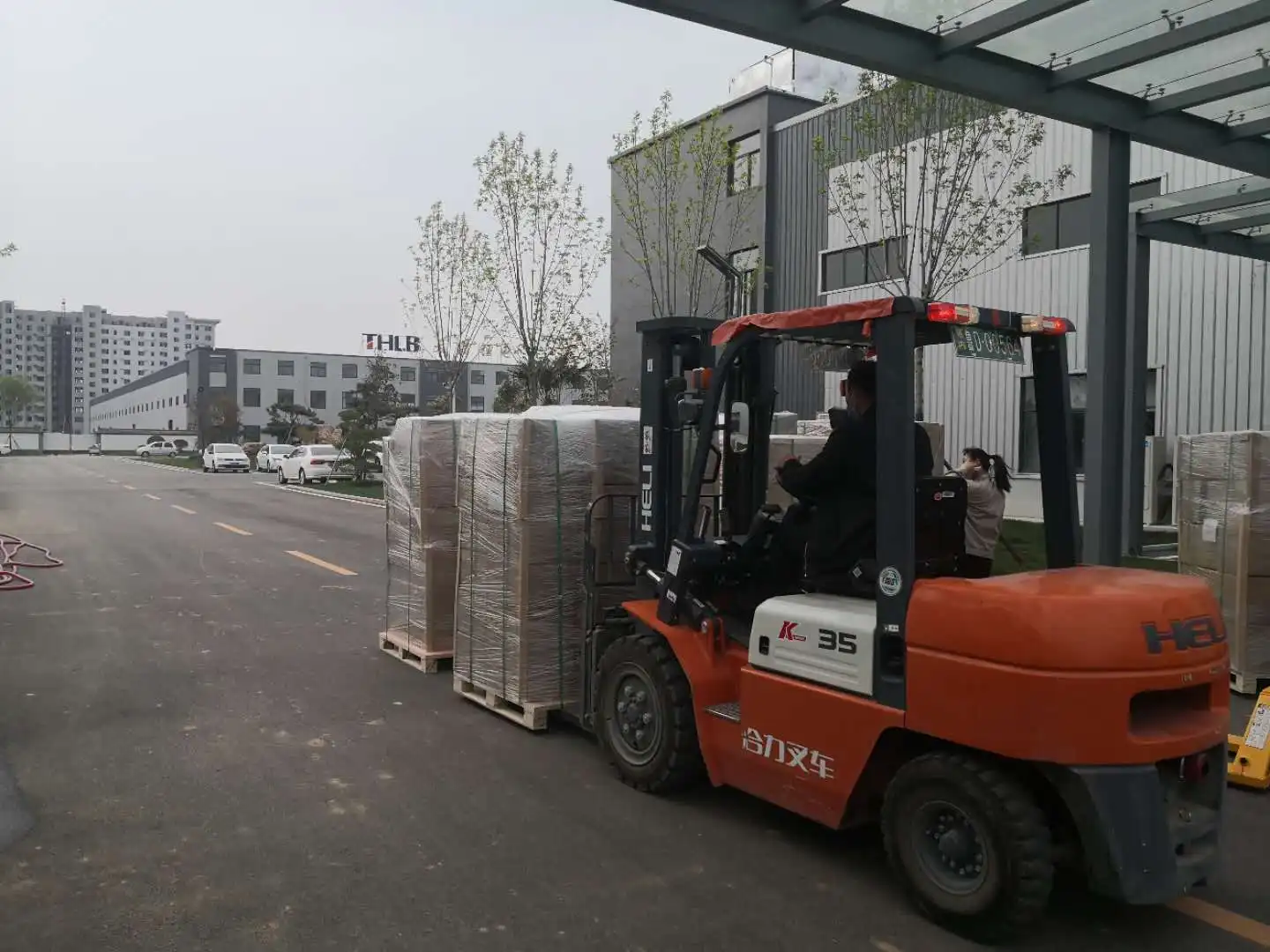

Packing & Delivery
Our Company
Shandong TianHan New Energy Technology Co., Ltd is specialized in R&D, manufacturing, sales and service of lithium battery, power lithium battery and battery pack, BMS, products are widely used in intelligent manufacturing, new energy electric vehicles, starting-up batteries, communication station battery, e-bike, solar-wind energy storage system and houme-use energy storage system solutions.
FAQ
Q1. Can I have few free samples for evaluation?
A: Yes, free samples are ok, but not covering shipping cost
Q2. What about the lead time?
A: Samples needs 3-5 days
B: Mass production time is approx 2-3 weeks
Q3. Do you have any MOQ limit for bulk order?
A: MOQ=5000pcs
Q4. How do you ship the goods and how long does it take to arrive?
A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days
B: Big quantity bulk order: Air shipping or Sea shipping
Q5. How to proceed an order for Lithium ion cell?
A: Pls confirm the cell models that you are interested in
B: We send cell specifications and best quotation to you for reference
C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly
D: After deposit or full payment confirmed, production started
Q6. Is it OK to print my logo on lithium ion cell product?
A: Yes. OEM is welcomed
Q7: Do you offer guarantee for the products?
A: Yes, 2-5 Years Warranty
