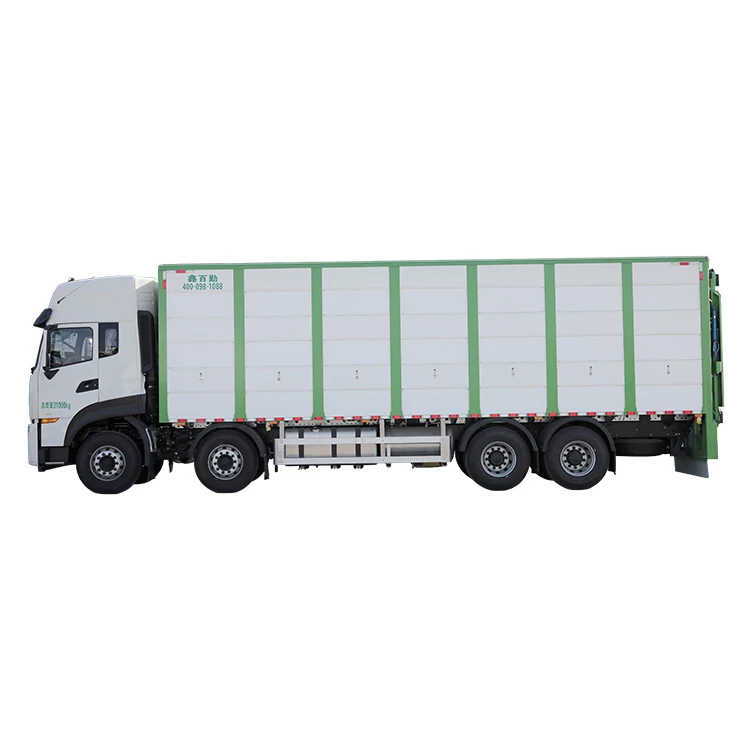

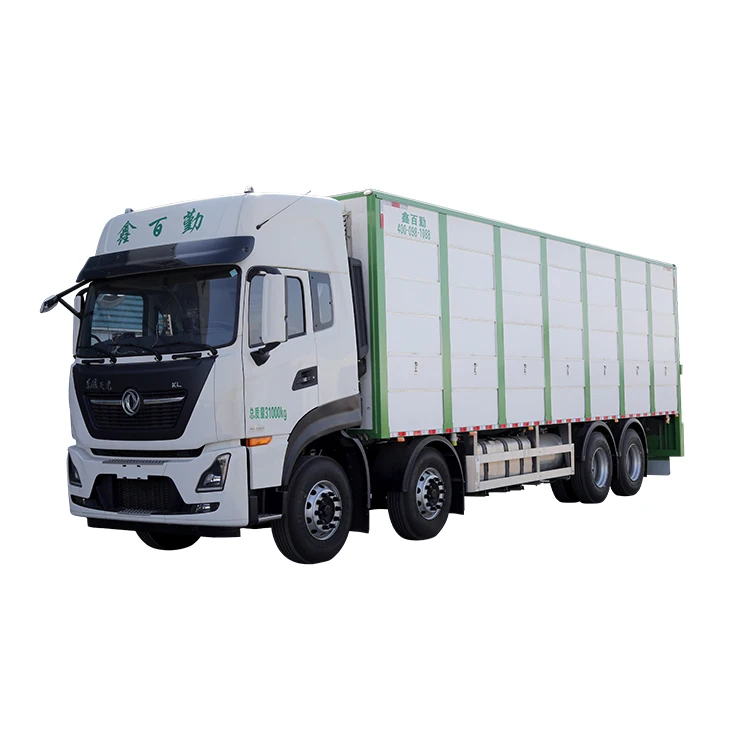

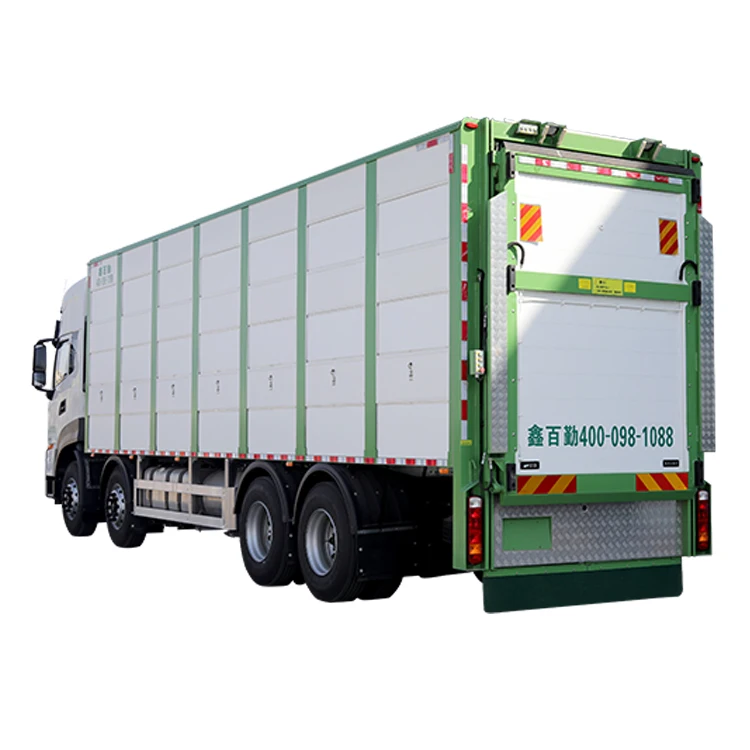

Dongfeng 9,6 м 465 лошадиных сил 8x4 3 этажа алюминиевый импорт свинья автофургона

Vehicle Parameters

Overall Dimensions(L*W*H)(mm)

 11920×2530×3995

 Total Mass(kg)

 31000

 Curb Weight(kg)

 15250

 Bulletin loading(kg)

 15620

 Fuel consumption (l/100km)

33.1

 Max speed(km/h)

 90

 Minimum turning radius(m)

 12

Chassis Parameters

 Chassis Model/ Manufacturer

 DFH1310A1 /Dongfeng Trucks Company

 Engine model / manufacturer

 ISL9.5-315E51A /Dongfeng Cummins Engine Co., Ltd

 Transmission model / manufacturer

 12JSD160TA/Shaanxi Fast Gear Co., Ltd

 Drive Mode:

 8×4 rear wheel drive

 Wheelbase(mm):

 1850+4600+1350

 Engine capacity(ml)

 9460

 Maximum torque and rated speed(n.m)/(r/min)

 1250/1300

 Rated power and rated speed(kw)/(r/min)

 232/1900

 Tire specifications

 11.00R20 18PR

Standard Configuration

The tank is designed with a fully enclosed structural frame, made of all-aluminum alloy profiles, with light weight, high strength and strong rust resistance.

The roof is equipped with an advanced umbrella top design that can be lifted up and down to facilitate temperature control during top loading, unloading, cleaning and disinfection.

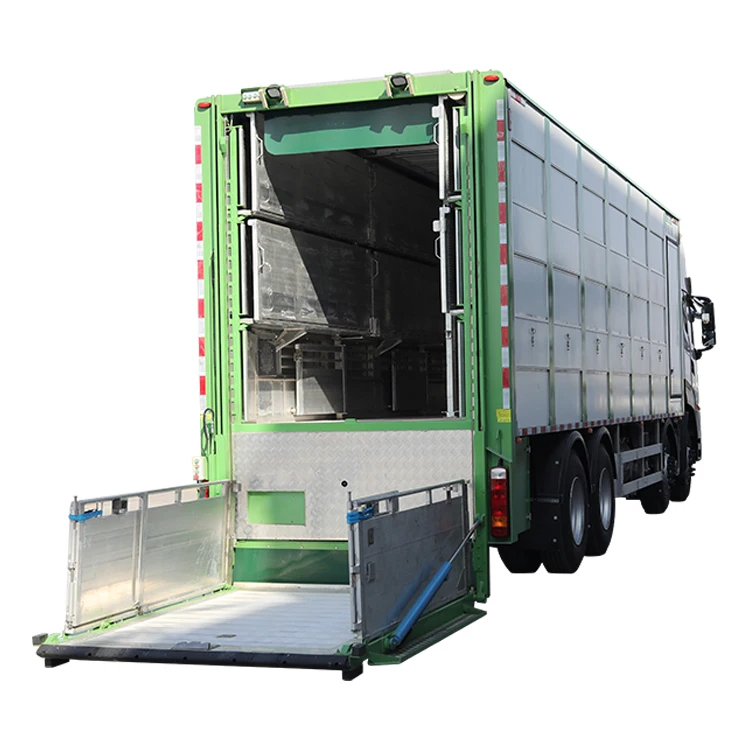

The professional equipment imported from Dutch technology, adopts the tail lifting loading and unloading method, the internal double channel, can be turned up, easy to handle, clean and disinfect

Sliding windows are designed on both sides of the vehicle body for emergency use in high temperature and extreme weather.

 Area(m²)

 76(contain SPF and heater)/81(contain heater)/88

 Number of compartments

 12

 Voltage(V)

 24

 Spray tank volume(L)

 390

 Layer height per floor (mm)

 815/815/865

 Number of front fans(pc)/Air volume(m³/h)/pc

8/2730

 Number of rear fans(pc)/Air volume(m³/h)/pc

 8/1300

High Configuration

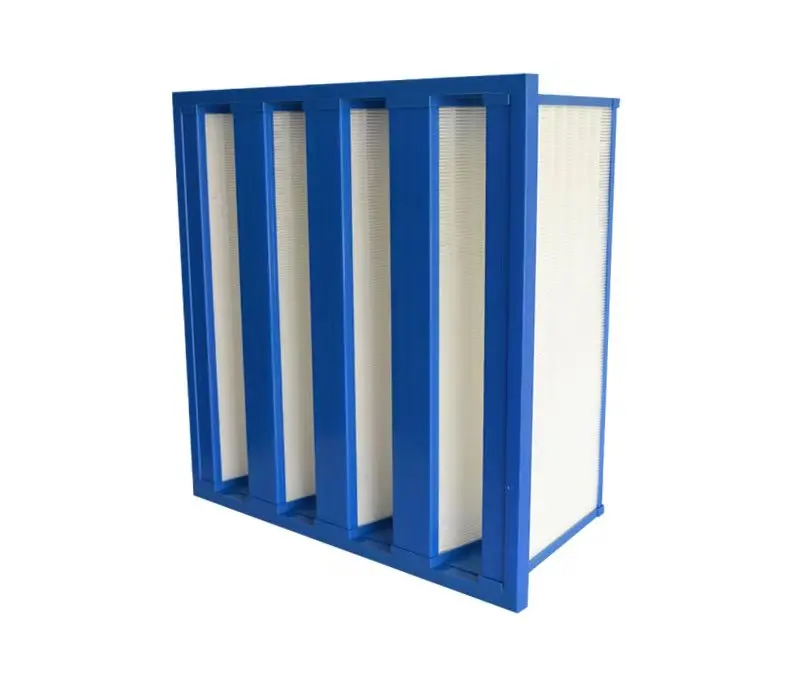

 Flanged without partition MERV 15 filter system

 Prevent infection of bacteria during transport of pigs

 Number of fuel heaters(pc)/power(kW)/air volume(m³/h)

 3/7/230

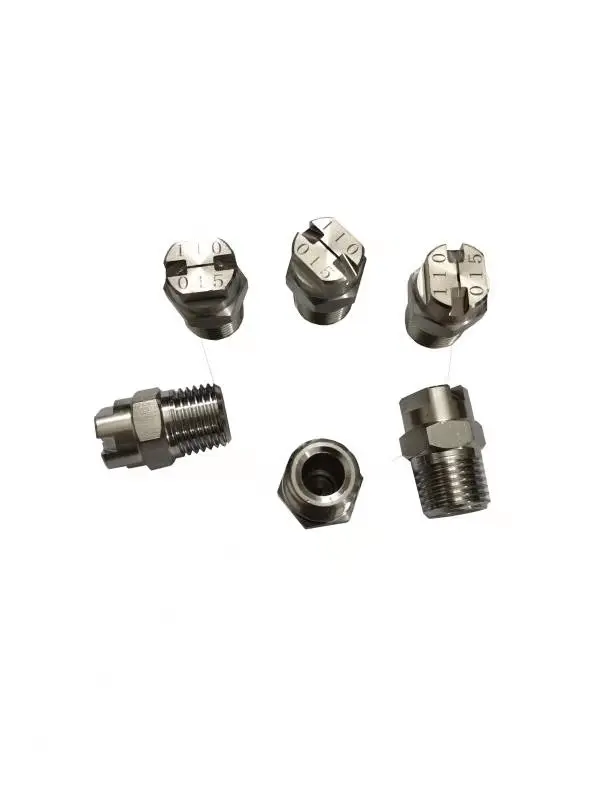

 Water system or spray system can be installed on each floor
