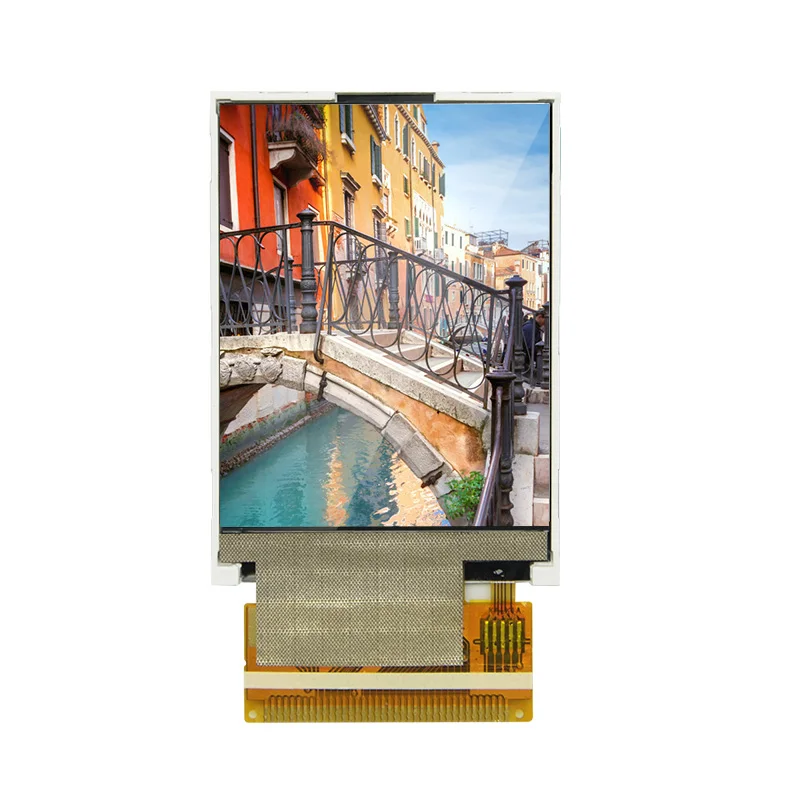

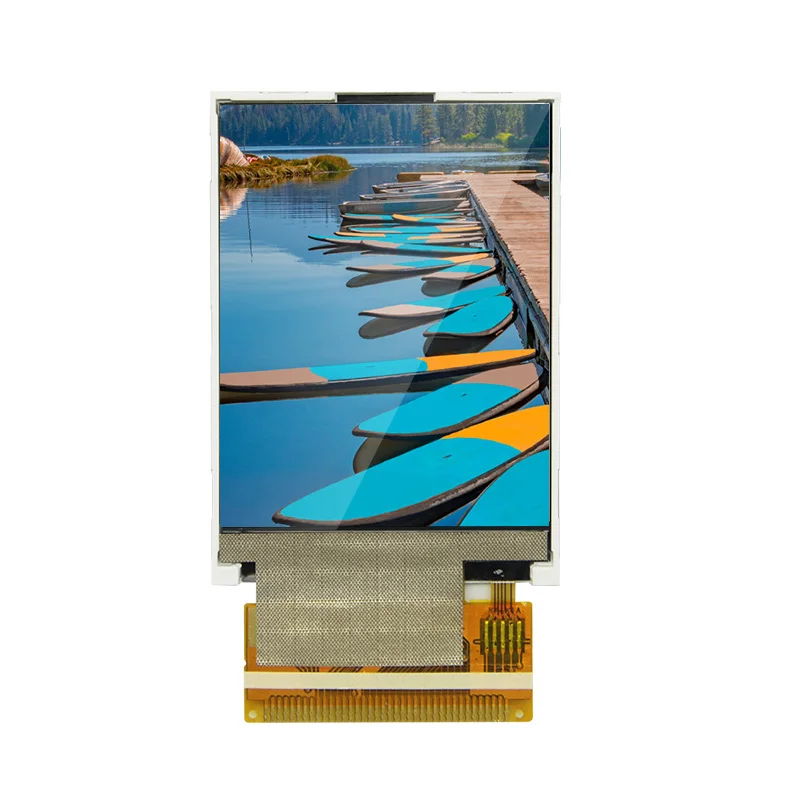

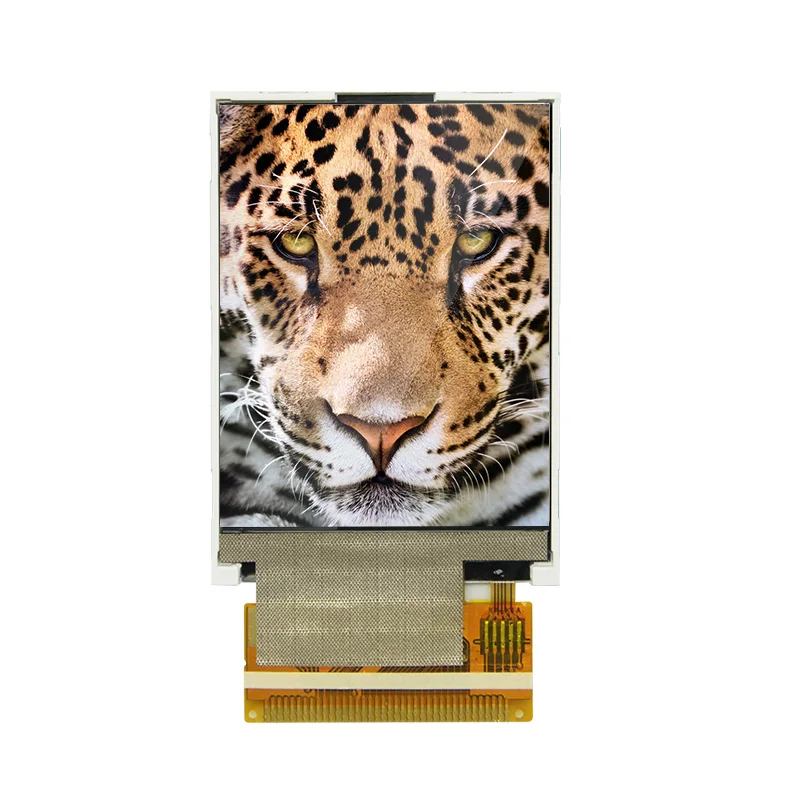

Full Viewing Angle Mobile display LCD Screen Module TFT Display 2.4' LCD

Share on (1600201716744):


Price:$2.60 - $3.20

Quantity:


Product Overview

Description



Color Screen Ili9341 Spi 2.4 Inch 240x320 Lcd Module Mobile Display 2.4" Tft Lcd 24 Pin


Products Description




Item
2.4 Inch TFT Lcd
LCD Type
262K a-Si TFT-LCD
Display type
240*(RGB)*320
Viewing Direction
Normally Black
Active Area(LCD)
W36.72*H48.96*D0.8 (mm)
VDD
2.8-3.3 V

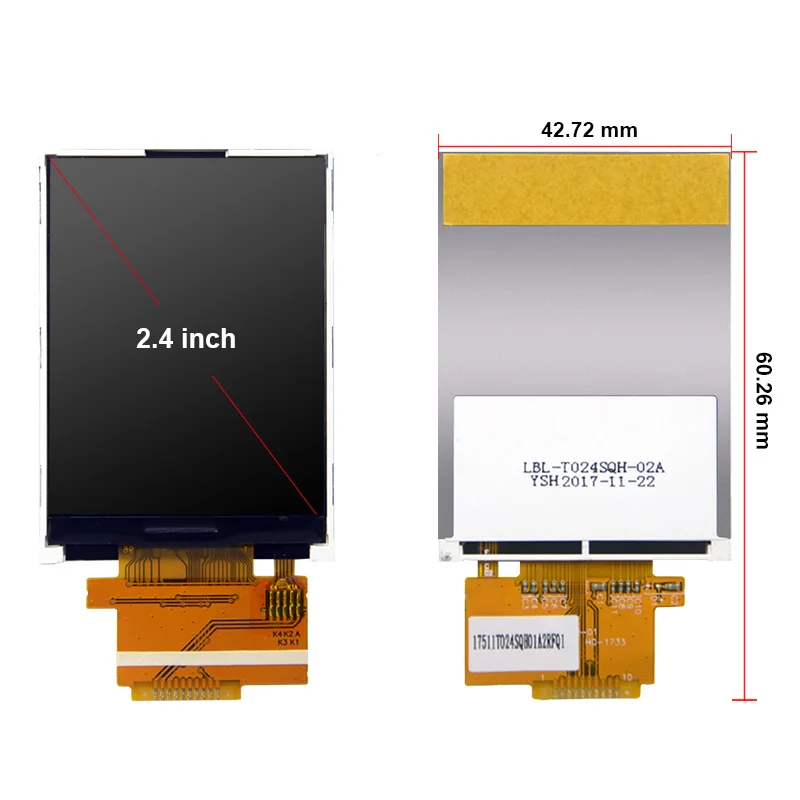

Outline Dimensions
W42.72*H60.26*T3.5 (mm)
Data Transfer
4-line spi rgb18bit
Luminance
300 cd/m² (Typ)
Back Light
Light Emitting Diode (LED), 4 LEDs connected in parallel
