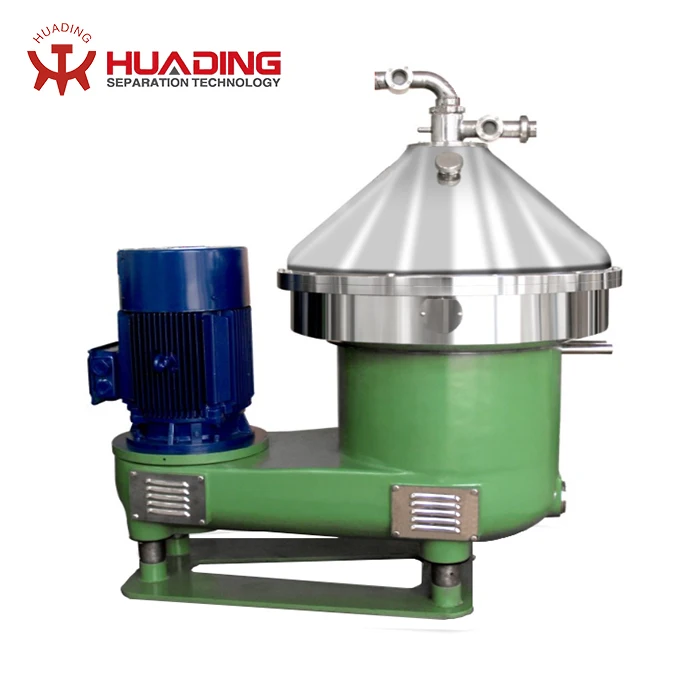

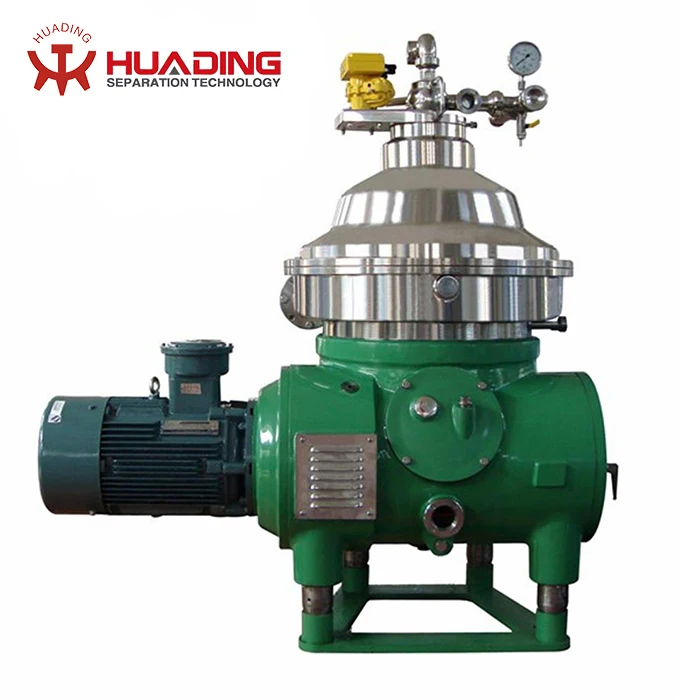

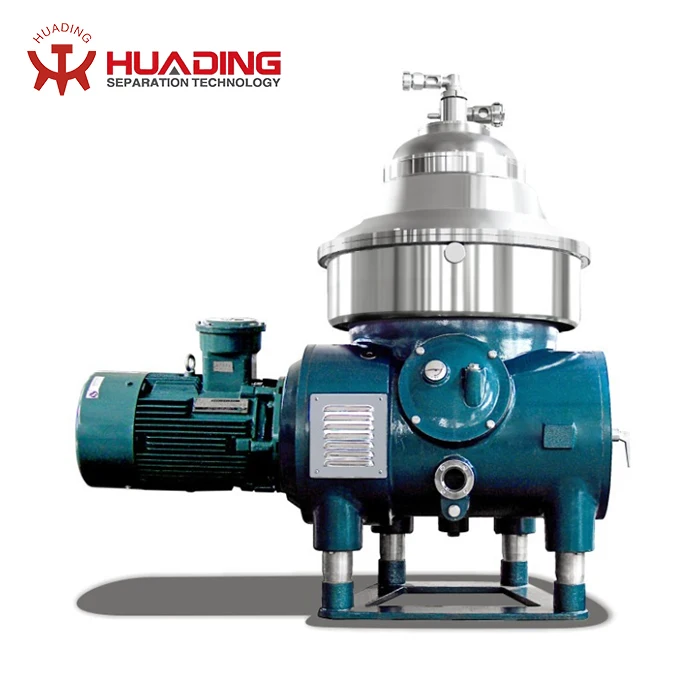

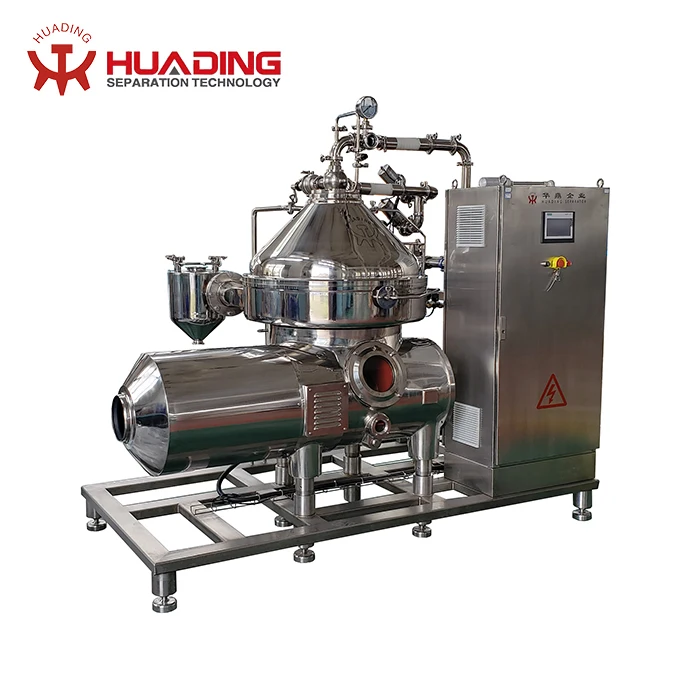

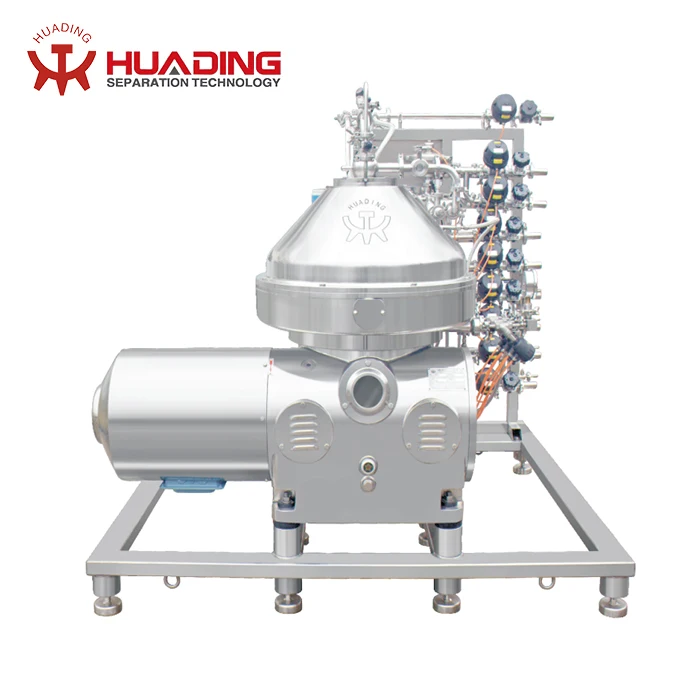

Automatic discharge self cleaning algae Schizochytrium disc stack centrifuge
- Category: >>>
- Supplier: Yixing Huading Machinery Co. Ltd.
Share on (1600201748392):
Product Overview
Description
Company overview
Yixing Huading Machinery Co.,Ltd, is one of the market leaders in the field of centrifugal separation
technology in China.The company has over 60 years experience in the design and manufacturing.
technology in China.The company has over 60 years experience in the design and manufacturing.
Why Choose Us
60+ experience accumulation
Separators and decanters from Huading Separator are used in food, beverage, pharmaceutical, chemical, marine, oilfield, energy,
mining, mechanical engineering and wastewater treatment etc.
mining, mechanical engineering and wastewater treatment etc.
40000+ installations
HuaDing separators has been installing in more than 50 countries/regions.
innovation is our tradition
More than 100 models have been created to apply broadly in many fields.
Working principle
Bowl diagrammatize
1. feeding pipe
2. centripetal pump
3. discharge port
4. sliding piston
5. small piston
6. sliding piston chamber
7. water room
3. discharge port
4. sliding piston
5. small piston
6. sliding piston chamber
7. water room
Afterstarting and reaches the full speed, the operating water 7 gets into the sealed chamber 6 to make the piston 4 rise, close the outlet 3. Then the material to be separated is fed into the bowl from pipe 1. Due to the centrifugal force, the impurities gather on the periphery of the bowl. When at presentintervals, the operating water 7 flows into open chamber 5 and forces the sliding piston to drop down, open the outlet 3, the impurities is discharged outside the bowl from outlet 3 and outside the machine by impurities collection set; at the same time, the light phase gather in the center of the bowl, and is discharged outside the machine by centripetal pump 2, heavy phase was introduced to centripetal pump room via disc gland,and discharged out by centripetal pump, finish one cycle, operating water 7 enter into sealing chamber 6, raise up piston 4, ejection port 3 closed...cycle in this way.
Manufacturing standard
1. JB/T20139-2011 | Centrifugal machinery requirements | ||||||
2. JB/T8051-2008 | Specification for strength calculation of centrifuge bowl | ||||||
3. GB19815-2005 | Safety requirements for centrifuges | ||||||
4. JB/T6418-92 | Centrifugal machinery - determination of cleanliness | ||||||
5. JB/T7214-94 | General technical specification for centrifugal machinery coating | ||||||
Main parts
