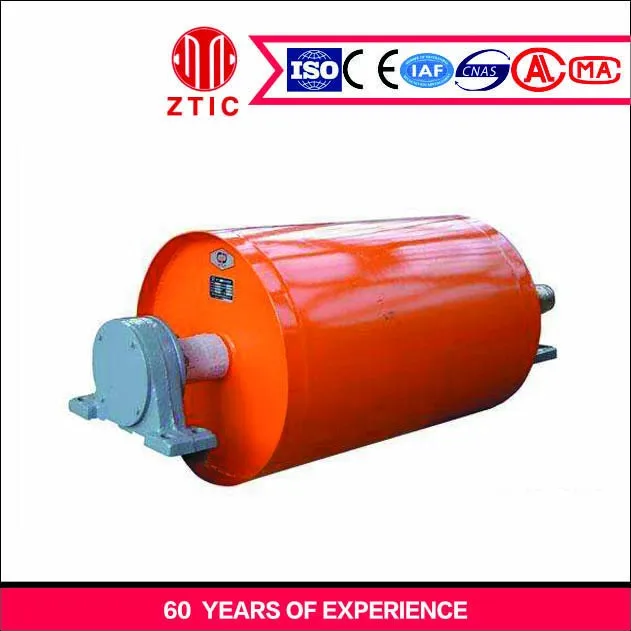

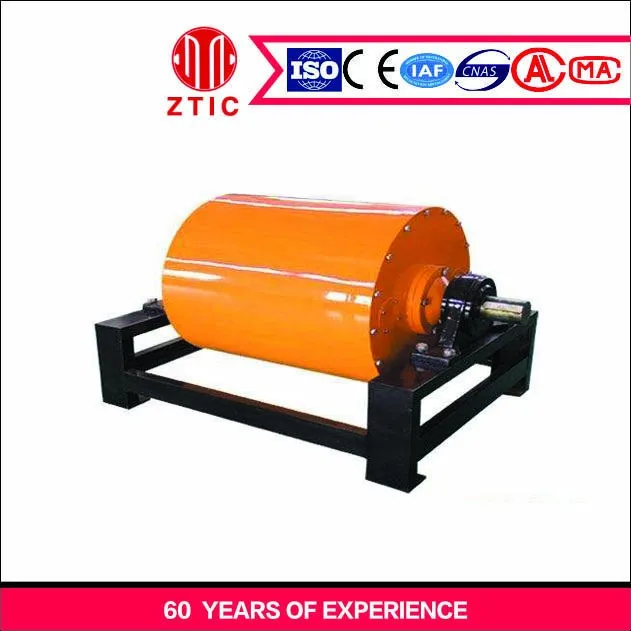

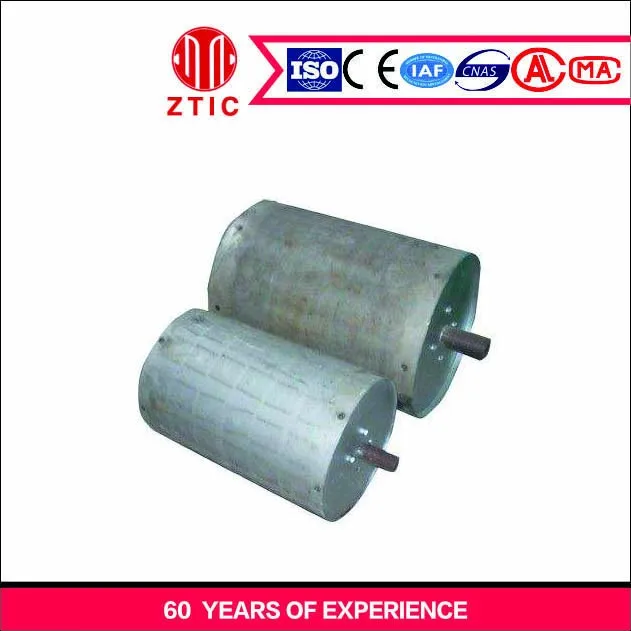

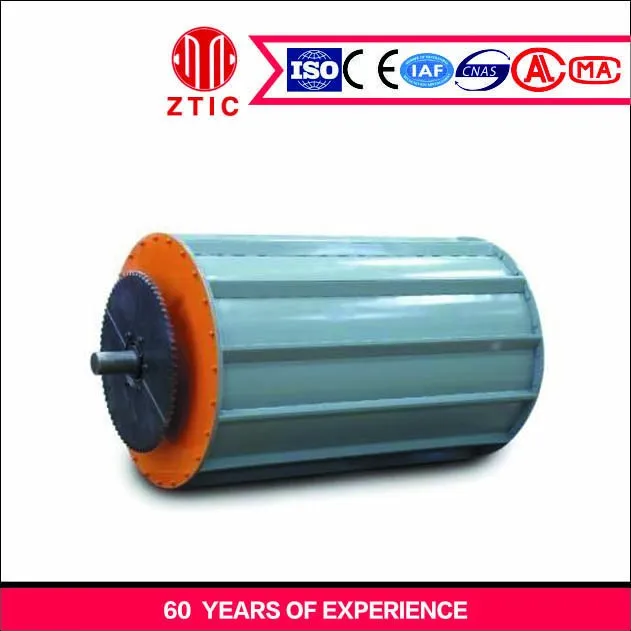

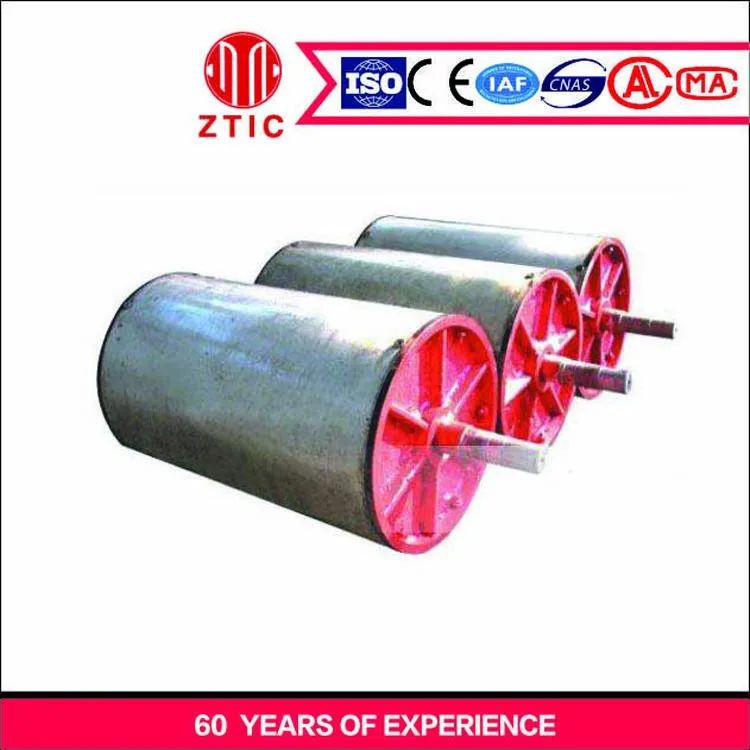

[Introduction]:magnetic separator for strong magnetic minerals with coarse particles, and it is also called magnetic pulley. [ Capacity ]:20-600t/h
Advantages Large feeding particle size (450~0mm), no classification before feeding;
High strength and high reliability of the mechanical structure guarantee the normal work of the magnetic drum in a variety of harsh environment.
Product Structure
The materials are uniformly fed to the belt. When materials go through the permanent magnetic drum, the non-magnetic and low-magnetic particles will leave the belt surface because of the centrifugal force and gravitation. Meanwhile, strong-magnetic particles are absorbed to the belt by magnetic force and then fall into the magnetic trough when the belt leaving the magnetic pulley.
Technical Parameters
Model & Spec.
Diameter of Cylinder (mm)
Length of Cylinder (mm)
Width of Belt (mm)
Surface Magnetic Density (mt)
Capacity (t/h)
Feed Size (mm)
Total Weight (t)
CTGG-0812
800
1200
1000
300~500
≤100
≤200
2.1
CTGG-0814
800
1400
1200
300~500
≤120
≤200
2.6
CTGG-0816
800
1600
1400
300~500
≤150
≤200
3.2
CTGG-0818
800
1800
1600
300~500
≤180
≤200
3.9
CTGG-1018
1000
1800
1600
300~500
≤270
≤250
4.4
CTGG-1218
1200
1800
1600
300~500
≤350
≤300
5.0
