Tracked welding preheating heater ceramic heater plate flexible ceramic pad
- Category: >>>
- Supplier: Yangzhou Tuanrui Electric Co. Ltd.
Share on (1600201803845):
Product Overview
Description
Detailed Images
Product Description

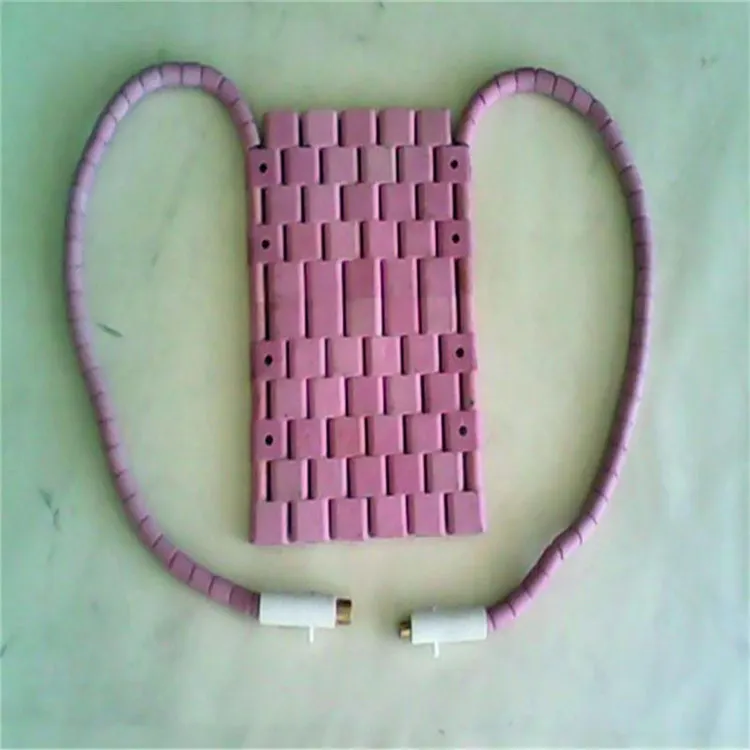

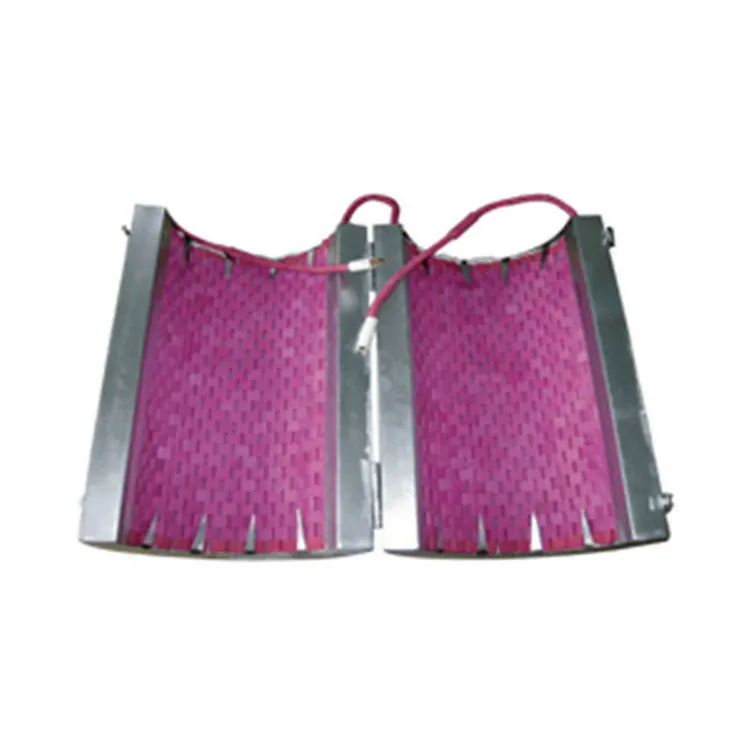

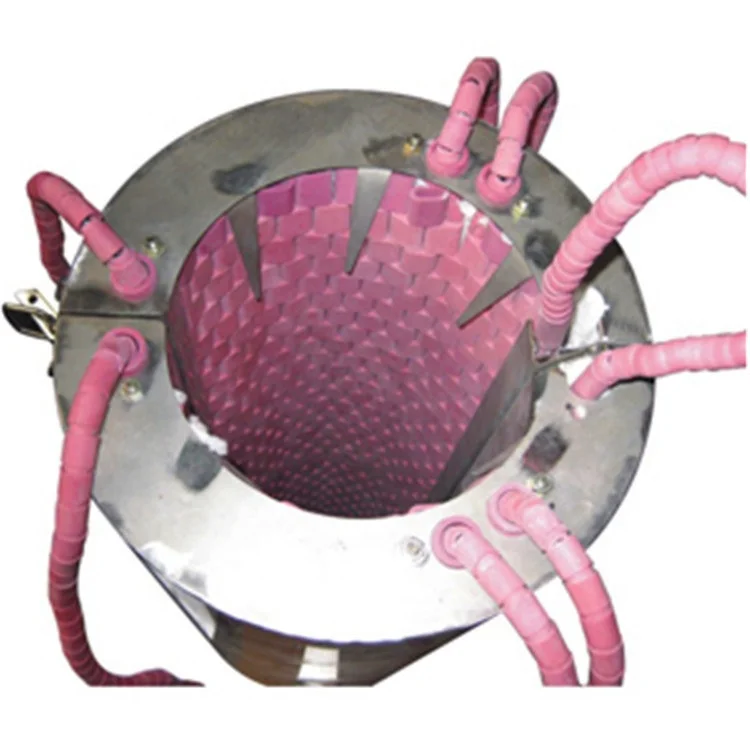

Ceramic pad heater also called flexible heater, which is a selection of high-quality nichrome wire rope, coat of high purity alumina ceramic pieces of insulation made crawler or rope heaters and other products type. According to the shape of the workpiece, the size of production, can be spliced, bending, is wrapped snugly workpiece heating, with the use of a wide range, fast heating speed, high heat utilization rate, convenient operation feature and so on. The highest surface temperature can reach 1050℃
| Ceramic Heater Pad For PWHT | |
| Insulation: | Aluminum Oxide Ceramics(96%) |
| Heating Conductor: | Ni-Cr wire(Cr20Ni80),19 single strands |
| Temperature: | Max. 1050℃ |
| Voltage: | 60v or 80v or 220v |
| Power: | 2.7kw or 3.6kw |
| Amperage: | 45Amp |
| Application: | PWHT, Furnace, Chemical ,Shipping, Electric |
Ceramic Heater Characteristics:
* Lifetime increase due to the ductility of the multi locked electrical Nickel Chromium resistances cables.
* The distribution and proximity of the hot elements assures temperature uniformity throughout the whole heating resistance.
* The high hardness and wear resistance of the alumina ceramic allows for strong handling.
Size for yoru reference:
| Type Ref. | Width (mm) | Length (mm) | Voltage (v) | Power (kw) | Type Ref. | Width (mm) | Length (mm) | Voltage (v) | Power (kw) |
| CP3 | 75 | 670 | 60 | 2.7 | CP3 | 75 | 991 | 80 | 3.6 |
| CP4 | 100 | 500 | 60 | 2.7 | CP4 | 102 | 737 | 80 | 3.6 |
| CP6 | 150 | 335 | 60 | 2.7 | CP6 | 152 | 501 | 80 | 3.6 |
| CP8 | 205 | 250 | 60 | 2.7 | CP8 | 203 | 368 | 80 | 3.6 |
| CP10 | 255 | 205 | 60 | 2.7 | CP10 | 254 | 368 | 80 | 3.6 |
| CP12 | 305 | 165 | 60 | 2.7 | CP12 | 305 | 248 | 80 | 3.6 |
| CP15 | 380 | 145 | 60 | 2.7 | CP15 | 380 | 203 | 80 | 3.6 |
| CP16 | 410 | 125 | 60 | 2.7 | CP18 | 457 | 465 | 80 | 3.6 |
| CP21 | 525 | 105 | 60 | 2.7 | CP21 | 535 | 145 | 80 | 3.6 |
| CP24 | 600 | 85 | 60 | 2.7 | CP24 | 610 | 125 | 80 | 3.6 |
| CP48 | 1200 | 45 | 60 | 2.7 | CP36 | 915 | 80 | 80 | 3.6 |
Packaging and delivery
• Packaging Details Carton box or wooden box for Electric Heating Heater
• Delivery Time 10 days for Electric Heater .
• Delivery Time 10 days for Electric Heater .
Why Choose Us
Our Company
Yangzhou Tuanrui Electric Co., Ltd. Located in the beautiful historical and cultural city of Yangzhou. The company is a factory that integrates R&D, design, production, and sales services. Our factory specializes in PTC heaters,MCH Ceramic Heater, mica heaters, ceramic heaters, cast aluminum heaters, cast copper heaters, cast iron heaters, electric heaters, Quartz Heater, Explosion-Proof Heater, Foil Heater, Teflon Heater, Track Heater, Hot Runner Heater, Armored Heater, Ceramic Fiber Heater, Far Infrared Ceramic Heater, Hot Melt Machine heater, electric heating film, silicon carbide heater, silicon molybdenum heater, metal heating tube, heating coil, heating plate, heating rod, silicone rubber heater, radiant heater, heating cable, temperature sensor, thermal resistance , thermocouples, high temperature wire and cable, instrumentation, slip line bridge, bus switchgear, insulation materials, test instruments, ceramic ignition pin and other electrical complete sets of equipment. Products are mainly used in military, chemical, power, electronics, steel, metallurgy, medicine, machinery, automobiles, air conditioning, industrial furnaces, home appliances and other heating industry equipment. All products can be customized according to the requirements of customers, many products have now filled the domestic blank, instead of imports. At present, our heaters, temperature sensors, etc. have been sold to countries in the world and are well received by customers. Welcome new and old customers at home and abroad to visit us.
Exhibition and certification
FAQ
Q1. Can I have a sample order forCeramic Heater?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks
Q3. Do you have any MOQ limit for Ceramic Heater?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly provide the heater size , voltage, wattage, quantity
Secondly We quote according to your size
Thirdly customer confirms the order
Fourthly We arrange the production.
Q6. Is it OK to print my logo?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee?
A: Yes, we offer 8000 hours warranty to our products
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new heater with new order for small quantity.
