Product Overview

Description

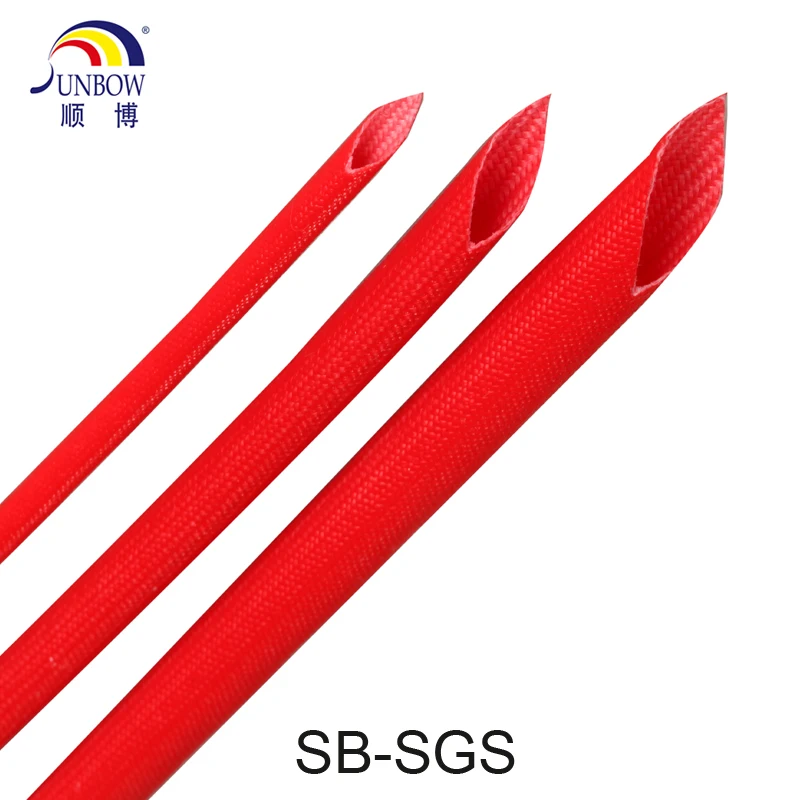

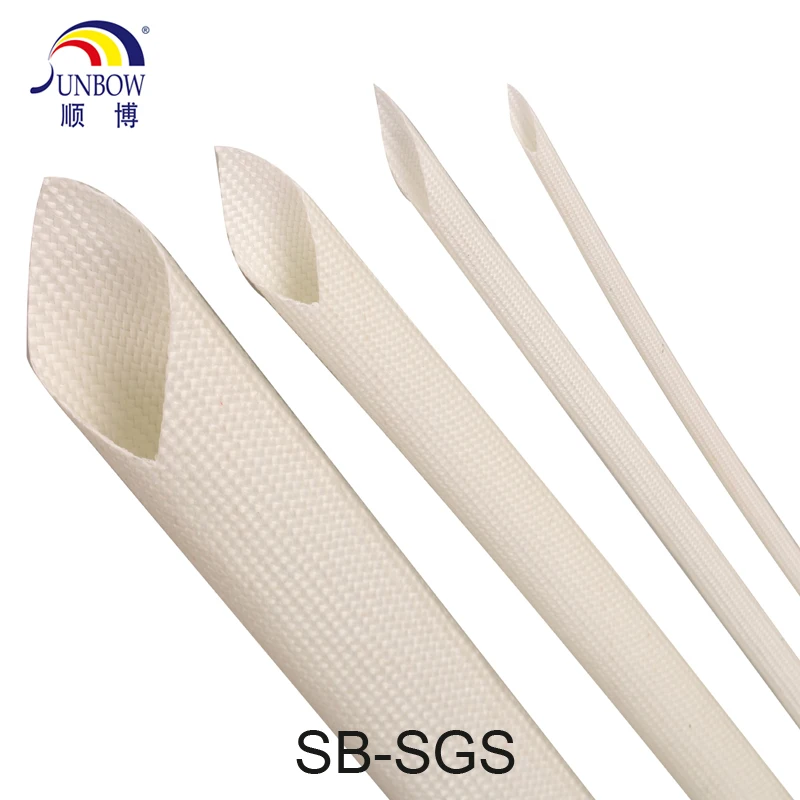

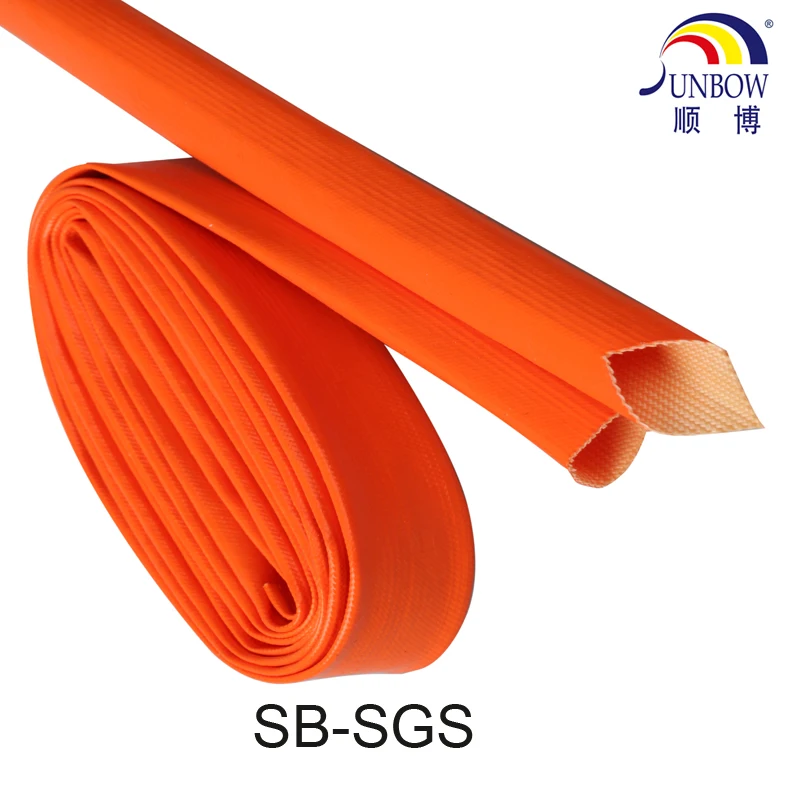

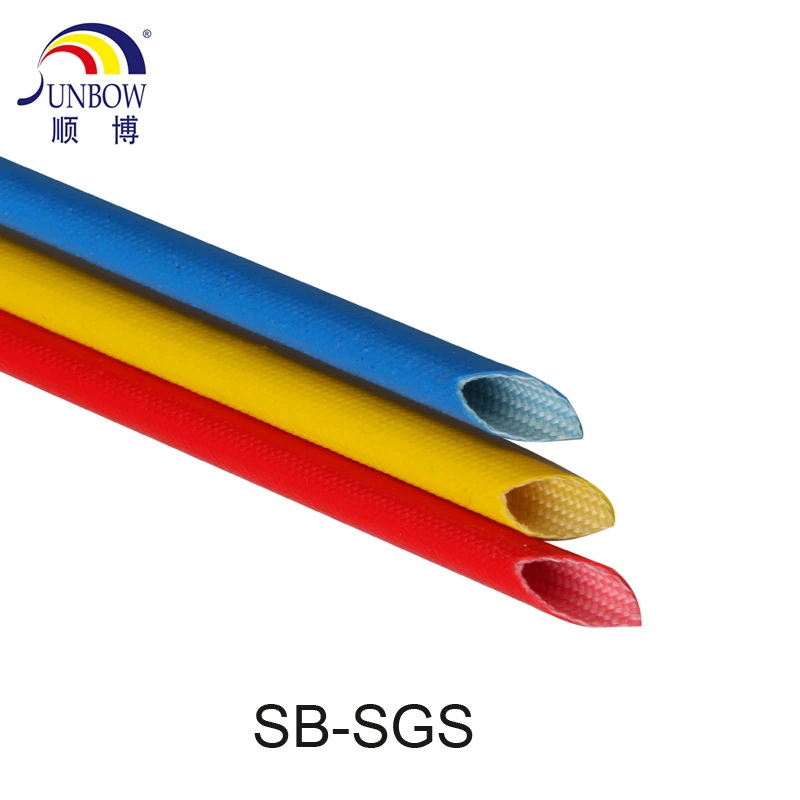

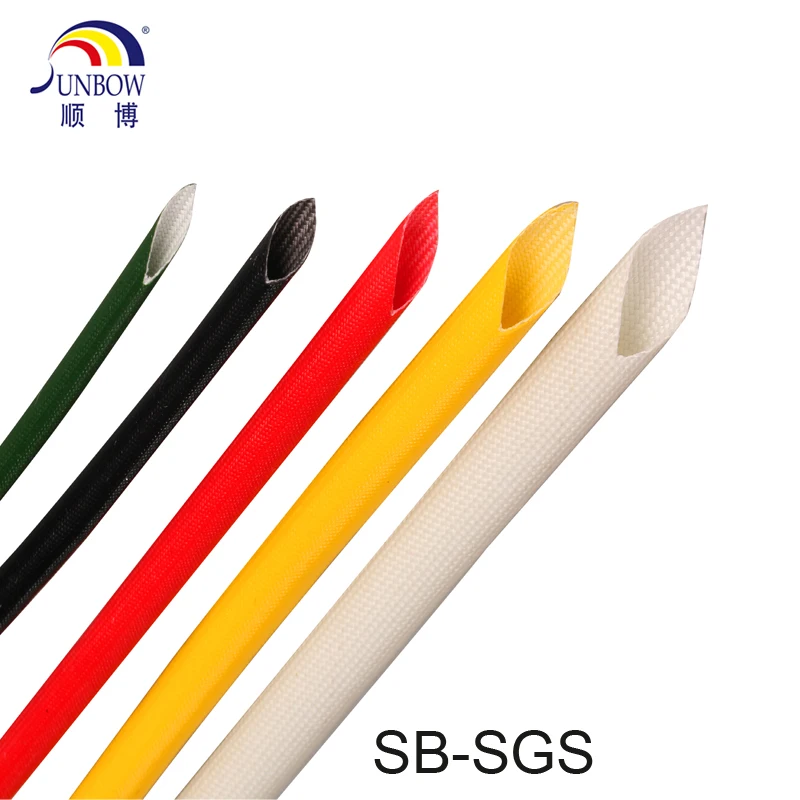

High temperature fiberglass fire resistant braiding sleeve

Model Number:SB-SGS-15

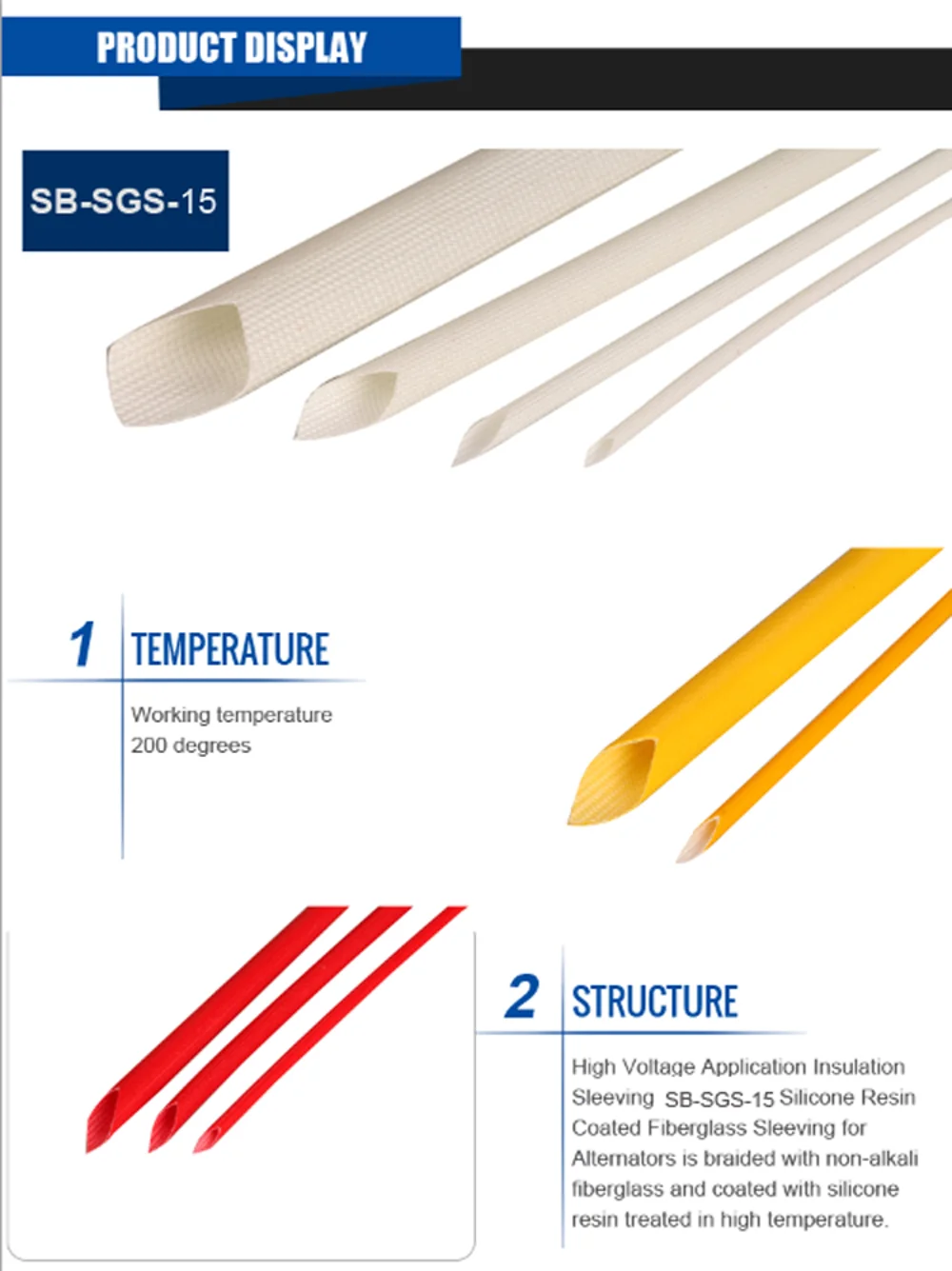

Working temperature: -60~200ºC

Structure

It is braided by non-alkali fiberglass, then coated with silicone resin and treated in high temperature.

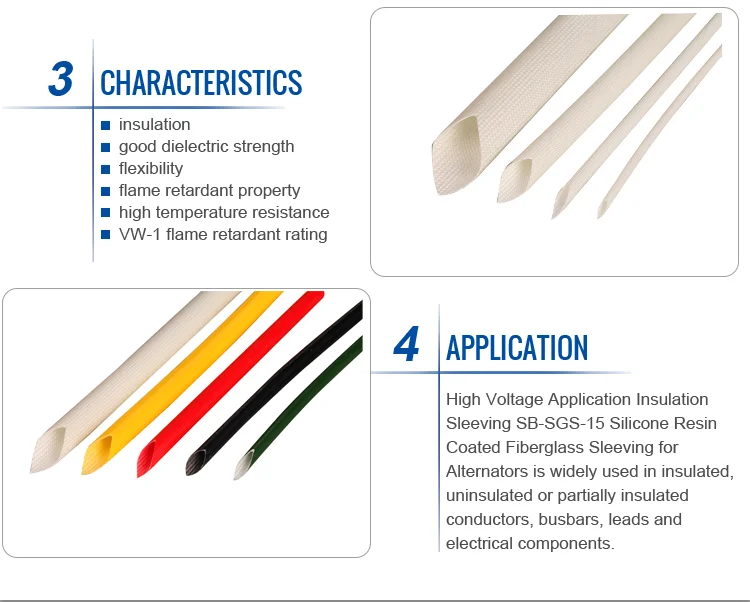

Characteristics

Flammability: self-extinguishing, wear resistance, tear resistance, good compatibility with same class impregnation varnishes, good mechanical resistance, very flexible

Application

Internal wiring of electronics, electrical appliances and automotive, classes H and C motors, transformers, generators, heating apparatus, lighting, control, inverter, etc.

Specification

Internal wiring of electronics, electrical appliances and automotive, classes H and C motors, transformers, generators, heating apparatus, lighting, control, inverter, etc.

Specification

Item	Performance		Note
Dielectric breakdown voltage KV  AC	Minimum average	≥1.5	Before aged
	Minimum single point	≥1.0
	Minimum average	≥1.0	6 HRS* 245±5ºC 245±5ºC 6HRS AGING
	Minimum single point	≥0.7
Thermal endurance	No indication of crack	OK	6 HRS* 245±5ºC 245±5ºC 6HRS AGING
Fire resistance	VW-1	OK	1441

High Voltage 1500V Silicone Fiberglass Sleeving
