direct fired hot air furnace for Vienam rubber industry drying process

Product Overview

Description

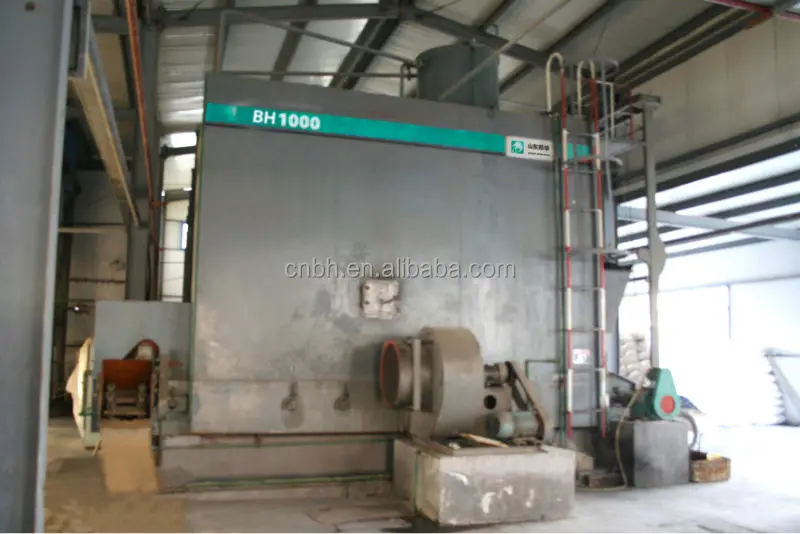

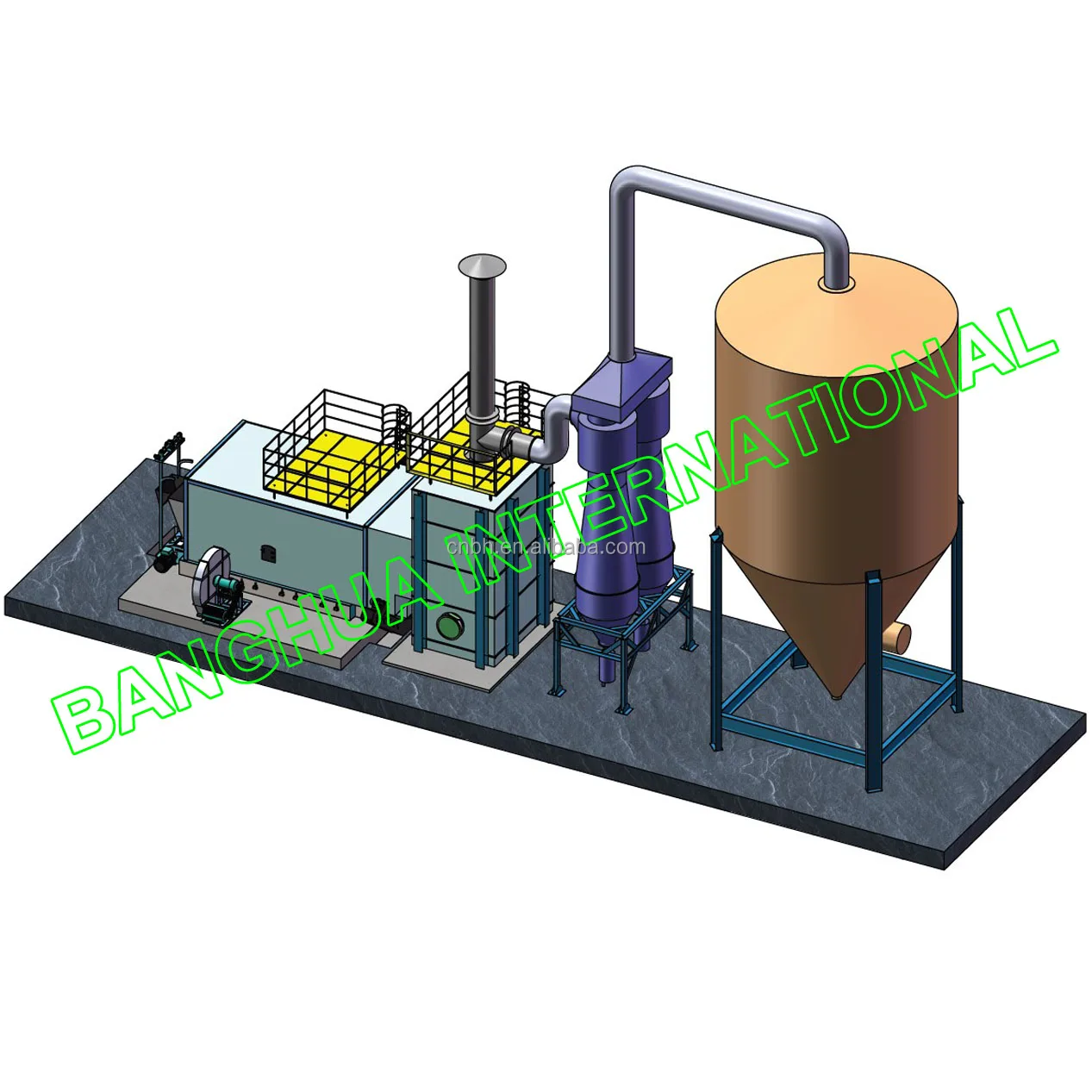

Direct-fired hot air furnace for Vienam rubber industry drying process





1 Introduction for Gas Fired Hot Air Furnace



Indirect gas (oil)-fired hot air furnace adopting all-welded plate heat exchanger structure. The high temperature flue gas generated by the combustion of natural gas will exchange out the high temperature clean air through heat exchange plates, which is used to heat and dry food, medicine and other products with high requirements for heat source.



2 Advantages for Gas Fired Hot Air Furnace



1. The structure is compact and floor area is small compared with the traditional tube type hot air furnace.

2. The maximum heat exchange air temperature can reach 600℃.

3. The exhaust temperature is low, the exhaust temperature of off-gas can be decreased to 100℃, improving the heat exchange efficiency.

4. The part touched with the medium adopts high quality stainless steel material, no pollution to the medium. It is widely used in pharmaceutical, food and other  industries with high requirements to the medium.



3 Parameter Selection Table



Type	Gas Consumption (Nm³/h)	Oil Consumption (kg/h)	Rated Heating Load (×104kcal/h)	Supporting Power (kw)	Dimensions L×W×H (mm)
LRQ(LRY)-H20	24.1-34.1	19.5-29.5(20.5-30.5)	20	1.1	1800×1500×1500
LRQ(LRY)-H50	67.7-77.7	56.3-66.3(58.8-68.8)	50	1.1	3000×2000×1800
LRQ(LRY)-H75	104-114	87-97(90.6-91.6)	75	1.5	3200×2200×1800
LRQ(LRY)-H100	140.3-150.3	117.5-127.5(122.5-132.5)	100	1.5	3200×2400×1800
LRQ(LRY)-H150	213-223	179-189(186-196)	150	7.5	3500×2800×2000
LRQ(LRY)-H200	286-296	240.1-250.1(250.1-260.0)	200	7.5	3800×3000×2000
LRQ(LRY)-H250	358-368	301-311(314-324)	250	7.5	4500×3500×2000
LRQ(LRY)-H300	431-441	363-373(378-388)	300	15.0	4500×3600×2000
LRQ(LRY)-H400	576-586	485-495(516-526)	400	22.0	5000×3800×2100
LRQ(LRY)-H500	722-732	608-618(646-656)	500	22.0	5200×4000×2200



Remarks:

1. Design according to the requirements of the customers.

2. In the table, the calorific value of natural gas 8600Kcal/Nm³, the calorific value of light oil 10200Kcal/Nm³, the calorific value of heavy oil 9600Kcal/Nm³.



4 Application for Gas Fired Hot Air Furnace



The heat exchange gas fired hot air furnace is widely applicable and can provide heat source for all kinds of drying system, it also can be used for heating, calcining, heating supplyand so on.

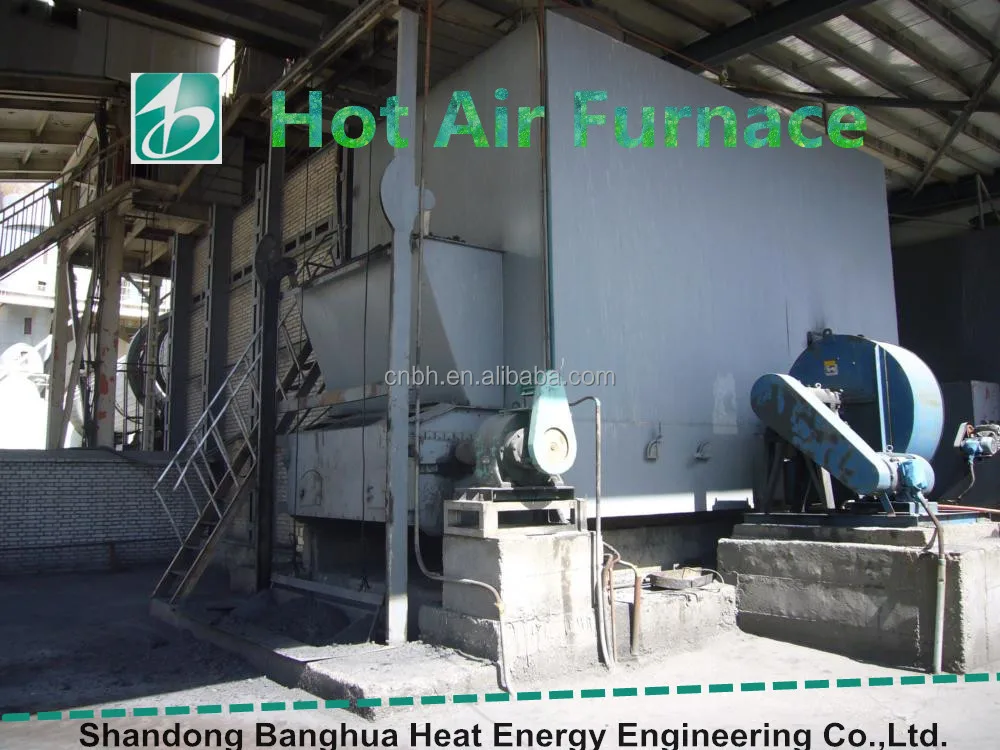

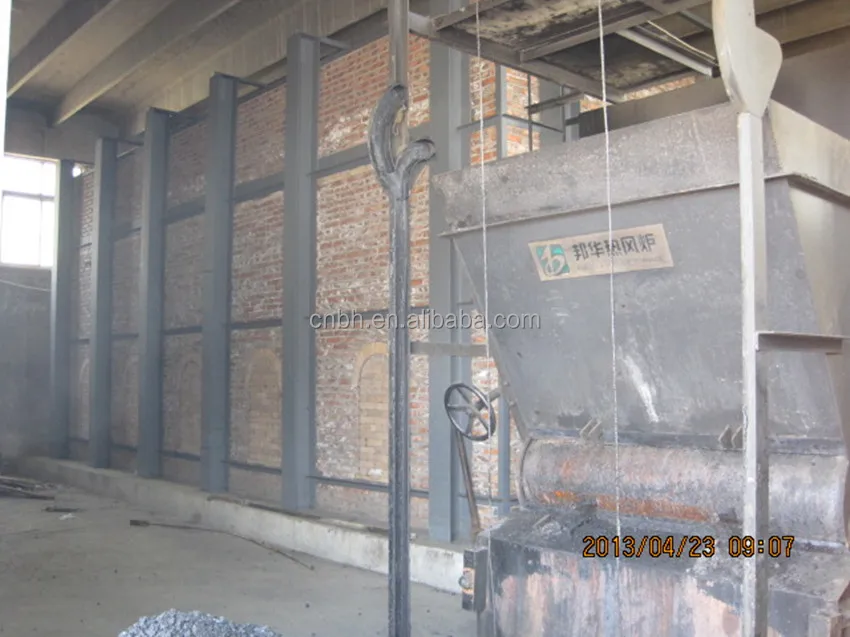

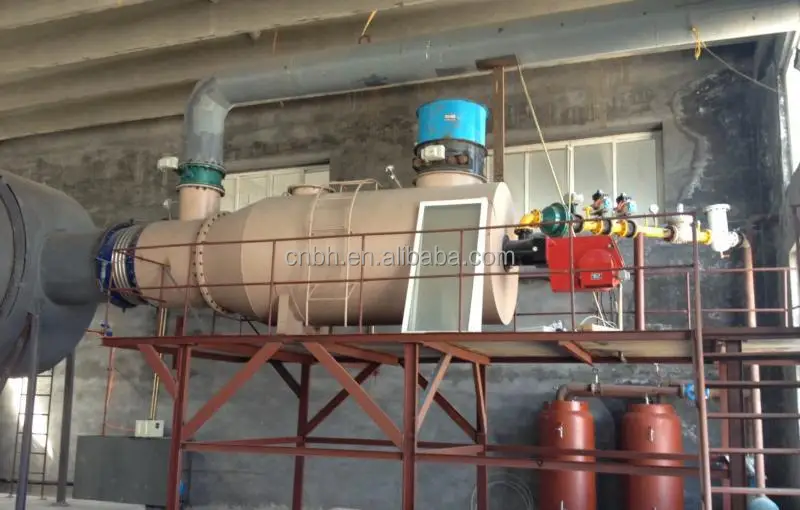

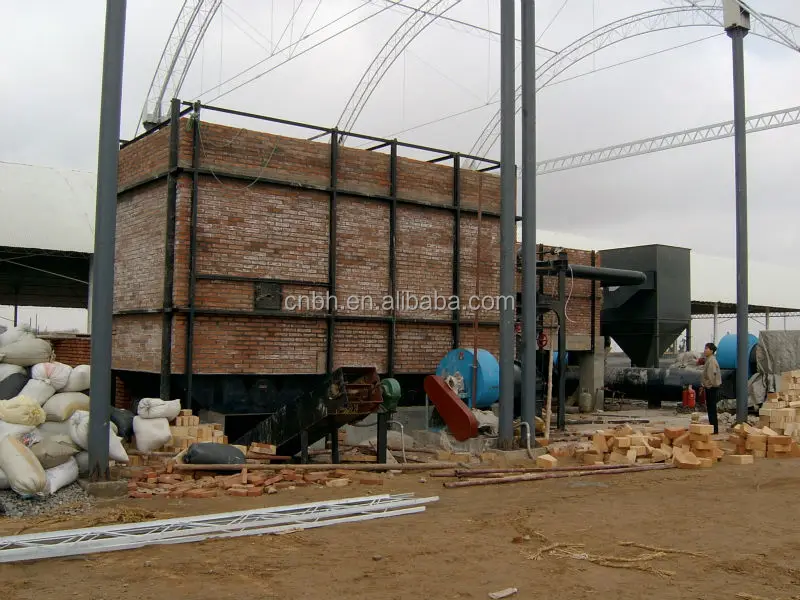

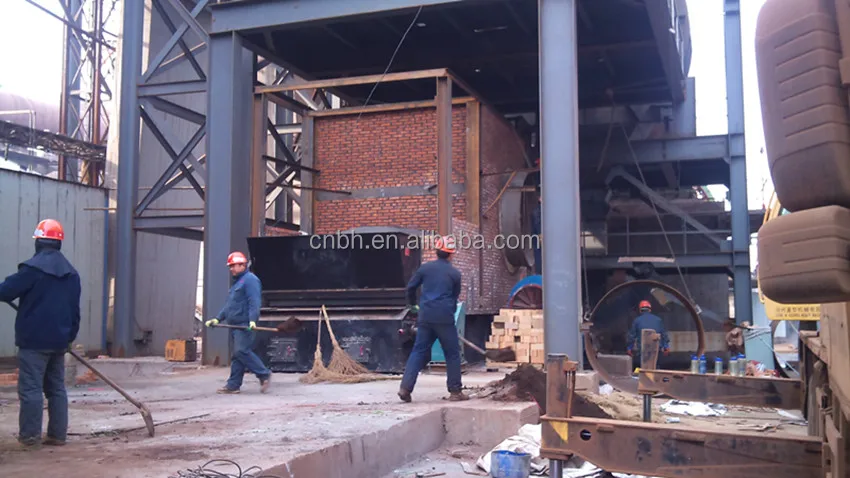

5 Our Project Cases





6 Customer Service



1. Provide customers with the advanced technology and high quality hot air furnace.

2. Provide customers with perfect and considerate service.

Pre-sale service: we arrange our technical engineers to fully communicate with customers on technical problem and survey the project site.

Sales service: we arrange our project managers to take charge of construction, commissioning and training of the entire project.

After-sale service: we arrange after-sale engineers to do routine visit and deal with the problems for customers.
