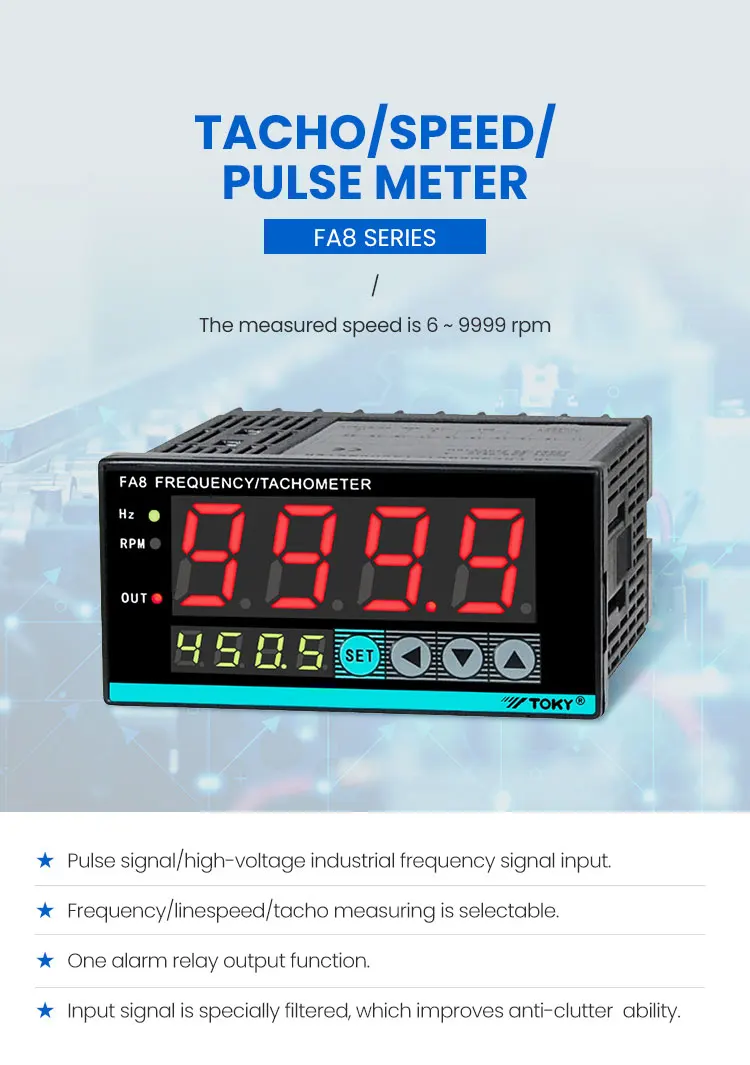

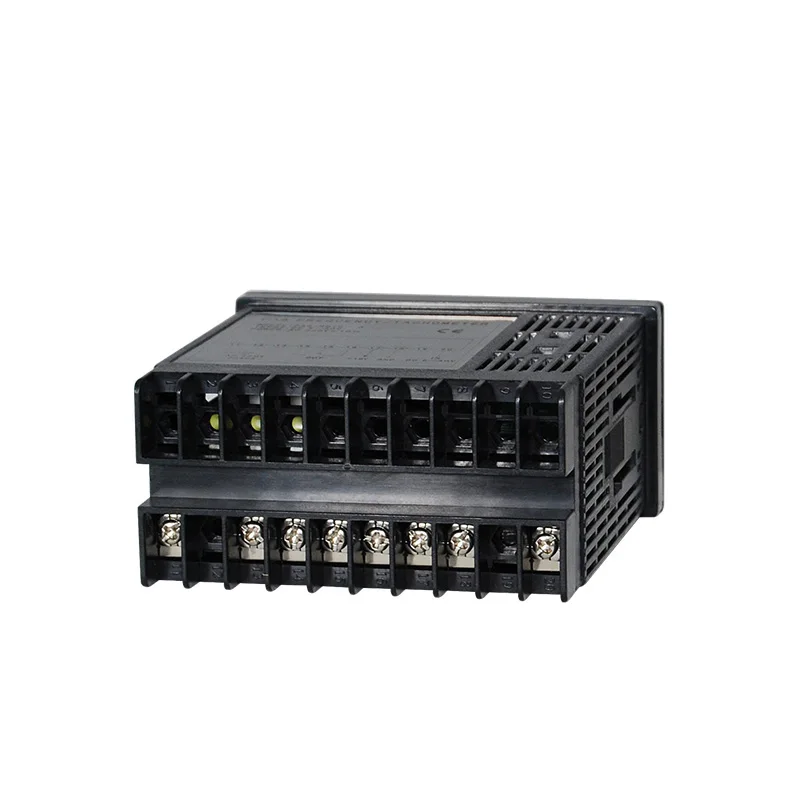

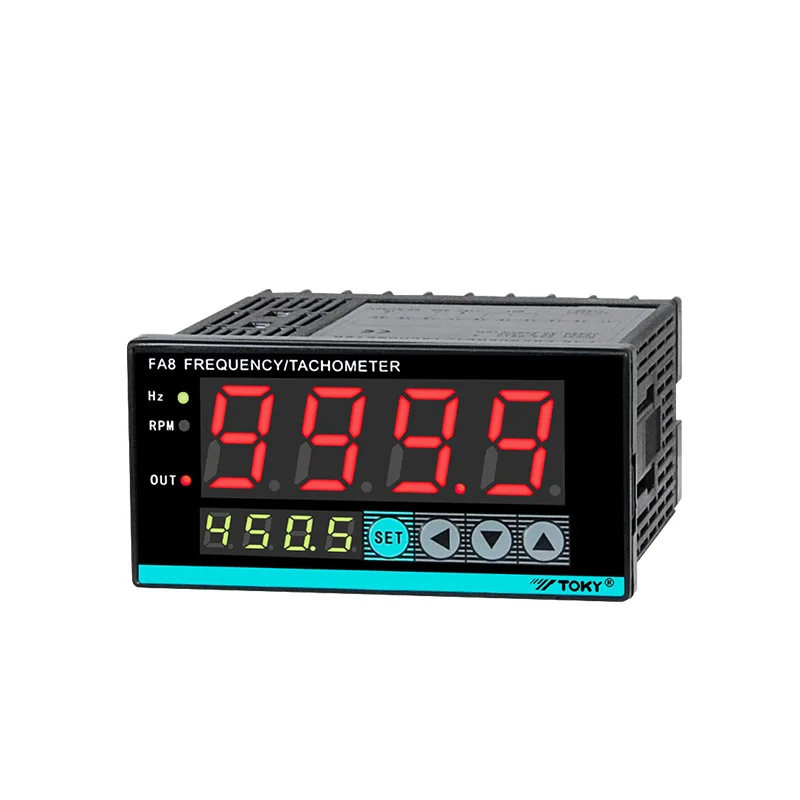

Popular Product Rpm Meter Ac Rpm Checking Meter Tachometer Universal Rpm Meter
- Category: >>>
- Supplier: Toky Electrical Co. Ltd.
Share on (1600201873445):
Product Overview
Description
Popular Product Rpm Meter Ac Rpm Checking Meter Tachometer Universal Rpm Meter
Product Description
| Model | Replaced Model | Input Signal | Frequency upper line | Alarm | Alarm Qty | Code |
| FA8-A10 | DP4-FR1 | 5~30V pulse signal | 0~5000Hz | No | No | B0380FA01 |
| FA8-RB10 | Relay | 1 | B0430FA01 | |||
| FA8-A10H | DP4-HZ11 | 60~380V voltage range | 0~400Hz | No | No | B0400FA03 |
| FA8-RB10H | Relay | 1 | B0450FA03 |
| Power supply | AC 220V±10% 50Hz |
| Power consumption | ≤3.5W |
| Response speed | About 1 second |
| Accuracy | ±0.1Hz |
| Display range | 0.000-9999 |
| Input voltage | Pulse signal:5~30V pulse voltage Power frequency voltage: 60~380V/AC |
| Input frequency | Pulse signal:0~5000Hz Power frequency voltage: 0~400Hz |
| Input Impedance | Pulse signal:≥5kΩ Power frequency voltage: ≥2MΩ |
| Auxiliary voltage | 12V Load current ≤30mA |
| Output capacity | AC/DC 250V 5A(Resistive load) |
| Pulse interference | Level 3 2000Vp-p |
| Lightning surge | Level 3 Power port L-N ±2000V |
| Working environment | 0~50℃ ≤85%R.H |
| Storage environment | "-20~60℃ ≤85%R.H" |
| Withstand voltage | AC 2000V 50Hz 1 minute |
| Insulation resistance | DC 500V ≥100MΩ |
