FMT5.0 2000H 2000W profession FM broadcast transmitter with exciter 87.5 108MHz 2U
- Category: >>>
- Supplier: Shaanxi Vision Radio & Television Equipment Co. Ltd.
Share on (1600201890641):
Product Overview
Description
Products Description

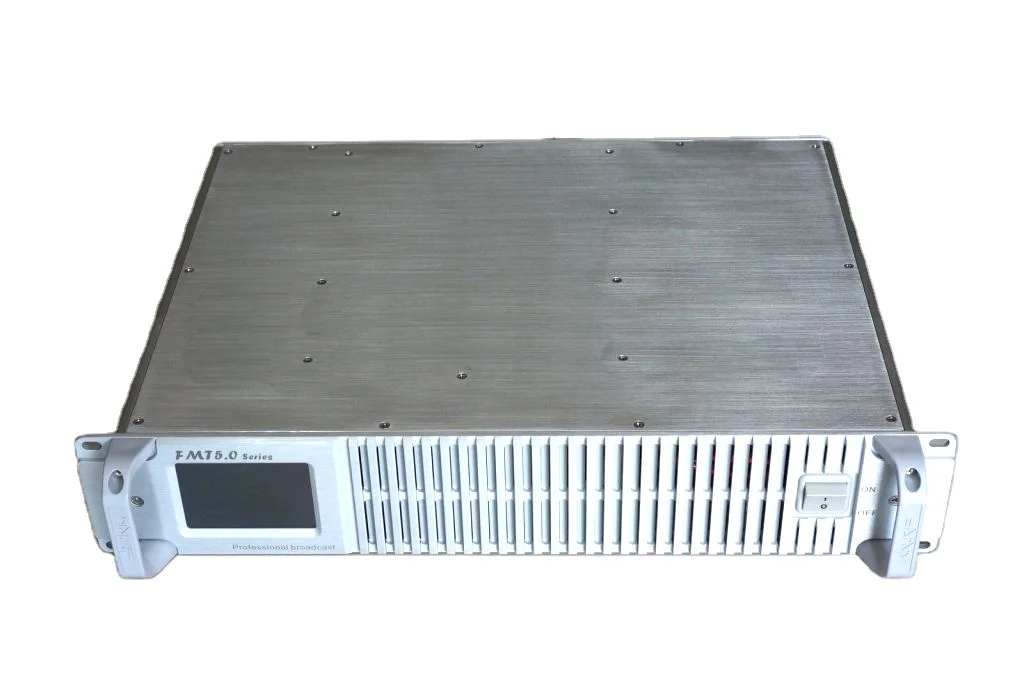

FMT5.0-2000H 2000W profession FM broadcast transmitter with exciter 87.5-108MHz 2U
US $4,150.00 FMT5.0-2000H is a profesional FM stereo/Mono broadcasting transmitter. The advanced digital technologies,Digital Signal Processor(DSP), are used in the transmitters to get little size , high performance and high reliability. They are widely used for professional radio stations to transmit high quality FM radio programs.
please provide us your phone number to ensure a smooth delivery.
FEATURES:

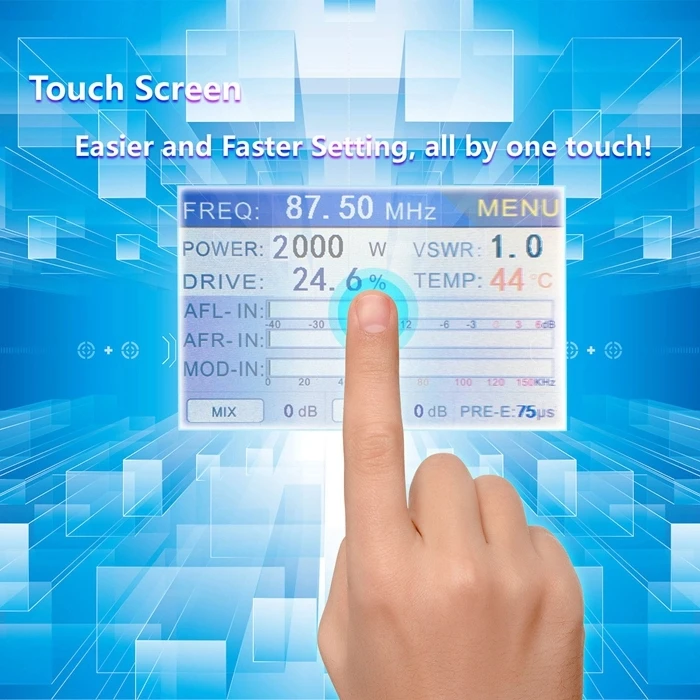

Touch Screen without buttons make setting more easily.
* This is the WNRF FMT series 5 generation product,All-digital technologies DSP+PLL, better sound quality.
●Upgrade frequency step to 10Khz.
●Exquisite craftsmanship，Standard 19 inches,1U whole aluminium alloy cabinet. Wiredrawing and oxidation makes surface bright,
clean and elegant.

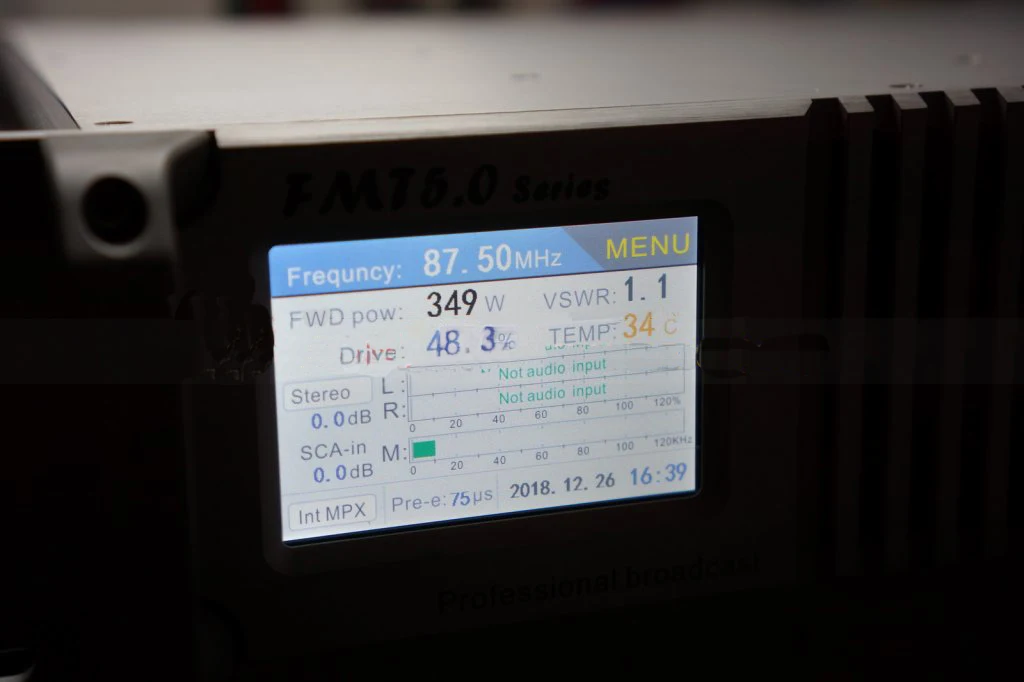

●Big LCD display all the parameters in real time. displays working frequency, volume, FETMOS temperature, forward power and
SWR.
●Provided with the series of protection function, own active protection and raise alarm prompts once meet any trouble while
working.
●Accurate operating index and perfect protection measures make you are more aware of the operating status of your machine.
●Easily installation and simply operations.
●High quality and excellent technical performances. AGC circuit to keep the Output Power stability.
●Each machine has been examined strictly by a series of quality inspection and function test to guarantee best operating
function.
Technical Specification
- Power voltage: 220VAC~AC250V, 50Hz~60Hz
- Power efficeiency：≥60%
- Heat elimination mode：wind
- RF frequency range： 87.50MHz～108MHz,step 10KHz
- RF Output power：2000Watt
- RF Output impedance：50Ω
- RF Output connector： EIA 7/8 (IF45)
- Carrier frequency precision：±200Hz
- Harmonic suppression：＞65dB
- Parasitic amplitude modulation：＜-50dB
- Modulation frequency deviation：±75kHz（100% modulation）

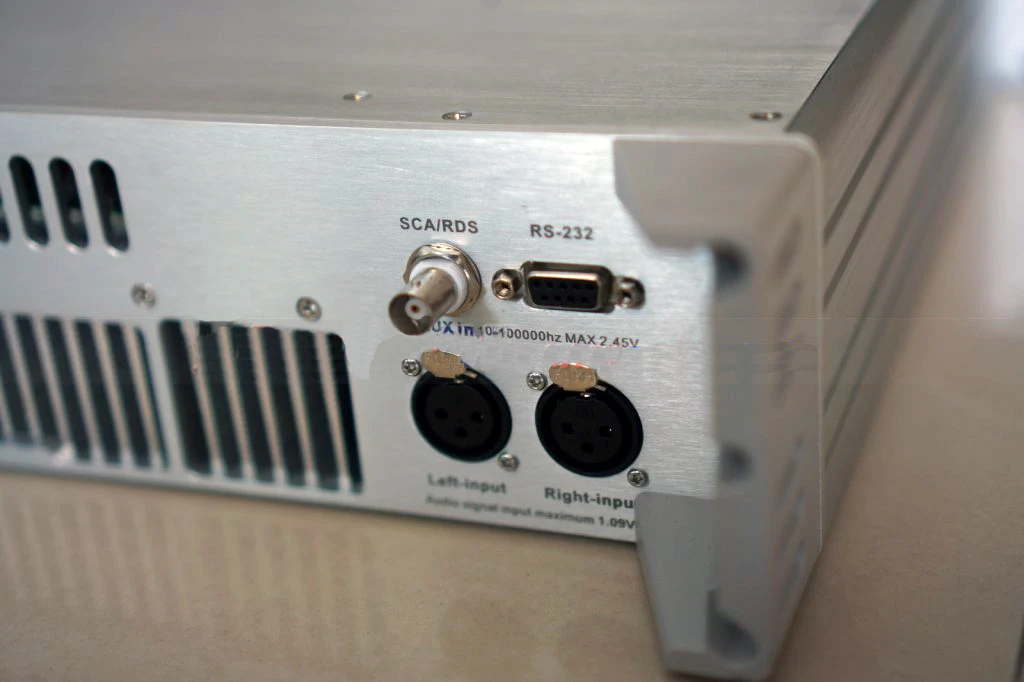

- Audio input connector: XLR (balanced)
- Audio pre-emphasis：0μs、50μs、75μs
- Level difference of right and left ：＜0.01 dB（100% modulation）
- Signal-to-Noise：75dB、1kHz（100% modulation）
- Audio response: ±0.1dB，30Hz~15000MHz
- Distortion: ＜0.1%，30 Hz ~15000 MHz
- Stereo Separation: 55dB，30Hz~15000Hz
- Pilot frequency：19kHz±1Hz
- Pilot frequency modulation：8%~10%
- Analog audio input impedance：600Ω,balance
- Analog audio input gain：-15dBm～+15dBm,step0.01 dBm
- Shipping weight： 16.5Kg
Technical Specifications
item | value |
Place of Origin | China |
Hunan | |
Brand Name | VISION |
Model Number | FMT5.0-2000H |
Power voltage: | 110VAC~AC250V, 50Hz~60Hz |
Power efficeiency: | ≥60% |
Heat elimination mode: | wind |
RF frequency range: | 87.50MHz~108MHz,step 10KHz |
RF Output power: | 2000Watt |
RF Output impedance: | 50Ω |
RF Output connector: | EIA 7/8 (IF45) |
Audio pre-emphasis: | 0μs,50μs,75μs |
Shipping weight: | 16.5Kg |
size: | 49cm**45cm*8cm |
Display after customer use
More products
Company profile
Exhibition
Certificate
Product packaging
FAQ
Q1: What are the payment terms that you support?
A1:Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
Q2:What about the lead time?
A2:Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
Q3:How about the shipping?
A3:When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
Q4:How can I place an order?
A4:(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
Q5:Can you do OEM for us?
A5:Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
Q6:How about the Warranty?
A6:There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
A1:Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
Q2:What about the lead time?
A2:Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
Q3:How about the shipping?
A3:When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
Q4:How can I place an order?
A4:(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
Q5:Can you do OEM for us?
A5:Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
Q6:How about the Warranty?
A6:There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
For better understand of our products,we collect all possible problems for every order,hope it will help you.
Q1. Are you the manufacturer or trading company?
A1. We are manufacturer of Radio & TV Broadcasting equipments.
Q2.What these equipments used for?
A2. They are professional used for FM Radio & TV Broadcasting Station (Transmitting equipment.)
Q3. What equipment & solution your company can provide?
A3. We can do complete solution for FM Radio &tv station system, including the fm/tv transmitter, antennas and the feeder cables.
Q4. How do I choose suitable equipments for my station?
A4. The most import factors are Power and Frequency.We need to know the Power and Frequency you need exactly.How long the distances do you want to cover in Radius?How height your Antenna can be installed?
Q5. How to calculate Broadcasting equipment Cover Range?
A5. The Cover Range depends on 4 factors:1. Power of Transmitter 2. Height of Antenna 3. Gain of Antenna 4. Around Environment.Then we can know the cover range of your station.
Q6. Is the Frequency Adjustable?
A6. FM Frequency is 88~108MHz, TV Band Frequency includes UHF/VHF band.
Q7. How to do installation of these equipments?
A7. If need,we can send our engineer to your country to do the installation, but you should pay the cost.We also can provide the technical support or do training for your engineer here in our company.
Q8. How to operate these broadcasting equipments?
Q1. Are you the manufacturer or trading company?
A1. We are manufacturer of Radio & TV Broadcasting equipments.
Q2.What these equipments used for?
A2. They are professional used for FM Radio & TV Broadcasting Station (Transmitting equipment.)
Q3. What equipment & solution your company can provide?
A3. We can do complete solution for FM Radio &tv station system, including the fm/tv transmitter, antennas and the feeder cables.
Q4. How do I choose suitable equipments for my station?
A4. The most import factors are Power and Frequency.We need to know the Power and Frequency you need exactly.How long the distances do you want to cover in Radius?How height your Antenna can be installed?
Q5. How to calculate Broadcasting equipment Cover Range?
A5. The Cover Range depends on 4 factors:1. Power of Transmitter 2. Height of Antenna 3. Gain of Antenna 4. Around Environment.Then we can know the cover range of your station.
Q6. Is the Frequency Adjustable?
A6. FM Frequency is 88~108MHz, TV Band Frequency includes UHF/VHF band.
Q7. How to do installation of these equipments?
A7. If need,we can send our engineer to your country to do the installation, but you should pay the cost.We also can provide the technical support or do training for your engineer here in our company.
Q8. How to operate these broadcasting equipments?
A8. We provide All-English user manual, we also can provide the technical support by wechat /whatsapp etc.
