Newer Version 12V Multifunction Delay Time Module Multifunction Self lock Relay
- Category: Development Boards and Kits >>>
- Supplier: Shenzhen Hua Yu Xin Science And Technology Ltd.
Share on (1600201973910):
Product Overview
Description
Products Description
Functional characteristics:
1. Upgraded to version 2.0, module functions increased from 8 to 18 to meet more application needs.
2. Increase the anti-backconnection function of the power supply, so that the module will not be damaged by the wrong power supply.
3. The system is more stable and reliable by using the top-quality high-voltage power supply module instead of the previous discrete power supply.
4. Increase the timing function of 0.1 seconds, and the timing accuracy is upgraded from 0.1 seconds to 0.01 seconds.
5. Adding automatic power saving function, users can set it up independently.
Notices:
Users can display the buttons and select the following 18 kinds of functions in one, you can set and save function parameters, you can also view the current function parameters, time parameter sets the minimum 0.1 seconds adjustable, accuracy better than 0.01 seconds, with regard to the specific Set operating instructions, please contact our sales manager.
Functions:
1.Timing Pick
2.Timed disconnect
3.Timing pull off again
4.Timed disconnect and then pull
5.Infinite loop timing mode 1
6.Infinite loop timing mode 2
7.Finite loop timing mode 1
8.Finite loop timing mode 2
9.Latching relay mode
10.Trigger relay mode
11.Pull trigger timing
12.Trigger timing off
13.Pull trigger timing disconnect
14.Disconnect and then pull the trigger timing
15. Infinite loop timing mode 1
16.Infinite loop timing mode 2
17.Finite loop timing mode 1
18.Finite loop timing mode 2
Module interface:
Module control terminal: 3-wire interface, all interfaces have terminal
1. DC+: DC power supply positive pole (Default send 12V, if you need 5V and 24V modules, please contact our sales manager)
2. DC-: negative pole of DC power supply
3. CH1: Input Detection Interface, High Level Effective
Relay outputs: a 3-wire interface, all interfaces are terminals
1------NO: normally open relay interface, the relay becomes vacant before, pull shorting after the COM1
2------COM: Common Interface Relays
3------NC: normally closed relay interface relay shorted before and COM1, pull vacant post
Load capacity:
Normally open port maximum load capacity: DC 0-30V/10A, AC 0-250V/10A
Normally Close port maximum load capacity: DC 0-28V/10A, AC 0-125V/10A.

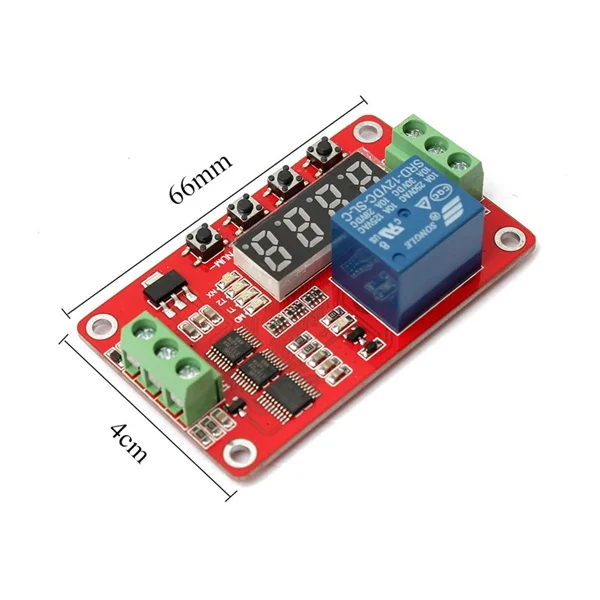

Dimensions: 4.0 * 6.6cm, screw 4, diameter 3.0mm.
1. Upgraded to version 2.0, module functions increased from 8 to 18 to meet more application needs.
2. Increase the anti-backconnection function of the power supply, so that the module will not be damaged by the wrong power supply.
3. The system is more stable and reliable by using the top-quality high-voltage power supply module instead of the previous discrete power supply.
4. Increase the timing function of 0.1 seconds, and the timing accuracy is upgraded from 0.1 seconds to 0.01 seconds.
5. Adding automatic power saving function, users can set it up independently.
Notices:
Users can display the buttons and select the following 18 kinds of functions in one, you can set and save function parameters, you can also view the current function parameters, time parameter sets the minimum 0.1 seconds adjustable, accuracy better than 0.01 seconds, with regard to the specific Set operating instructions, please contact our sales manager.
Functions:
1.Timing Pick
2.Timed disconnect
3.Timing pull off again
4.Timed disconnect and then pull
5.Infinite loop timing mode 1
6.Infinite loop timing mode 2
7.Finite loop timing mode 1
8.Finite loop timing mode 2
9.Latching relay mode
10.Trigger relay mode
11.Pull trigger timing
12.Trigger timing off
13.Pull trigger timing disconnect
14.Disconnect and then pull the trigger timing
15. Infinite loop timing mode 1
16.Infinite loop timing mode 2
17.Finite loop timing mode 1
18.Finite loop timing mode 2
Module interface:
Module control terminal: 3-wire interface, all interfaces have terminal
1. DC+: DC power supply positive pole (Default send 12V, if you need 5V and 24V modules, please contact our sales manager)
2. DC-: negative pole of DC power supply
3. CH1: Input Detection Interface, High Level Effective
Relay outputs: a 3-wire interface, all interfaces are terminals
1------NO: normally open relay interface, the relay becomes vacant before, pull shorting after the COM1
2------COM: Common Interface Relays
3------NC: normally closed relay interface relay shorted before and COM1, pull vacant post
Load capacity:
Normally open port maximum load capacity: DC 0-30V/10A, AC 0-250V/10A
Normally Close port maximum load capacity: DC 0-28V/10A, AC 0-125V/10A.
Dimensions: 4.0 * 6.6cm, screw 4, diameter 3.0mm.
Package list
1 x Automation Delay Module |

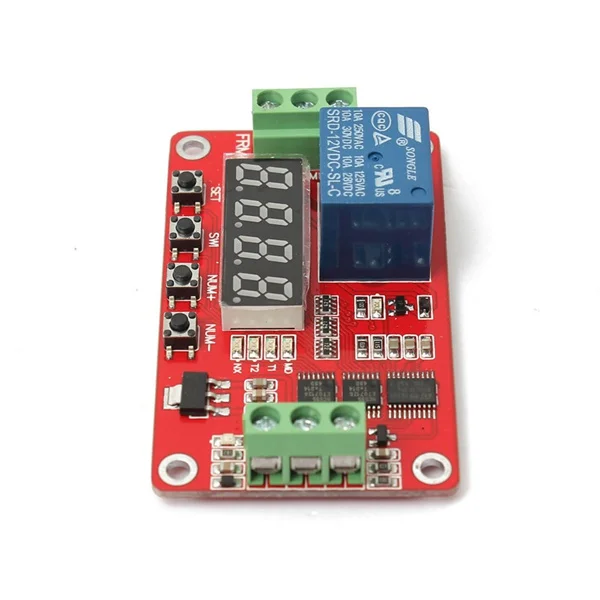

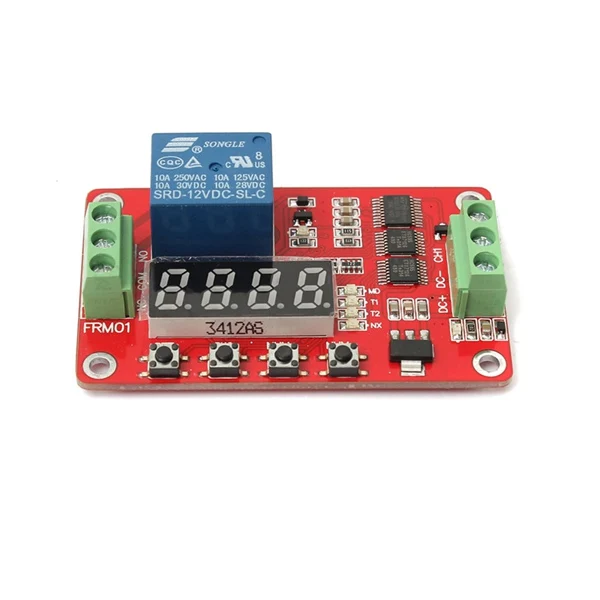

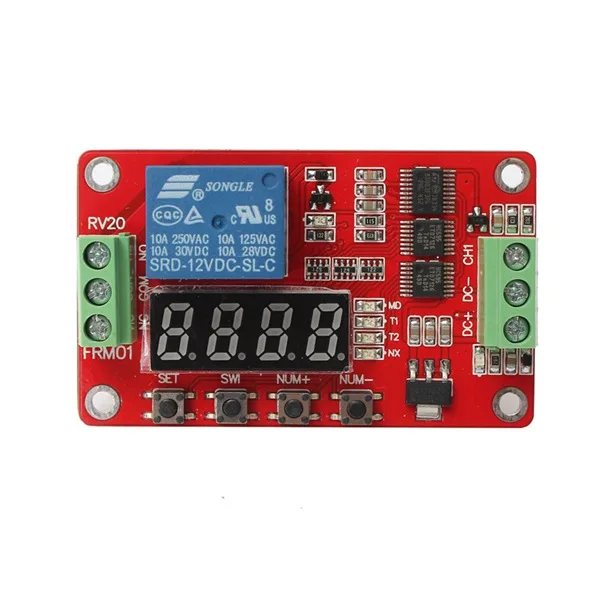

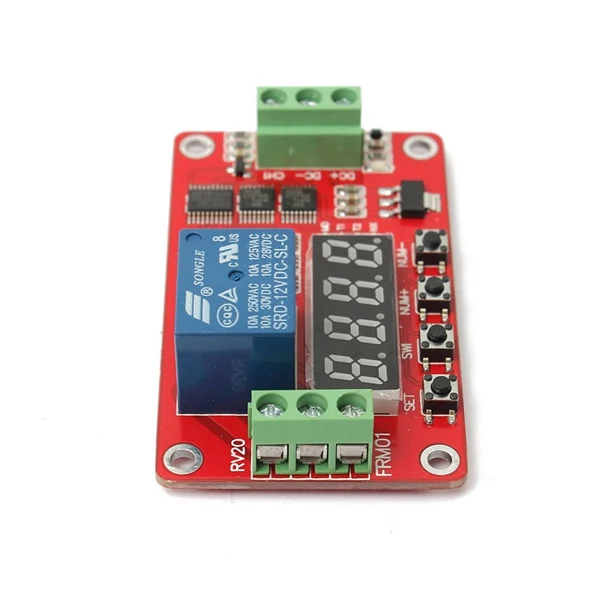

Details Images
