Product Overview

Description



Product Overview

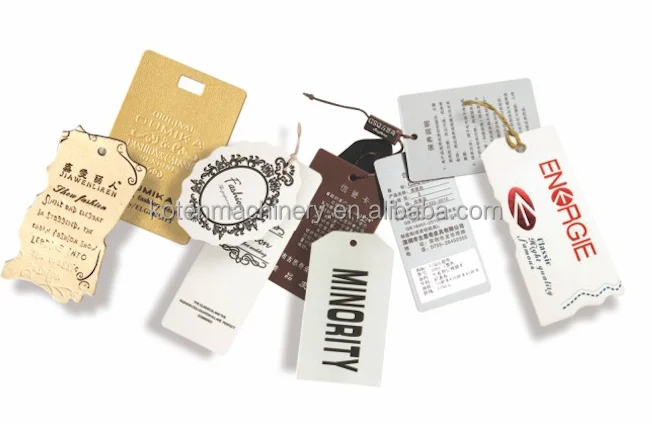

Sample

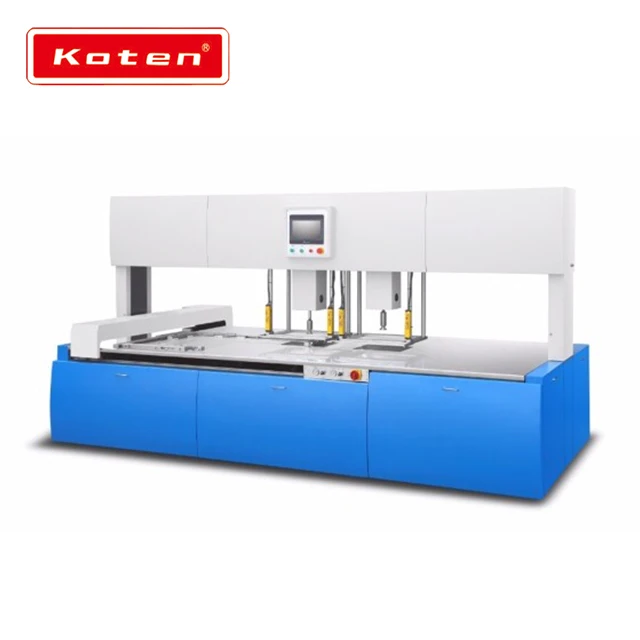

Automatic Waste Paper Blanking Separator Stripping Machine
Automatic stripping machine is the professional equipment for automatic stripping the finished sheet (like tag, trademark) frompaperboard and plastic sheet, etc after die cutting.
1. It replaces manual labor, and improves product quality and enterprise benefit.
2. It adopts servo motor, Taiwan double guide rail and ball screw which makes accuracy less than 0.02mm.
3. The latest hydraulic system with inserted motor and oil temperature cooling fan (power 3.75kw). So it has constant and big
working pressure.
4. The complete machine is equipped with PLC, and with a touch screen interface in operation. The operation is safe and easy.


FEATURES AT A GLANCE


Automatic Double Heads Waste Stripping Machine
SAFETY FRAME
SIMPLE OPERATE



Three heads with Mechanical arm
Three heads
Single head




PRODUCT SPECIFICATIONS


Model
68
92
1080
1080D
Max. Stripping Size
680*450mm
920*650mm
1080*780mm
1080*780mm
Min. Stripping Size
450*320mm
450*320mm
450*320mm
450*320mm
Max. Product Size
220*220mm
310*280mm
420*280mm
420*650mm
Min. Product Size
30*30mm
30*30mm
30*30mm
30*30mm
Stripping Height
40-120mm
40-120mm
40-120mm
40-120mm
Stripping Speed
15-20times/m
15-20times/m
15-20times/m
15-20times/m
Main Power
2.5kw
4kw
4kw
4kw
Weight
1100kgs
1600kgs
3200kg
3200kgs
