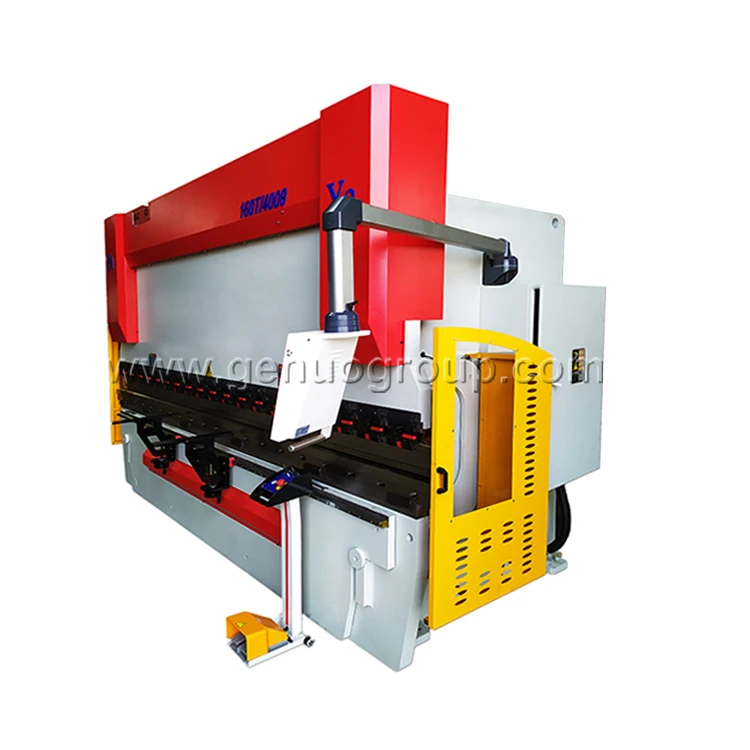

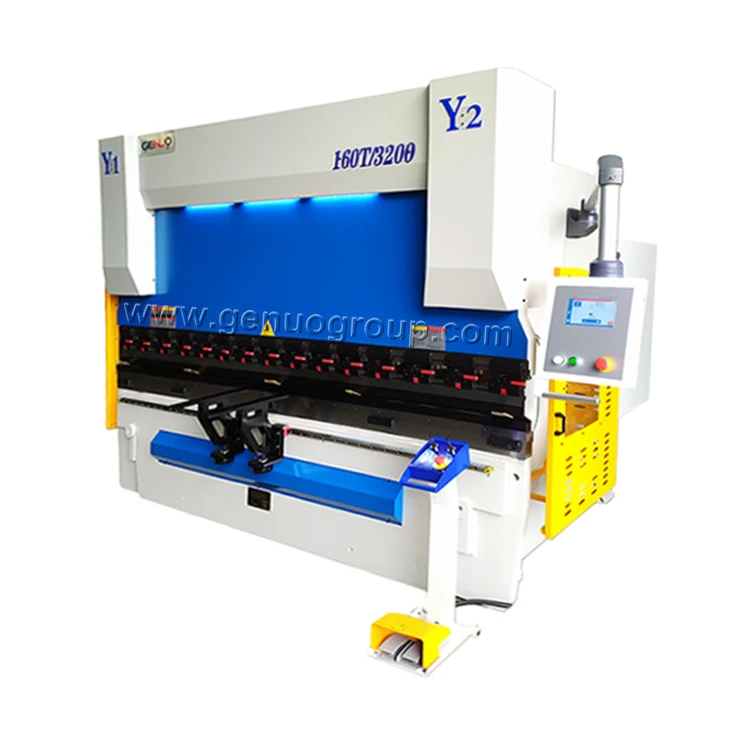

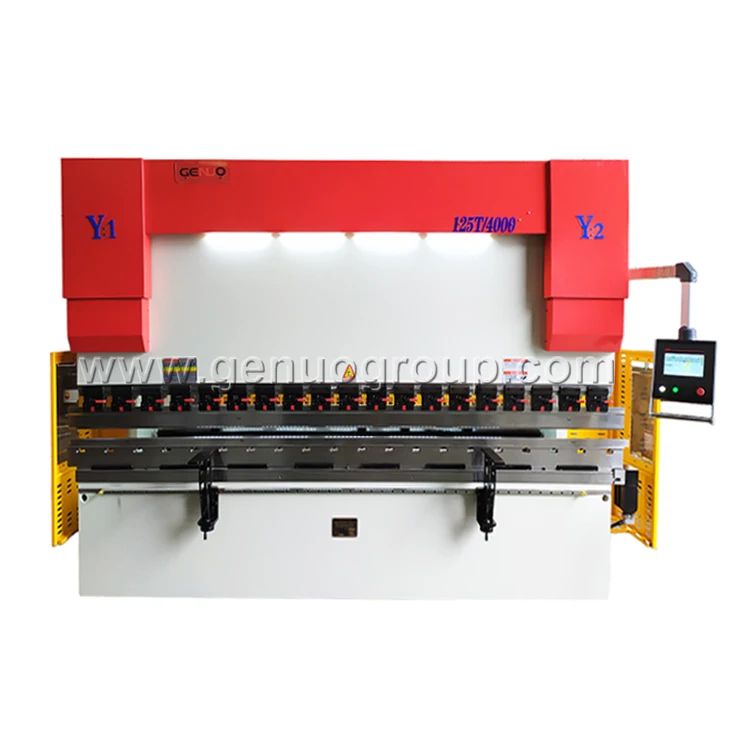

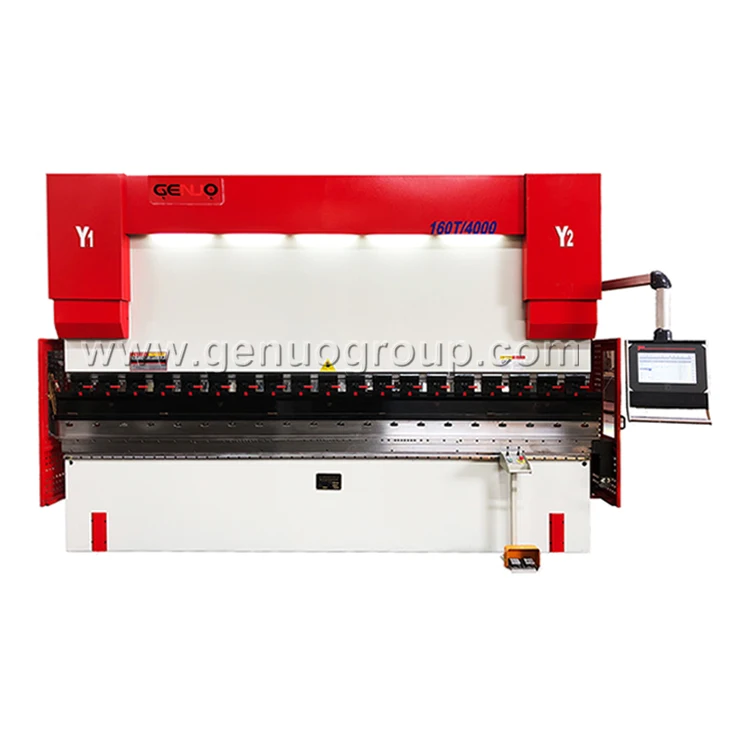

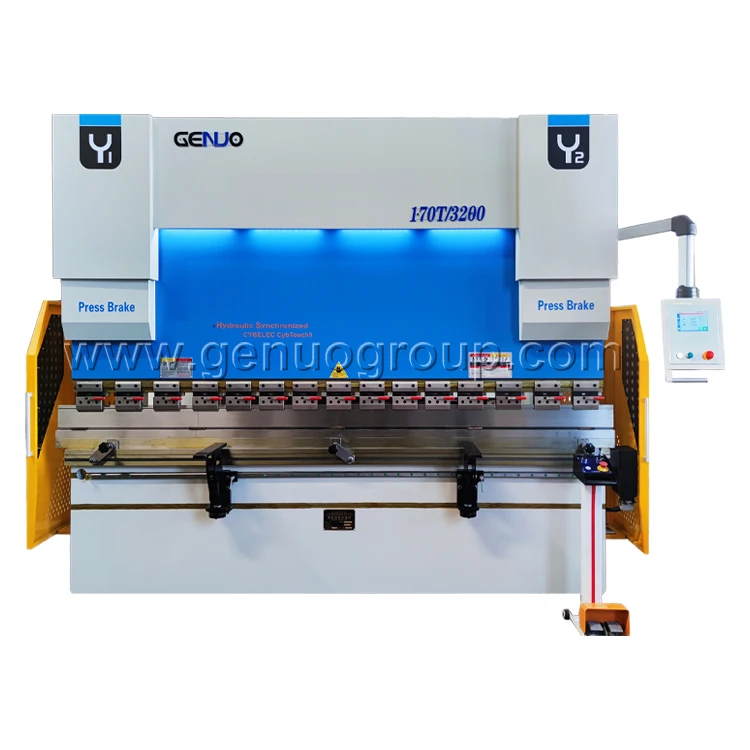

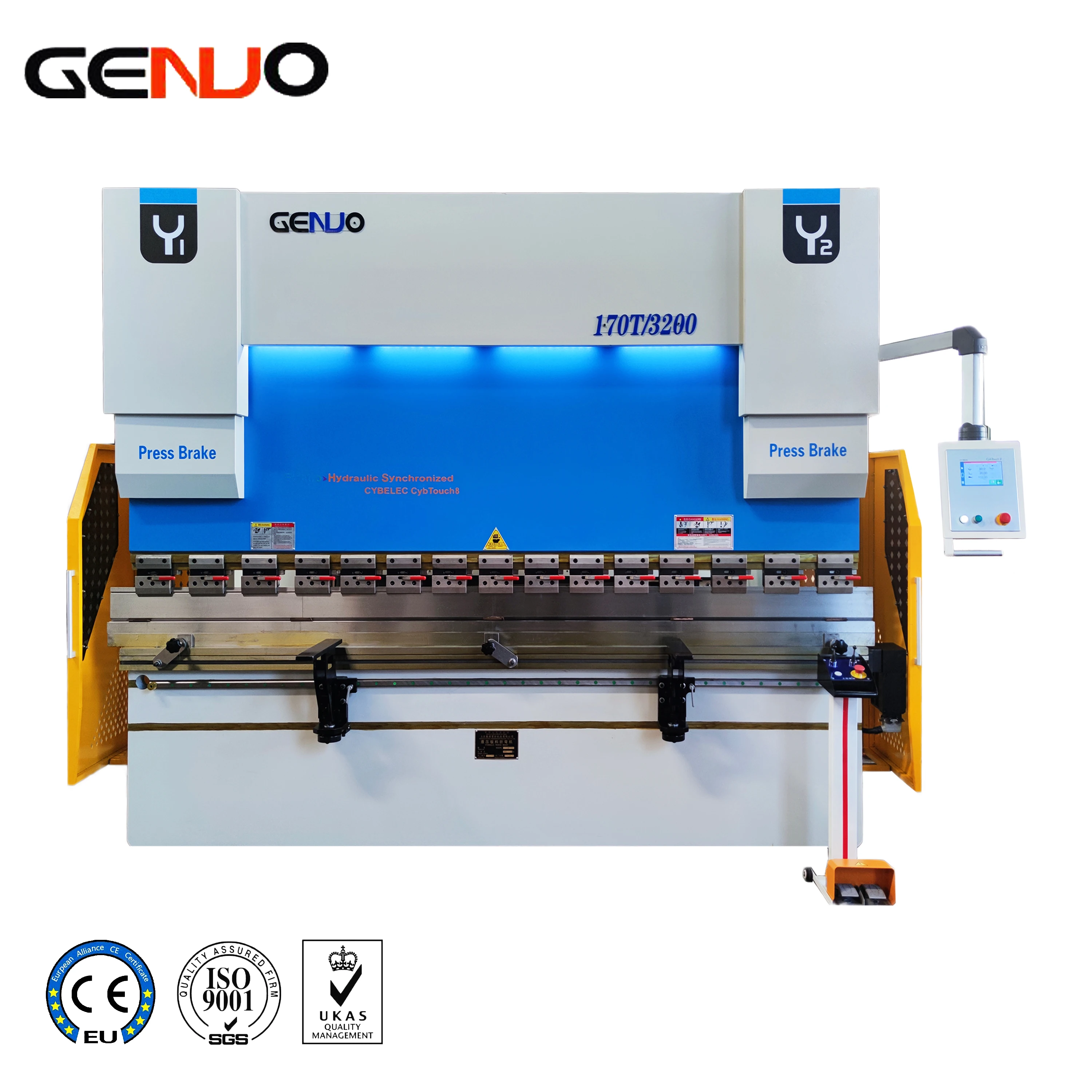

4 axis press brake and hydraulic synchronize CNC plate bending machine
- Category: Press Brake >>>
- Supplier: Maanshan Genuo Machinery Manufacturing Co. Ltd.
Share on (1600202016302):
Product Overview
Description
Features
Adhering to advanced design concept, simple appearance, comfortable operation human-machine experience
Special CNC bending control system is fitted with mainframe of the bending machine.
Multi-work-step programming function is able to achieve an automatic operation and contnuous positioning of multi-step procedures,as well as an automatic precision adjustment for positions of back gauge stopper and gliding block.
The machine is provided with bend counting function, for a real-time display of processing quantity and power-failure memory of positions of stopper and gliding block, as well as procedures and parameters.
IMported ball bearing lead screw and linear guide rail are used for rear stopper, to ensure the positioning precision of rear Stopper, for proceSssing precision of machine to be higher.
The machine is provided with bend counting function, for a real-time display of processing quantity and power-failure memory of positions of stopper and gliding block, as well as procedures and parameters.
IMported ball bearing lead screw and linear guide rail are used for rear stopper, to ensure the positioning precision of rear Stopper, for proceSssing precision of machine to be higher.
Details Images
Optional Controller

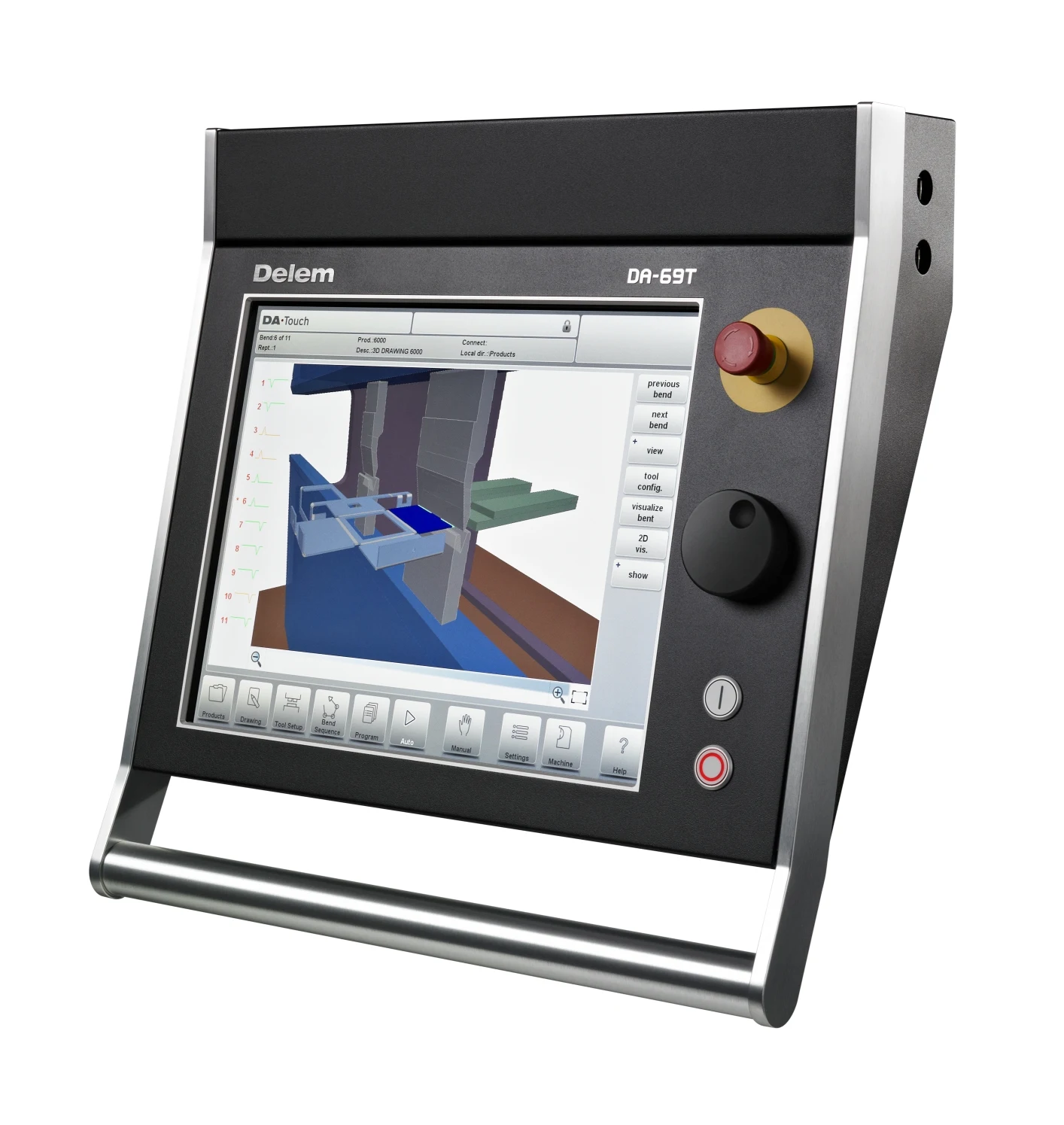

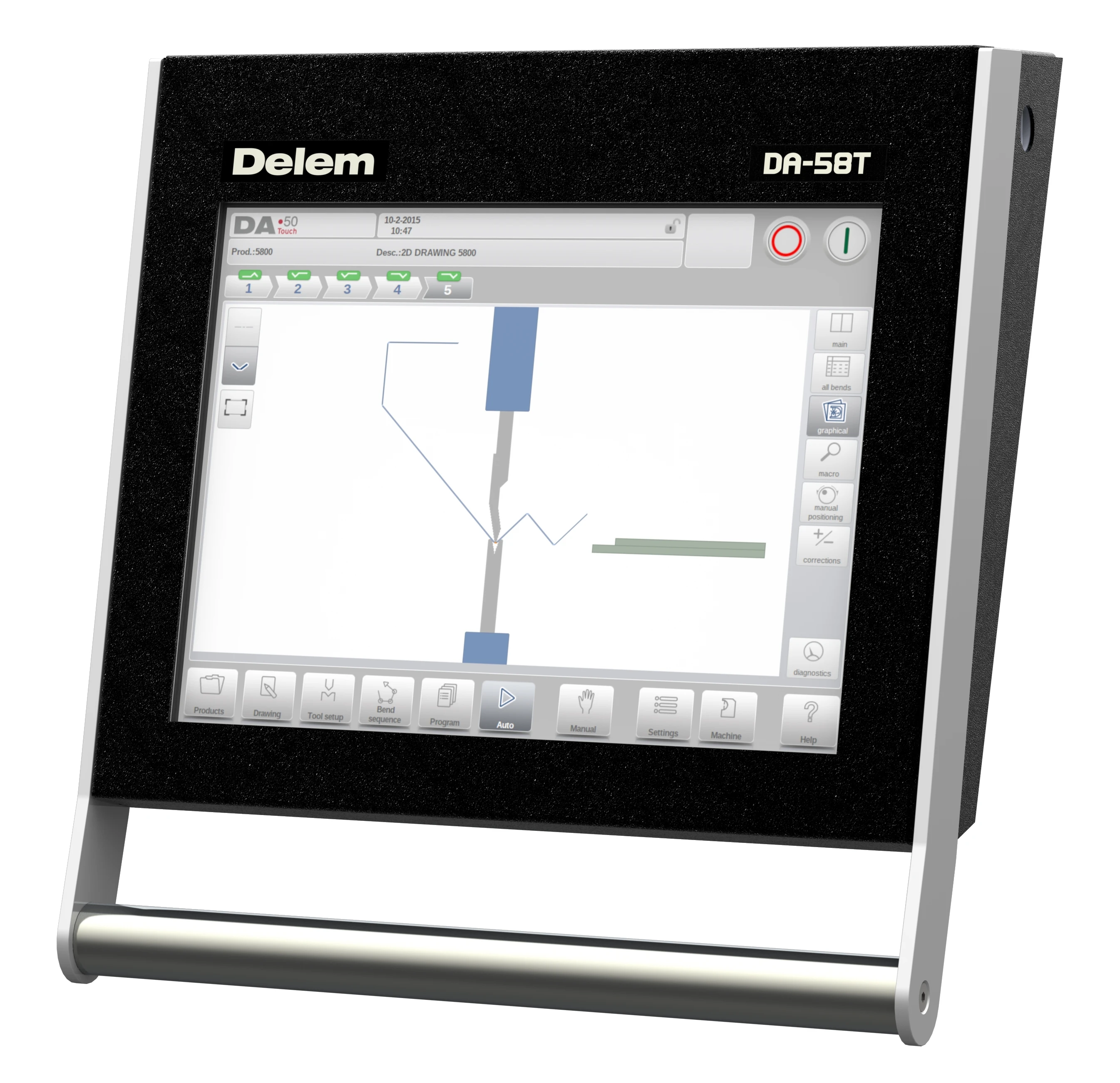

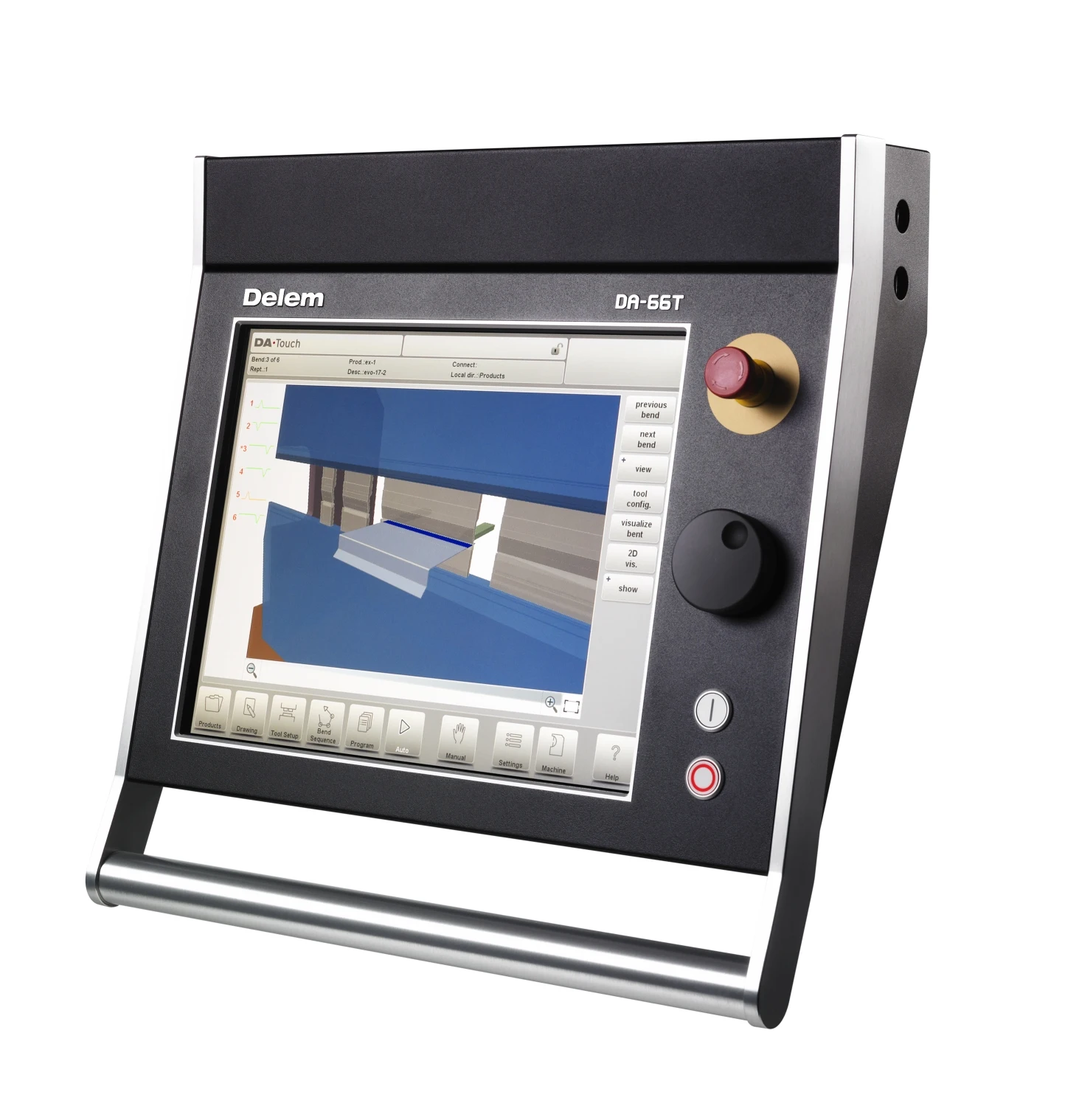

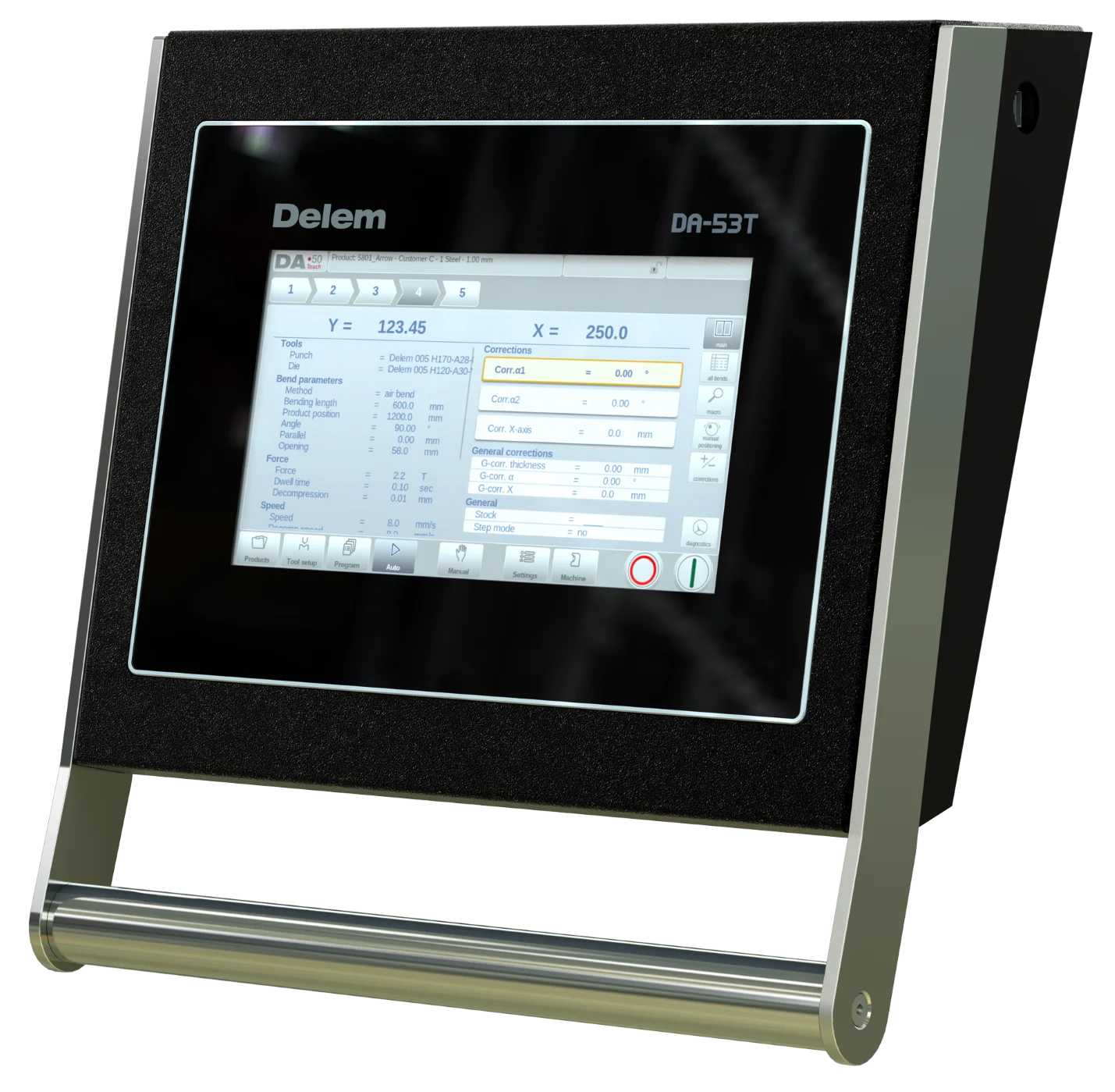

Delem DA-50 Touch Series
The DA-50 Touch series press brake controls offer modern compact and versatile solutions for powerful economic press brake
applications.
Graphical programming and numerical programming solutions based on state-of-the-art press brake control enable optimal
flexibility.Optional DA-60 Touch series
applications.
Graphical programming and numerical programming solutions based on state-of-the-art press brake control enable optimal
flexibility.Optional DA-60 Touch series
Cybelec CybTouch 8,12,15,Switzerland
CybTouch is specifically designed for CNC press brakes.
It has an intuitive and vivid color full touch screen and a high integration of functions. Its robust design is available in panel or housing version.Thanks to its large keys, online help, simplified software and many other automatic functions that constantly guide the operator,
CybTouch open architecture concept for customer specific functionality assurance. User friendly programming with ease due to the“intuitive programming” concept.
It has an intuitive and vivid color full touch screen and a high integration of functions. Its robust design is available in panel or housing version.Thanks to its large keys, online help, simplified software and many other automatic functions that constantly guide the operator,
CybTouch open architecture concept for customer specific functionality assurance. User friendly programming with ease due to the“intuitive programming” concept.
Esautomotion S630,S640,S650 ,Italy
The intelligent heart of software specifically designed for bending is beating in all our VIS-600 and 800 CNCs, thus guaranteeing exceptional performance with every type of processing.
Developed ad-hoc according each client’s needs, our turn key software allows both 2D and 3D visualization, while optimizing all the bending sequences.
Thanks to unique Esautomotion’s exclusive FLED (Fast Learning Design) philosophy, it greatly simplifies and speed up the machineoperator’s work.
Stable Electrical Cabinet
Developed ad-hoc according each client’s needs, our turn key software allows both 2D and 3D visualization, while optimizing all the bending sequences.
Thanks to unique Esautomotion’s exclusive FLED (Fast Learning Design) philosophy, it greatly simplifies and speed up the machineoperator’s work.
Stable Electrical Cabinet
Durable France Schneider electrics ensure the stable operation of the machine.Reasonable line connection and arrangement greatly reduces the failure rate. And the operator and all parts of the machine played a good protection.
Servo and drive to improve the positioning accuracy of X,R Axis
Superior Hydraulic System
Superior Hydraulic System

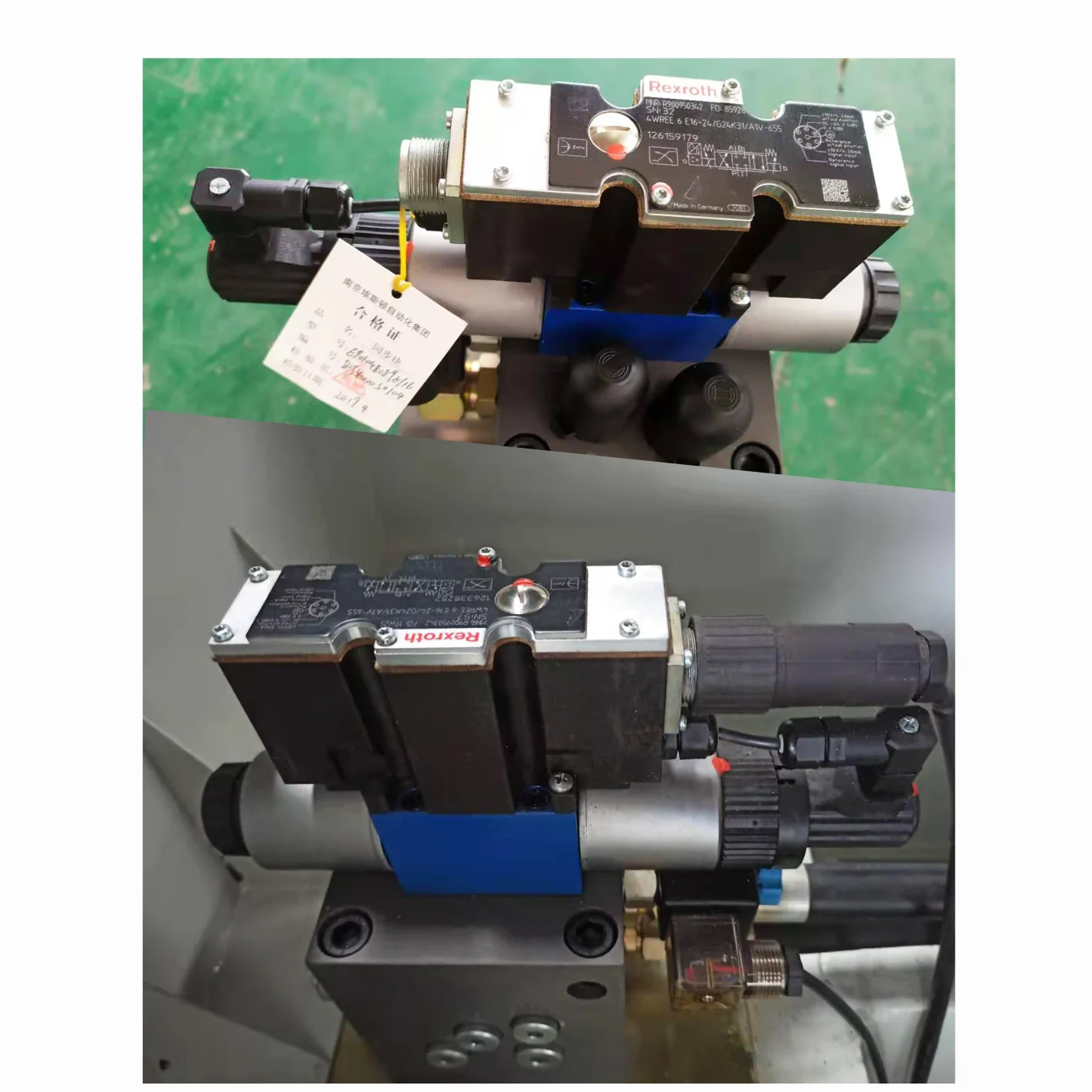

Integrated Rexroth hydraulic system, quick response. The low failure rate makes the machine run safely, efficiently and stably.The whole
series of standard is equipped with galvanized cold drawn pipe and German ferrule type pipe joint. Reduce the risk of oil leakage
by 50% compared with rubber and welded seamless tubing. And in can be longer service life.

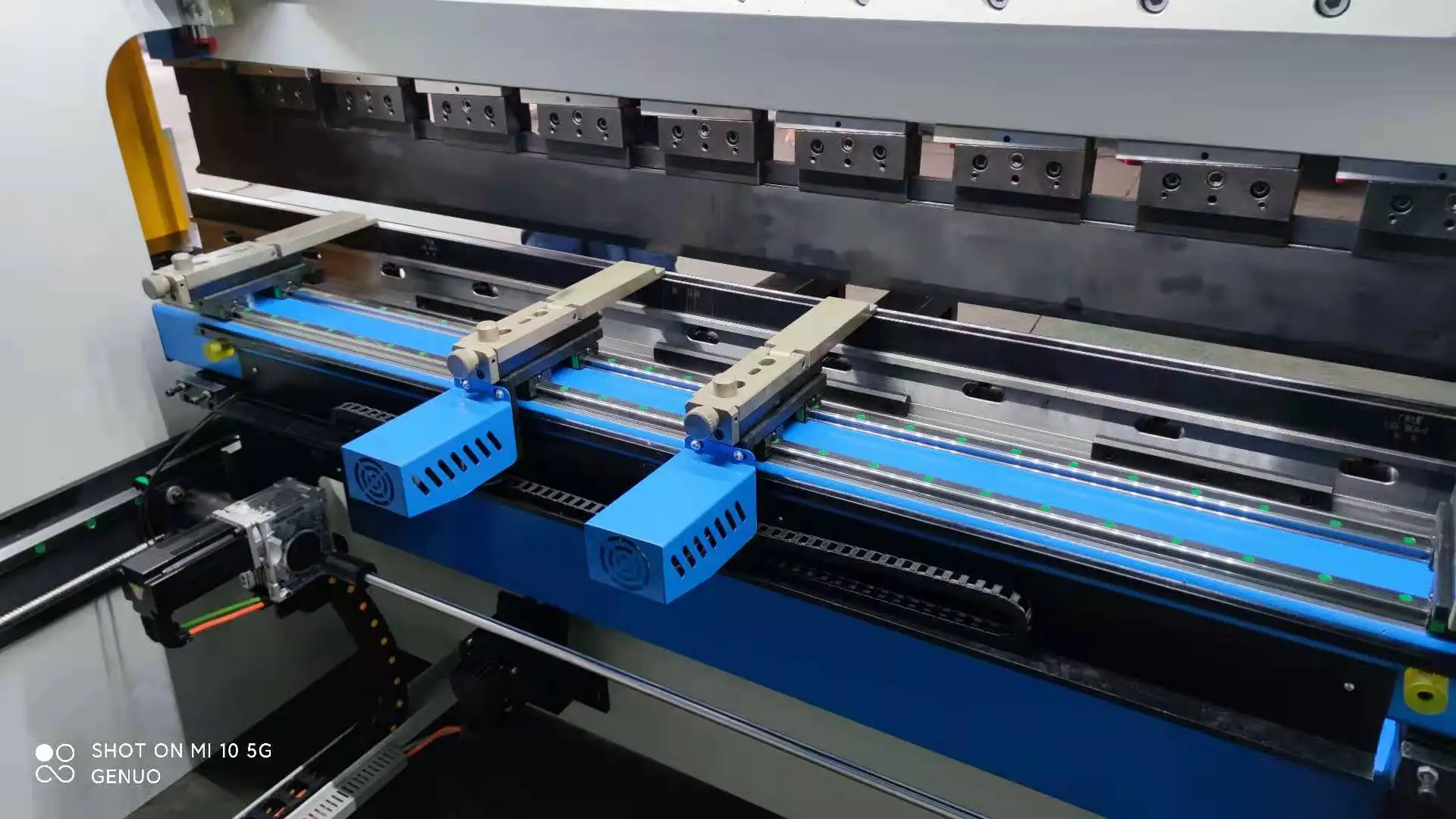

High Precision Back-Gauge
series of standard is equipped with galvanized cold drawn pipe and German ferrule type pipe joint. Reduce the risk of oil leakage
by 50% compared with rubber and welded seamless tubing. And in can be longer service life.
High Precision Back-Gauge
The unique and novel ball screw linear guide structure back-gauge ensures high positioning accuracy. Multi-level with movable, adjustable stop fingers. Increased positioning range makes bending more efficient and accurate .
Optional function more Complete multiple Axes.
Low Noise Power System
Low Noise Power System
Using Germany Siemens main motor and USA SUNNY gear oil pump guarantee the machine service life and improve the machine working stability.
At the same time, the special coupling device also greatly reduces the noise of the machine in the process of running.
Patent Fast Clamps
Patent Fast Clamps

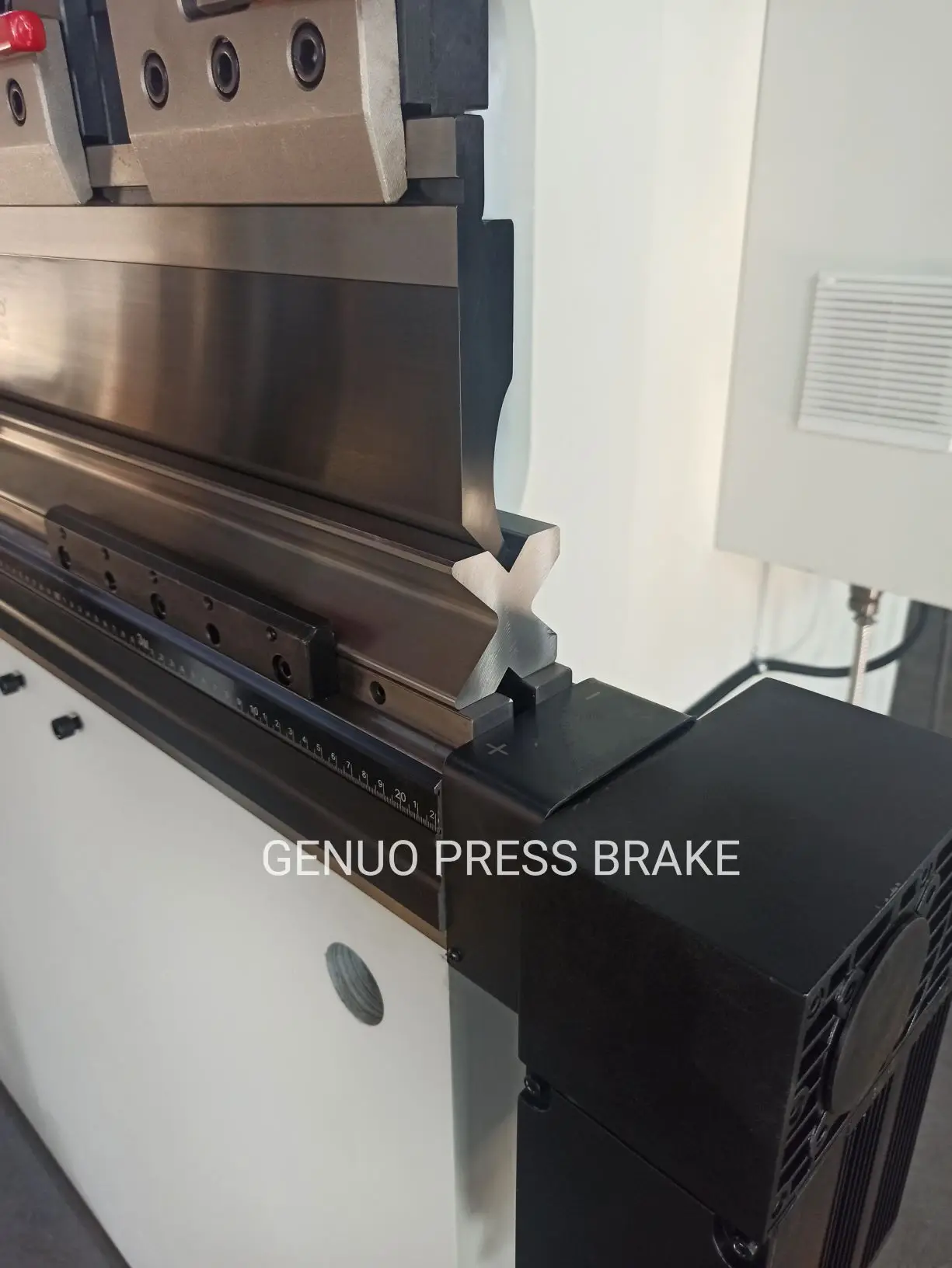

The whole series adopts GENUO GNSP standard fast holders. Patented rear butterfly hold down device,which can adapt to different types of European-standard, Amada type punches. Compared with the traditional tool holder, it can save more time and improve production efficiency.Safety, anti falling.There are also one button release upgrade style. Automatic hydraulic and pneumatic clamping are optional.
Diverse Press Brake Tools
Optimized design can make bending more simple and efficient. 42CrMo or C45 high frequency quenching process press brake tools, it is durable. Special surface nitriding treatment can be selected to prevent rust and beautiful appearance. Special punch and vdies can be customized according to the workpiece, and GENUO provide a complete set of solutions.

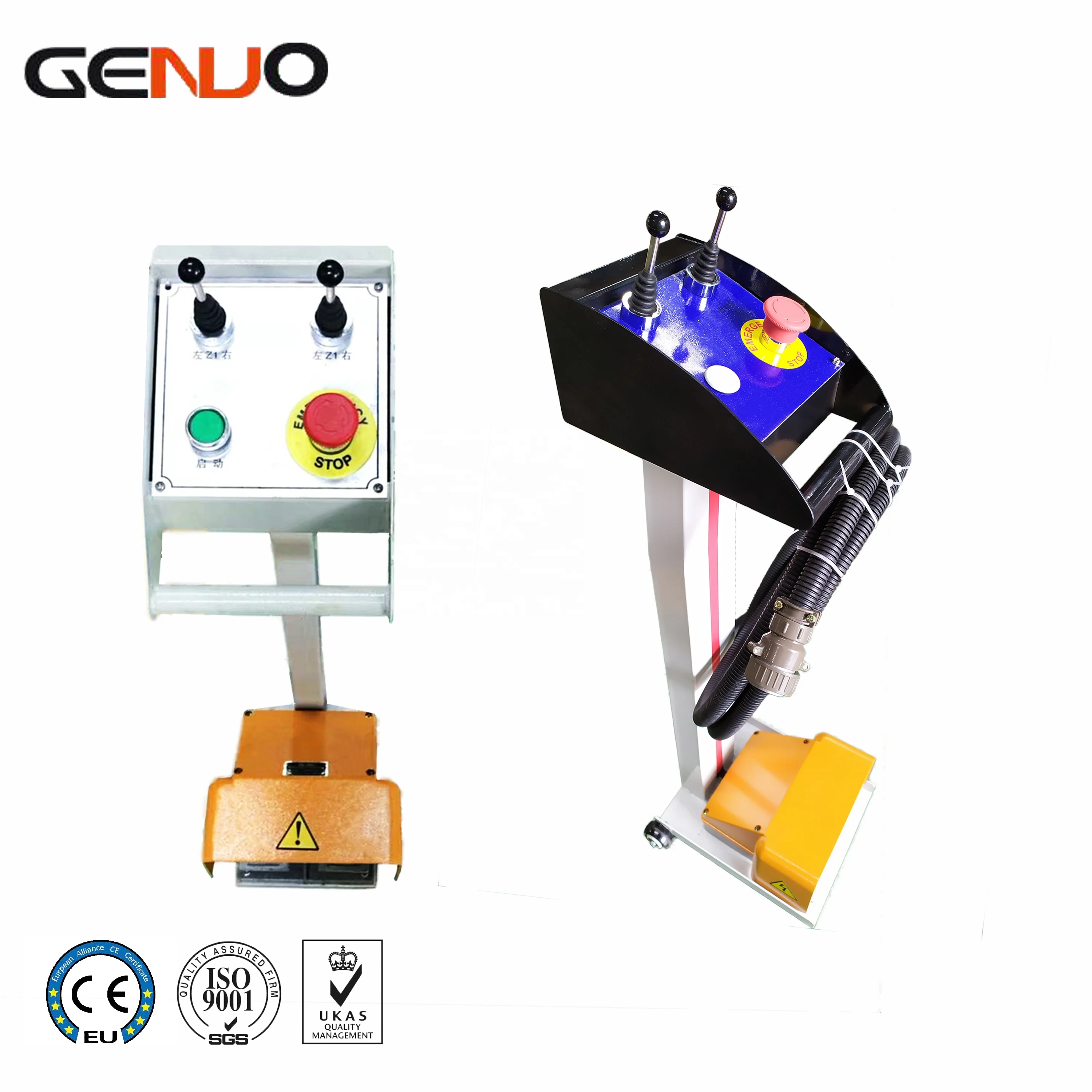

Dedicated Foot Switch
Dedicated Foot Switch
South Korea KACON pedal switch, improving the service life and operational sensitivity. With emergency stop, up and down control division. Make machine operating safer and easier.
It can also be equipped with multi-functional rocker Z1, Z2-axis, R-axis manual control.
Optional Installation
*Oil Cooling Unit
*Light Curtain

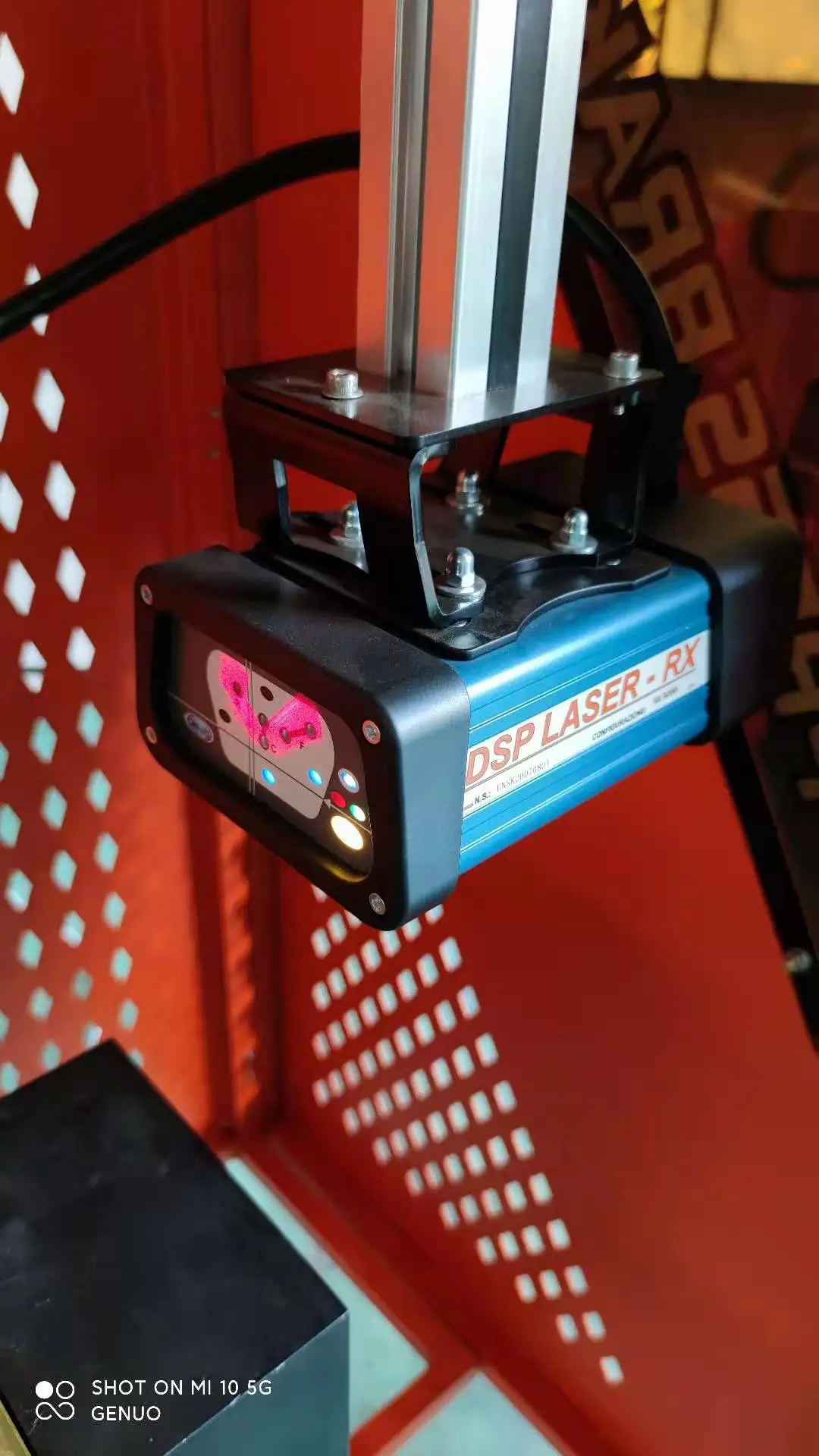

*Laser Protection
*Front Auto Follow support
*Bending Robots
Size Chart of Design
Type | Nominal force (mm) | Woektable length(mm) | Poles distance (mm) | Throat depth (mm) |
WE67K-40T/1600 | 400 | 1600 | 1300 | 220 |
WE67K-63T/2500 | 630 | 2500 | 1900 | 260 |
WE67K-100T/3200 | 1000 | 3200 | 2700 | 320 |
Back-gaugeRange (mm) | Ram Strokes (mm) | Max open (mm) | Power （kw) | Dimension L*W*H(mm) |
10-400 | 140 | 320 | 4 | 2100*1650*2100 |
10-500 | 160 | 340 | 5.5 | 3100*1700*2300 |
10-500 | 200 | 380 | 7.5 | 3900*1850*2450 |
