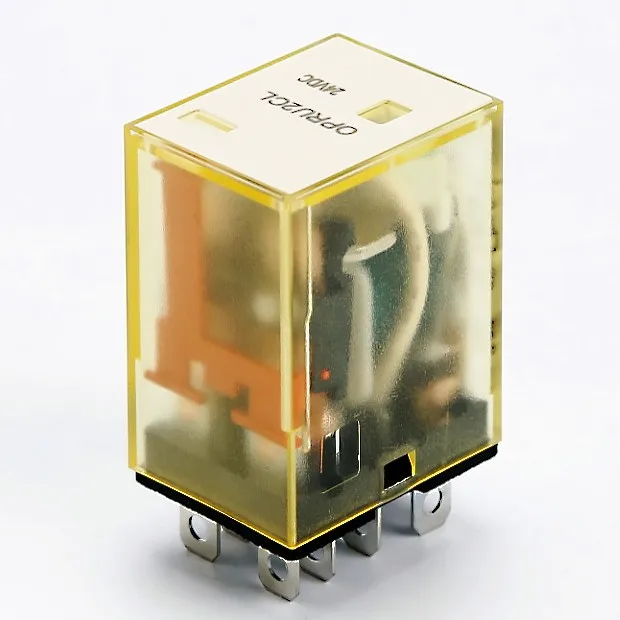

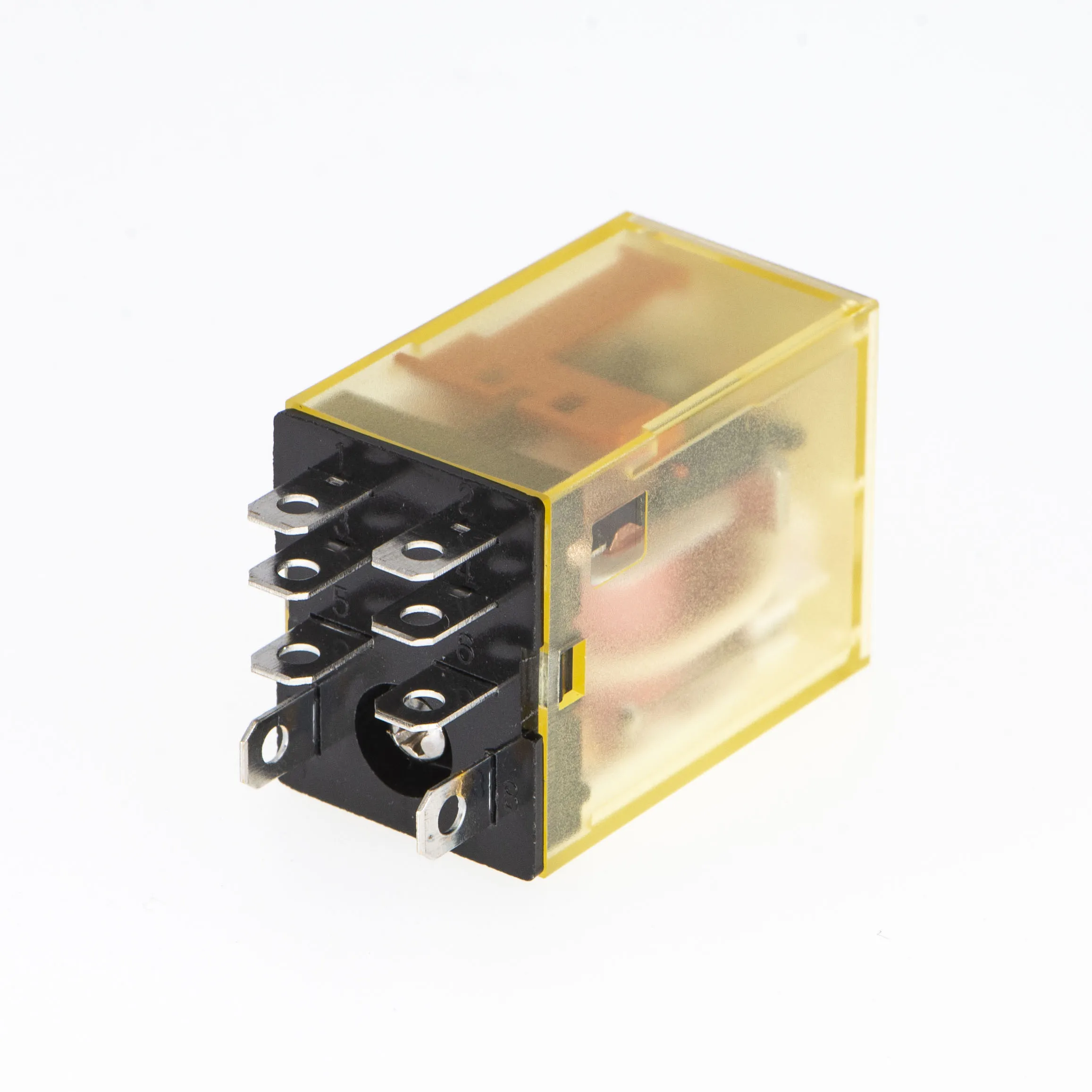

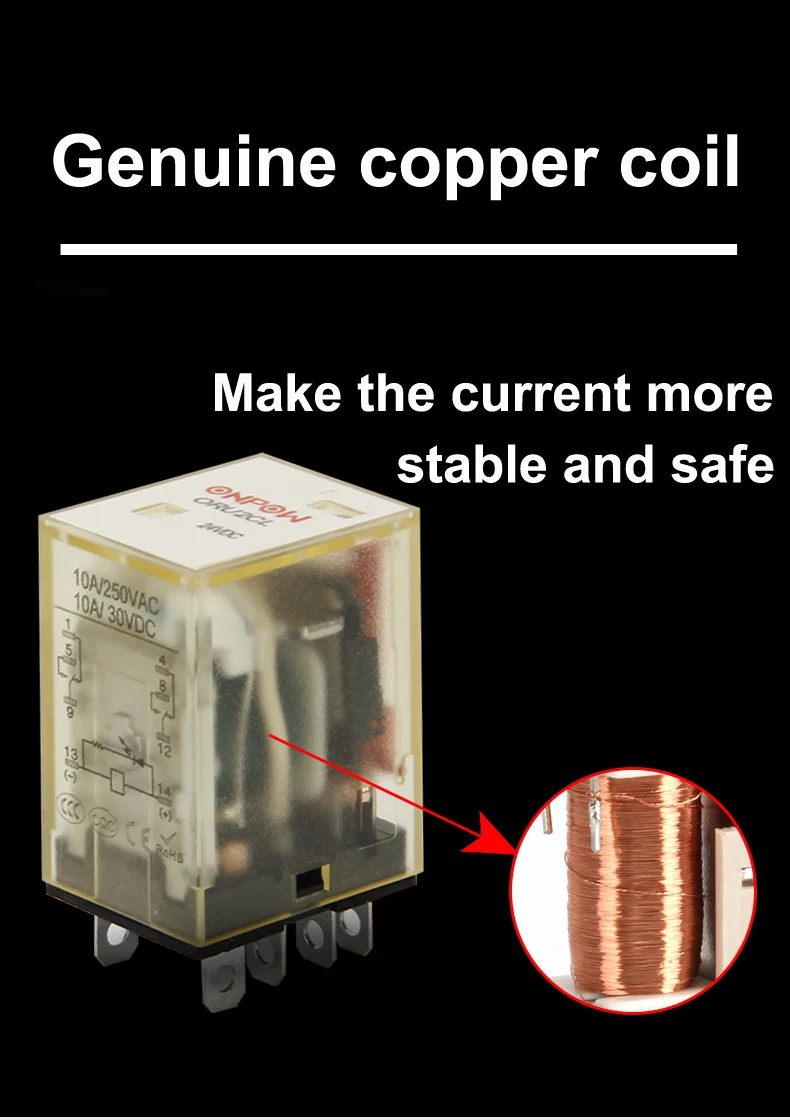

8 pin 10A Electromagnetic small high power relay, ORU 2C L(Similar models MY2N)
- Category: Relays >>>
- Supplier: Shanghai Leyan Automatic Control Technology Co. Ltd.
Share on (1600202128608):
Product Overview
Description
| Contact Ratings | Contact form | 1 Set |
| Rated load(Resistive load) | 12A/250VAC, 30VDC | |
| Switching power(Resistive load) | 3000VA, 360W | |
| Contact resistance(initial) | ≤50mΩ | |

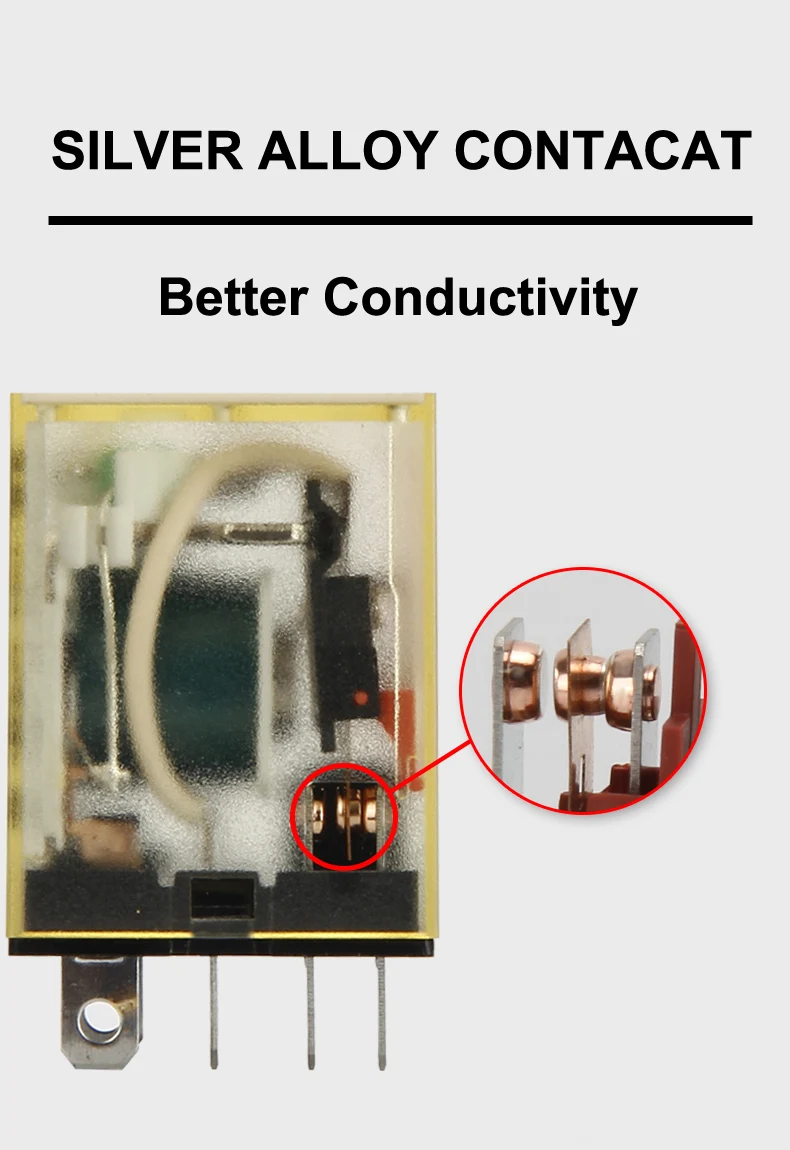

| Contact material | Ag alloy | |
| Electrical life | 1*105 times | |
| Mechanical life | 3*107 times | |
| Performance parameter | Must-iperate voltage (23℃) | DC:≤75% (rated voltage) AC:≤80% (rated voltage),50/60Hz(rated voltage) |
| Must-release voltage (23℃) | DC:≥10% (rated voltage) AC:≥30% (rated voltage),50/60Hz(rated voltage) | |
| Maximum voltage (23℃) | 110% (rated voltage) | |
| Coil power consumption | DC: Approx. 0.53W AC: Approx. 0.9VA | |
| Operate time (rated voltage) | ≤20ms | |
| Release time (rated voltage) | AC: ≤20ms DC: ≤10ms, Built in freewheeling diode type: ≤20ms | |
| Insulation resistance | 1000MΩ (500VDC) | |
| Dielectric Strength | Between contacts of same polarity: ≥1000VAC/1min | |
| Between contacts of different polarity: 3000VAC/1min (Leakage current 1mA) | ||
| Between contact and Coil: 5000VAC/1min (Leakage current 1mA) |
The prices of DC and AC versions are different, please contact me and confirm the details before ordering.
For large quantity, we can give you more discount
