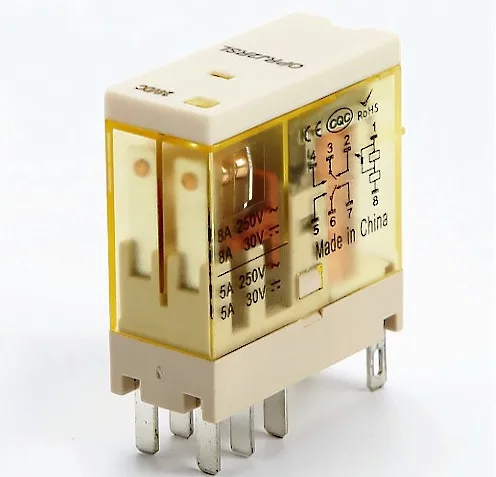

LYAN product,High load, 8A 120V 50hz, 8 pins, Electromagnetic power Relay, ORJ 2S L
- Category: >>>
- Supplier: Shanghai Leyan Automatic Control Technology Co. Ltd.
Share on (1600202128705):
Product Overview
Description

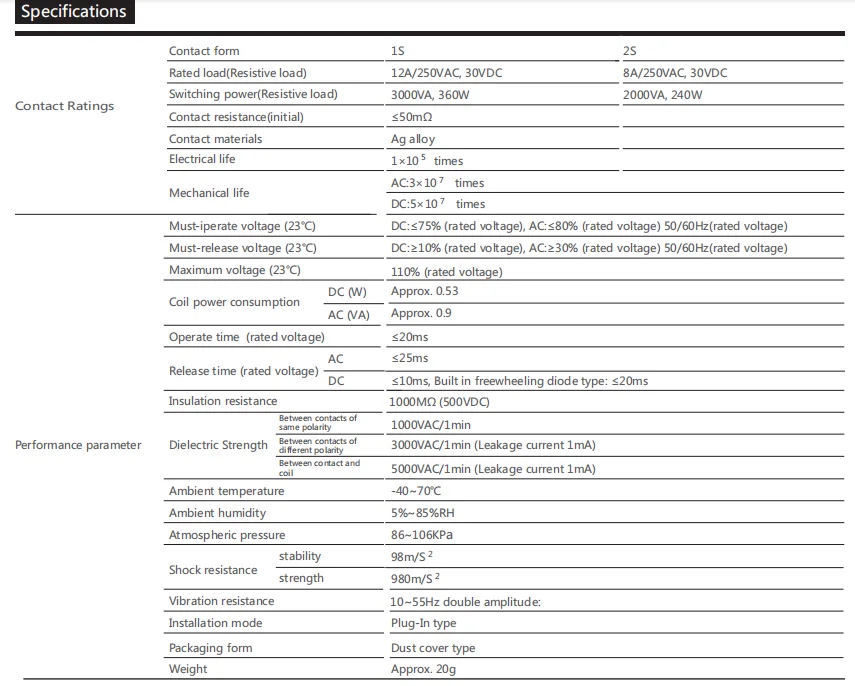

| Contact Ratings | Contact form | 2S |
| Rated load(Resistive load) | 8A/250VAC, 30VDC | |
| Switching power(Resistive load) | 2000VA, 240W | |
| Contact resistance(initial) | ≤50mΩ | |
| Contact material | Ag alloy | |
| Electrical life | 1*10^5 times | |
| Mechanical life | AC: 3*10^7 times DC: 5*10^7 times | |
| Performance parameter | Must-iperate voltage (23℃) | DC:≤75% (rated voltage) AC:≤80% (rated voltage),50/60Hz(rated voltage) |
| Must-release voltage (23℃) | DC:≥10% (rated voltage) AC:≥30% (rated voltage),50/60Hz(rated voltage) | |
| Maximum voltage (23℃) | 110% (rated voltage) | |
| Coil power consumption | DC: Approx. 0.53W AC: Approx. 0.9VA | |
| Operate time (rated voltage) | ≤20ms | |
| Release time (rated voltage) | AC: ≤25ms DC: ≤10ms, Built in freewheeling diode type: ≤20ms | |
| Insulation resistance | 1000MΩ (500VDC) | |
| Dielectric Strength | Between contacts of same polarity: ≥1000VAC/1min | |
| Between contacts of different polarity: 3000VAC/1min (Leakage current 1mA) | ||
| Between contact and Coil: 5000VAC/1min (Leakage current 1mA) |
The prices of DC and AC versions are different, please contact me and confirm the details before ordering.
For large quantity, we can give you more discount .
