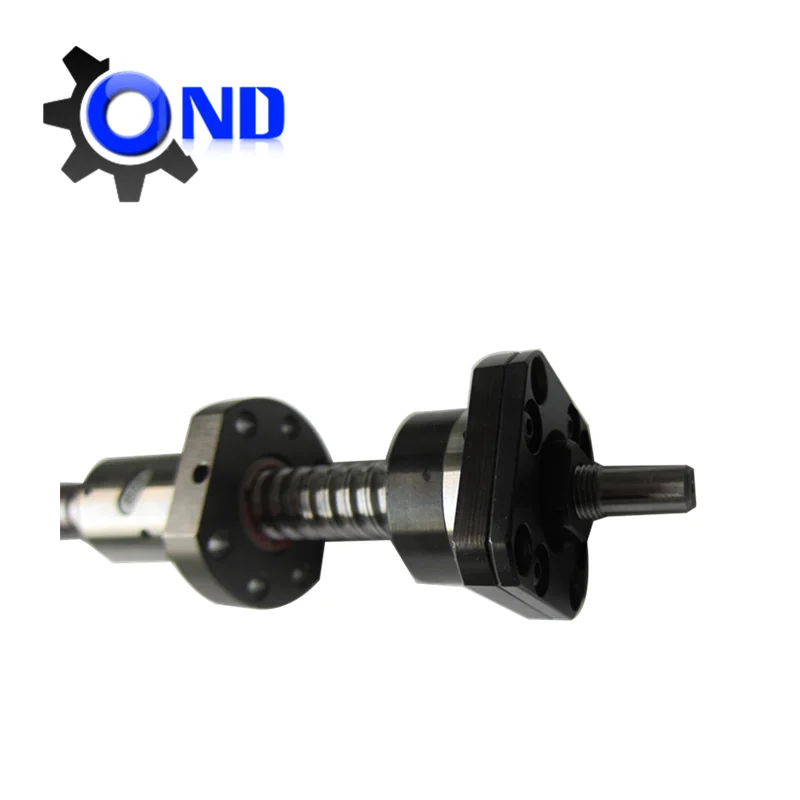

High Speed Diameter 32mm SFU3204 SFU3205 SFU3206 SFU3208 SFU3210 Ball Screw and Nut
- Category: >>>
- Supplier: Tianjin Ounaida Transmissions Machinery Trading Co. Ltd.
Share on (1600202226049):
Product Overview
Description
Product Description
Product Type | Ball screw |
Structure | Screw shaft, steel ball, ball nut |
Type | SFS, DFS, SFU, DFU, SFV, DFV, SFT, DFT, SFI, DFI etc |
Features | 1.high reliability 2.smooth operation 3.high rigidity and preload 4.circulation method 5.high durability |
Circulation Type and Characteristic | 1.Internal circulation type: Delicated diameter of screw takes only little space; Applicable to those with smaller lead/the outside diameter of the screw 2.External circulation type: Economy; Applicable to larger lead and diameter; Applicable for high loading purpose 3.End-caps circulation type: Suitable for high speed positioning |
Delivery Time | 10-30 days, according to the size and quantity |
Specification

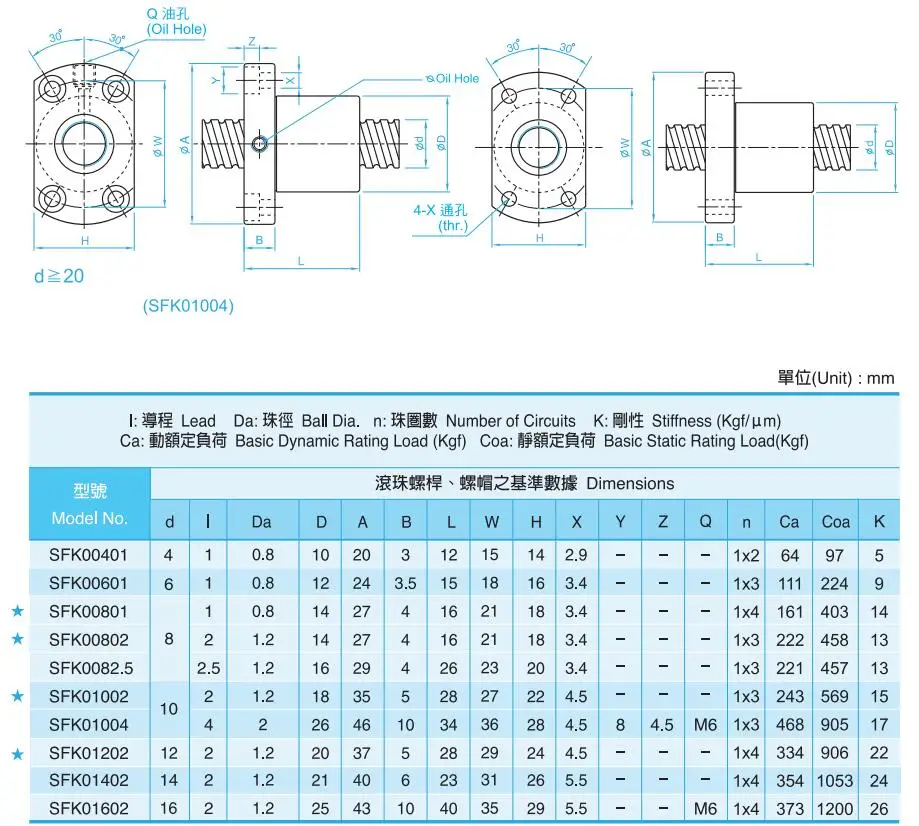

SFK type ball nut ball screw dimensions:

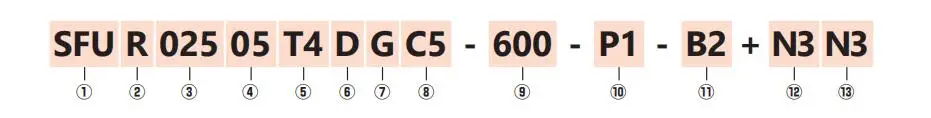

1. Nominal Model
S: single nut; D: double nut; O: off set double nut
F: with flange; C: without flange
U Nut Type: NI, NU, H, A, NH, Y, V, U, M, K type nut
2. Threading Direction
R: right: L: left
3. Nominal Diameter: Unit mm
4. Lead: Unit mm
5. Number of Turns (Turn-Row)
Turn: T:1; A: 1.5(or 1.7/1.8); B: 2.5/2.8; C: 3.5; D: 4.8; E: 5.8 ; ex:(2.5*2=B2)
6. Flange Type
N: not cutting S: single cutting D: double cutting
7. Product Code
G: ground F: rolled
8. Accuracy Grade
C0, C1, C2, C3, C5, C7, C10
9. Overall Length of Shaft: Unit mm
10. Axial Clearance and Preload Value
P0, P1, P2, P3, P4
11. Number of Nut (Leave blank if not nut is required)
EX:install two nuts on a shaft B2
12. Nut Surface Treatment
S: standard; B1: black oxidation; N1: hard chrome plating;
P: phosphating; N3: nickel plating; N4: raydent; N5: chrome plating
13. Shaft Surface Treatment
S: standard; B1: black oxidation; N1: hard chrome plating;
P: phosphating; N3: nickel plating; N4: raydent; N5: chrome plating
Details Images

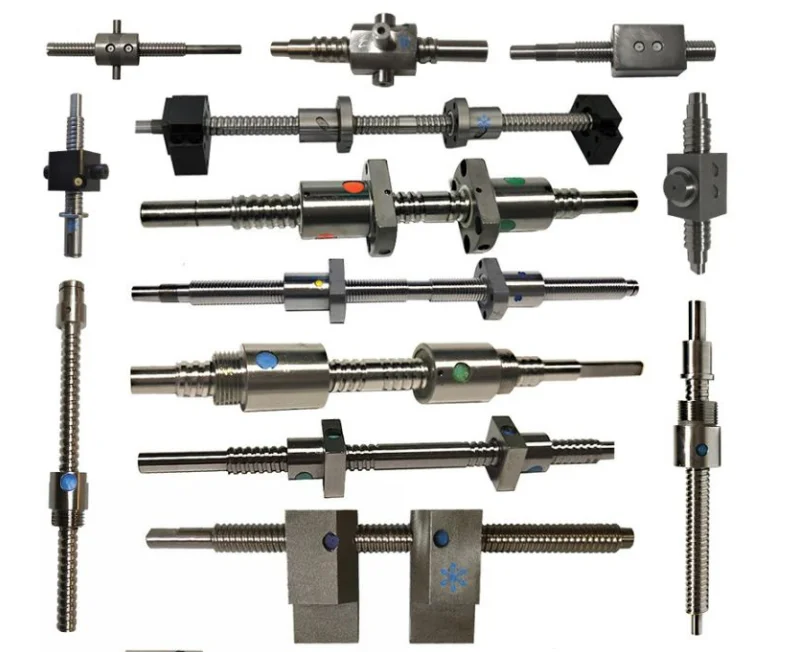

Tianjin OuNaiDa ball screws' detail pictures

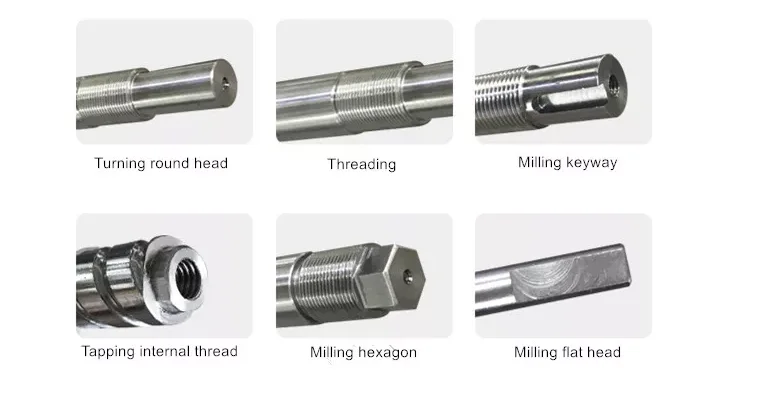

End processing type
Company Profile
Tianjin OND Transmissions Machinery Trading Co. Ltd. is specialized in manufacturing various kinds of standard and non-standard power transmission components, such as sprocket, gear, roller chain, gear rack, linear guideway, ball screw, screw support and related products. Our company owns advanced production equipments,first class technology and professional engineers.We can also produce according to our customers' drawings or requirements.
Our Main Product:
1. Gear and Rack
2. Ball Screw and Nut
3. Linear Guide and Block
4. Sprocket and Roller Chain
5. Timing Pulley and Timing Belt
Our Service:
1. Competitive price
2. High quality products
3. OEM service
4. 24 hours online service
5. Professional technical service
6. Sample available
1. Gear and Rack
2. Ball Screw and Nut
3. Linear Guide and Block
4. Sprocket and Roller Chain
5. Timing Pulley and Timing Belt
Our Service:
1. Competitive price
2. High quality products
3. OEM service
4. 24 hours online service
5. Professional technical service
6. Sample available
Application & Packaging
Tianjin OuNaiDa Packing:
Carefully and professional package to prevent the goods from damage,and sent the goods to you intactly.
1. Plastic film wrapped -------
2. Put it in a carton box ------
3. Pack the carton firmly
Application of Ball Screws | Ball screws application | |
CNC machinery | CNC machine center, CNC lathe,CNC milling machine, CNC EDM, CNC grinder, wire cutting machine, boring machine, etc | |
Precision machine tools | milling machine, grinder, EDM, tool grinder, gear manufacturing machine, drilling machine, planer, etc. | |
Industrial machinery | printing machine, paper-processing machine , automation machine, textile machine, drawing machine, special purpose machine, injection molding machine,etc | |
Electronic machinery | Robot measuring instrument, X-Y table, medical equipment, surface mounting deice, semi-conductor equipment, factory automation equipment, etc | |
Transport machinery | material handling equipment, elevated actuator, etc | |
Aerospace industry | aircraft flaps, thrust open-close reverser, airport loading equipment, fin actuator, etc. | |
Miscellaneous | antenna leg actuator, value operator, etc | |
