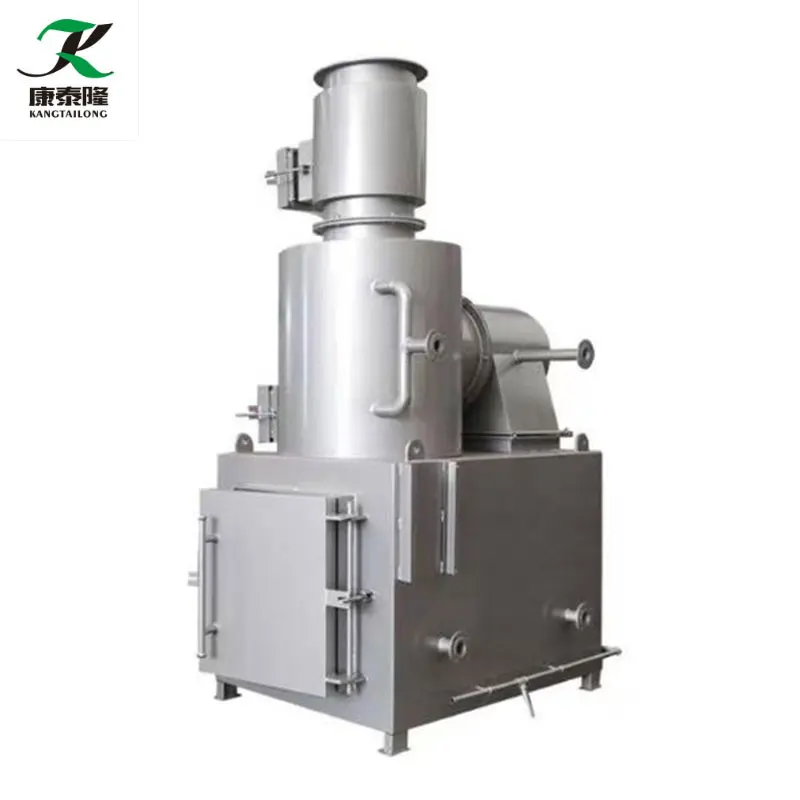

Portable industrial trash domestic hospital Medical garbage Waste incinerator price for sale
- Category: Waste Treatment Machinery >>>
- Supplier: Shandong Kangtailong Intelligent Equipment Co. Ltd.
Share on (1600202234646):
Product Overview
Description
Products Description
Technical characteristics of incinerators KTL series of refuse incinerators adopt the most advanced incineration mode of primary pyrolysis gasification + ambient air mixed combustion + secondary incineration + burnout treatment.The design of the primary combustion chamber of the incinerator adopts the gasification incineration technology to make the temperature in the incinerator move from 200℃ to 400℃, so that the waste will not produce frit, slag block, sintering and other problems in the incineration process, and the dust production is very small.
Detailed Images

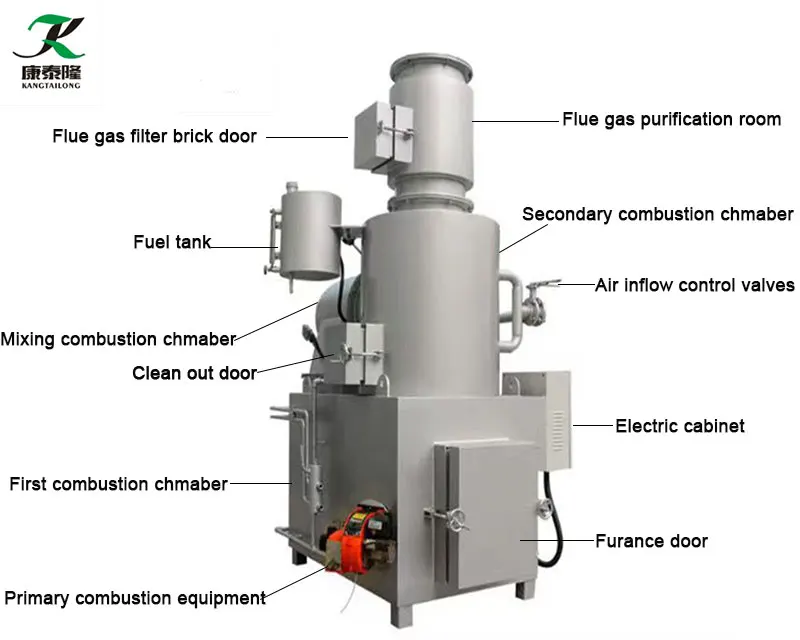

Structure Diagram

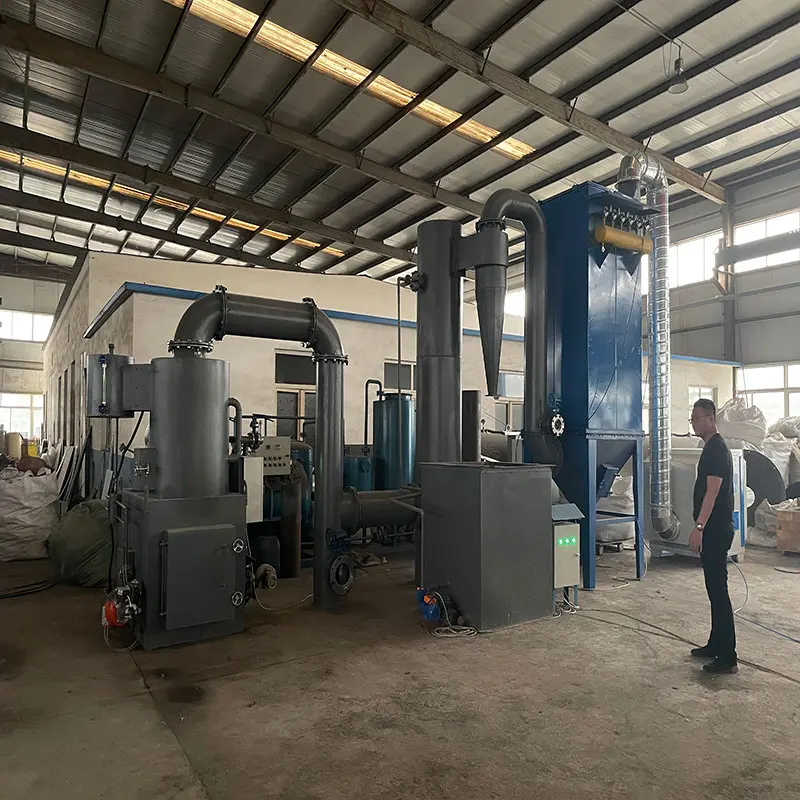

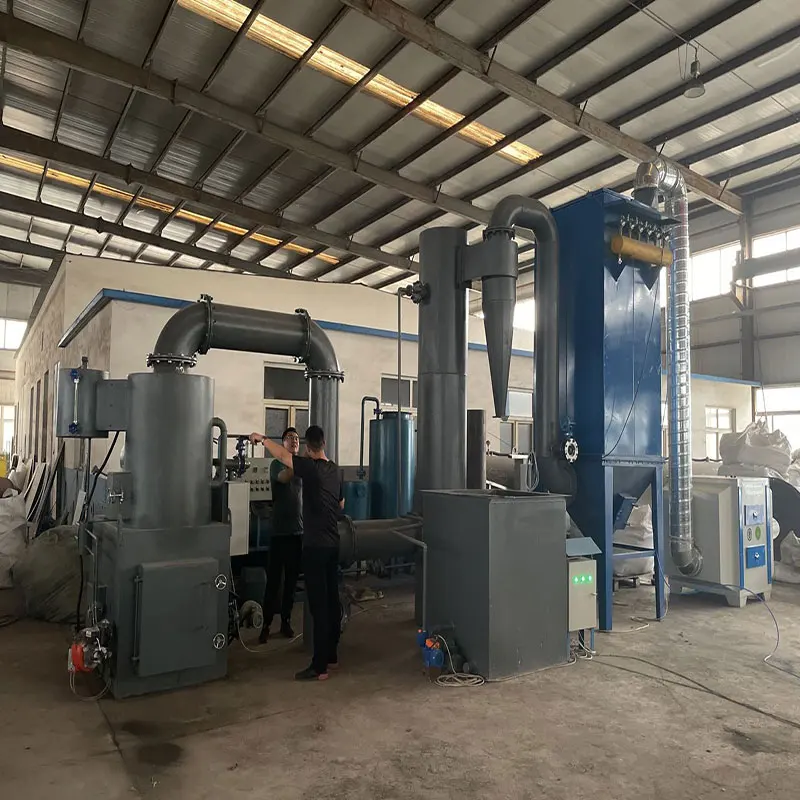

The whole treatment system content: combustion-supporting system, burn system, dust collector system, electrical system.
The whole treatment system content: combustion-supporting system, burn system, dust collector system, electrical system.
Furnace body type | Vertical closed furnace combustion chamber |
Ignition manner | Automatic |
Fuel type | 0# or-10# diesel or natural gas |
Feeding mode | Solid waste manual feeding |
Take ash manner | Manual |
Furnace inner pressure | Adopt negative pressure design, no back-fire,—3~—10mmH2O |
Design heat value | Waste mix 1500kcal/kg ~2500kcal/kg,0# diesel 10000kcal/kg |
Flue gas treatment manner | Gasification combustion chamber (first combustion chamber) + blower + mixed combustion chamber+ high temperature secondary combustion chamber + flue gas purification room (calcium hydroxide filter brick) +exhaust fan + independent chimney. |
Burning temperature | First combustion chamber: 600-900℃; Secondary combustions chamber:1300℃ Flue gas residence time≥2s |
Combustion efficiency | ≥99.99% |

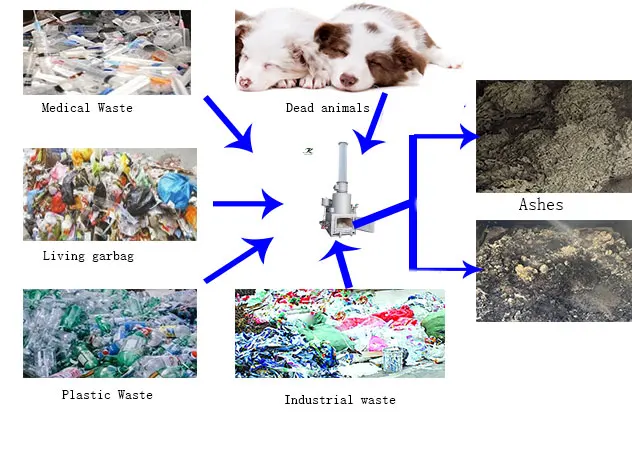

Application
1.Animal Waste cremation:dead animal body and pets carcass, Eg. dog,cat,chicken,duck,fish,birds,cattle,etc.
2.Medical wastes treatment:hospital wastes as bandage,swaps,needles,gauze,blood vessels,injection syringe,drop bottle, lab waste,expired drugs,infectious internal organ,napkin,diaper,mask,gloves,pharmaceutical waste,hazardous wastes, Laboratories wastes,healthcare waste.
3.Farm incinerators,such as cattle farms,pig farms,sheep farms,stables,kennels,abattoirs,testing laboratories,catteries,pet
crematoriums and poultry farms ABP rendering plants&other waste disposals. Thus we manufacturer animal incinerator for animal carcass incinerator ,sheep farms incinerator,cattle farms incinerator, cattle farms incinerator,poultry farms incinerator,pig farms incinerator,stables incinerator,abattoirs incinerator, animal cremation incinerators.
4.Household Wastes disposal: rubbish,bottles,plastics,fruit peel ,kitchen, garbage, papers, trash, rags, leftovers, trees,
leaves,lowers,roots,etc.
5.Industrial Waste burning treatment :the general waste or solid waste produced in industrial area and factories and construction sites,environmental or recycling facilities,landfills,manufacturing,mining,agricultural eg. rubber, plastic, fiber,
paper,leathers,wood,glass,electrical waste,general&material,domestic wastes or from industrial activities,solid incinerator for solid waste in factories&construction sites.
6.Special Waste treatment:waste oil,waste solvents,oil sludge,ash dust,iron paint,mold filter residue and so on.
2.Medical wastes treatment:hospital wastes as bandage,swaps,needles,gauze,blood vessels,injection syringe,drop bottle, lab waste,expired drugs,infectious internal organ,napkin,diaper,mask,gloves,pharmaceutical waste,hazardous wastes, Laboratories wastes,healthcare waste.
3.Farm incinerators,such as cattle farms,pig farms,sheep farms,stables,kennels,abattoirs,testing laboratories,catteries,pet
crematoriums and poultry farms ABP rendering plants&other waste disposals. Thus we manufacturer animal incinerator for animal carcass incinerator ,sheep farms incinerator,cattle farms incinerator, cattle farms incinerator,poultry farms incinerator,pig farms incinerator,stables incinerator,abattoirs incinerator, animal cremation incinerators.
4.Household Wastes disposal: rubbish,bottles,plastics,fruit peel ,kitchen, garbage, papers, trash, rags, leftovers, trees,
leaves,lowers,roots,etc.
5.Industrial Waste burning treatment :the general waste or solid waste produced in industrial area and factories and construction sites,environmental or recycling facilities,landfills,manufacturing,mining,agricultural eg. rubber, plastic, fiber,
paper,leathers,wood,glass,electrical waste,general&material,domestic wastes or from industrial activities,solid incinerator for solid waste in factories&construction sites.
6.Special Waste treatment:waste oil,waste solvents,oil sludge,ash dust,iron paint,mold filter residue and so on.
Advantages of our incinerator：
1. It's easier to operate than other manufactures' incinerators. There is an automatic air blower inside of burner.It's for protection burner, no need to operate it.When you close the burner,the air blower will be stop automatically at a certain time.
2. Low running&maintenance cost.The first burner of first consumption more longer than general burner,it's specially made of save fuel.
3. Environment friendly,Duel chamber design,there is no smoke,no smell,no pollution after waste burning.
4. The highest temperature can reach 1100-1300 degrees Celsius,which can achieve the effect of sterilization and disinfection.
5. Long service time.Material of construction-Heavy duty steel ,Insulated and refractory lined chambers.
6. Be portable and cover a small area.
2. Low running&maintenance cost.The first burner of first consumption more longer than general burner,it's specially made of save fuel.
3. Environment friendly,Duel chamber design,there is no smoke,no smell,no pollution after waste burning.
4. The highest temperature can reach 1100-1300 degrees Celsius,which can achieve the effect of sterilization and disinfection.
5. Long service time.Material of construction-Heavy duty steel ,Insulated and refractory lined chambers.
6. Be portable and cover a small area.

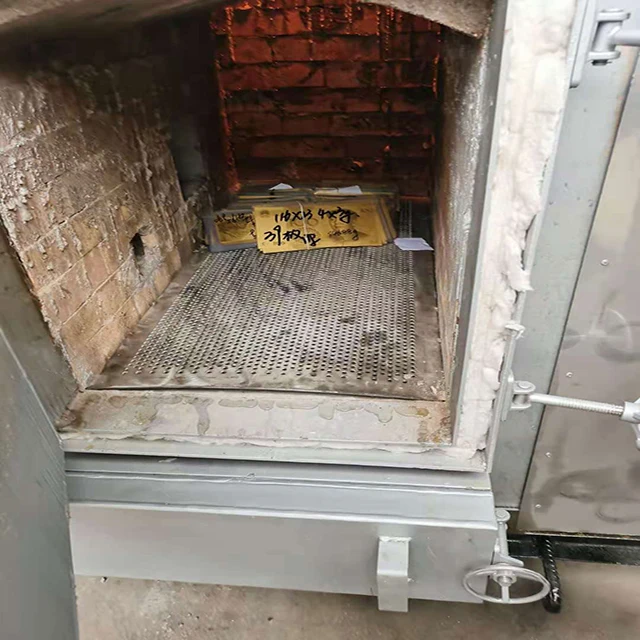

A combustion chamber inside the furnace chamber
Incinerator from inside to outside is composed of refractory brick and refractory cement, insulation material and carbon steel. Make sure the furnace body is not hot when burning, and the surrounding workers will not feel very hot.

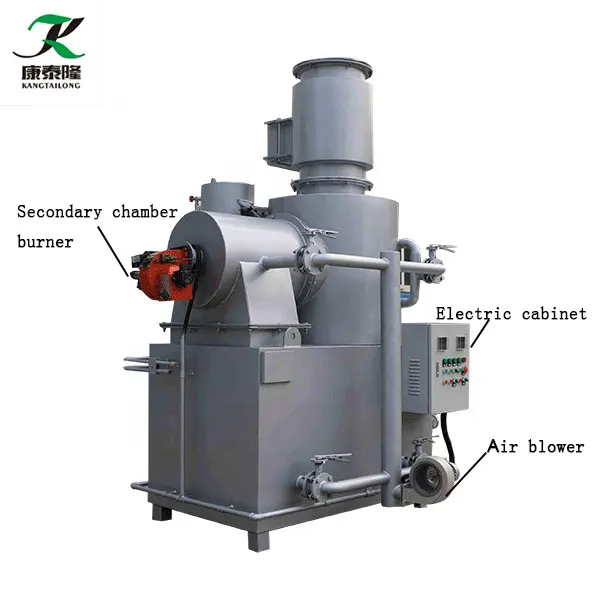

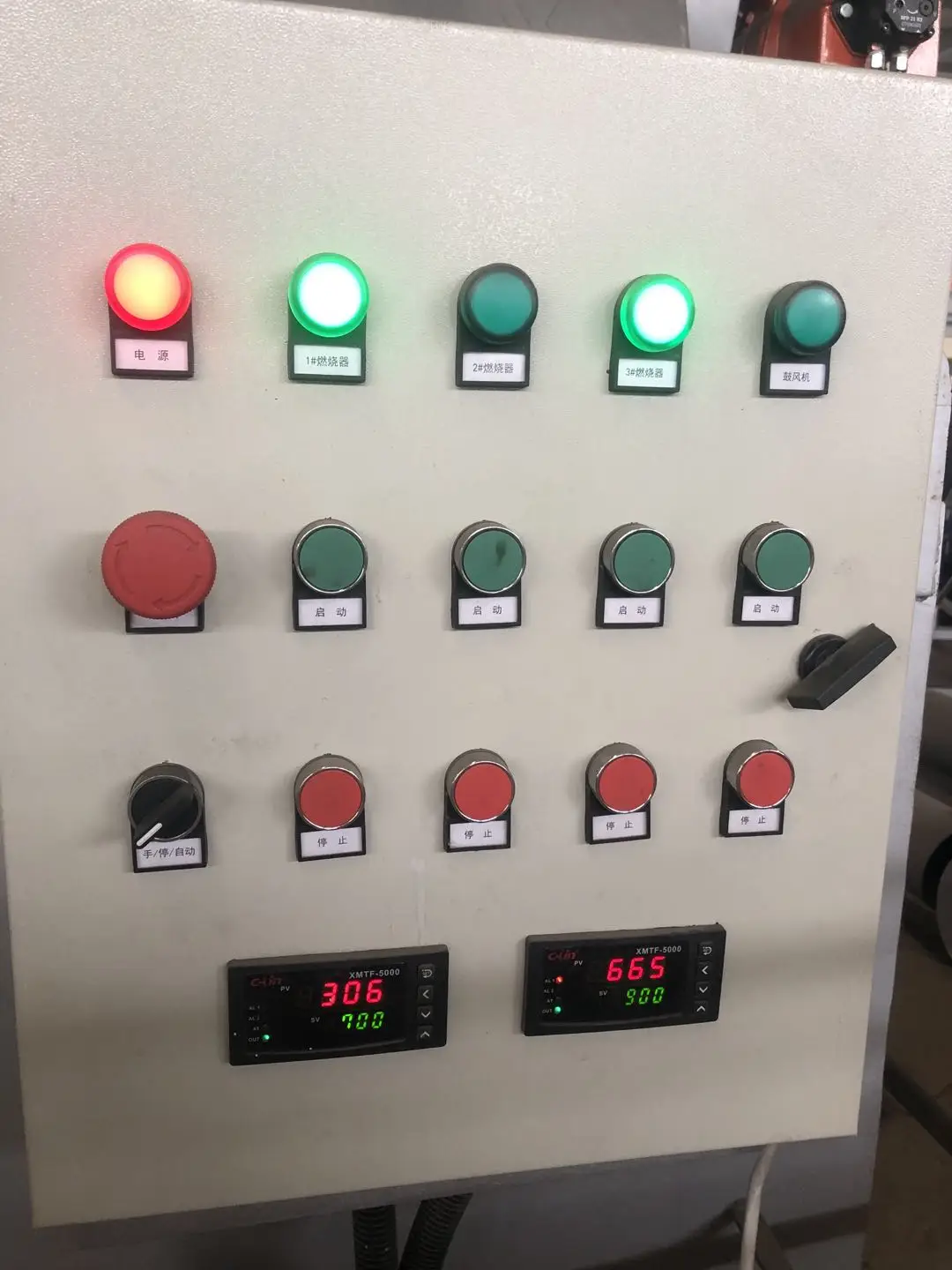

Electric control box
Lock the device and stop the process in sequence, power off protection device, overload protection (electrical), alarm function. The electronic control system not only performs the closed-loop control of the combustion temperature in the combustion chamber, but also performs the closed-loop control of the oxygen supply time, and coordinates the control between them so that the control system and the control results of each process can meet the requirements, so the entire system of closed-loop control.
Specification
Type | Burning ability （Kg/Batch） | Size (L*W*H m) | Chimney | Total power (KW) | voltage (V) | Weight(Kg) |
KTL-30 | 20~30 | 1.3*0.8*2.3 | OD219 | 0.55 | 220 | 2000 |
KTL-50 | 30~50 | 1.46*1*2.59 | OD280 | 0.55 | 220 | 2300 |
KTL-100 | 50~100 | 1.7*1.15*3 | OD280 | 0.55 | 220 | 4000 |
KTL-150 | 100~150 | 1.8*1.3*3.2 | OD280 | 055 | 220 | 5500 |
KTL-200 | 150~200 | 1.9*1.4*3.5 | OD300 | 0.8 | 220 | 7000 |
KTL-300 | 200~300 | 2.1*1.55*3.8 | OD400 | 0.98 | 220 | 8000 |
KTL-400 | 300~400 | 2.6*1.75*4.27 | OD400 | 1.05 | 220 | 11000 |
KTL-500 | 400~500 | 3*2*4.8 | OD500 | 1.05 | 220 | 13000 |
Shipment

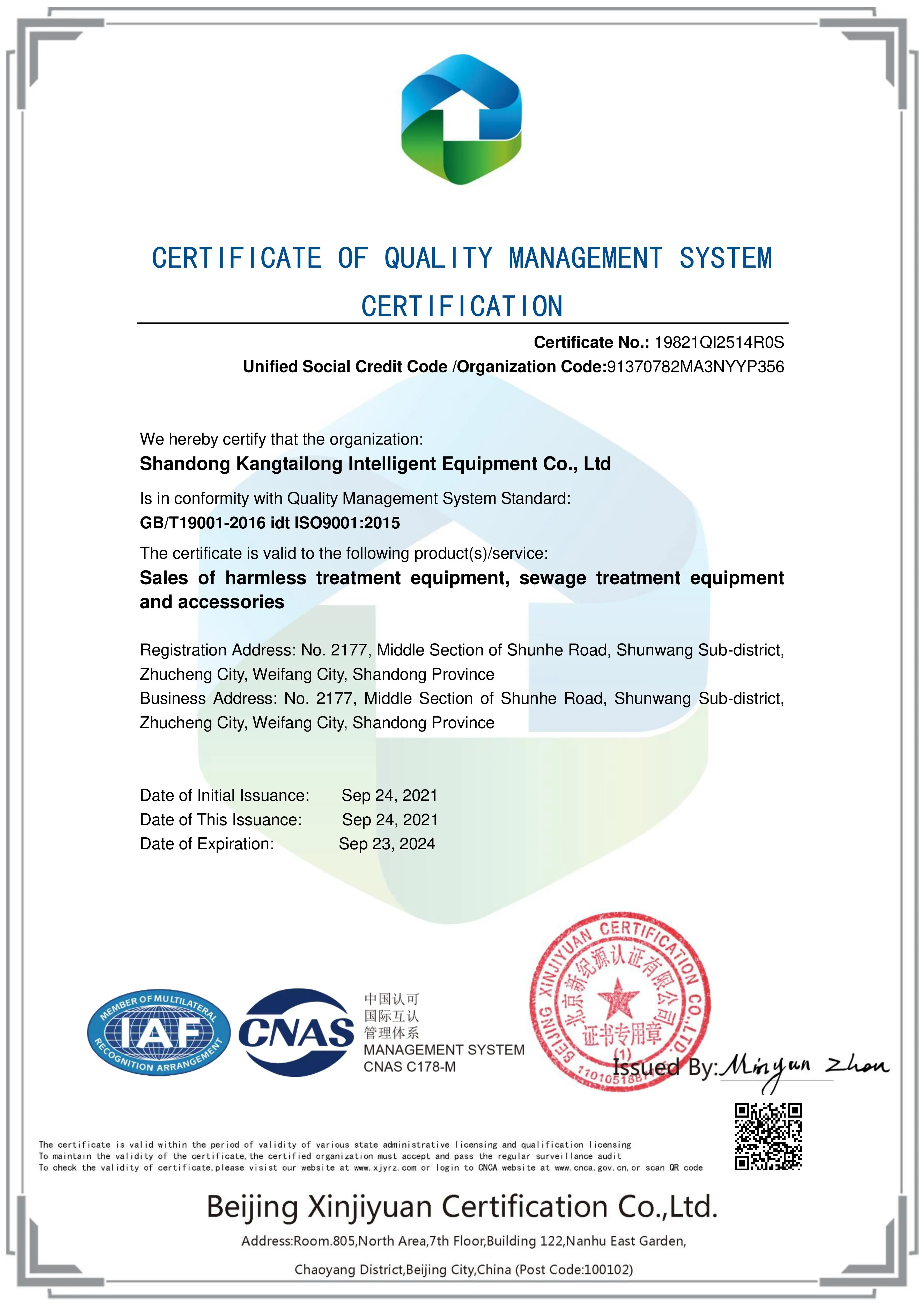

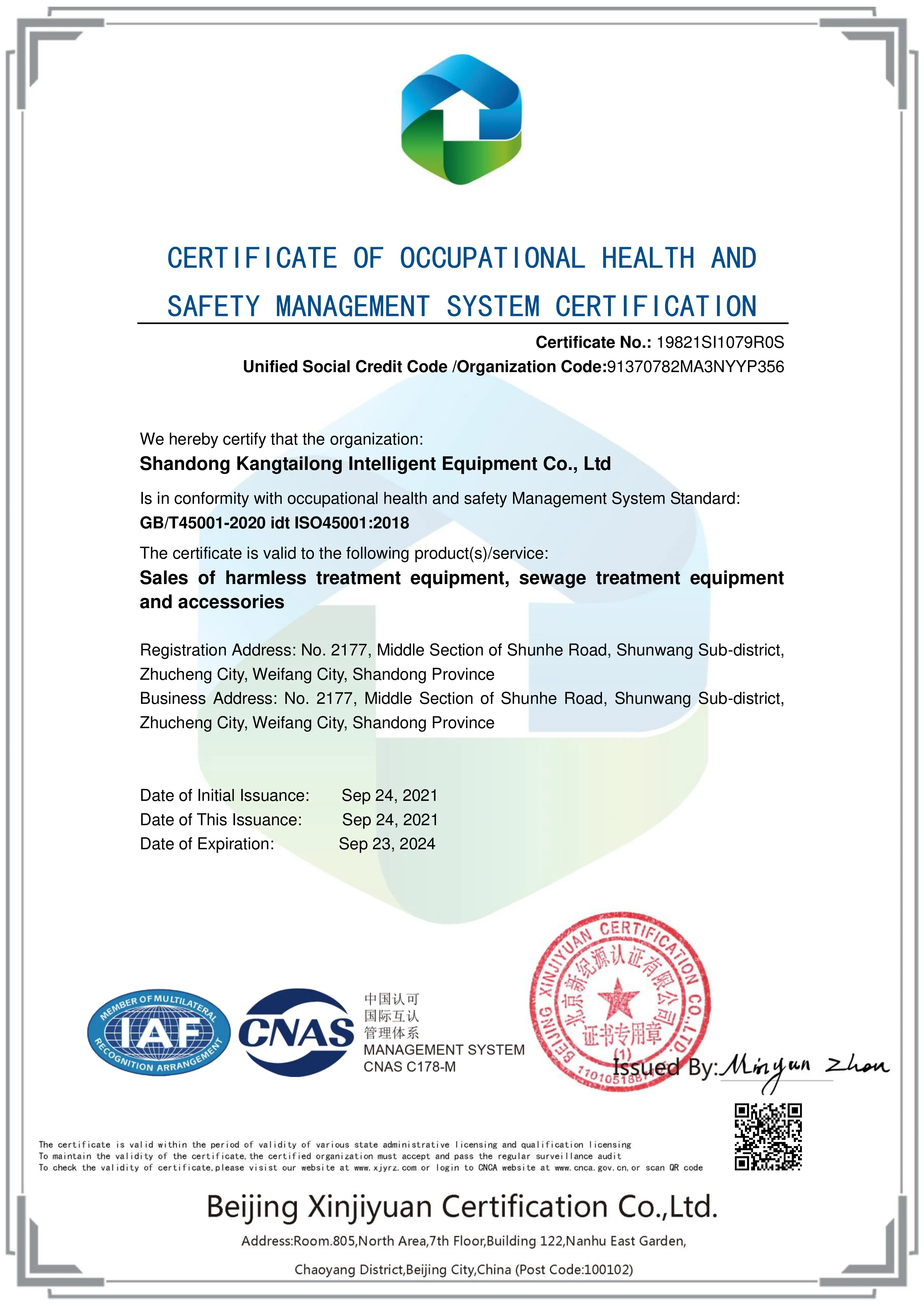

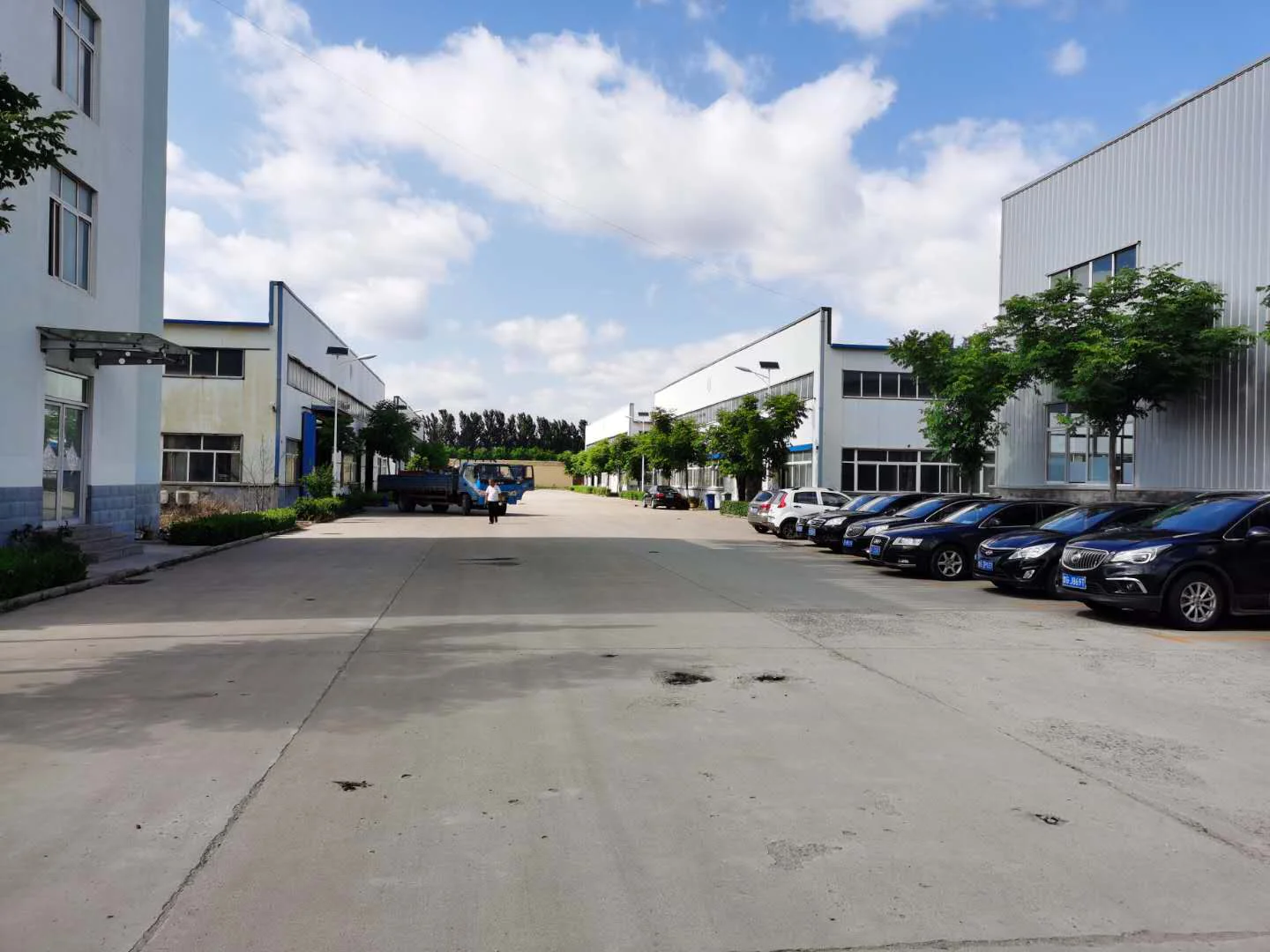

Company introduction
Shandong Kangtailong Intelligent Equipment Co., Ltd. is a modern enterprise focusing on the production and manufacturing of all kinds of waste incineration equipment.The company is located in Zhucheng, Shandong Province. Our company mainly produces all kinds of waste incinerator equipment, focusing on the solution of municipal solid waste, waste produced by the medical industry to sick and dead animals, industrial waste and other various types of waste produced in all walks of life.The product adopts the principle of thermal incineration of organic waste gas, which decomposes organic matter into inorganic matter and achieves standard discharge of flue gas.
For a long time, the company always adhere to the "science and technology for development, quality for survival" policy, to "pay close attention to quality for credibility, strengthen management for the upper echelon" as the goal, forge ahead, and strive to open up the market.All the employees of the company are willing to excellent products, good service, sincere attitude, and sincerely hope to cooperate with new and old friends closely, hand in hand to forge ahead, a total of grand exhibition.
For a long time, the company always adhere to the "science and technology for development, quality for survival" policy, to "pay close attention to quality for credibility, strengthen management for the upper echelon" as the goal, forge ahead, and strive to open up the market.All the employees of the company are willing to excellent products, good service, sincere attitude, and sincerely hope to cooperate with new and old friends closely, hand in hand to forge ahead, a total of grand exhibition.
