Industrial Food Freezing Machine Tunnel Quick Freezing Potato Fries Chips Vegetable IQF Machine
- Category: >>>
- Supplier: Shanghai Huilai Machinery Co. Ltd.
Share on (1600202330524):
Product Overview
Description

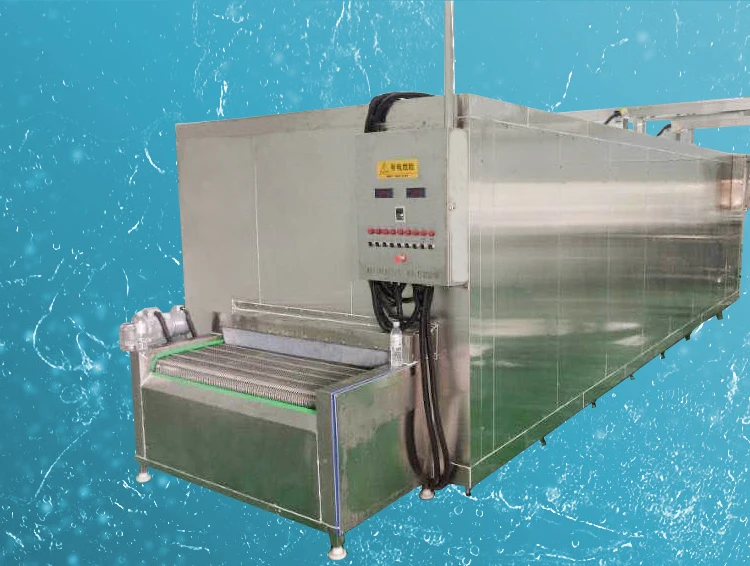

Industrial Meat Fish Quick-Freezing Vegetable Iqf Machine Food Freezing Machine

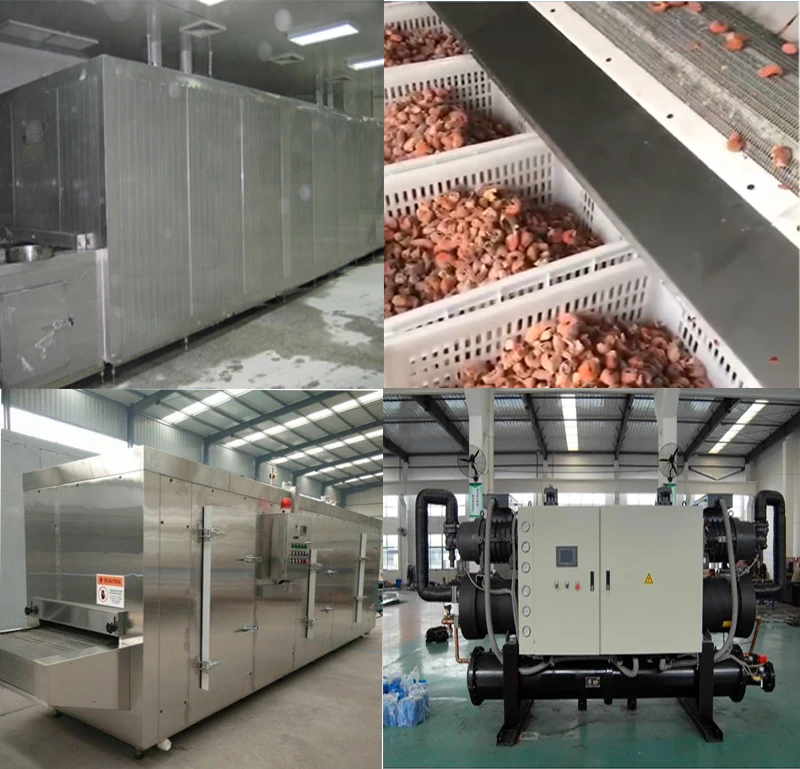

This series of quick-freezing machine is a new model produced by our company on the basis of the production of tunnel type quick-freezing machine combined with the advanced design concepts and production techniques of similar manufacturers at home and abroad; it has high freezing efficiency, short time, long flushing cycle, and airflow The organization is reasonable, energy saving, and truly meet the "wind" and "cold" perfect match, running reliable, safe and sanitary, easy to use and easy to clean and so on.
304 Stainless Steel Industrial Automatic Quick-Freezing Vegetable Iqf Machine
1. large efficient surface; Small temperature difference between evaporation temperature and frozen indoor temperature.
2. Evaporating fan, ventilation device, adjustable heat wave device improve the focus and cold wind speed. It makes the foodsfreeze in shortest time and of unified quality.
3. The wind direction can be adjusted and control the cold wind not out. The adjustable temperature control device can control the feeding height in avoid of cold air lose.
4. 150mm-thick polyurethane insulation board ; 0.8mm thick SUS304 stainless steel board; the access door is equipped with double hinge two-door into double strip which is resist to low temperature and oil.
5. all parts is SUS304 except the reducer and motor and other special parts.
6. the wide speed and temperature is stable, freezing temperature is stable and well distributed, so the French fries can be
freezed in short time.
7. In order to prevent cold energy loss and increase energy consumption, the stainless steel wide adjust device and keep
temperature device will be equipped at the entrance and out of the instant freezer.
8. It is manufactured, designed, installed based on International standard. It is stainless steel self-extinguishing flame
retardant polyurethane sandwich insulation board. The shell thickness is 0.6mm and it is SUS304 stainless steel. The inner is 150mm.
9. The board meet to the following indicators:
2. Evaporating fan, ventilation device, adjustable heat wave device improve the focus and cold wind speed. It makes the foodsfreeze in shortest time and of unified quality.
3. The wind direction can be adjusted and control the cold wind not out. The adjustable temperature control device can control the feeding height in avoid of cold air lose.
4. 150mm-thick polyurethane insulation board ; 0.8mm thick SUS304 stainless steel board; the access door is equipped with double hinge two-door into double strip which is resist to low temperature and oil.
5. all parts is SUS304 except the reducer and motor and other special parts.
6. the wide speed and temperature is stable, freezing temperature is stable and well distributed, so the French fries can be
freezed in short time.
7. In order to prevent cold energy loss and increase energy consumption, the stainless steel wide adjust device and keep
temperature device will be equipped at the entrance and out of the instant freezer.
8. It is manufactured, designed, installed based on International standard. It is stainless steel self-extinguishing flame
retardant polyurethane sandwich insulation board. The shell thickness is 0.6mm and it is SUS304 stainless steel. The inner is 150mm.
9. The board meet to the following indicators:
Volume weight≥40kg/m3
Heat conductivity≤0.024w/m.k
Compressive strength: the wall board and roof board is 150~200kpa, the floor is ≥300kpa
Water absorb≤4%
Size stable <1%(-30℃,48h)
Heat conductivity≤0.024w/m.k
Compressive strength: the wall board and roof board is 150~200kpa, the floor is ≥300kpa
Water absorb≤4%
Size stable <1%(-30℃,48h)
Internal operating temperature: | +35℃~-35℃ |
Cold product feeding temperature: | LT;25℃ (central temperature) |
Frozen product discharge temperature: | -20℃ (central temperature) |
Freezing time: | adjustable from 15 to 45 minutes |
Energy saving measures: | The inlet and outlet of the material shall be equipped with a wind shield to avoid the loss of cooling capacity caused by the direct blowing of the cold air out of the insulation layer and effectively reduce the loss of cooling capacity. In addition, a separate buffer room can be set. |
Product customization: | The external dimension of the monofreezer is 12600×3500×2400 (mm), and other production dimensions can be customized (example:22600×3500×2400 (mm)). |
Mechanical transmission
1.Conveying mesh belt is made of SUS304 spring which is smooth, and flexible operation for wear shaft. It is working without harm for French fries.
2.The contact area of mesh belt and guid slide friction is PVC material which is of high molecular wear-resisting. It can avoid of falling for French fries.
3. Outdoor frequency conversion stepless speed transmission, manual emergency stope device, three sections of temperature display,heating and lighting library door.
Evaporator and winding
1.evaporator is aluminum finned tube which is of oxide antirust processing. It ensure uniform frost, air flow. All material is
stainless steel.
2.Euipped with axial flow fan which is of high efficiency and energy saving,
3. Adopts manual defrosting. The defrosting water spraying device is set on upper of evaporator to ensure uniform defrosting,rapid.
Evaporator and defrosting
1. It is designed based -40℃ evaporating liquid.
2. It is aluminum finned tube which is oxide antirust processing. It can ensure uniform frost, air flow, bracket.
3. It is axis air fan which of low noise and works stable.
Electric control parts
All motors and electrical components is not lower than IP55 protection grade. Motor USES Y2 type waterproof.
Model: Tunnel Freezer, Spiral Freezer, Fludized Freezer.
Tunnel freezer : fish, burger, nuggets, meat ball, and other food.
Fluidized freezer: vegetables and fruits.
Spiral freezer: meat, chicken burger nuggets and so on.
1.Conveying mesh belt is made of SUS304 spring which is smooth, and flexible operation for wear shaft. It is working without harm for French fries.
2.The contact area of mesh belt and guid slide friction is PVC material which is of high molecular wear-resisting. It can avoid of falling for French fries.
3. Outdoor frequency conversion stepless speed transmission, manual emergency stope device, three sections of temperature display,heating and lighting library door.
Evaporator and winding
1.evaporator is aluminum finned tube which is of oxide antirust processing. It ensure uniform frost, air flow. All material is
stainless steel.
2.Euipped with axial flow fan which is of high efficiency and energy saving,
3. Adopts manual defrosting. The defrosting water spraying device is set on upper of evaporator to ensure uniform defrosting,rapid.
Evaporator and defrosting
1. It is designed based -40℃ evaporating liquid.
2. It is aluminum finned tube which is oxide antirust processing. It can ensure uniform frost, air flow, bracket.
3. It is axis air fan which of low noise and works stable.
Electric control parts
All motors and electrical components is not lower than IP55 protection grade. Motor USES Y2 type waterproof.
Model: Tunnel Freezer, Spiral Freezer, Fludized Freezer.
Tunnel freezer : fish, burger, nuggets, meat ball, and other food.
Fluidized freezer: vegetables and fruits.
Spiral freezer: meat, chicken burger nuggets and so on.
Shanghai Huilai Machinery Co., LTD. Is a professional manufacturer of food processing equipment and cleaning equipment production and sales, forming a set of raw material supply, product development, process design, finished product inspection, production, operation, storage, transportation, technical services as one of the perfect operating system.
Mainly engaged in vacuum frying machine, chip line, meat processing equipment, vegetable cleaning equipment.The company has advanced processing center, laser cutting equipment, plate cutting machine bending equipment and a full set of testing equipment, to ensure the appearance and quality of products.
Can be widely used in a variety of meat products, soy products, seafood, beverage products, snack food processing.
Mainly engaged in vacuum frying machine, chip line, meat processing equipment, vegetable cleaning equipment.The company has advanced processing center, laser cutting equipment, plate cutting machine bending equipment and a full set of testing equipment, to ensure the appearance and quality of products.
Can be widely used in a variety of meat products, soy products, seafood, beverage products, snack food processing.
1. Why do you choose Shanghai HuiLai Machinery?
We have 9 years of production and development experience, high quality products, superior program design, good reputation has become the elements of the company.
We have 9 years of production and development experience, high quality products, superior program design, good reputation has become the elements of the company.
2. Is the design scheme free of charge?
We design independent schemes free of charge according to customers' specific requirements, and design CAD drawings according to the actual application workshop.
We design independent schemes free of charge according to customers' specific requirements, and design CAD drawings according to the actual application workshop.
3. After-sales service
We will guide the online installation, provide video and graphic information. If necessary, we will arrange technicians to install the machine on site. The after-sales service of the motors configured for our products is one year.
We will guide the online installation, provide video and graphic information. If necessary, we will arrange technicians to install the machine on site. The after-sales service of the motors configured for our products is one year.
