Product Overview
Description
Product Description

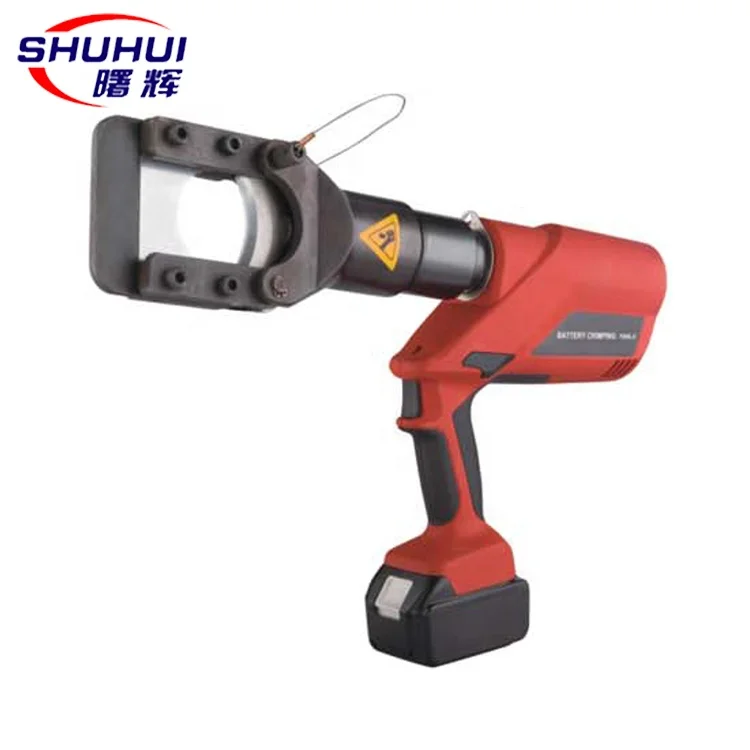

Cordless Battery Powered Hydraulic Cable Cutter Tools Portable for Dia 105mm Armoured Cable
The cable cutter is a kind of pliers specially used for cutting cables, with two staggered blades that can be opened and closed. Cable scissors are large scissors, which are designed using the "leverage principle" and "the pressure is inversely proportional to the area". In order to enhance the strength and convenience of the cable cutter, the cable cutter has developed from the traditional manual cable cutter to the ratchet cable cutter, and then there are hydraulic cable cutters, electric hydraulic cable cutters, and all-electric cable cutters.
Technical parameters as follows:
1.
| NEC-300 | NEC-400 | EC-300 | EC-400 | |
| Crimping force | 60KN | 130KN | 60KN | 130KN |
| Crimping range | 16-300mm | 16-400mm | 16-300mm | 16-400mm |
| Stroke | 17mm | 42mm | 17mm | 42mm |
| Crimp/charge | 320times(CU150MM2) | 120times(CU150MM2) | 320times(CU150MM2) | 120times(CU150MM2) |
| Crimping cyce | 3-6s(depend on the size of cable) | 10-20s(depend on the size of cable) | 3-6s(depend on the size of cable) | 10-20s(depend on the size of cable) |
| Voltage | 18V | 18V | 18V | 18V |
| Capacity | 3.0Ah | 3.0Ah | 3.0Ah | 3.0Ah |
| Chargingtime | 45minutes | 45minutes | 45minutes | 45minutes |
| package | Plastic case | Plastic case | Plastic case | Plastic case |
| Crimping die | 16.25.35.50.70.95.120. 150.185.240.300mm | 16.25.35.50.70.95.120. 150.185.240.300.400mm | 16.25.35.50.70.95.120. 150.185.240.300mm | 16.25.35.50.70.95.120. 150.185.240.300.400mm |
| Battery | 2PCS | 2PCS | 2PCS | 2PCS |
| Charger | 1pc(AC110-240V,50-60Hz) | 1pc(AC110-240V,50-60Hz) | 1pc(AC110-240V,50-60Hz) | 1pc(AC110-240V,50-60Hz) |
| Sealing ring of cylinder | 1set | 1set | 1set | 1set |
| Sealing ring of safety valve | 1set | 1set | 1set | 1set |
2.
| EC-40A | NEC-55A | EC-85A | EC-2432A | |
| Cutting force | 70KN | 120KN | 60KN | 120KN |
| Cutting range | 40mmCU/AL cable and armoured cable | 50mmCU/AL cable and armoured cable | 85mmCU/AL cable and armoured cable | M14-M24 |
| 40mm ACSR cable | 50mm ACSR cable | |||
| Stroke | 42mm | 60mm | 92mm | 32mm |
| Voltage | 18v | 18v | 18v | 18v |
| Capacity | 3.0Ah | 3.0Ah | 3.0Ah | 3.0Ah |
| Chargingtime | 45minutes | 45minutes | 45minutes | 45minutes |
| package | Plastic case | Plastic case | Plastic case | Plastic case |
| blade | 1set | 1set | 1set | 2PCS |
| Battery | 2PCS | 2PCS | 2PCS | 2PCS |
| Charger | 1pc(AC110-240V,50-60Hz) | 1pc(AC110-240V,50-60Hz) | 1pc(AC110-240V,50-60Hz) | 1pc(AC110-240V,50-60Hz) |
| Sealing ring of cylinder | 1set | 1set | 1set | 1set |
| Sealing ring of safety valve | 1set | 1set | 1set | 1set |
Application range
1. The cable cutter is suitable for high-voltage PE, IV cables, and telephone lines, and can be cut quickly;
2. High carbon steel tungsten alloy steel blade for cable cutting, strong and durable, heat treatment hardness HRC65;
3. The cable cutter can be equipped with any manual pump or electric pump. the
4. Split type cable cutter.
Application field of cable cutter:
Products are widely used in ports, electric power, steel, shipbuilding, petrochemical, mining, railway, construction, metallurgy and chemical industry, automobile manufacturing, plastic machinery, industrial control, highway, large-scale transportation, pipeline auxiliary construction, slope tunnel, shaft treatment and protection Machinery and equipment required for important industries such as salvage, marine engineering, airport construction, bridges, aviation, aerospace, venues, and various infrastructure projects.
