BC-350RF DC12-24V Полноцветного светодиодного освещения контроллер RGB LED RF пульт дистанционного управления для RGB Светодиодные полосы света
- Category: Dimmers >>>
- Supplier: Zhuhai,Bincolor,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description

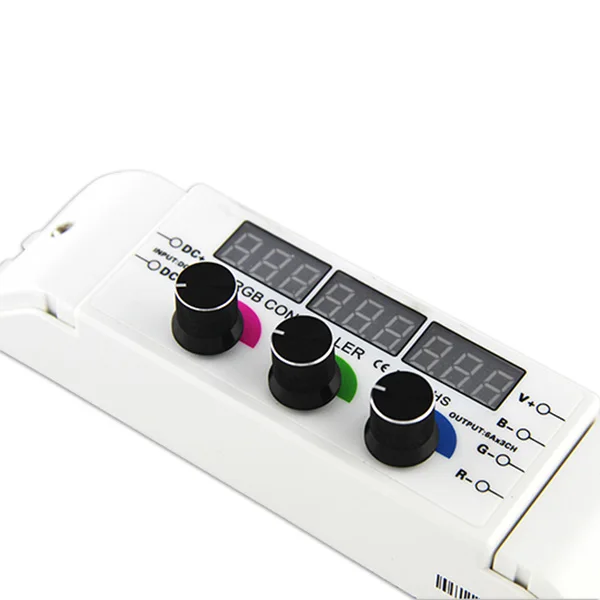

BC-350 DC12-24V RGB Full Color LED Lighting Controller LED RF Remote Controller for RGB LED Strip Lights
Introduction :
BC-350RF Universal Red/Green/Blue (RGB) LED controller with RF remote can dim any 12VDC-24VDC CV RGB LED products. Maximum load is 6 amps per channel, 18 amps total.
With 37 pre-loaded programs, the first mode is DIY static color, Knob controls for full range custom color creation. 2-8 modes is static modes with brightness controls. 9-36 is Dynamic modes with speed and brightness controls, the last mode is Cycle mode.You can simply select your favorite mode.
Feature :
1. Installer-friendly: easy to install, mount and configure
2. Rotary knob DIY your favorite color,
3. with RF remote ,4096 scale level each channel
4. 37 pre-loaded modes, static modes with brightness adjust , dynamic modes with speed and brightness adjust
5. Power loss memory function
6. Over current protection and short circuit protection
7. 3 years warranty , with CE FCC Rohs certifictaion
Specification :
Input voltage | DC12V-DC24V |
Output current | 6A/CH x 3 CH |
Output power | 220w(12v) 440w(24v) |
Gray levels | 4096 level x 3 |
Mode | 37 modes |
Speed level | 16 levels |
Brigghtness level | 16 levels |
Dimension | L 176 x W 46 x H 30 mm |
Weight | 210g |
Conjunction Wiring :
1.Connect with constant voltage rgb lightings , such as led rgb strip :
2. Connect with power amplifier to expand power :
Related Products
Rotary RGB controller IR programmable RGB controller Wall mounted rotary rgb controller
Wall mount touch panel rgb controller Inline Mini rgb controller Multi-zone RGB controller
Application
Aging test
All the products will process aging test before ship out. Quality guarantee.
Packaging & Shipping
After inspection the goods are packed in white inner box and then carefully packed in cartons.
Shipping
INTERNATIONAL AIR MAIL
Payment
Fast Delivery
Our Services
1. Professional advice according to your needs.
2. Instant response to your inquiries.
3. Short lead-time, quick delivery.
4. Three years warranty for all of our products.
5. Samples orders, OEM/ODM orders are also welcomed.
Company Information
We are leading Manufacturer of LED controllers in Zhuhai, Guangdong province, China.
We are small, flexible and loyal. Ideal partner of your customize order.
We are strong in developing OEM and ODM projects, and customer's rights are the first things we consider about.
We are very competitive in price, well reputed for quality product and prompt delivery.
Welcome to discuss more in details.
FAQ
1. How many years warranty of Bincolor items?
3 years warranty.
2. What kinds of export certifications of Bincolor items?
All Bincolor items pass CE, RoHS and FCC.
3. Could you provide the OEM or ODM service?
Bincolor have rich experience in OEM and ODM service, R&D the products completely according to customers’ demands.
4. Do all items design by your company?
All of our products are independent research and development production.
5. How long is the delivery time?
Within 1-3 working days for routine quantity, goods usually can be sent out on the same day or the next day. Within 20 working days for large quantity. Accurate time is according to the actual inventory.
Any other question, welcome to contact me, all question will be answered within 24 hours or immediately on instant contact!
