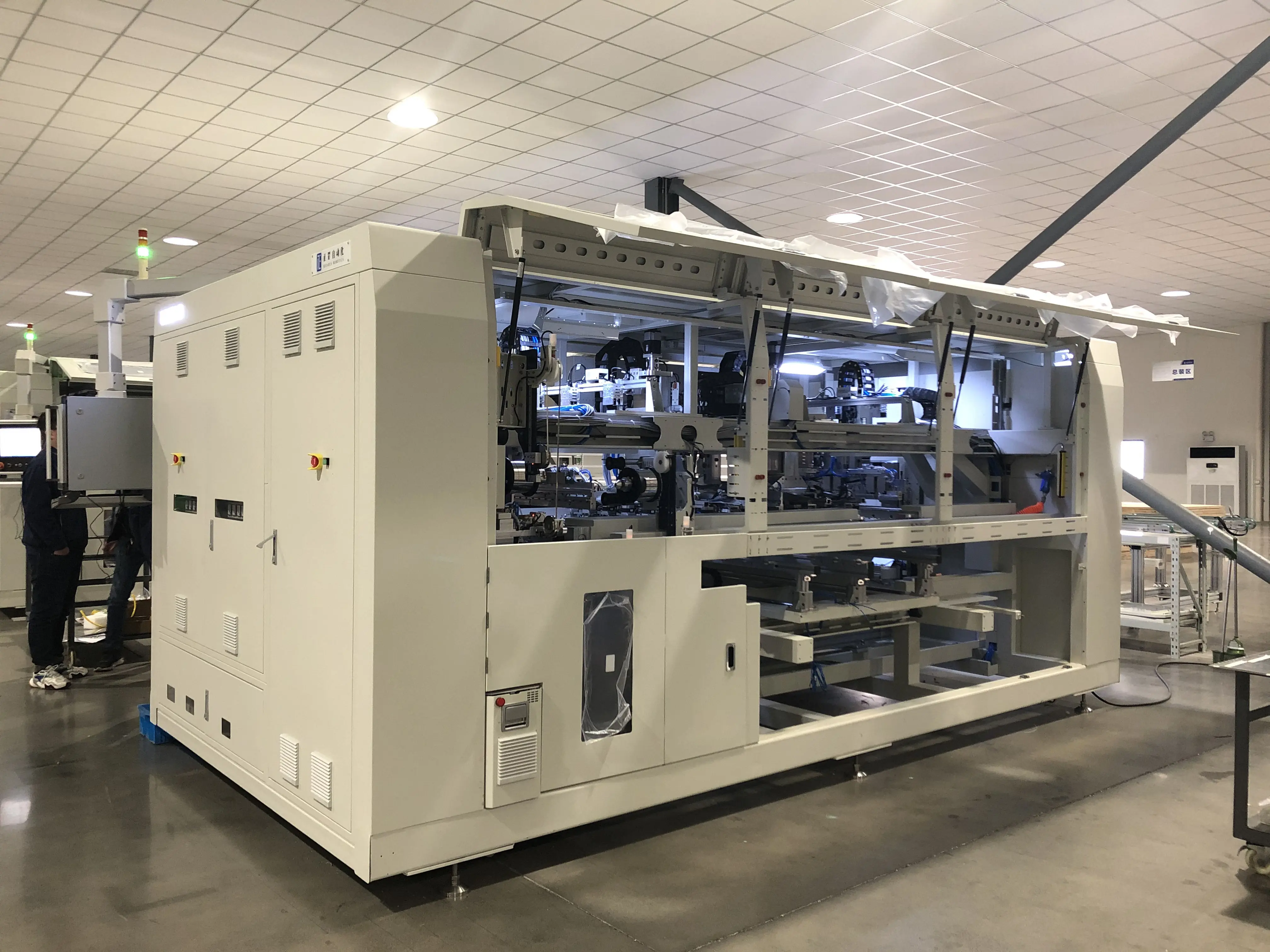

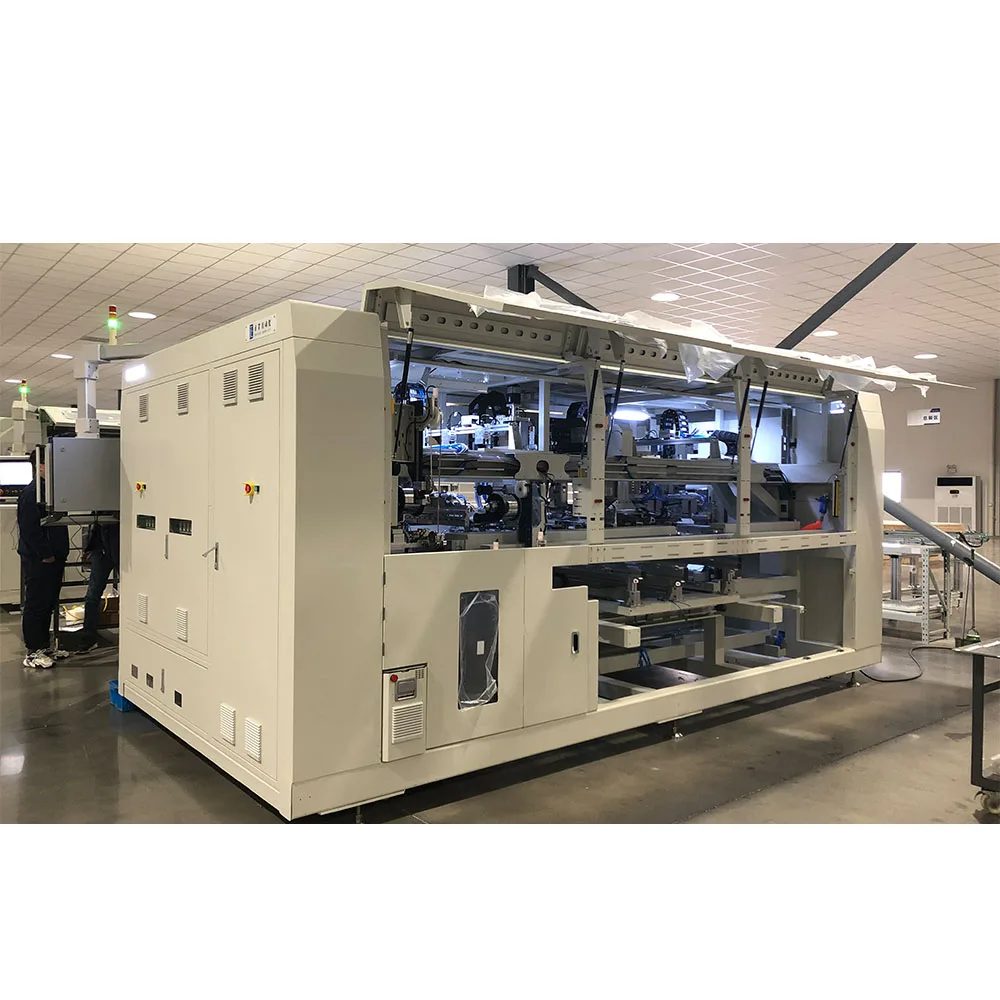

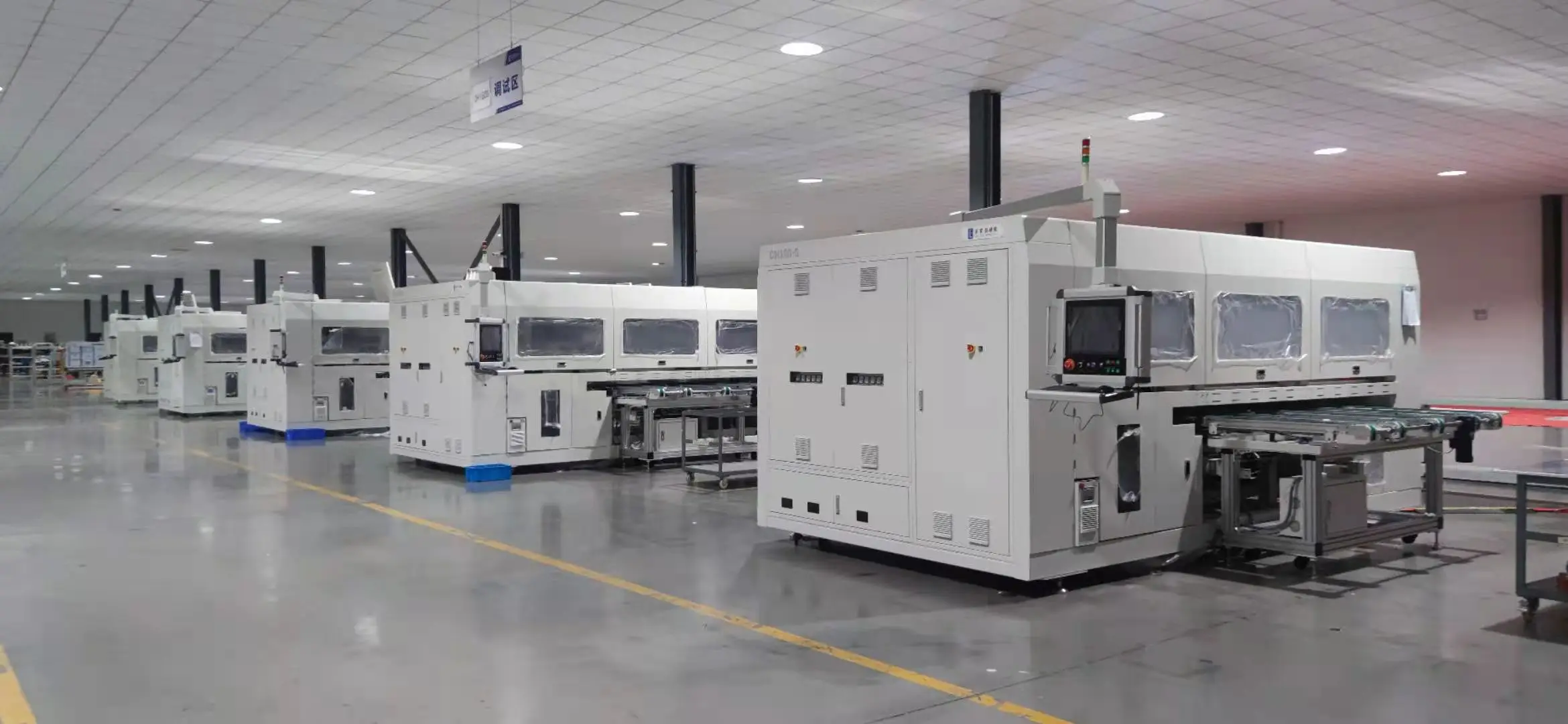

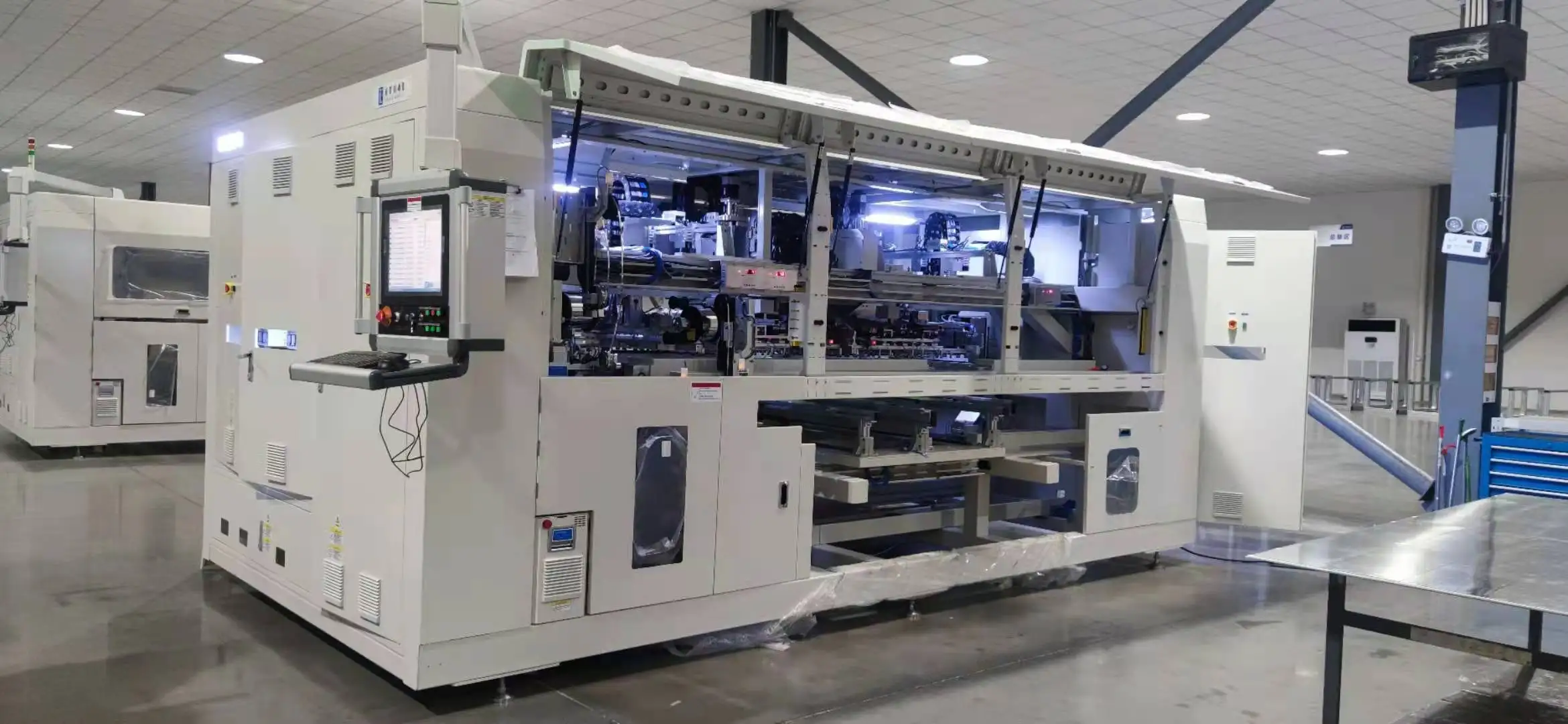

Automatic Bussing machine PV cell string interconnection

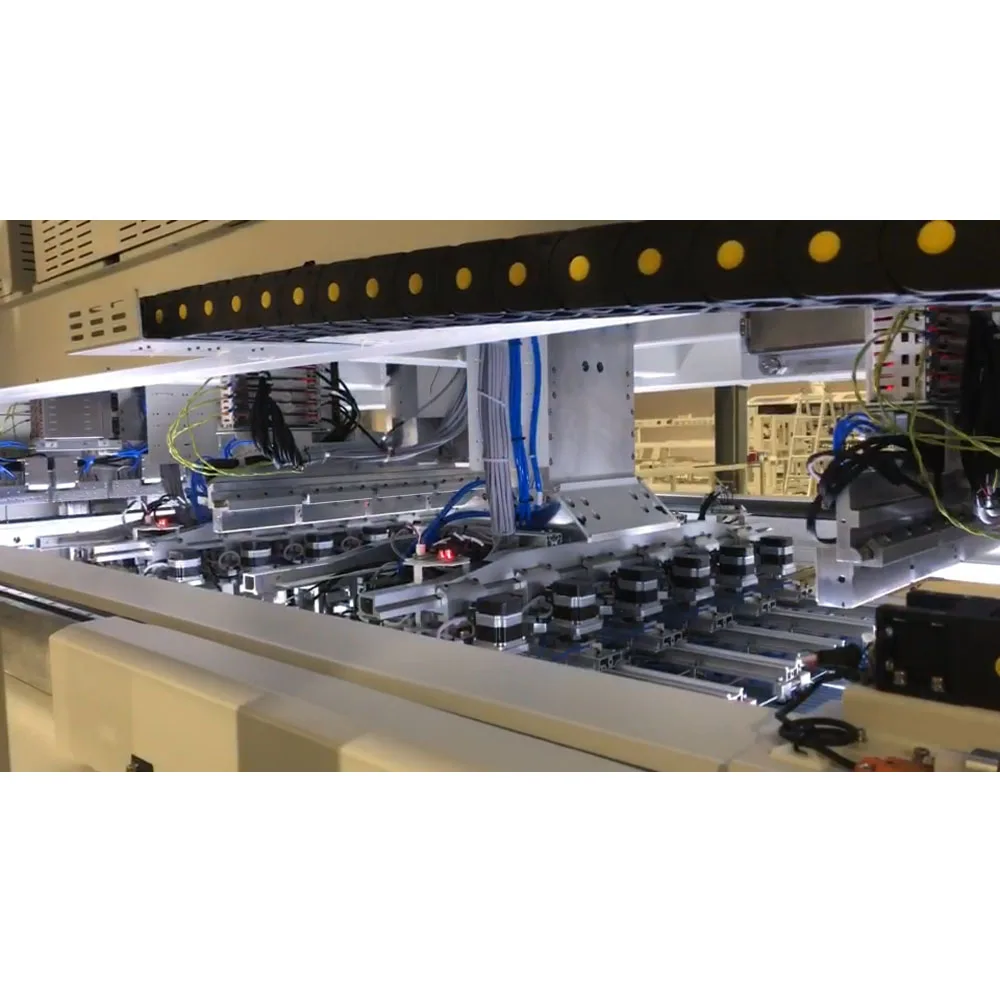

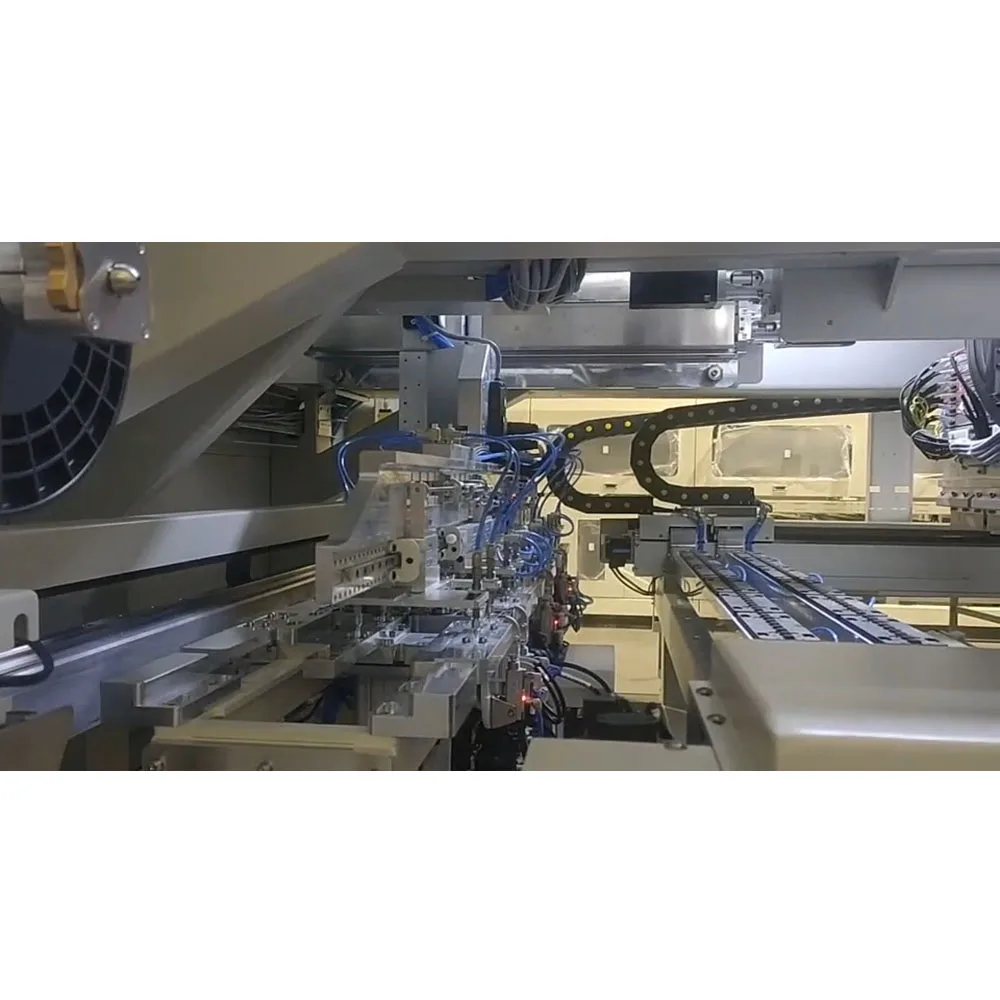

Function: Adopt the method of separating the cell string from the glass, and grab the cell string in the air, then to interconnected solder the head, middle and tail bus bar of the middle wire edition module at a certain height; It has the function of a roll feeding bus bar, bending U and L leads upwards.

Tabber & Stringer SGT-1200 used for crystalline solar cells welding.it adopts Rotary cells feeder unit, cells moving unit, industrial CCD detection system, cell positioning unit, ribbon unwinding unit, ribbon arranging unit, ribbon layup unit, transfer cell adsorption units, welding unit, string cutting unit, string transfer unit, cell string turnover device, and PLC controller.

1, steel bases, milling of mounting surface, stable structure;

2, Rotary cells feeder unit, easy feeding;

3, 5 million px industrial CCD, high-precision detection and location;

4, floating positioning unit;

5, welding flux spraying, under control;

6, heating rods preheating, infrared heating welding;

7, cell string turnover device, and air drive;

8, PLC control systems, servo motor , with IO bus;

9, compatible with 156X156 3BB 4BB 5BB 6BB (replacement parts)
