CAMA CRM160L embedded capacitive fingerprint module manufacturer
- Category: >>>
- Supplier: Shenzhen CAMA Biometrics Co. Ltd.
Share on (1600203301966):
Product Overview
Description
CAMA-CRM160L embedded capacitive fingerprint module manufacturer
1. Module integrated with sensor as smallest appearance
2. Advanced Technology of self study function
3. Support 360 degree identifying
4. Better performance with dirty fingers, dry fingers, wet fingers
5. Excellant performance & fast identifying speed
torque sensor embedded actuator module for robotic applications a precise embedded curvature sensor module for soft-bodied robots embedded sensor module capacitive fingerprint sensor module capacitive fingerprint module arduino
Product Description
DESCRIPTION
CAMA-CRM160L is newest round shape capacitive fingerprint sensor module which released by CAMABIO in 2020.
It is ideal fingerprint sensor module for developers and manufacturers to design their own competitive products.
It has the functions like fingerprint image processing, fingerprint template creating, fingerprint matching,
fingerprint search, fingerprint templates storage etc. Compare to similar fingerprint sensor module in the market, it got following features
cost of capacitive fingerprint module capacitive fingerprint sensor module arduino
FEATURES
- Real 360 Degree Rotation Verification
Users can identify their fingerprint from any direction - Good Performance on Recognize Dry Finger or Wet Fingers
CRM160L can perfectly identify the dry finger and wet finger users - Auto-Learning Features
CRM160L will learning user’s new fingerprint features automatically in daily use - Easy to Program and Control the Module
With CAMABIO protocols and sample code, it’s easy to do the program works - 5 Security Level for Setting
Developers can set different security levels according application requirement.
TECHNICAL PARAMETERS
| Item | Description |
| Sensor | Capacitive sensor |
| Module size | R10.5mm |
| Sensor size | R7.5mm |
| Resolution | 500 DPI |
| Fingerprint template | 496 bytes |
| Fingerprint capacity | 100 |
| Communication port | 3.3V TTL UART |
| Grey Level | 256 Level |
| Frame Rate | 30FPS |
| FRR | < 0.1% |
| FAR | < 0.001% |
| Auto on time | <100ms |
| Identification speed | 1:1 <22ms; 1:N <80ms |
| Work current | 335uA |
| Power supply | DC 3.3V |
| Working temperature | -10degree- 55degree |
| Working humidity | 0% -85% |

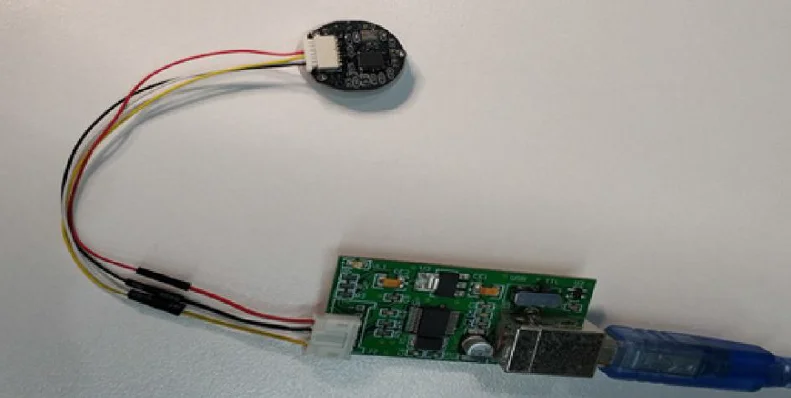

CONNECTION
RELATED PRODUCTS
CAMA-SVM1901 Figer vein module
CAMA-CRM160L Round-shape capacitive fingerprint module
CAMA-SM50 Optical fingerprint module
CAMA-SM25 Fingerprint sensor module
CAMA-SM15 Fingerprint optical module
CAMA-AFM32 Capacitive fingerprint sensor module
CAMA-AFM31 Capacitive fingerprint module
CAMA-SM30 Uart capacitive fingerprint module
CAMA-2000 USB fingerprint scanner
CAMA-A010 Fingerprint door lock
CAMA-TL02 Small password door lock
CAMA-TL03 Small fingerprint door lock
APPLICATION
CAMA-CRM160L fingerprint sensor module could be widely used for following Application Scenarios:
