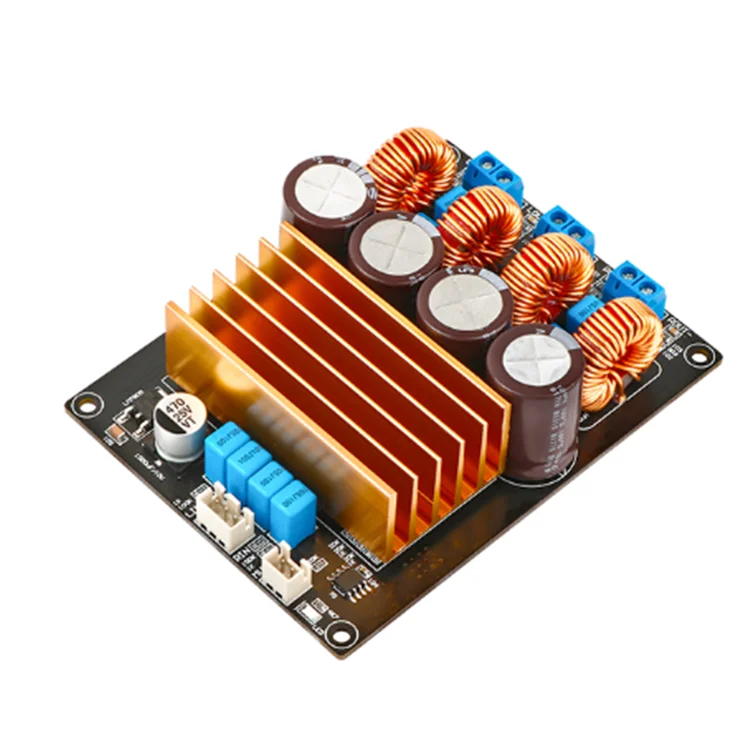

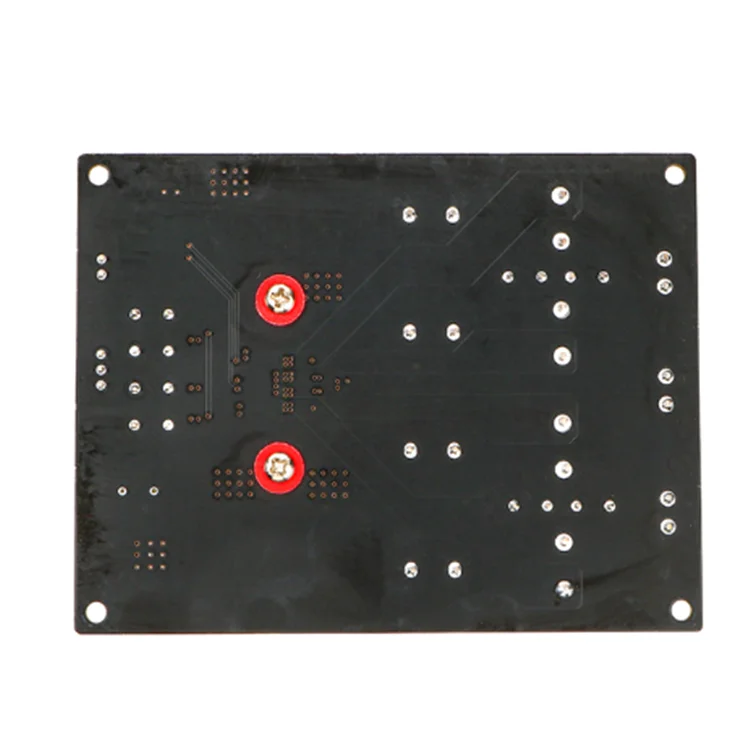

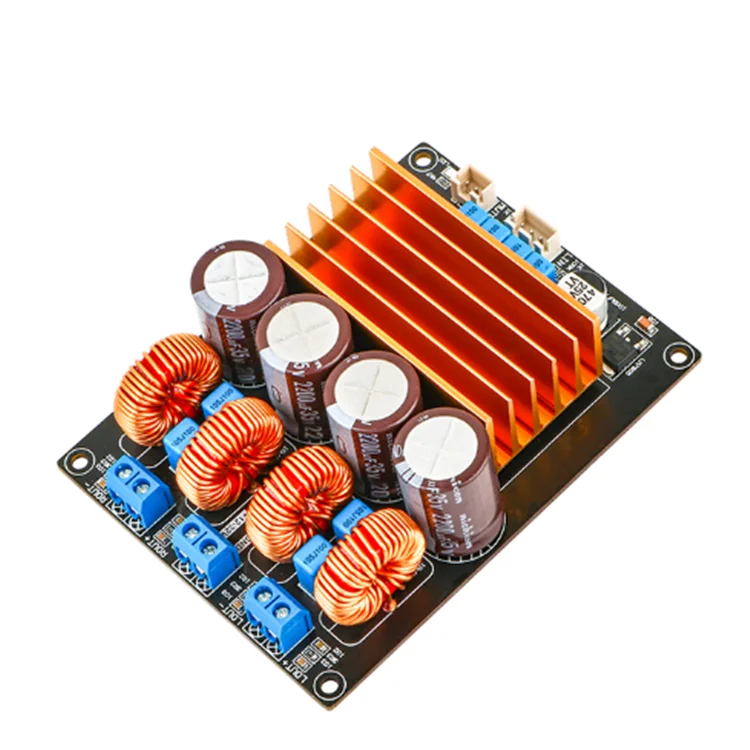

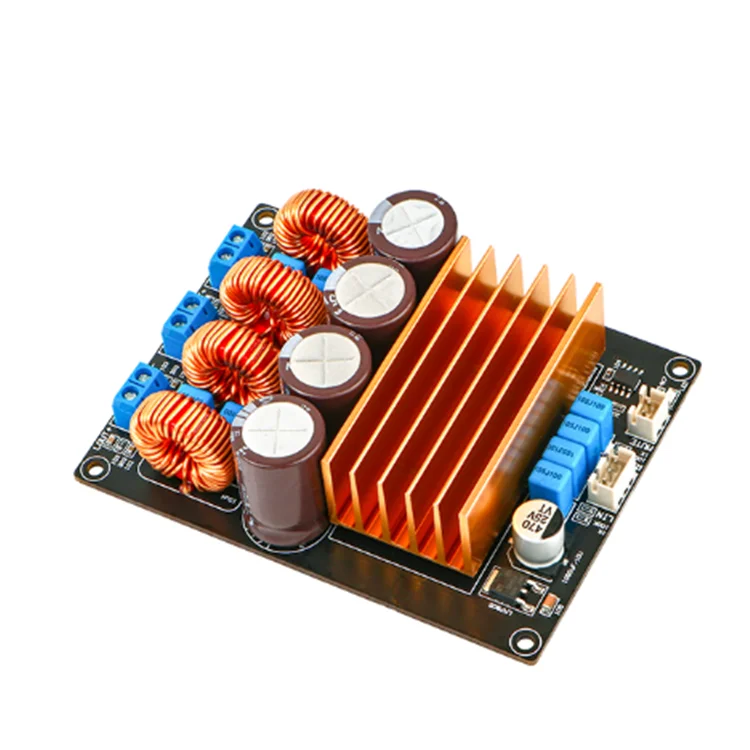

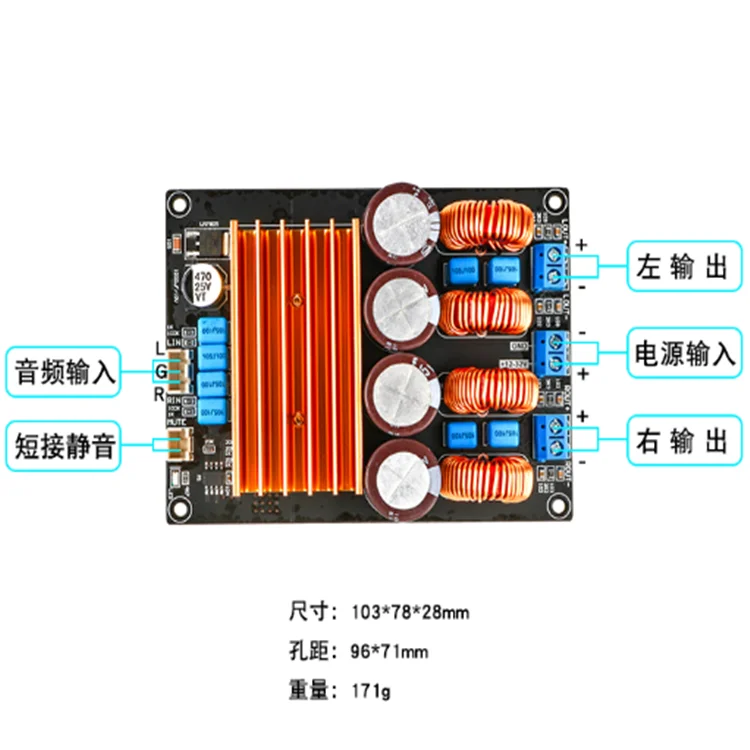

TPA3221 digital power amplifier board module 2.1 sound channel D class HIFI audio amplifier 100W*2 YJ

 TPA3221 digital power amplifier board module 2.1 sound channel D class HIFI audio amplifier 100W*2

The TPA3221 is a high-power Class D amplifier that can operate efficiently at full power, idle and standby. The device uses closed-loop feedback with bandwidth up to 100kHz to provide low distortion in the audio frequency band and achieve excellent quality. The device in the AD or low idle current HEAD (efficient AD mode) modulation, and can provide 2 x 4 Ω load power of 105 w, or for 2 Ω provide 1 x 208 w power load.

undamental performance parameter

Wide 7-V to 30-V Supply Voltage Operation
• Stereo (2 x BTL) and Mono (1 x PBTL) Operation
• Output Power at 10% THD+N
– 105-W Stereo into 4 Ω in BTL Configuration
– 112-W Stereo into 3 Ω in BTL Configuration
– 208-W Mono into 2 Ω in PBTL Configuration
• Output Power at 1% THD+N
– 88-W Stereo into 4 Ω in BTL Configuration
– 100-W Stereo into 3 Ω in BTL Configuration
– 170-W Mono into 2 Ω in PBTL Configuration
• 5-V Gate Drive or Built-in LDO for Optional Single-Supply Operation
• Closed-Loop Feedback Design
– Signal Bandwidth up to 100 kHz for High-Frequency Content From HD Sources
– 0.02% THD+N at 1 W into 4 Ω
– 60-dB PSRR (BTL, No Input Signal)
– <75-μV Output Noise (A-Weighted)
– >108-dB SNR (A-Weighted)
– AD or HEAD Modulation Schemes
• Low-Power Operating Modes
– Standby Modes: Mute and < 1 mA Shutdown
– Low Idle-Current HEAD Modulation Scheme
– Single-Channel BTL Operation
• Multiple Input Options to Simplify Pre-Amp Design
– Differential or Single-Ended Analog Inputs
– Selectable Gains: 18 dB, 24 dB, 30 dB, 34 dB
• Integrated Protection: Undervoltage, Overvoltage,Cycle-by-cycle Current Limit, Short Circuit,Clipping Detection, Overtemperature Warning andShutdown, and DC Speaker Protection
• 90% Efficient Class-D Operation (4 Ω)
• Pin-Compatible Family of Devices with Voltageand Power-Level Options

Note:New parts and in original factory package!

Sincerely looking forward to our cooperation!
Any feedback from you would be highly appreicately!

Selling Units:

Single item

Lead Time :

Quantity(Piece)	1 - 2000	>2000
Est. Time(days)	2	To be negotiated
