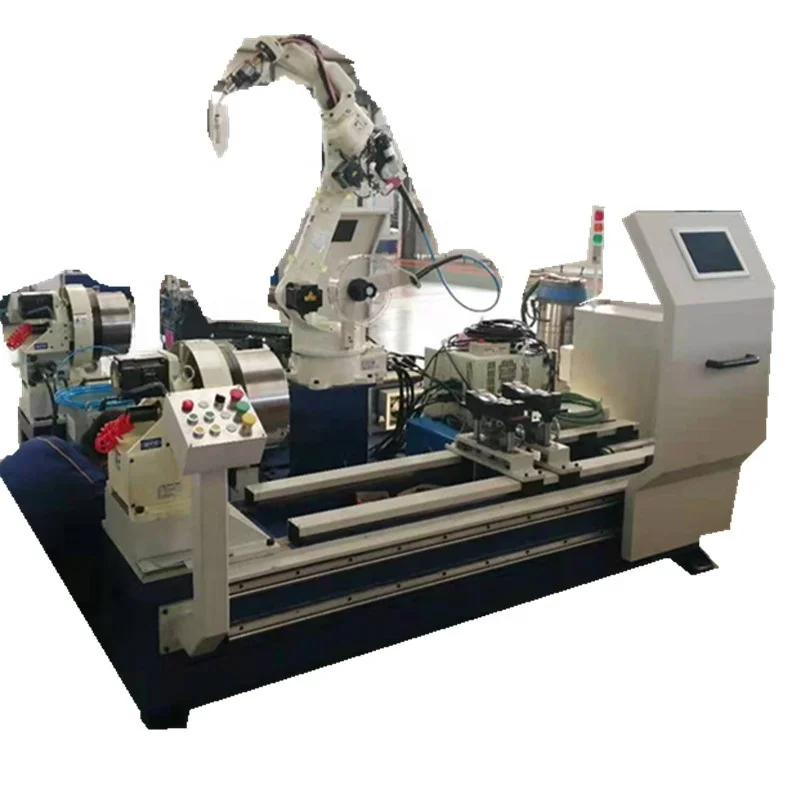

6 axis CNC Robot welding machine Positioning workbench Automatic Multi joint industrial Welding Robot

China Factory customized MIG TIG ARC Tube Seam welder Automatic Steel scaffold pipe welding robot

Welcome to subscribe my Youtube channel to see more work video of our robot welding system :

https://www.youtube.com/c/HAOYUCNCWeld/search?query=robot

I :Application and features

1.The welded part of the workpiece should not have burrs, rust, oil stains and other defects that affect the welding quality.

2.Welding process: MIG or MAG or TIG or SAW

3. Adapt to welding wire specifications: φ1.2mm, φ1.6 mm. 20kg coiled welding wire or barreled welding wire

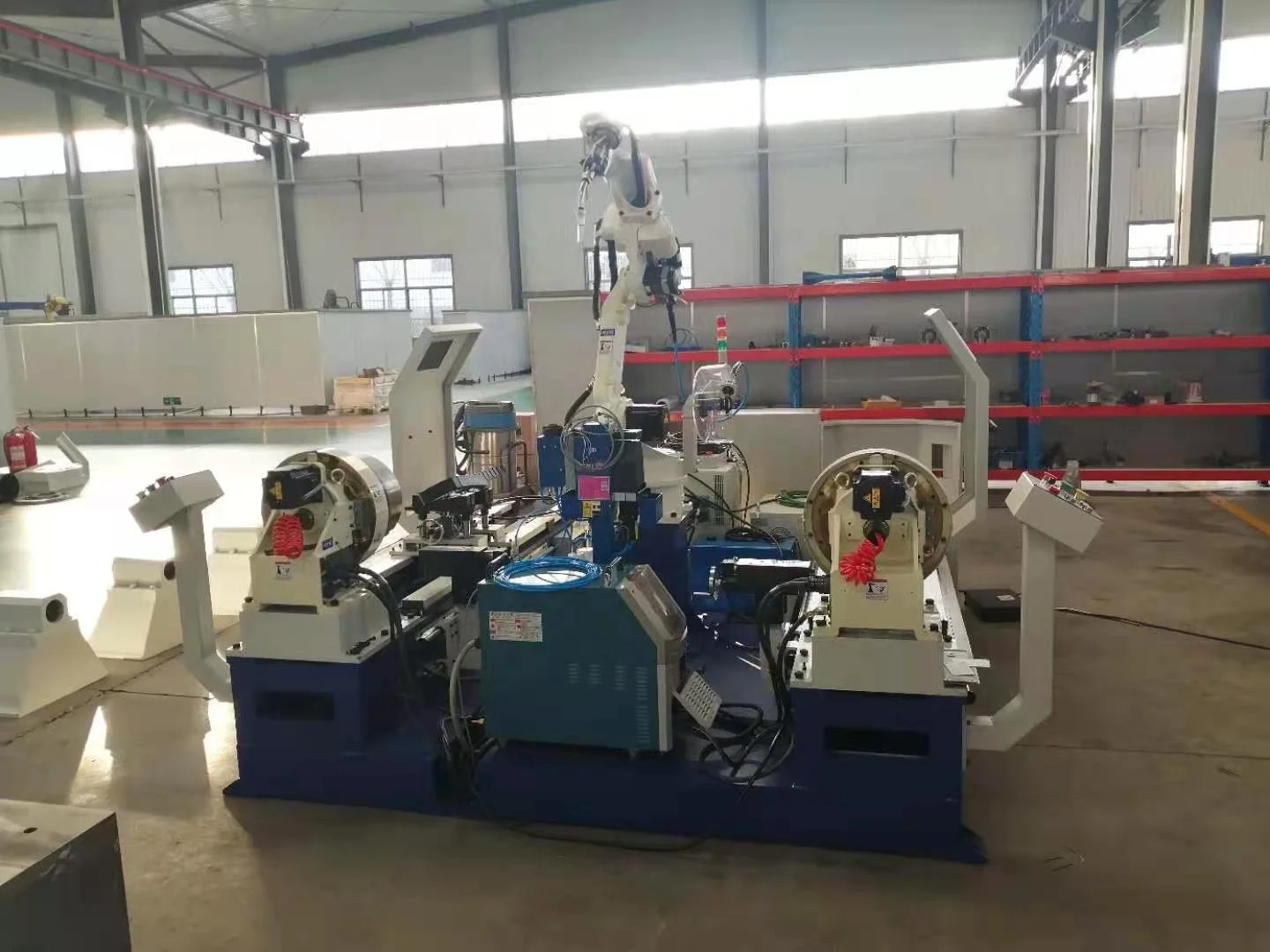

4. Welding method: Double-station double-external axis welding workstation structure is adopted, and the robot is installed normally.

5.Production cycle analysis:  accounting must be based on drawings

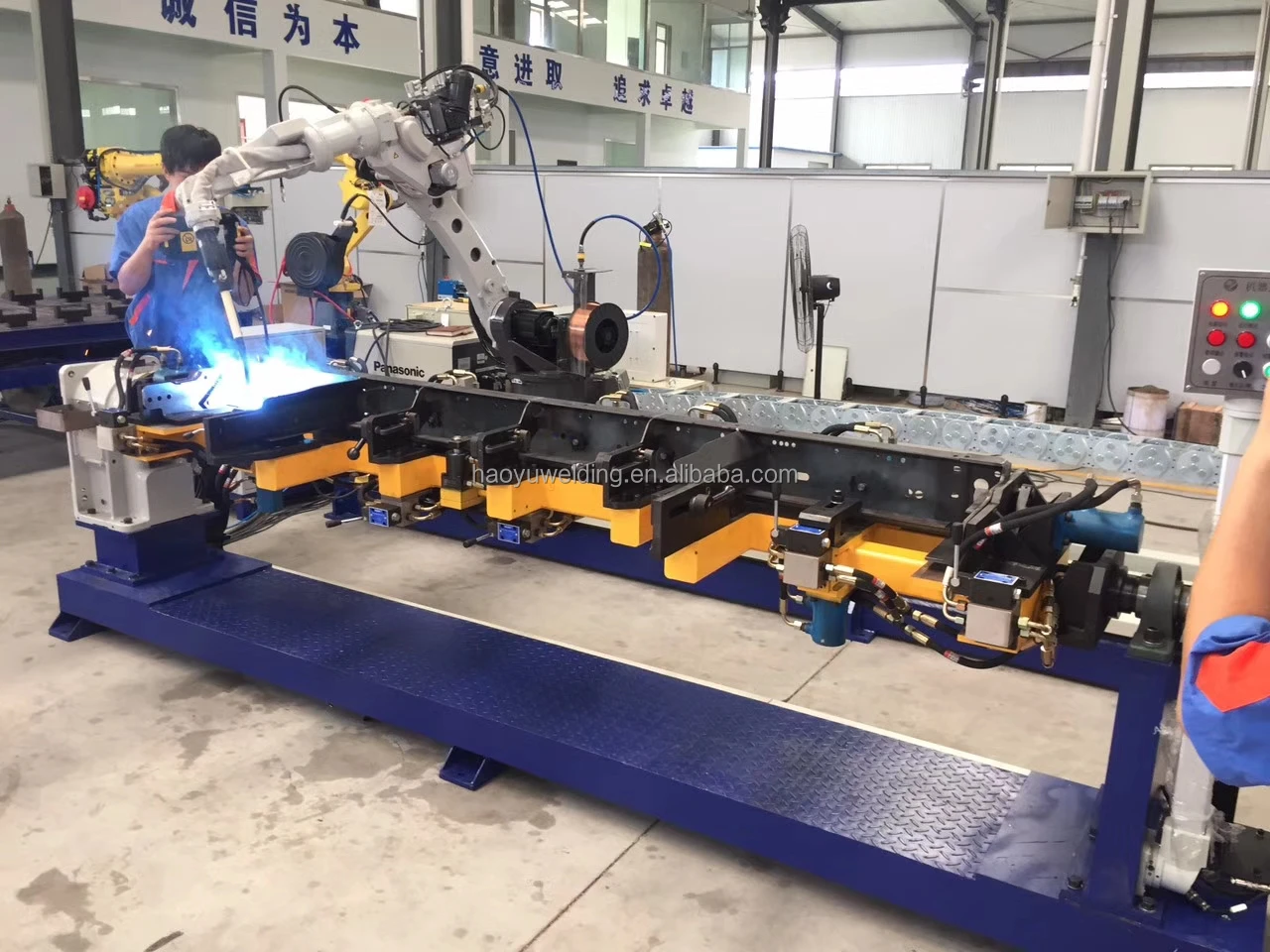

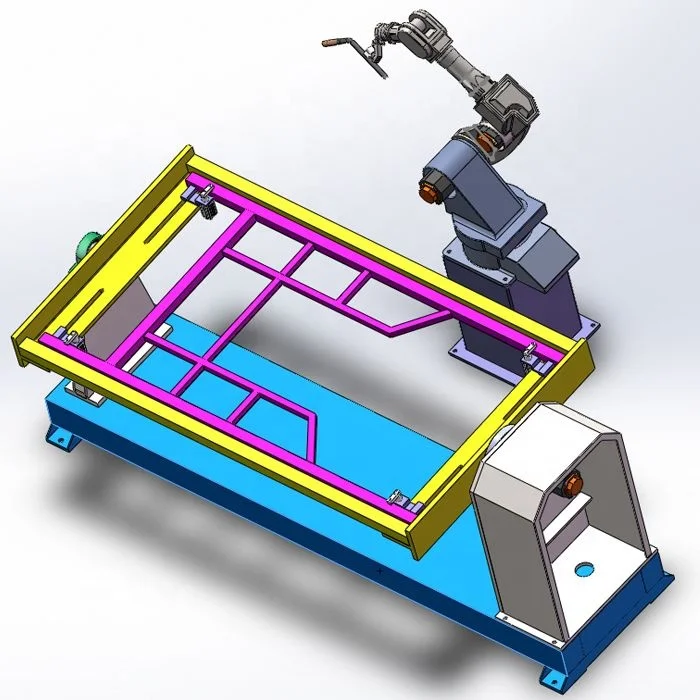

6. This welding robot is used for the automatic welding the joint seam of frame or beam . All actions realize mechanical automation, reduce manual operation, enhance efficiency and reduce labor intensity.

7.This robot welding system adopts a welding workstation structure, and the system can be started, stopped, paused, and urgent parts can be performed through the operation panel.

8.In addition, the operating status of the system and system alarms can be displayed on the operation panel. The robot body has high running precision and high speed, which greatly improves work efficiency.

9.The control system is sensitive and reliable, with few failures, and convenient operation and maintenance. Set the workpiece rotation mechanism, the workpiece rotation and the robot are linked for coordinated control.

10. The welding robot adopts the Japanese OTC company, which can greatly improve welding quality and production efficiency.

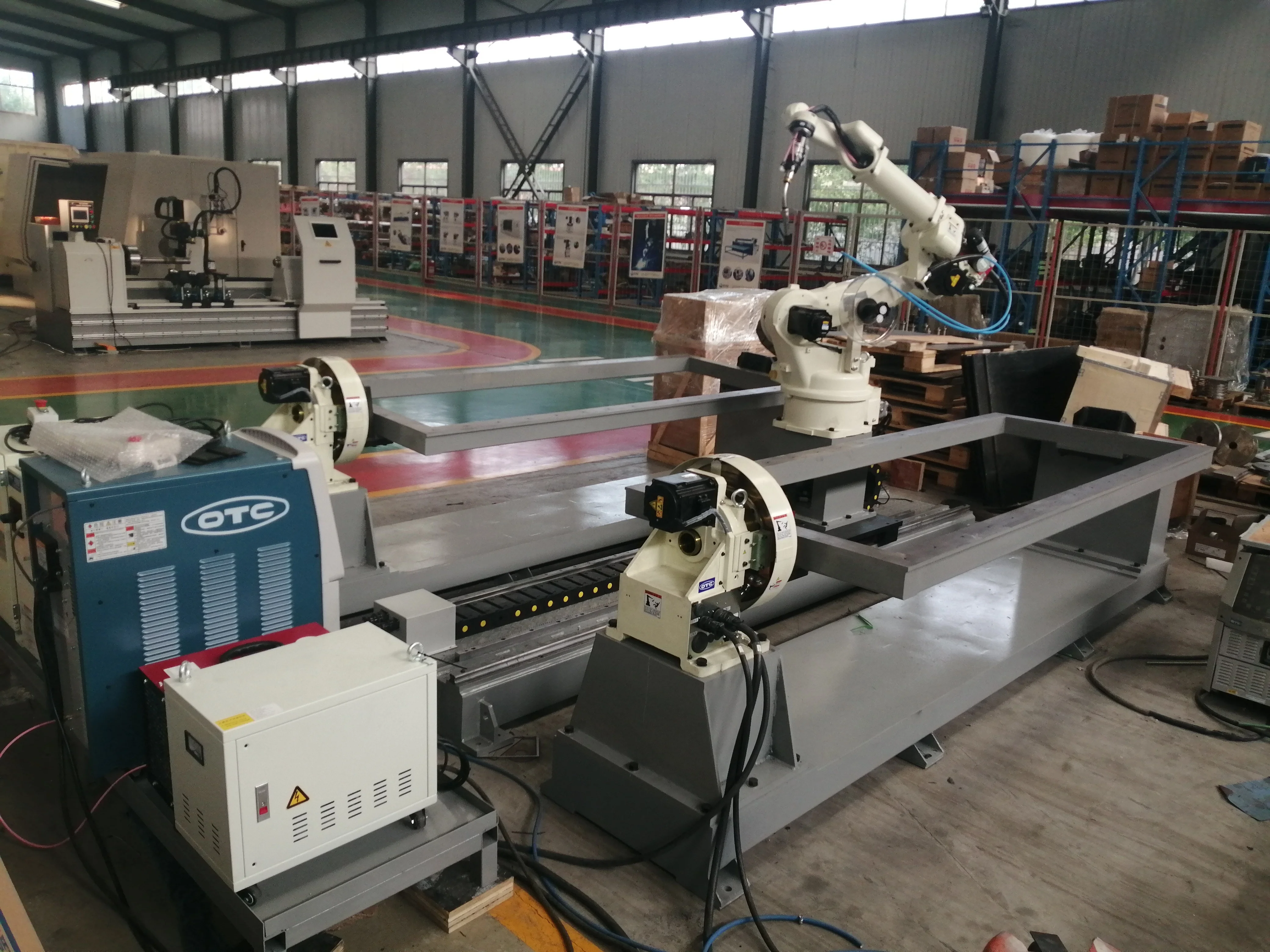

11. Adopt the external water-cooled welding torch dedicated to Japanese OTC robots to ensure that the welding system can work continuously and stably under large working specifications. 6. The workpiece welding positioner in the robot workstation is driven by the special positioner of Japanese OTC company and controlled by the robot. During the welding process, the rotation moves in coordination with the robot.

12.The fixture design in line with ergonomics makes the operator convenient and labor-saving, and reduces the operator's labor intensity.

Jinan Haoyu CNC Machinery Co., Ltd. is a high-tech private company located in Jinan Shandong province. We have been a professional manufacturer in the field of welding automation with over 10 years. We have a strong design and technical team ,so can design and produce as customer’s requirements.
Our products mainly include automatic welding machine, robot welding station, automatic pipe cutting machine, automatic material handling equipment, automatic assembling machine,these machines are widely used in the areas of automobile,construction machinery, railway vehicle, electric power, shipbuilding, pressure container, petrochemical, house appliances and military industry, etc.
Our company has over 60 employees, with strong R&D staffs and Strict QC&QA team.Our products have been sold worldwide, such as Italy, Canada,Australia, India, Egypt,Mideast.
Technique Improvement and quality products are the intension of the company, while satisfaction of customers and social approval is our extension. We always take the principle and ideal of "Gain fame and position with technique, regard sincerity and reputation as the basis" , become the model of support customers before-sales, during-sales and after-sales.

Welcome to visit our company at any time!

1. Payment term: 30% T/T advance along with the purchase order, balance should be cleared before delivery

2. Delivery time: 60 days on receipt of payment in advance

      3. Warranty: 12 months for the whole machine.

We have always been committed with the service idea of customer-centric, supply Installation, adjustment, training and maintenance in pre-sales and after-sales service.

1. Pre-sales Service

Before signing contract, customers can get production plan, technical consultant and equipment suggestion and etc.

2. Training service

Customers can get free technical training in China factory. Mainly training are Training for machine,Basic daily cleaning and maintenance for the machine,Solutions for common hardware problems

3. Equipment Maintenance

One year free maintenance, lifelong caring,Free technical consultant,Customer service responding in 2 hours

4.Pre-shipment inspection system:

4.1 According to the customer‘s shipping details, we will check the products size, weight, spare parts, protective film and other information one by one for each invoice of goods. If there are any doubtful goods before delivery, quality inspectors will open the package in time and inspect the goods through professional testing equipment to ensure the accuracy of delivery.

4.2.The outer packaging of each goods will also be checked, such as whether the packing is damaged, whether the wooden pallet is fumigated, whether the exported goods are packed with steel strips,etc. To ensure that the goods are not damaged during loading and unloading.

Transportation ways : To central Asia, we use railway transport. To other countries, we choose sea transport. But all the products loaded on the containers.

5 .Afer sale service system

5.1 After our customer having received goods, if there are problems caused by the transportation of materials, we would let the customer take photos before unloading, give feedback to the freight forwarder, and make insurance compensation.

5.2. After customers received the goods, if there some quality problems ,production problems. If it is confirmed that there are indeed quality problems.Our QA and QC managers and relevant responsible department will give the reasonable compensation content based on the business contract .

5.3 Our Technology support team will provide on-line training or site training (engineers go to customers ‘factory site ) as customers need

6. OEM is ok

7.Warranty :uausally is one year ,also can be 2~5years as customers requirement

8. My whatsapp/wechat is 0086 15854187090,weclome to inquiry or ask for technology support any time !

Question 1 :How to customized a automatic welding machine for your workpiece ?

Answer: Please tell us below information ,then we can design for your workpiece:

1.1  the material of your workpiece

1.2 ,the length ,width,thickness of your workpiece or send the drawing of workpiece ,if there are different size workpiece ,tell us the range (Min and max )

1.3 it is better to give us the Workpiece real picture .

Question 2: What is the core components of automatic welding machine ?

Answer : based on different Automatic welding machine,there are mainly including PLC ,CNC control system,inverter ,servo motor with driver ,welding power source,.welding torch ,robotic .pneumatic control system.

Question 3:Is possible to design Multi-station with more welding torch ?

Answer :yes ,it is ok we can design one torch or two torch or more welding torch work station to increase

Question 4: What is the brand of the core components in the automatic welding machine

Answer :All core components are famous china brand or international brand ,such as :Welding power source ,we usually use OTC and Panasonic brand.if you need Lincoln welding power source or Miller Lincoln welding power source is ok ,we also can use it on our welding machine .

For PLC : We usually use Omron and Siemens PLC, Customers can specify the brand

For robot :We usually use OTC ,YASUKAWA ,ABB or kuka ,or Customers can specify the brand.

Question 5:How many kinds of our Welding machine ?

Answer: Based on welding power source : there are automatic TIG welding machine ,automatic MIG welding machine ,automatic submerged arc welding machine(automatic SAW machine)

Based on application : there are Automobile parts welding machine,Automatic scaffordding welding machiine ,pipe to flange Automatic welding machine ,Tank Automatic welding machine,Hydraulic cylinder piston rod Automatic welding machine,wheels Automatic welding machine and so on .

Based on welding seam type : circular/girth seam welding machine ,longitudinal /straight seam welding machine ,Square seam welding machine.irregular seam welding machine

Question 6: Is it possible to extend Warranty time ?

 Answer: Yes,our warranty time usually is 1 year for free ,but can be extended as required ,the price is a little expensive .no matter how long the warranty time ,our After-sale service is lifelong .
