1000L 10HL complete SUS304 direct fire heating two vessel brewhouse brewing system
- Category: Beverage & Wine Processing Machinery >>>
- Supplier: Ningbo,Xg,Food,Machinery,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview
Standard System
The 3.5bbl to 30 bbl standard system is the perfect setup for larger breweries looking to increase their volume while maintaining quality assurances. 2-vessel brewhouses in a combined configuration with the Mash/ Lauter Tun and Wort Kettle/ Whirlpool, each brewhouse includes piping, fittings, and a centralized, automated control system to easily and accurately manage, monitor, and regulate your current batch.
Length | Width | Height | |
400L/3.5bbl | 3200mm/126’’ | 1630mm/64.2’’ | 2026mm/79.8'' |
600L/5bbl | 3450mm/135.8’’ | 1800mm/70.9’’ | 2200mm/86.6'' |
820L/7bbl | 3840mm/151.2’’ | 2120mm/83.5’’ | 2235mm/88.0'' |
1200L/10bbl | 4100mm/161.4’’ | 2440mm/96.0’’ | 2550mm/100.4'' |
1700L/15bbl | 4650mm/183.1’’ | 2500mm/98.4’’ | 2760mm/108.7'' |
2300L/20bbl | 4890mm/192.5’’ | 2600mm/102.4’’ | 2850mm/112.2'' |
Equipment Specification
Main Features
Key Features:
1) Mash and Lauter tun with side grain door, rakes, reduction gear equipped with an ABB motor.
2) Brew kettle/ whirlpool vessel.
3) Stainless steel working platform with sanitary piping and valves
4) NanHua dual-stage heat exchanger and wort aeration system
5) Sanitary pumps(ABB motor) with variable frequency drive (VFD) controls
6) NEMA Control Panel
7) LED light assemblies
8) Mash hydration assembly
9) Stainless steel grist case
10) Sink & Wort sample desk
11) Glass Wort Grant
Options:
1) Mash and Lauter tun with side grain door, rakes, reduction gear equipped with an ABB motor.
2) Brew kettle/ whirlpool vessel.
3) Stainless steel working platform with sanitary piping and valves
4) NanHua dual-stage heat exchanger and wort aeration system
5) Sanitary pumps(ABB motor) with variable frequency drive (VFD) controls
6) NEMA Control Panel
7) LED light assemblies
8) Mash hydration assembly
9) Stainless steel grist case
10) Sink & Wort sample desk
11) Glass Wort Grant
Options:
Steam heating, Direct firing, and Electric heating elements
IFM flowmeter
Independent Mash tun with Mash Mixer and pump
Independent whirlpool.
Internal Calandria
Touch screen programmable logic controller (PLC) controls with Pneumatic valves
Platform modifications for expansion
Independent whirlpool.
Internal Calandria
Touch screen programmable logic controller (PLC) controls with Pneumatic valves
Platform modifications for expansion
Details
Customer Reference
Exhibition Shows
Manufacturing Process

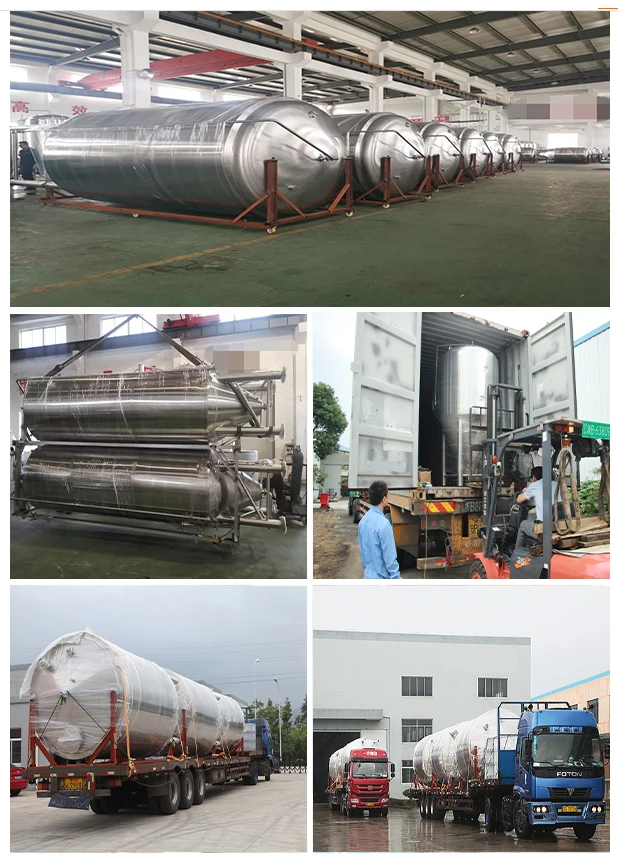

Packaging and Shipment
