OEM available dpf cleaning system heating pneumatic type dpf cleaning machine diesel particulate filter cleaner
- Category: Car Care & Cleanings >>>
- Supplier: Wuhan,Brown,Environment,&,Energy,Co.,Ltd.
Share on:
Product Overview
Description
Product Show
OEM available dpf cleaning system heating pneumatic type dpf cleaning machine diesel particulate filter cleaner
Product Description
Product Parameter

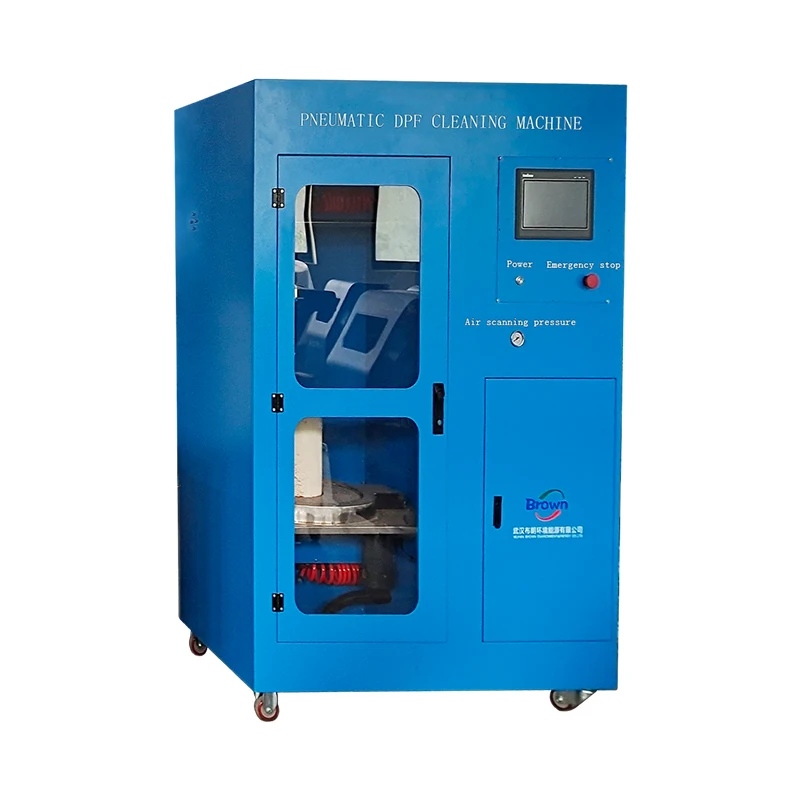

Model Number | BR-IPC-MA01 |
Weight | 270kg |
Dimension | 1490mm*720mm*1900mm |
Power | 3kw |
Air scanning pressure | 0.3-0.7 MPa |
Air collecting negative pressure | -25 -0 KPa |
Air supply | The air pressure of the external air source is not less than 0.8MPa, and the gas production is not less than 1.2m ³/min. |
DPF cleaning range | DPF diameter:150mm~420mm,height is not higher than 620mm |
Filtration system | Two-stage filtration: cyclone dust collector and HEPA filter two-stage filtration |
Air scanning | Up and bottom both sides air blowing |
Model Number | BR-TRF-MA01 |
Weight | 210kg |
Dimension | 1150mm x 1050mm x 1150mm |
Power | 20kw |
Air supply | Gas production above 60L/min, pressure above 0.2MPa |
Burner inner dimension | OD:550mm,Height:600mm |
Temperature range | Max.800℃ |
Working environment | The ambient temperature shall not be lower than -20℃, the highest temperature shall not be higher than 60℃, and the relative humidity shall not exceed 95%. |
Filling range | It’s able to process 2-3 DPF at a time |
Temperature control | 16level stair-step temperature curve control |
Time for temperature from 0-600℃ | 30-60minutes |
Outside temperature of 600℃ burner | 30-40℃, harmlessness for hand |

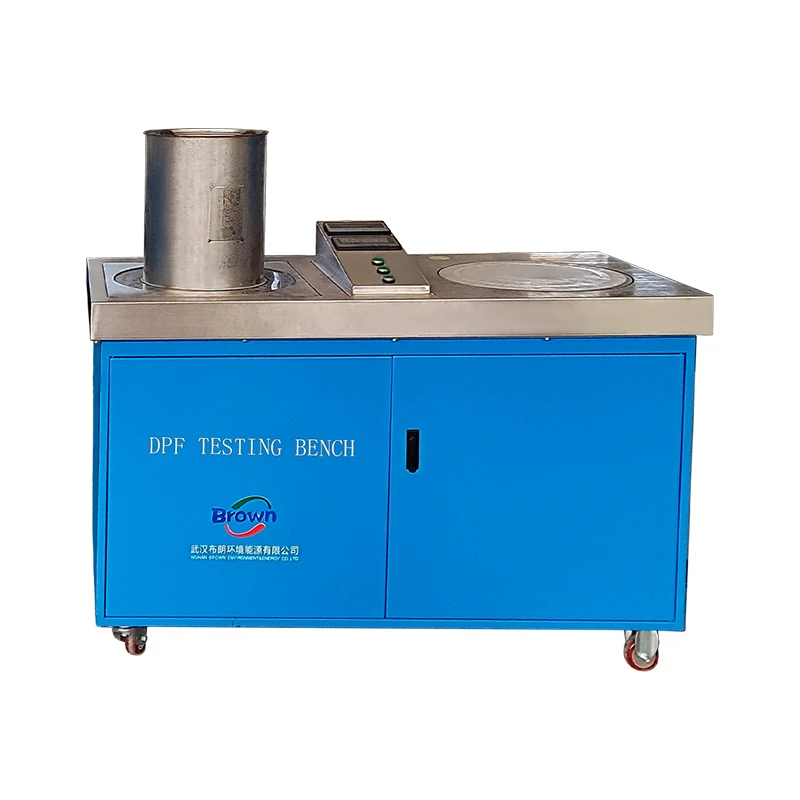

Model Number | BR-IDP-MA01 |
Weight | 100kg |
Dimension | 1400mm*650mm*920mm |
Power | 2kw |
Weighing range | 0-40kg |
Air collecting negative pressure | -25 -0 KPa |

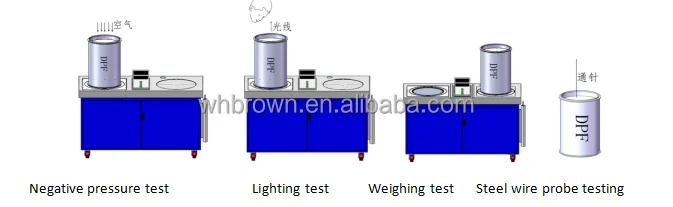

Detecting method | Negative pressure test, lighting test, weighing test, steel wire probe testing |
Company Profile
Certificate
We are National High Tech enterprise
With CE /ISO certificated, 27 National Patents
We promise: 1 year warranty free of charge, lifelong time technical support and after sales service!
Exhibition
Transportation
FAQ
FAQ
1.Q:Are you a trading company or factory?
A:We are a professional machine factory, integrating machine research and
development, manufacturing, technical services and sales.
2.Q:How about the payment?
A:Our payment term is usually by T/T, Paypal or Alibaba trade assurance service.
3.Q:What’s your terms of delivery?
A:EXW, FOB, CFR, CIF, DDU for your options.
4.Q:Does your company accept OEM service?
A:Yes, we have a professional design and technical team to accept customization.
5.Q:How about your warranty?
A:We provide 12months warranty, and lifelong time technical & after-sales service.
