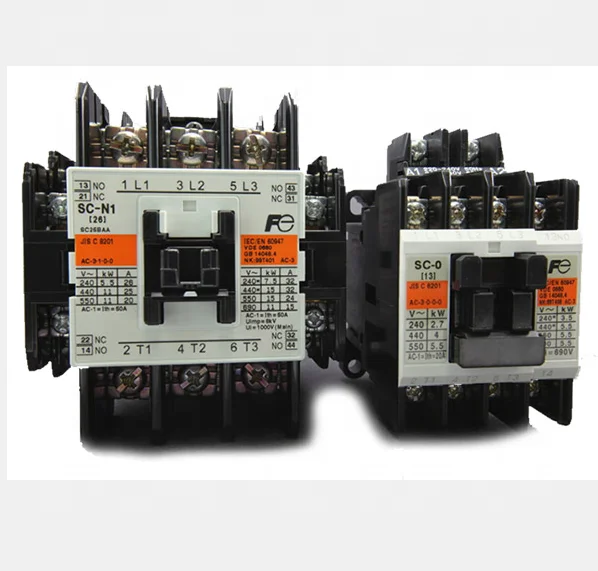

FUJI Standard type magnetic contactor SC E series

Share on (1600204178643):


Price:

Quantity:


Product Overview

Description


Motor Control
Standard type magnetic contactor:
SC-E series



SC-E series take the line-up to the next step in utility with a new finger protection terminal and box lug terminal construction.

Models SC-E02 to SC-E4 have a 3-pole main circuit structure.
Available in three frame sizes, 43mm, 54mm, and 67mm wide, they enable a significantly reduced mounting area.
Models SC-E5 to SC-E7 use an IC-controlled SUPER MAGNET to ensure high operating reliability

IEC 60947-4-1
EN 60947-4-1
VDE 0660
JIS C 8201-4-1
UL 508
CSA C22.2


Compactness



  • SC-E02 to E05: 43mm wide, SC-E1 to E2S: 54mm wideSC-E3, E4: 67mm wide, SC-E5: 88mm wide

  • Reducing mounting area


Safety



  • Terminals with finger-touch protection (DIN 57106/VDE 0106 Teil100)


Utility



  • Box lug terminal construction

  • Long electrical life

  • Reduction of wiring work


Ecology



  • Reducing power consumption

  • Recycled thermoplastic resin used for plastic parts.

  • The names of materials are indicated on all major parts to facilitate their recycling.
