100 liter beer brewing equipment electric brewing system for home brewing
- Category: >>>
- Supplier: Jinan Rainbow Machinery Co. Ltd.
Share on (1600204263246):
Product Overview
Description
Product Description

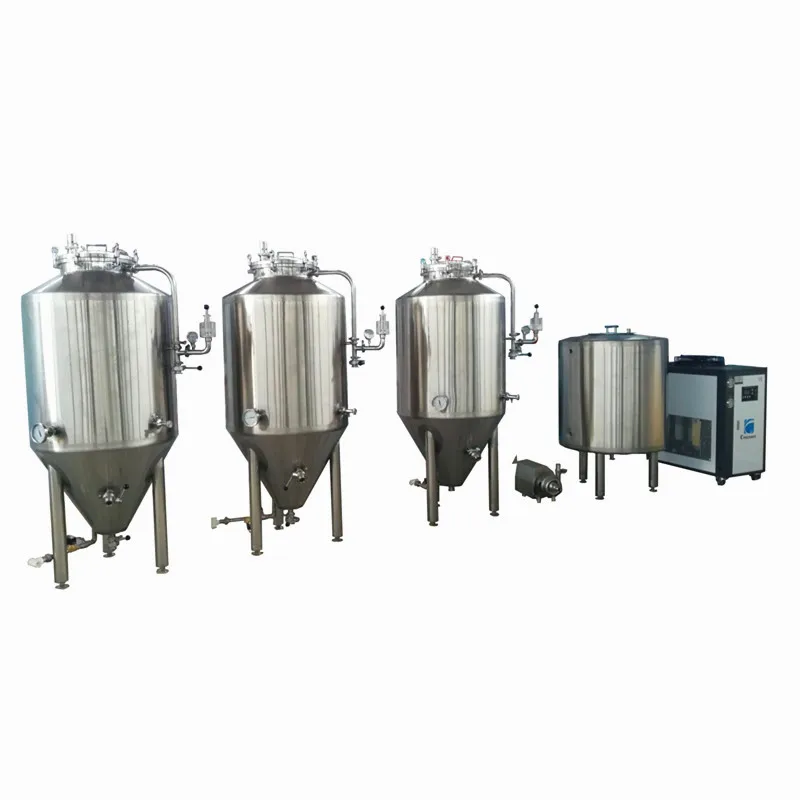

100 liter beer brewing equipment electric brewing system for home brewing

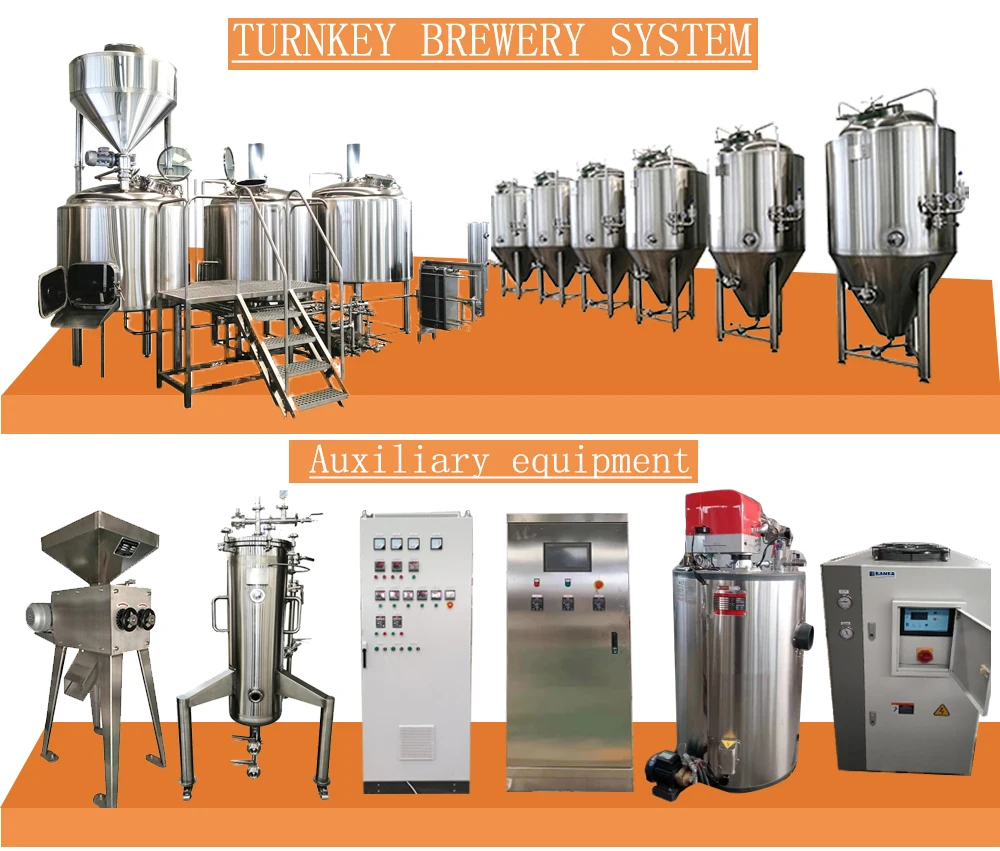

Configuration for the turnkey brewing system:
1. Malt milling system
2. Brewhouse system
3. Fermentation system
4. Cooling unit
5. CIP system
6. Controlling system
7. Bottling and kegging system
Free Spare parts
1. Malt milling system
2. Brewhouse system
3. Fermentation system
4. Cooling unit
5. CIP system
6. Controlling system
7. Bottling and kegging system
Free Spare parts

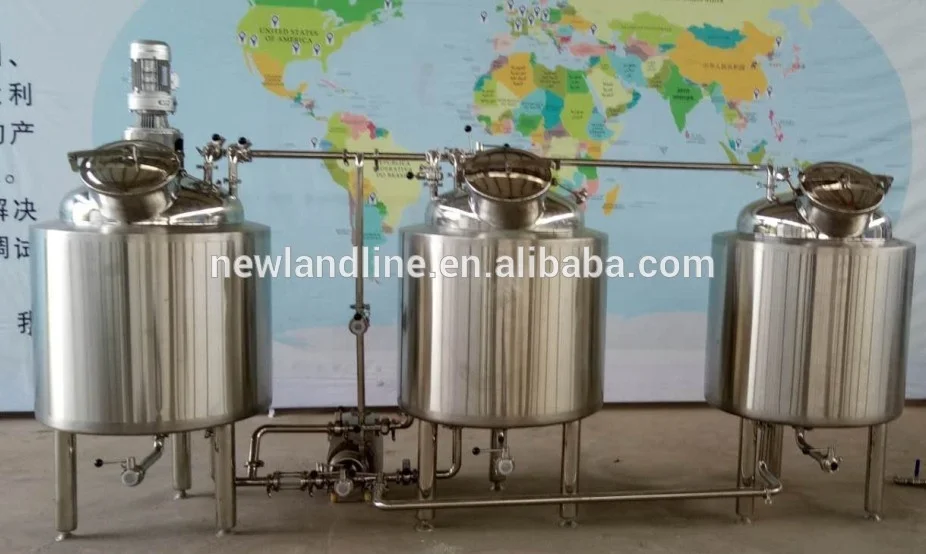

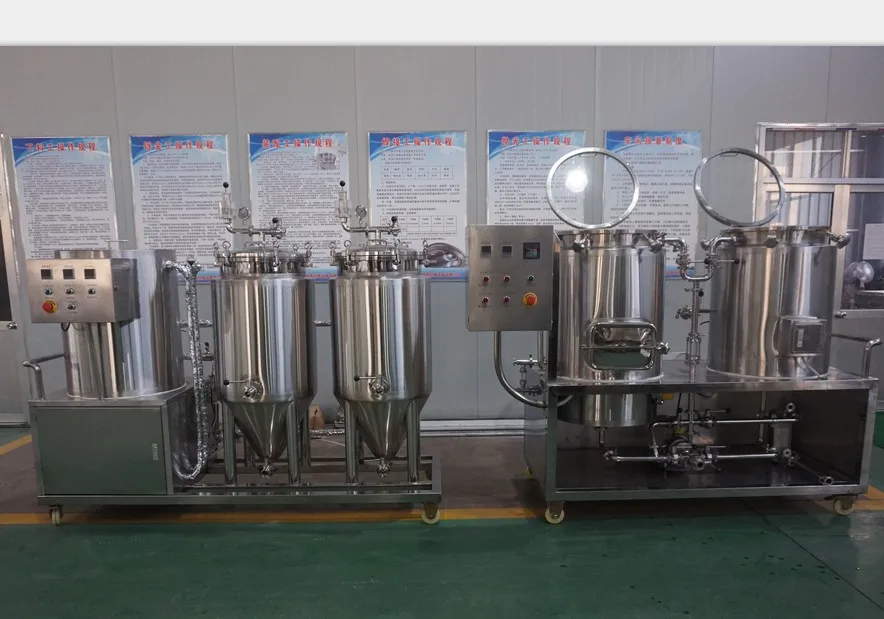

100L electric heating pilot brewing system for home brewing pilot brewing system
This pilot brewing system can be used for home, lab, personal hobby, small restaurant, etc.
Generally the capacity will be 100L, 1bbl, 150L, etc. with electric heating brew house system
Generally the capacity will be 100L, 1bbl, 150L, etc. with electric heating brew house system
Detailed specifications for 100 liter beer brewing equipment electric brewing system for home brewing
Items | Equipments | Specifications | Quantity |
Milling System | Malt miller | 200Kg/H | 1 |
Brewhouse System | Mash tun & Lautering tun | 100L | 1 |
Brew kettle & whirlpool | 100L | 1 | |
Hot liquid tank | 100L | 1 | |
Plate heat exchanger | 3M² | 1 | |
Pump | 3M³/H | 2 | |
Fermentation System | Fermentation tank/beer fermenter | 100L | 4-8 |
Yeast adding tank | 20L | 1 | |
Wort oxygenator | 1 | ||
Cooling System | Glycol water tank | 100L | 1 |
Scroll type compressor | 3Hp | 1 | |
Pump | 3M³/H | 1 | |
CIP System | Alkali tank | 50L | 1 |
Sterilization tank | 50L | 1 | |
Pump | 3M³/H | 1 | |
Controlling System | Control box Siemens PLC System | 1 | |
Spare parts | Including pipes, valves, connections, gauges, etc |
Specification

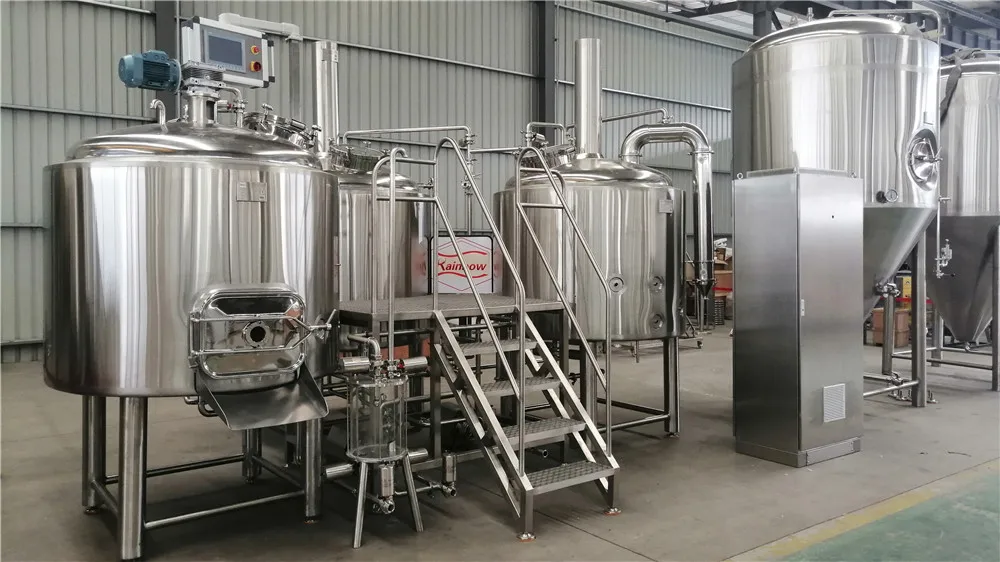

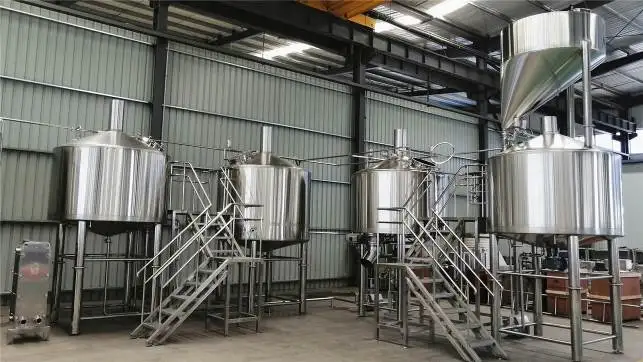

1. Brewhouse System
-Total capacity: 130L, with 30% head space
-USeful capacity: 100L
-Heating: electric heating brewhouse system
-Interior Shell:SUS304/316 thickness 3mm
-Outside wall: SUS 304, thickness 2mm
-Top shape: Dome top
-Bottom shape: Cone bottom, 160 degree
-Flase bottom: milled false bottom, removable
-Manyway: Top manyway with lighted sight glass window
-Sparging arm: TC connection sparging ball
-Thermowell: High accuracy temperature sensor, PT100
-Heating method: electricity, steam, gas, direct fire heating
-Insulation: Polyurethane, thickness 100mm
-Polishing: 0.4-0.6μm without dead corner
-Welding: 100% TIG welding with pure argon gas shield
-Plate heat exchanger: SUS 304 plates and frame, working temperature: less than 150℃
-Wort pump: food grade sanitary and high efficiency wort pump
-Agitator: Power: 0.75kw, speed ratio: 1:43
-Flow sight glass
-All necessary pipings, pipes and fittings
-Interior Shell:SUS304/316 thickness 3mm
-Outside wall: SUS 304, thickness 2mm
-Top shape: Dome top
-Bottom shape: Cone bottom, 160 degree
-Flase bottom: milled false bottom, removable
-Manyway: Top manyway with lighted sight glass window
-Sparging arm: TC connection sparging ball
-Thermowell: High accuracy temperature sensor, PT100
-Heating method: electricity, steam, gas, direct fire heating
-Insulation: Polyurethane, thickness 100mm
-Polishing: 0.4-0.6μm without dead corner
-Welding: 100% TIG welding with pure argon gas shield
-Plate heat exchanger: SUS 304 plates and frame, working temperature: less than 150℃
-Wort pump: food grade sanitary and high efficiency wort pump
-Agitator: Power: 0.75kw, speed ratio: 1:43
-Flow sight glass
-All necessary pipings, pipes and fittings

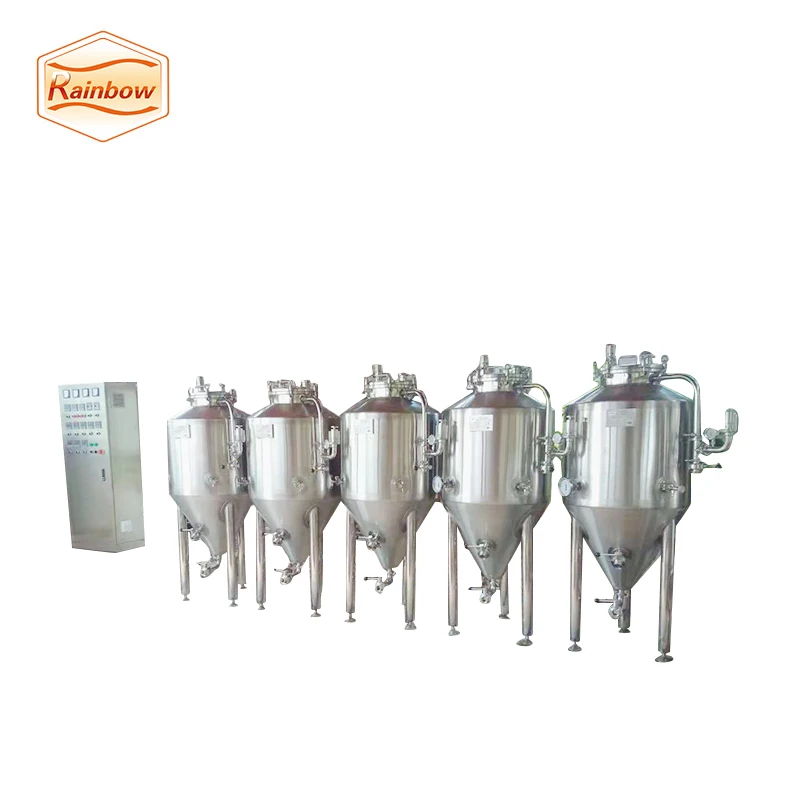

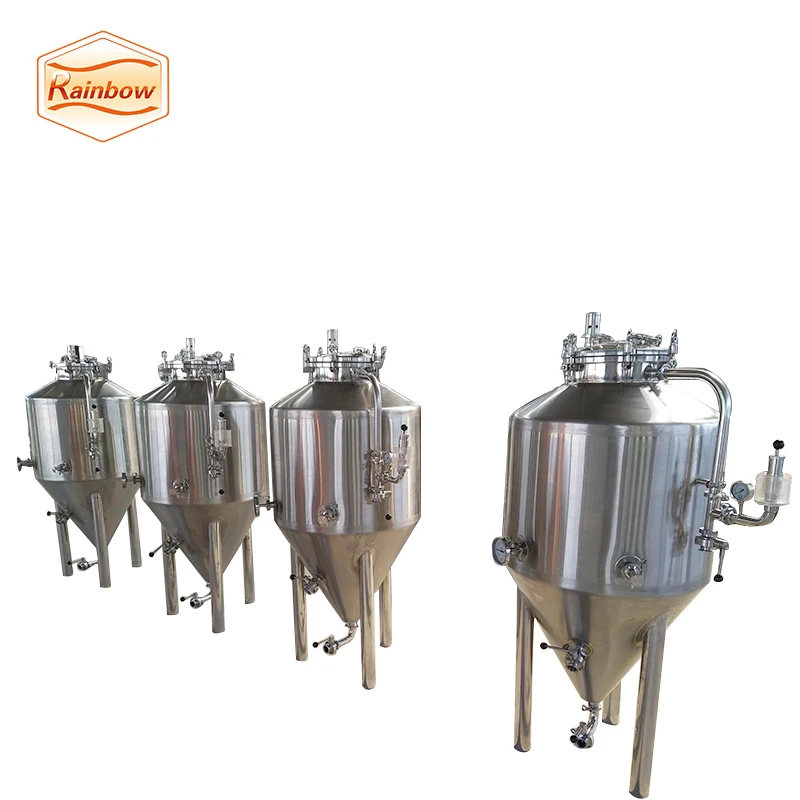

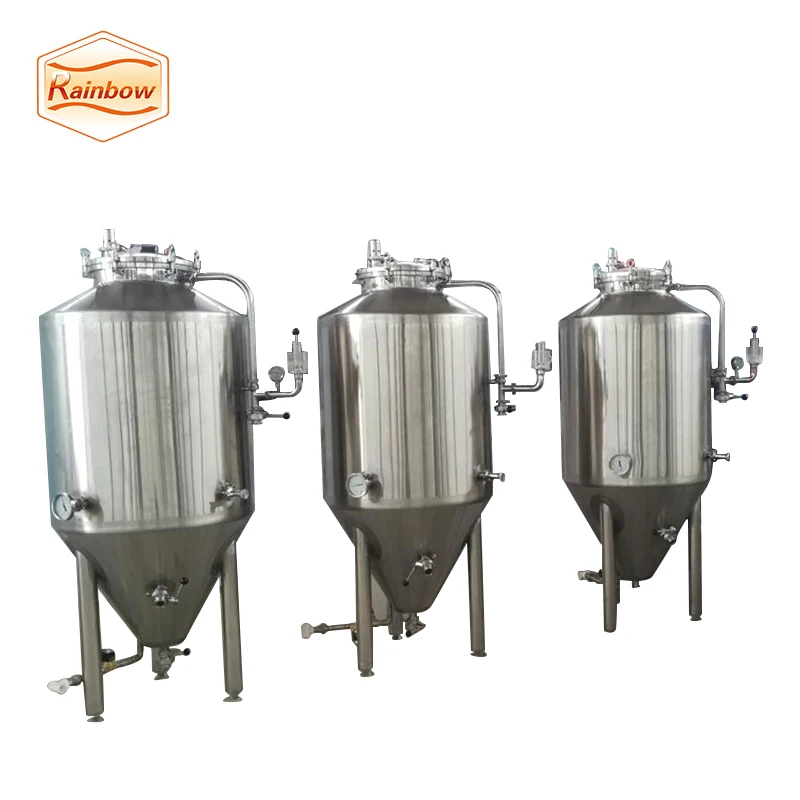

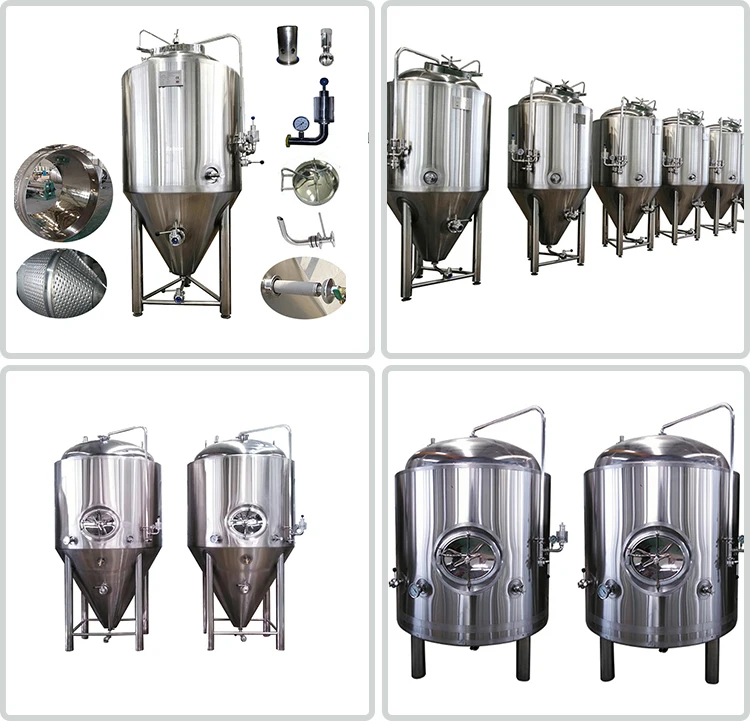

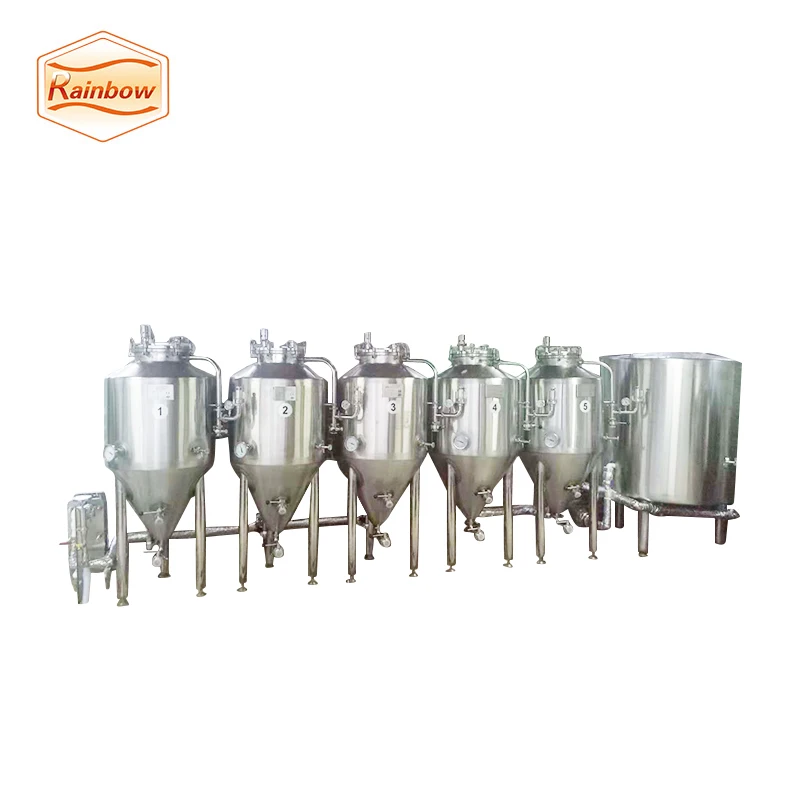

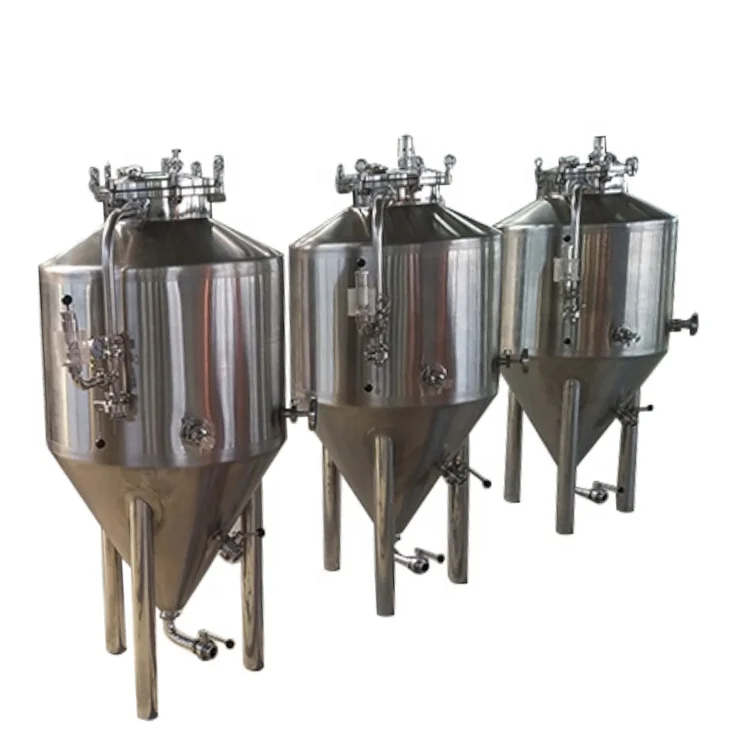

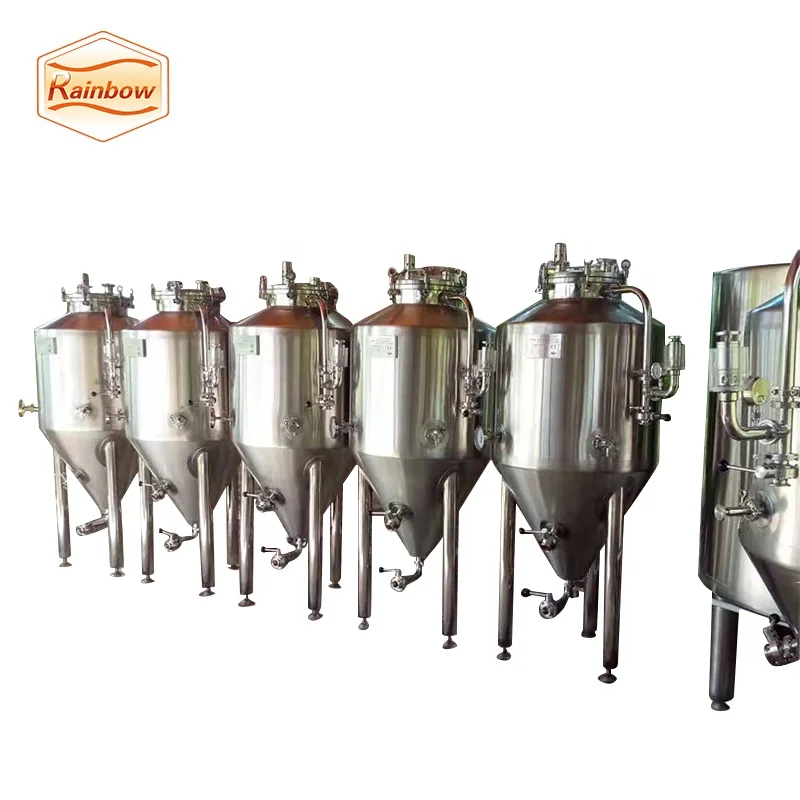

2. Fermentation System-Dimple Plate Beer Fermenter
-Total capacity: 125L, with 25% head space
-USeful capacity: 100L
-Total capacity: 125L, with 25% head space
-USeful capacity: 100L
-Usage: fermentation, maturation and storage
-Interior Shell: SUS304,thickness: 3.0mm;
-Exterior Shell: SUS304,thickness: 2.0mm;
-Insulation: Polyurethane-thickness:100mm
-100% TIG welding with pure argon gas shield
-Interior Finish:Mirror polishing to 0.4~0.6 μm without dead corner
-Cooling jacket: both on cone and cylinder parts, thickness:1.5mm
-Cooling media: glycol water
-Dry hopping port on top
-Side/top mounted manway
-Safety/vacuum valve on top
-Sample valve
-Test Pressure:0.3 Mpa,Working pressure 0.2Mpa.
-Rotating racking arm on cone with butterfly valve
-Discharge arm with butterfly valve
-CIP arm with 360° coverage CIP spraying ball
-Thermowell with high accuracy temperature sensor: PT100
-Legs with height adjustable pad.
-Interior Shell: SUS304,thickness: 3.0mm;
-Exterior Shell: SUS304,thickness: 2.0mm;
-Insulation: Polyurethane-thickness:100mm
-100% TIG welding with pure argon gas shield
-Interior Finish:Mirror polishing to 0.4~0.6 μm without dead corner
-Cooling jacket: both on cone and cylinder parts, thickness:1.5mm
-Cooling media: glycol water
-Dry hopping port on top
-Side/top mounted manway
-Safety/vacuum valve on top
-Sample valve
-Test Pressure:0.3 Mpa,Working pressure 0.2Mpa.
-Rotating racking arm on cone with butterfly valve
-Discharge arm with butterfly valve
-CIP arm with 360° coverage CIP spraying ball
-Thermowell with high accuracy temperature sensor: PT100
-Legs with height adjustable pad.

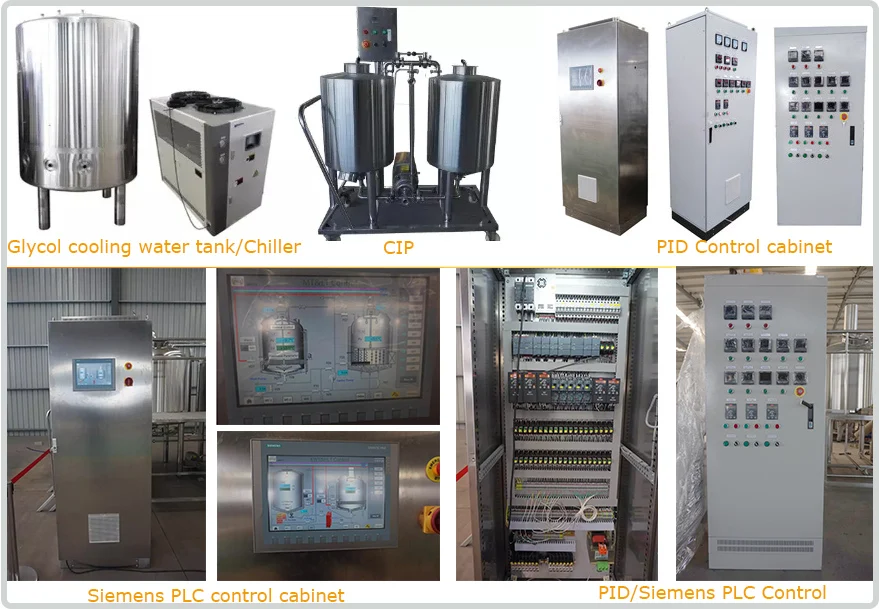

3. Cooling Unit Glycol water tank -Material: Inside wall, SUS 304, 3mm,outside wall, SUS 304, 1.5mm -Insulation, PU, 100mm -Thermowell, 8mm -Temperature sensor, Model: PT100 -Water supply piping: ø32mm -Drainage piping and butterfly valve, ø32mm Including all pipes, fitting, insulation materials Cooling compressor -Scroll copeland type compressor -Capacity: 3-20hp according to the capacities -Refrigerant: R404A | 4. CIP system -Alkali tank -Sterilization tank -Shell: SUS304; T 2mm -Interior Finish: 0.4~0.6μm/Mirror Polishing -Pipelines and valves -CIP Pump: CE/UL Listed -CIP reinforced hose Optional Heating Elements Controller Tank added | 5. PID/Siemens PLC system -Mashing temperature setting -Boiling temperature setting -Lautering temperature -pumps speed controlling by VFD, DANFOSS -Mash agitator speed controlling by VFD, DANFOSS -HLT pump controlling -Fermentation temperature setting -Cooling system Controlling Customized high quality stainless steel beer fermentation tabk brewery equipment |

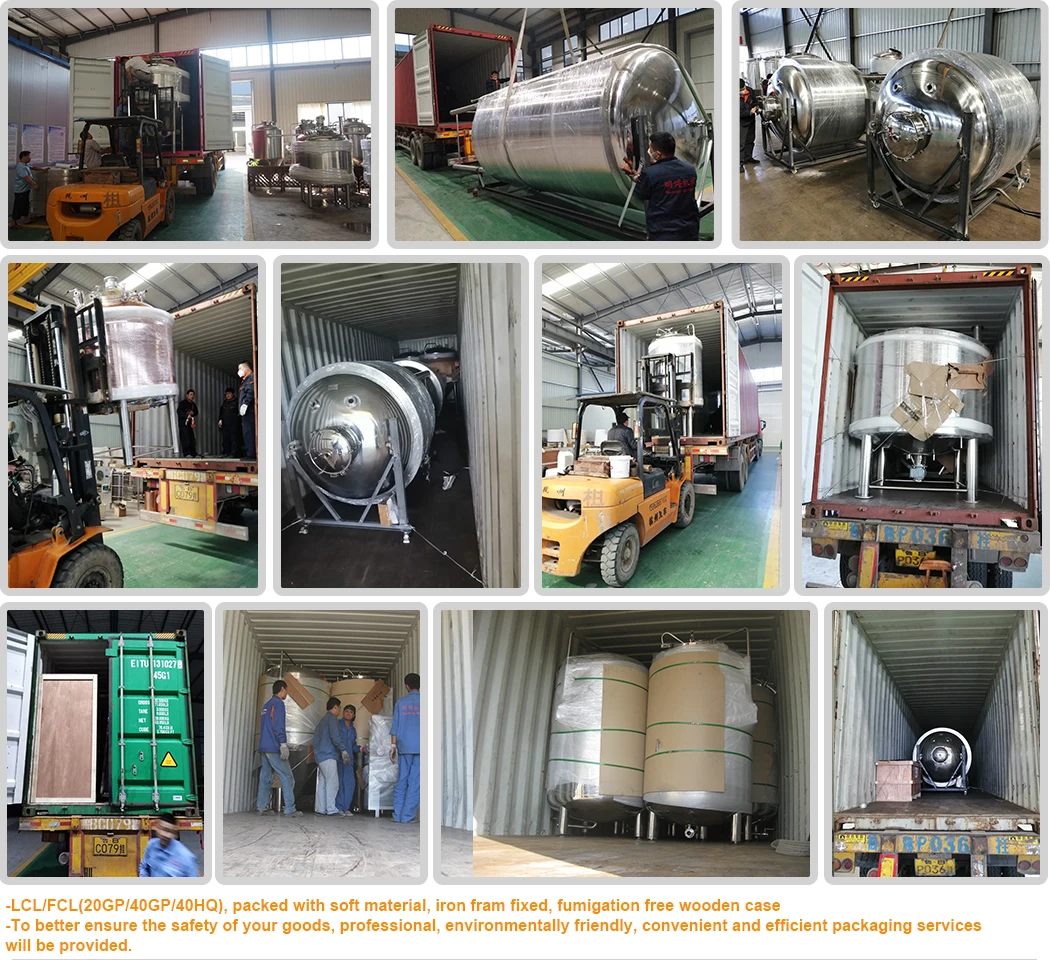

Packing & Delivery
beer brewing equipment beer fermenter adopt soft material first, then fiber wood cladding suitable for long time marine shipping
Company Profile
Established in 2008, Jinan Rainbow Machinery Co., Ltd. is a professional manufacturer and exporter of beer brewery equipment.
Our main products cover beer brewing equipments and other related machinery and equipments.
We take honesty and superior quality as the top priority in business. We are confident that we can supply you with the best products and the best services.
Our main products cover beer brewing equipments and other related machinery and equipments.
We take honesty and superior quality as the top priority in business. We are confident that we can supply you with the best products and the best services.
FAQ
1. Are you factory?
-We are factory manufacturer for turnkey beer brewing equipment, fermentation equipment, micor brewery system with over 15 years experience for complete turnkey beer brewing system.
2. Heating sources for the brewhouse system?
-Electric/steam/gas fire/RIMS/HERMS
3. Copper cladding brewhouse?
-Yes, Red copper brewhouse cladding is available
4. CE/UL Listed control panel?
-Yes, Both CE UL certificated
5. Door to door deliver and destination customs?
-Yes, we have recommendation forwarders to do the task.
6. MOQ for the brewing system?
-MOQ is one tank, like fermenter or brew kettle, etc.Customized high quality stainless steel beer fermentation tabk brewery
equipment
Contact US:
-We are factory manufacturer for turnkey beer brewing equipment, fermentation equipment, micor brewery system with over 15 years experience for complete turnkey beer brewing system.
2. Heating sources for the brewhouse system?
-Electric/steam/gas fire/RIMS/HERMS
3. Copper cladding brewhouse?
-Yes, Red copper brewhouse cladding is available
4. CE/UL Listed control panel?
-Yes, Both CE UL certificated
5. Door to door deliver and destination customs?
-Yes, we have recommendation forwarders to do the task.
6. MOQ for the brewing system?
-MOQ is one tank, like fermenter or brew kettle, etc.Customized high quality stainless steel beer fermentation tabk brewery
equipment
Contact US:
James
Sales Manager
JINAN RAINBOW MACHINERY CO., LTD.
Add:Hisense Valley, Fenghuang Rd., Gaoxin Dist., 250101 Jinan, Shandong, China
Tel/Fax: +86-531-66592692
Whats'app/Mobile: +86-18678771187
