Product Overview

Description

FUNIK CBN (Cubic boron nitride) inserts are widely used in processing pearlitic cast iron, high chromium and nickel alloy cast iron, hardened steel, powder metal, hard alloy and super alloy. In the mechanical machining application of the traditional system, not only it has greatly reduced the comprehensive production cost, but also significantly improved the production capacity and efficiency during the whole production operation, and the equipment investment is greatly decreased at the same time.
√ Excellent cost performance
The service life of Funik CBN insert can be more than 10 times that of carbide insert and reduce the cost of comprehensive cutting tool by 30%-50%. The interval time between the replacements of Funik PCBN insert is long and the insert replacement frequency is less, which can significantly reduce the cost on inserts.
√ High machining efficiency
The machining efficiency of Funik PCBN insert is 5-10 times that of the carbide insert, which greatly improves the equipment capacity and reduces the fixed investment of equipment.
√ Excellent surface quality
Surface finish and dimensional precision of machining workpiece of Funik PCBN insert can reach the grinding level, and make turning instead of grinding to reduce equipment investment.
√ Strong universality
Funik PCBN insert can be used for both dry cutting and wet cutting and one grade normally is suitable for machining a variety of materials.
CBN Solid Insert
Grade
Machining model
Applicable industry
Workpiece material
FBN7600
Rough/ Semi-finishing
●Roll, slurry pump
●Brake disc
●Brake drum
●Rolling mortar wall
● Parts of compressor
●High nickel-chromium
●High hardness alloy cast iron
●High speed steel
●Gray cast iron
●High manganese steel
FBN9500
Rough/ Semi-finishing
● Gear
●Bearing
● Mining machinery
●Coal mine machinery
●Hardened steel
●Surface overlaying material
FBN9500 C06
Semi-finishing/ Finishing
●Gear
●Bearing
●Mining machinery
●Coal mine machinery
● Hardened steel
●Cemented steel
●Surface overlaying material
Model
Standard cutting edge
Grade
ISO
FBN7600
FBN9500
RNMN1207
S02020
S05020
RNMN1507
S02020

RNMN2007
S05020

RNMN2010
S05020
S20020

Multiple Choice

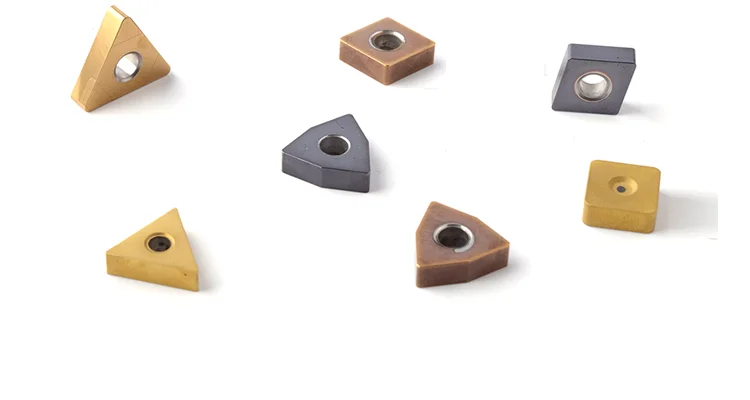

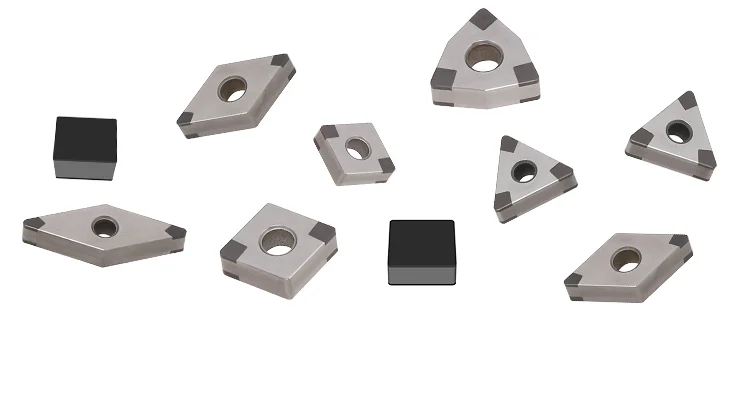

CBN FBS Soldering Cutting Tool Inserts:
SNGA, SCGW, CNGA, CCGW, WNGA, TNGA, TCGW, DCGW, VNGA
CBN FBV Soldering Cutting Tool Inserts:
CNGA, DNGA, SNGN, SCGN,TNGA, WNGA, VNGA
CBN FBK Tipped Brazed Coating Inserts:
CCGW, CNGA, DCGW, DNGA, TCGW, TNGA, VNGA, VCGW, VBGW, WNGA

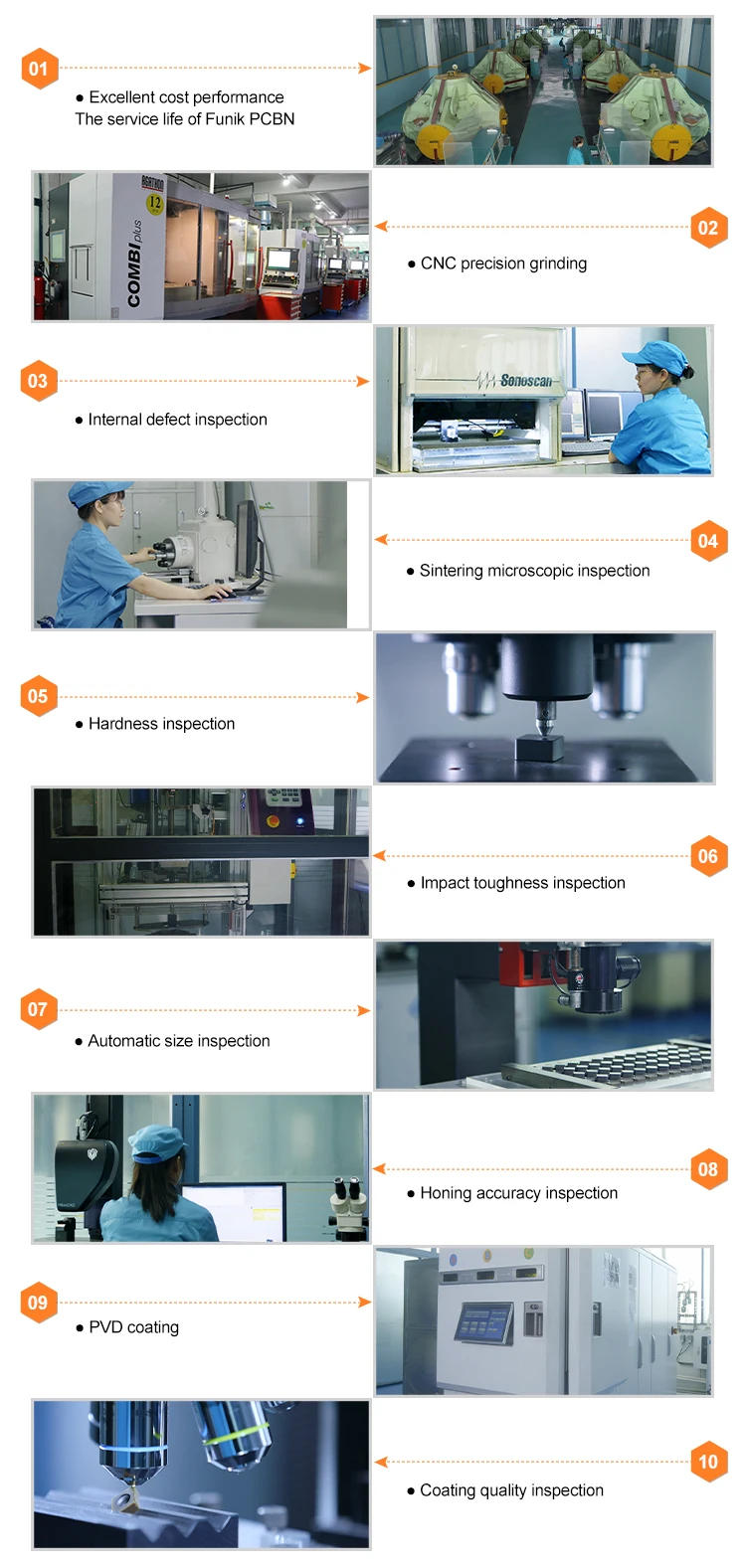

Manufacturing & Inspetion Process
Application
For turning and milling of centrifugal rolls, slurry pumps, brake discs, brake drums, rolling mortar walls, compressor parts, gears, bearings, mining machinery, coal mining machinery industries.
Package & Shipping
Why Choose Us
FAQ
