Deep Cycle Lf230 3.2v 230ah Lifepo4 Battery Grade A High Discharge Lithium Ion Battery
- Category: Electric Mountain Bike >>>
- Supplier: Shenzhen Good Leader Technology Co. Ltd.
Share on (1600204377931):
Product Overview
Description
Free bus bars and bolts
1pc busbars and 2 nuts for each battery cells
1pc busbars and 2 nuts for each battery cells
Recommend Products
Product Description
Grade A LFP Xuba CATL EV 3.2v 50ah 100ah 200ah 280ah prismatic lifepo4 battery pack 12v 48v 72v 300ah 320ah 400ah 600ah 800ah 1000ah Solar lithium ion batteries for Solar Energy Storage Systems
Detail Images
Precautions
1. When Charging And Discharging The Battery, Ensure That The Battery Voltage, Current And Temperature Are Monitored And Protected.
2. Keep The Battery Away From Heat Sources, Fire Sources, And Other Corrosive Environments Such As Heat And Strong Acids And Alkalis.
3. Do Not Short The Battery Or Install It With Incorrect Polarity At Any Time
4. Do Not Mix Batteries Of Different Models Or Different Manufacturers.
5. Do Not Use External Force To Drop, Impact Or Puncture The Battery, Do Not Disassemble The Battery Or Change The External Structure
6. When The Battery Is Not Used For A Long Time, Please Keep The Battery Charge At 30% ～ 50% Soc, And Avoid Direct Sunlight Or High Temperature And High Humidity Environment.
7. When Operating The Battery, You Need To Wear Protective Equipment Such As Rubber Gloves
1. When Charging And Discharging The Battery, Ensure That The Battery Voltage, Current And Temperature Are Monitored And Protected.
2. Keep The Battery Away From Heat Sources, Fire Sources, And Other Corrosive Environments Such As Heat And Strong Acids And Alkalis.
3. Do Not Short The Battery Or Install It With Incorrect Polarity At Any Time
4. Do Not Mix Batteries Of Different Models Or Different Manufacturers.
5. Do Not Use External Force To Drop, Impact Or Puncture The Battery, Do Not Disassemble The Battery Or Change The External Structure
6. When The Battery Is Not Used For A Long Time, Please Keep The Battery Charge At 30% ～ 50% Soc, And Avoid Direct Sunlight Or High Temperature And High Humidity Environment.
7. When Operating The Battery, You Need To Wear Protective Equipment Such As Rubber Gloves
Manufacture | EVE |
Distributor | GoodLeader |
Country of Origin | China |
Model Name | LF230 |
Typical Voltage | 3.2V |
Typical Capacity | 3.2V 200ah 230Ah 280ah 300ah 320ah |
AC Impedance Resistance | ≤0.3mΩ |
Standard Charge Current | 0.5C |
Standard Discharge Current | 0.5C |
Standard Charge Cut-off Voltage | 3.65V |
Standard Discharge Cut-off Voltage | 2.5V |
Continuous ChargeCurrent | 1C |
Continuous Discharge Current | 1C |
Pulse Charge Current（60s） | 2C |
Pulse Discharge Current（60s） | 2C |
Recommended SOC Window | 10%～90% |
Charging Working Temperature | 0℃～60℃ |
Discharging Working Temperature | -30℃～60℃ |
Short Term Storage Temperature (≤ 1 Month) | -20℃～45℃ |
Long Term Storage Temperature (≤ 1 Year) | 0℃～35℃ |
Storage Moisture | <95% |
Self Discharging Rate | ≤3% per Month |

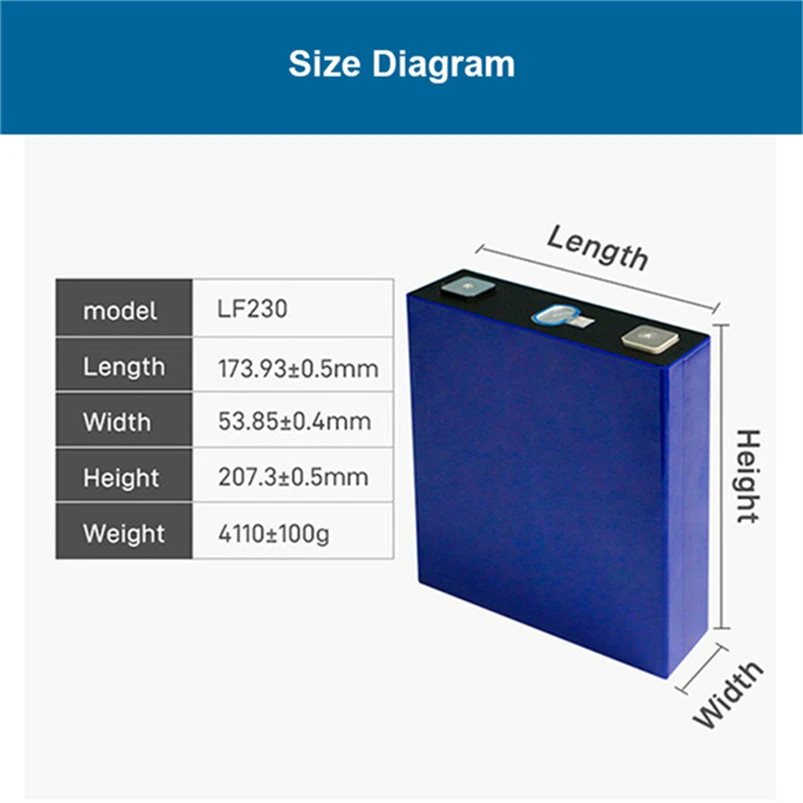

Cell Dimension | 207.3*53.9*174mm |
Cell Weight | 5kg |
More Products
Product Application
Tips:
*These products are prototype batteries without protection board,you need to purchase a match one! You can check our shop and search BMS.
*please consider before taking orders, place order means you have agreed. thank you for your cooperation!
*These products are prototype batteries without protection board,you need to purchase a match one! You can check our shop and search BMS.
*please consider before taking orders, place order means you have agreed. thank you for your cooperation!
Reminder
DIY battery pack must get the cells balanced (same voltage ) before assembly. Later if there happens don't know how to assembled or wrong assembly is not accepted refund. Our professional technology department will test voltage/resistance/appearance and other issues before every shipment, we can only ensure that the single battery is good, when arrival you can test the cells within 15 days, If you found problems you can contact us for return or refund. Battery can only be unused (the electrode intact, no welding, no wear, the appearance good) to provide return
1).Warranty period:5 years,if the single battery capacity less than 80% initial capacity, pls take the test pictures or video to us,we will replace it or give satisfied solution.
2).If any miss or damaged for the shipping.Please contact us firstly, then send us the picture or video to check. In case of loss of cargo or the battery is damaged and can not be used or there is a greater risk of use, we will communicate with buyer to resend it or replace it or refund the product cost.
DIY battery pack must get the cells balanced (same voltage ) before assembly. Later if there happens don't know how to assembled or wrong assembly is not accepted refund. Our professional technology department will test voltage/resistance/appearance and other issues before every shipment, we can only ensure that the single battery is good, when arrival you can test the cells within 15 days, If you found problems you can contact us for return or refund. Battery can only be unused (the electrode intact, no welding, no wear, the appearance good) to provide return
1).Warranty period:5 years,if the single battery capacity less than 80% initial capacity, pls take the test pictures or video to us,we will replace it or give satisfied solution.
2).If any miss or damaged for the shipping.Please contact us firstly, then send us the picture or video to check. In case of loss of cargo or the battery is damaged and can not be used or there is a greater risk of use, we will communicate with buyer to resend it or replace it or refund the product cost.
Company Profile
Our Factory
Certificate
Packaging And Transportation
Safe Package
* Use high hardness thick sponge to strengthen the battery
* 5 layers of dangerous goods export corrugated carton
* Positive and negative paste insulation tape
* Wrap the outer box with waterproof tape and protect corner
* If customer have requirement, we can provide Wooden Packing for shipping.
* 5 layers of dangerous goods export corrugated carton
* Positive and negative paste insulation tape
* Wrap the outer box with waterproof tape and protect corner
* If customer have requirement, we can provide Wooden Packing for shipping.
