Hongreat Automatic Vacuum Blood Collection Tube Machine
- Category: >>>
- Supplier: Hunan Hongreat Import & Export Trade Co. Ltd.
Share on (1600204397953):
Product Overview
Description
Contact Us
Products Description

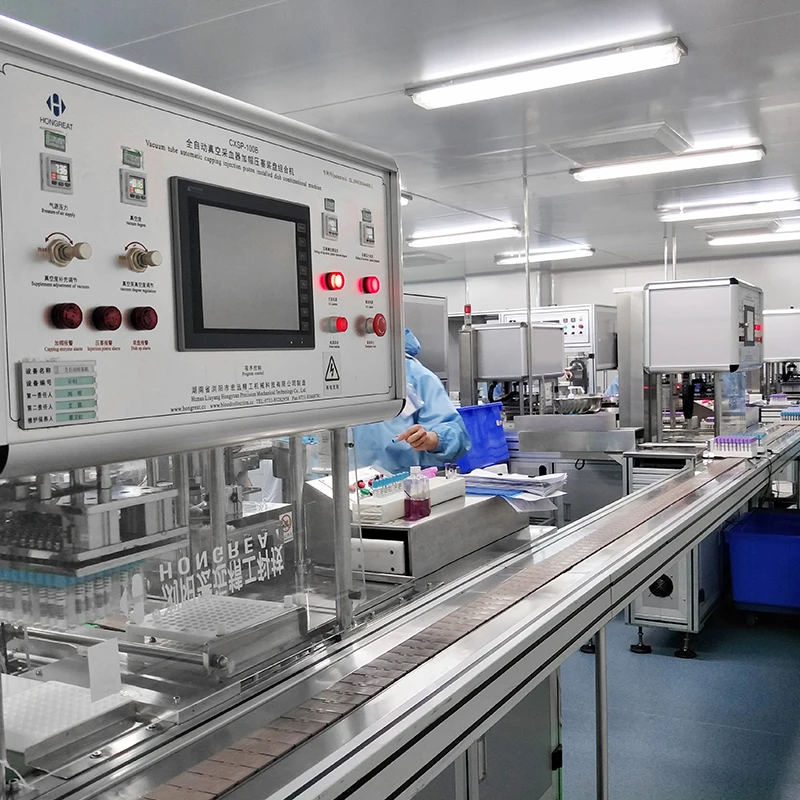

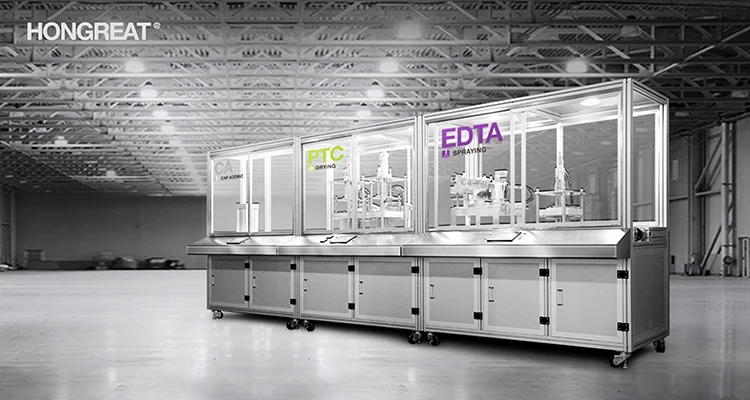

Hongreat Automatic Vacuum Blood Collection Tube Machine
• Application: Full automatic production line for blood collection tube (vacuum & non-vacuum).
• Process flow: Labeing→ Tube loading→ Reverse tube detection→ EDTA / BCA /Sodium citrate / Heparin praying→ Drying→ Cap adding→ Vacuuming→ Foam tray loading→ Sealing & shrinking packaging→ Finished product.
• Process flow: Labeing→ Tube loading→ Reverse tube detection→ EDTA / BCA /Sodium citrate / Heparin praying→ Drying→ Cap adding→ Vacuuming→ Foam tray loading→ Sealing & shrinking packaging→ Finished product.
Production capacity | 10,000-12,000 pcs/h |
Tube size | Ø13*75mm, Ø13*100mm (available for PET, PP, Glass) |
Cap size | Outer Ø16±0.05*19mm+0.1 |
Control way | Touch screen operation, PLC Control |
Dosing system | 10 sets of precision ceramic metering pump for EDTA K2/K3/Heparin; 10 sets of metering valve for BCA 5 sets of precision ceramic metering pump for Sodium citrate; |
Drying system | 3 sets of “PTC” dust-free drying system |
Detecting system | Reverse tube detection before additive dosing-spraying Alarm function in case of lack of foam tray storage. |
Vacuum degree | Numerical control for vacuum pressure, Frequency conversion control for vacuum pump |

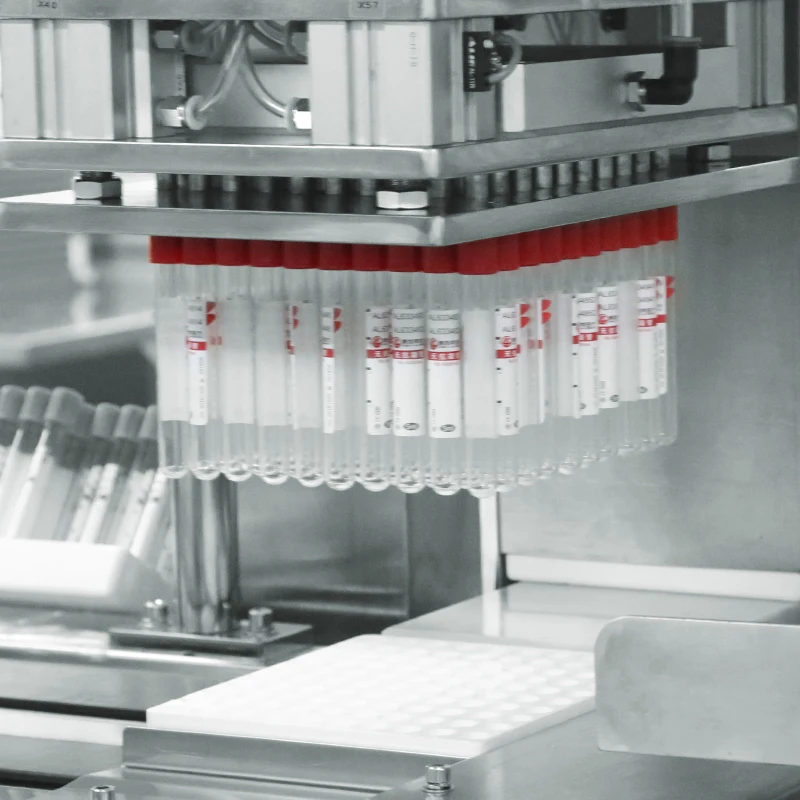

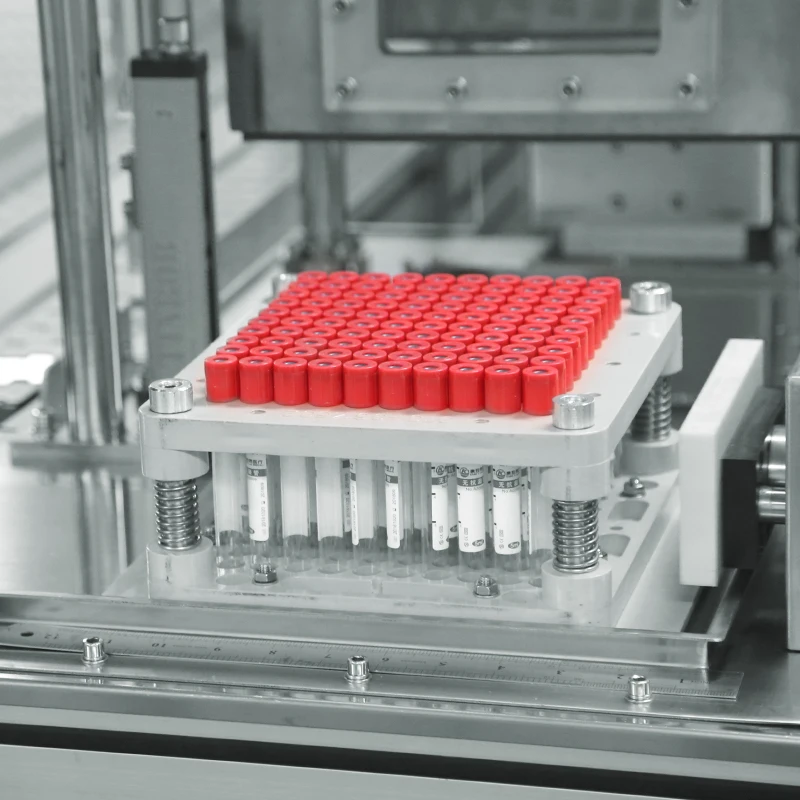

Configurations | 1) Reverse tube detection 2) EDTA Precision Dosing 3) BCA Precision Dosing 4) PTC Dust-free Drying 5) Capping (with electric cap feeding system) 6) NC Vacuuming and Cap-pressing 7) Foam Tray Loading 8) Sealing & shrinking packaging |
Air consumption | Max. 1m3/min; Air supply pressure P: 0.7Mpa≤P≤1Mpa |
Power | 30KW/AC380V |
Our Customers

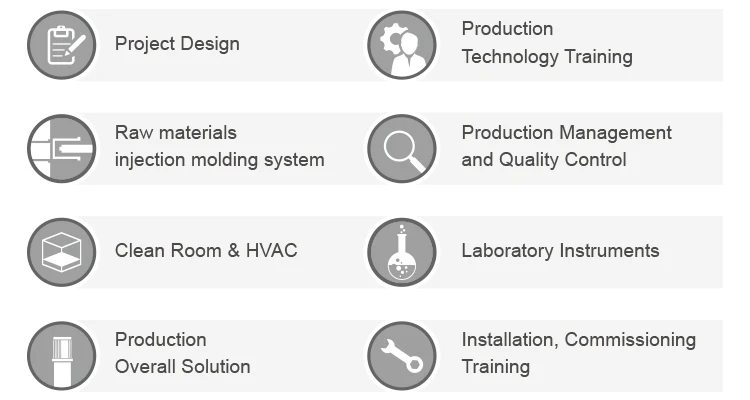

Turnkey Project
Turnkey Project
Provide overall solution from A-Z
Company Profile
First Manufacturer
For Blood Collection Tube Automatic Production Line in China
Since 2003, HONGREAT designed the FIRST set blood collection tube automatic production machine successfully. We continuously concentrate ourselves on automation research and development & being the leading company for blood collection tube production line with the best products & services. We are the preferred choice for over 189 global enterprises.
Why Choose Us
WHY CHOOSE HONGREAT
The Preferred Brand
for blood collection tube production Overall solution
