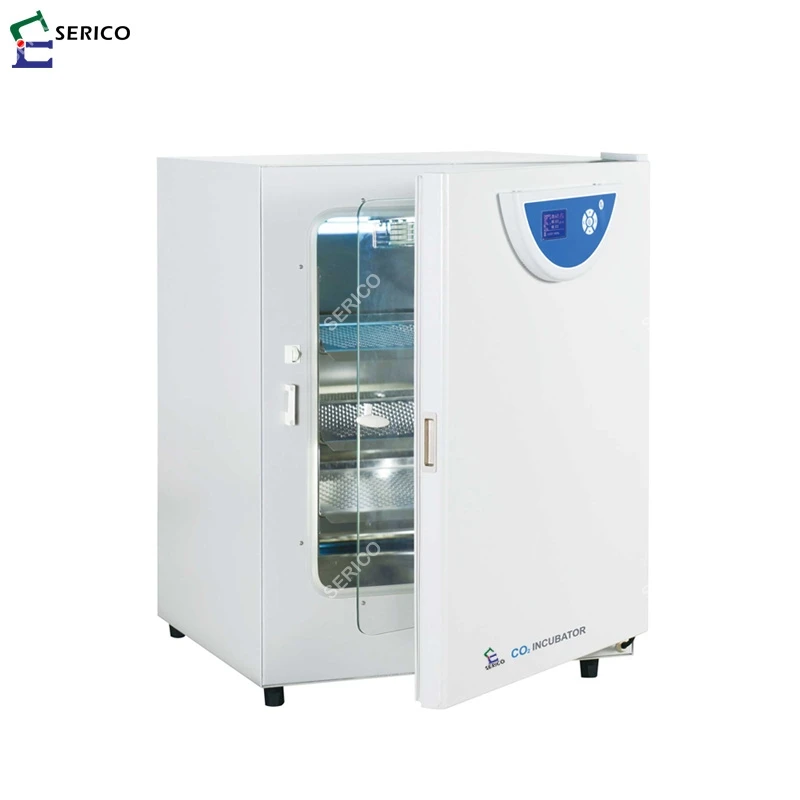

SERICO 80L Automatic CO2 Incubator heracell Model BPN series 55Celsius 20% / 0.1% IR sensor

Product Overview

Description

SERICO 80L Automatic CO2 Incubator heracell Model BPN series 55Celsius 20%+/-0.1% IR sensor







Item No: 20131147-49, 53,54



Features:

1. Co2 concentration Restoration Speed

2. Polished stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable.

3. Microorganism filter at inlet provides 99% filtration of bacteria and dust(dia.<0.3um) and supplies pure Co2 into the incubator.

4. Door temperature controller prevents dewfall on glass door of incubator effectively.

5. Independent audible and visible temperature-limiting alarm system ensures experiments run safely.

6. Alarm function for temperature difference, Co2 over concentration and concentration difference, door open time, UV working status.

7. Auto-controller of fan speed to prevent damage to the samples

8. Hot air sterilizing circulation system

9. UV light system for periodic sterilization of chamber(Option)

10. RS-485 Connector: easy to download and save all the data via RS-485 into computer, and identify problems in time.

11. PID controller with large LCD screen ensures precise and reliable control.



Specifications



Model	BPN-40CRH	BPN-80CRH	BPN-150CRH	BPN-190CRH	BPN-240CRH
Electrical Requirement	220V 50HZ
Power Consumption	350W	500W	750W	750W	950W
Heating Method	Air-jacketed, PID Control
Temperature  Range	RT+5~55℃
Ambient Temperature	RT+5~30℃
Temperature Stability	±0.1℃
CO2 Range	0~ 20%
CO2 Control Resolution	±0.1%(IR sensor)
CO2 Recovery	(Door open 30s,recovery to 5%)  ≤ 3min
Temperature Recovery	(Door open 30s,recovery to 37℃ )  ≤ 8min
Humidity Method	Natural vaporization  >95%
Chamber Volume	40L	80L	155L	191L	233L
Interior Dimension (mm)W×D×H	400x286x350	400×400×500	480×530×610	520x530x690	600×630×670
Exterior Dimension (mm)W×D×H	590x440x576	590x687×790	670×767×880	708x710x1030	788×837×940
Shelves	2(pcs)	2(pcs)	3(pcs)	3(pcs)	3(pcs)







Options:

Humidity Display

CO2 pressure releasing valve

RS485 connector
