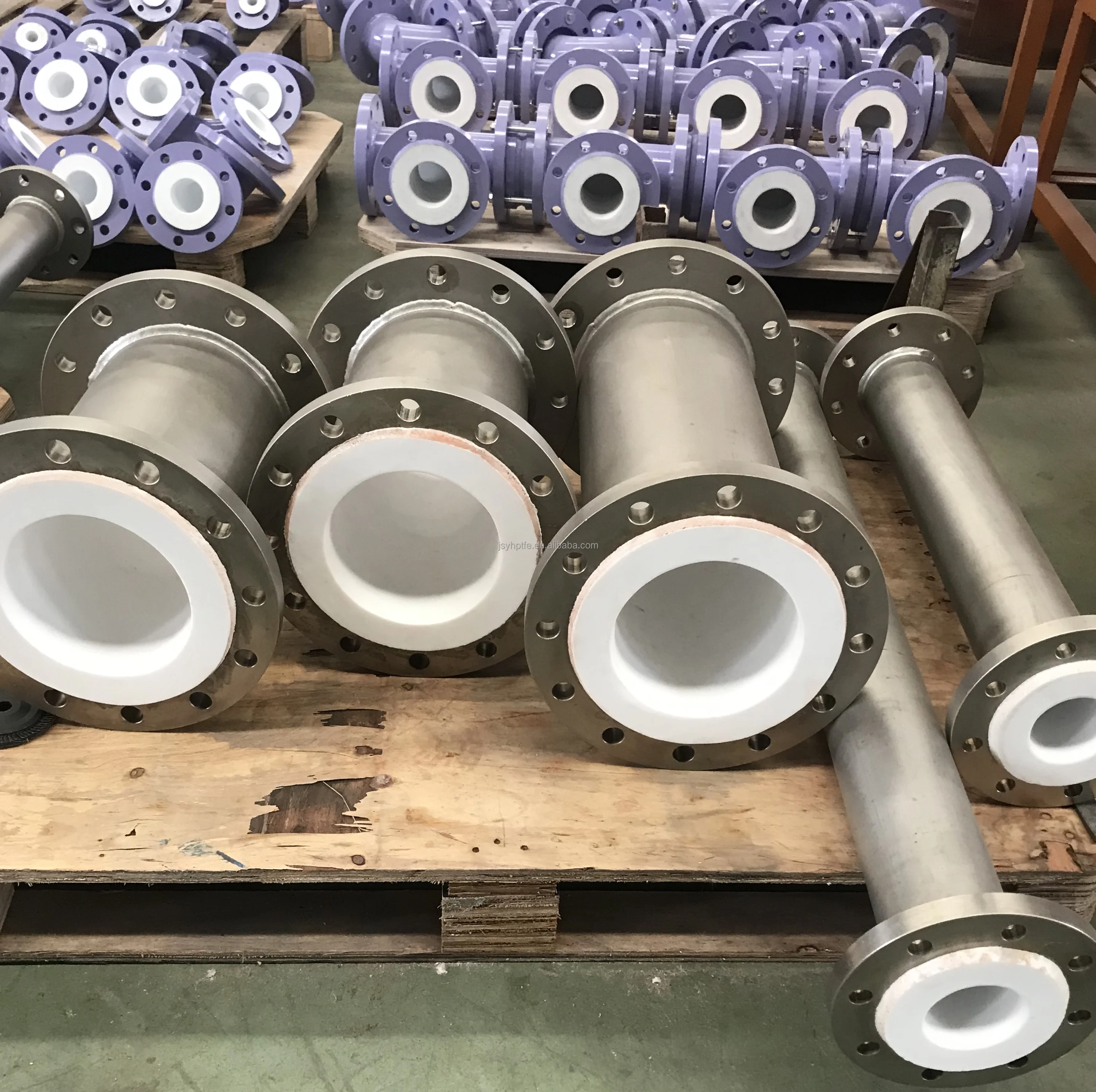

Steel lining PTFE/PFA Anticorrosion equipment Pipe fittings Carbon Steel Plastic PTFE Molded Lined Coated Steel Pipe
Steel lining PTFE/PFA Anticorrosion equipment Pipe fittings Carbon Steel Plastic PTFE Molded Lined Coated Steel Pipe
Steel lining PTFE/PFA Anticorrosion equipment Pipe fittings Carbon Steel Plastic PTFE Molded Lined Coated Steel Pipe
Steel lining PTFE/PFA Anticorrosion equipment Pipe fittings Carbon Steel Plastic PTFE Molded Lined Coated Steel Pipe
Steel lining PTFE/PFA Anticorrosion equipment Pipe fittings Carbon Steel Plastic PTFE Molded Lined Coated Steel Pipe
Steel lining PTFE/PFA Anticorrosion equipment Pipe fittings Carbon Steel Plastic PTFE Molded Lined Coated Steel Pipe
Steel lining PTFE/PFA Anticorrosion equipment Pipe fittings Carbon Steel Plastic PTFE Molded Lined Coated Steel Pipe

Steel lining PTFE/PFA Anticorrosion equipment Pipe fittings Carbon Steel Plastic PTFE Molded Lined Coated Steel Pipe

Share on (1600204559232):


Price:$26.00 - $35.00

Quantity:


Product Overview

Description



Specification


PTFE Lining Feature
PTFE whole mold sinter: in this product process, the steel part work as mold, PTFE was molded by high pressure, it would be anintegrated steel part after sinter. It shows feature: whole seamless, high-temperature resistance, corrosion resistance,high-pressure resistance, anti-infiltration, anti-vacuum, variable structure allowed, suitable for pipes DN<1000mm.
PTFE extruded pipe-tight lining: corrosion resistance, high-pressure resistance, anti-infiltration, high-temperature resistance, slightly worse anti-vacuum, good for straight pipe <300mm
PTFE on site-adhesive: corrosion resistance, high-pressure resistance, anti-infiltration, high-temperature resistance, slightly worse anti-vacuum, suitable for large tank.
ETFE,PO roll lining: corrosion resistance, high-pressure resistance, anti-infiltration, anti-vacuum, slightly worse
high-temperature resistance, variable structure allowed, whole seamless, suitable for device DN<6000mm.


item
value
Place of Origin
China
Jiangsu
Brand Name
YIHAO
Model Number
PTFE linIng
Plastic Modling Type
Blow Molding
Processing Service
Moulding, Cutting
PTFE Work temperature
-50~240℃
ETFE Work temperature
-65~150℃
PO Work temperature
-60~100℃
Work pressure
-0.09~2.5MPa


Application: 1.lined pipe nominal diameter is steel pipe diameter, the available diameter will be less than nominal diameter after lining.
2.Less movable flange selected as it could for easy installation and safe operation.
3.The seal surface of flange lining was machined or leveled, suggest no washer between flanges.
4.Standard length is 3000, 2000, 1000mm. length tolerance is 0~2mm, verticality tolerance is 0~30'.
Specification: Work temperature:-50~240℃
Work pressure:-0.09~2.5MPa
Metric DN:25~1000mm
F4 mold thickness:2~8mm
Adjust part thickness:20~50mm
PTFE washer thickness:3~6mm


Metric DN
F4 thick mold thickness (Tightly lined)
Hot roll lining thickness
Adjust part thickness
Flange cover thickness
PTFE washer thickness
25
3(2)
2.5
20~50
Accord to standard thickness of referred flange
3
32
3(2)
2.5
20~50
3
40
4(2.5)
2.5
20~50
3
50
4(3)
3
20~50
3
65
4(3)
3
20~50
3~4
80
5(3)
3
20~50
3~4
100
5(4)
3
20~50
3~4
125
5(4)
3
20~50
3~4
150
5(4)
3
20~50
3~5
200
6(4)
3.5
20~50
3~5
250
6(4)
3.5
20~50
3~5
300
6(4)
3.5
20~50
3~6
350
6(4)
3.5
20~50
3~6
400
7(4)
3.5
20~50
3~6
450
7(4)
3.5
20~50
3~6
500
7(4)
3.5
20~50
3~6
600
7(4)
3.5
20~50
3~6
700
8(4)
3.5
20~50
3~6
800
8(4)
3.5
20~50
3~6
900
8(4)
3.5
20~50
3~6
1000
8(4)
3.5
20~50
3~6


Product Description






Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

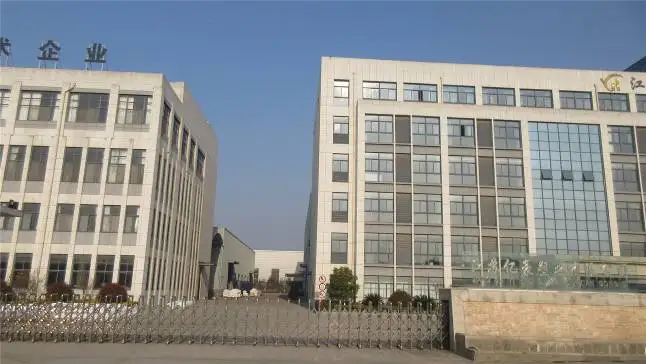

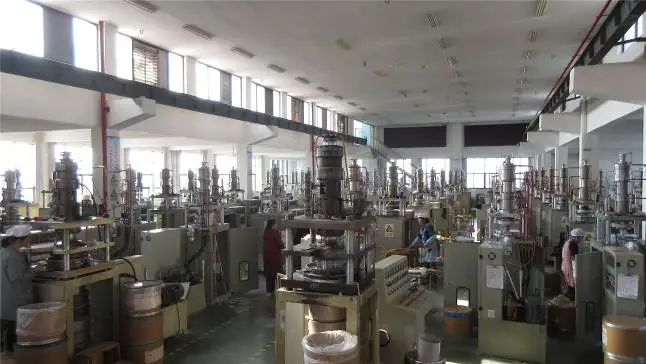

Company Profile








Most of the pipes designed and developed by Jiangsu Yihao Fluorine Plastic Manufacturing Co.,Ltd. are mostly supplied by OEMs to the UK, France, the United States, Germany and many other companies. The factory is located in Yancheng, the beautiful coast of the Yellow Sea. Founded in 2007, it has 150 sets of special equipment and 100 special pipelines. The factory continues to operate in ISO9001:2000 quality system.


FAQ


1. who are we?
We are based in Jiangsu, China, start from 2013,sell to Domestic Market(00.00%),Africa(00.00%),Eastern Asia(00.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Fluoroplastic Pipe,PTFE Pall Ring,PTFE Rasching Ring,PTFE Ladder Ring,Steel Lining PTFE Pipes

4. why should you buy from us not from other suppliers?
We mainly produces all kinds of PTFE lined pipes and fittings, PTFE lined tank, tower vessels and ptfe lined globe valve .All kinds of Teflon pipes, gaskets, rasching ring and other fillers; all kinds of PTFE lined tube,elbow,tees, stainless steel lined

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,DDP；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
