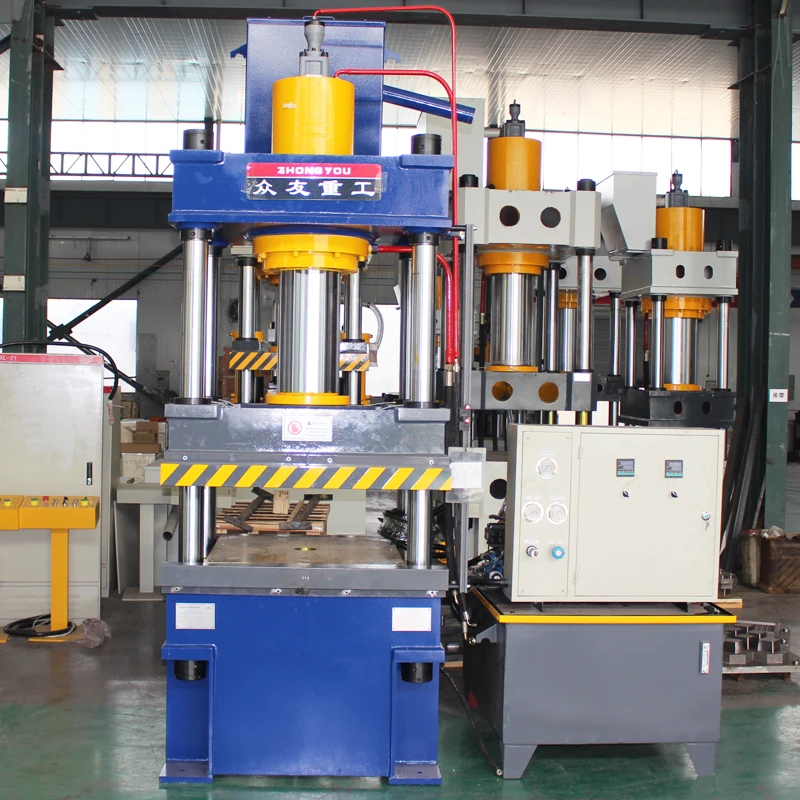

150/200/250 Ton Hydraulic Heat Press with Electric Heating Plate for SMC/FRC/BMC Manhole Cover Four Columns Hydraulic Press 50
- Category: >>>
- Supplier: Zhongyou Heavy Industry Machinery Equipment Co. Ltd.
Share on (1600204683955):
Product Overview
Description
150/200/250 ton Hydraulic Heat Press with Electric Heating Plate for SMC/FRC/BMC Manhole Cover
Specification:

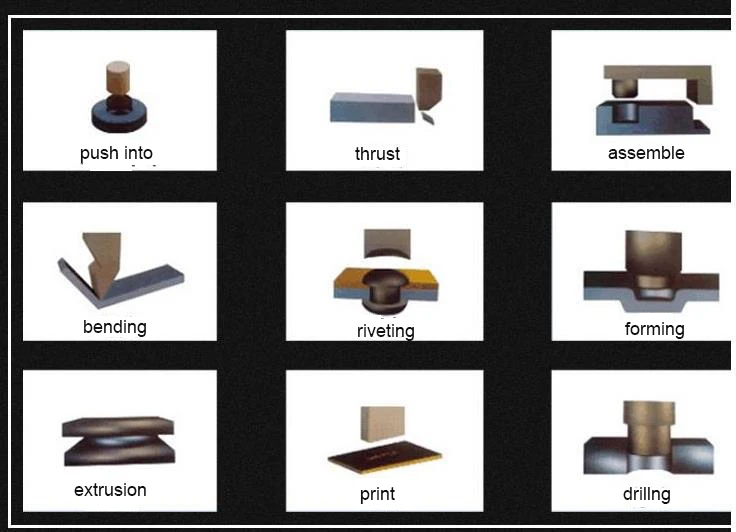

SMC Hydraulic Heat Press machine applies to plasticity material suppress technology ,for instance : punching ,bend ,flange thin stretch etc .It can also be engaged in rectification ,press fitting ,the suppress and shaping of plastic products and power production .
Economical and practical ,hydraulic control adopts to insert set valve integrated system ,decrease let out point ,movement reliability ,durable and long life span .It is constant pressure to realize with calm in the first place and calm procedure two develop technology ,have to insure press the function of delay time .The route of working pressure may be regulated in assigned scope ,adopt buttons for centralized control , can realize 3 kinds operation forms for manual ,semi-automatic ,automatic .
Parameters
Our full range of products are customizable processing, the specific specifications according to your actual customer needs, if there is no special requirements, can refer to the following table:
| Specification | Unit | YQ41-100 | YQ41-160 | YQ41-200 | YQ41-250 |
| Nominal Force | Kn | 1000 | 1600 | 2000 | 2500 |
| Effective Stroke | Mpa | 320 | 360 | 400 | 400 |
| Opening Height | mm | 700 | 800 | 1000 | 1000 |
| Throat Depth | mm | 280 | 320 | 360 | 420 |
| Slider block descending speed | mm/s | 10 | 13 | 15 | 15 |
| Slider Block returning speed | mm/s | 13 | 20 | 20 | 20 |
| Working table effective size( L-R) | mm | 700 | 700 | 800 | 900 |
| Working table effective size(F-B) | mm | 500 | 600 | 700 | 800 |
| Blanking Hole Diameter | mm | 200 | 200 | 220 | 220 |
Product Description

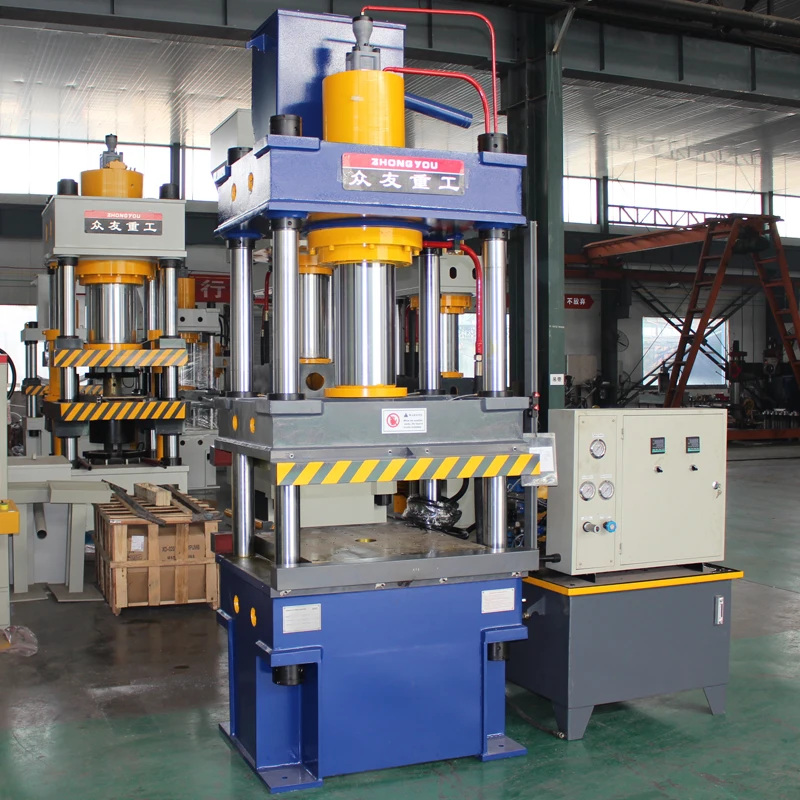

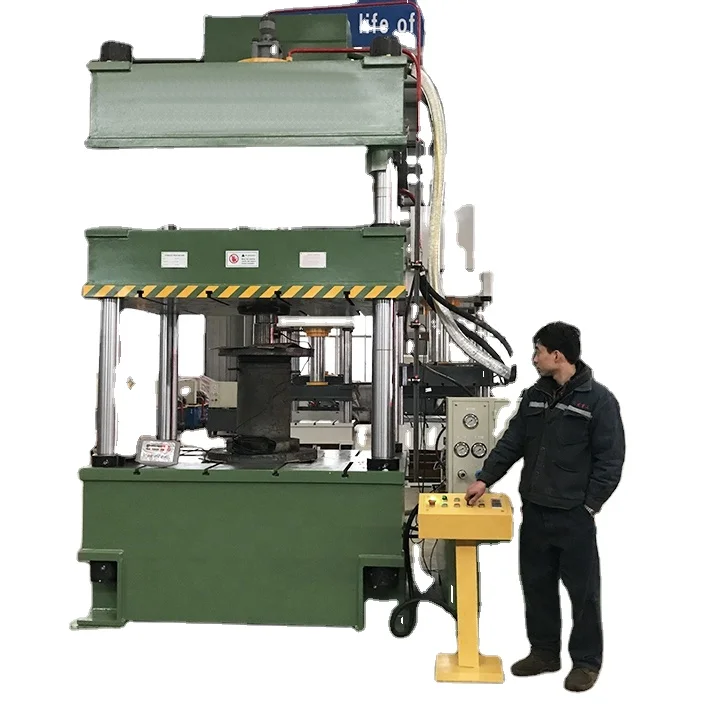

100Ton 150 ton 200ton hydraulic heating press machine
It adopt intellegient structure
The frame is entirely welded with steel plates and treated to relive stress by tempering.
Cartridge valve equipped for hydraulic control system, reliable, durable and less hydraulic
shock, shorter connection pipeline and fewer release points.
Hydraulic system adopt pressure pre-release device,low impact of hydraulic pressure.
Independent electrical control, reliable,audio-visual and convenient for maintenance.
Centralized button control system,with adjustment,hand and semi-auto operateion modes at
operator’s choice(semi-automatic has two type tech:set-stroke single and set-presser single).
The operating force, no-load traveling and, low-speed movement and travel range can be adjusted subject to technological requirements

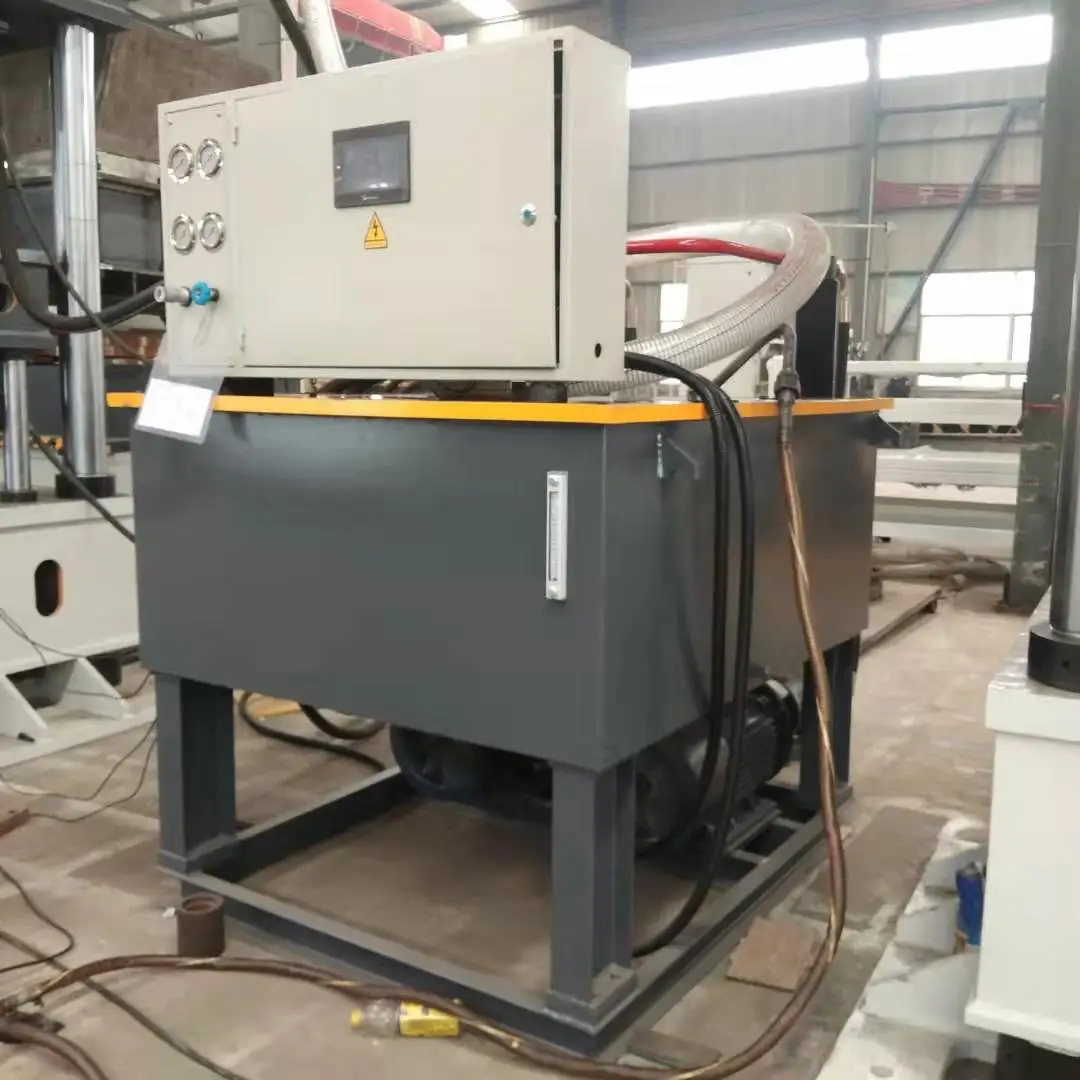

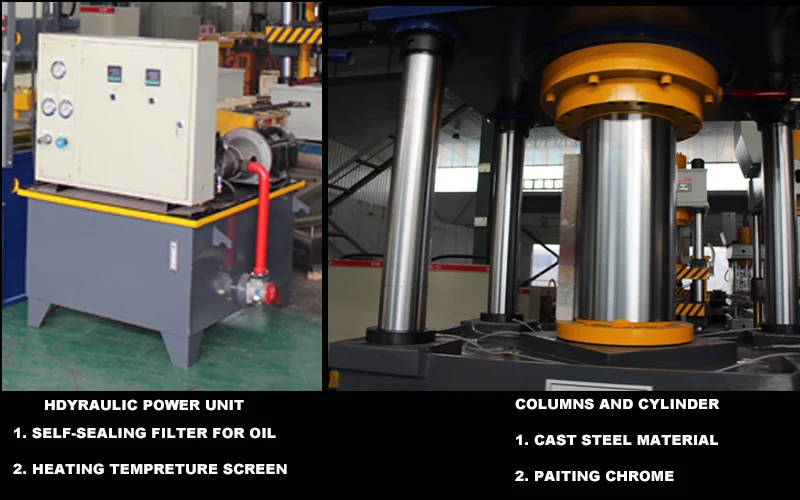

Accessory & Parts

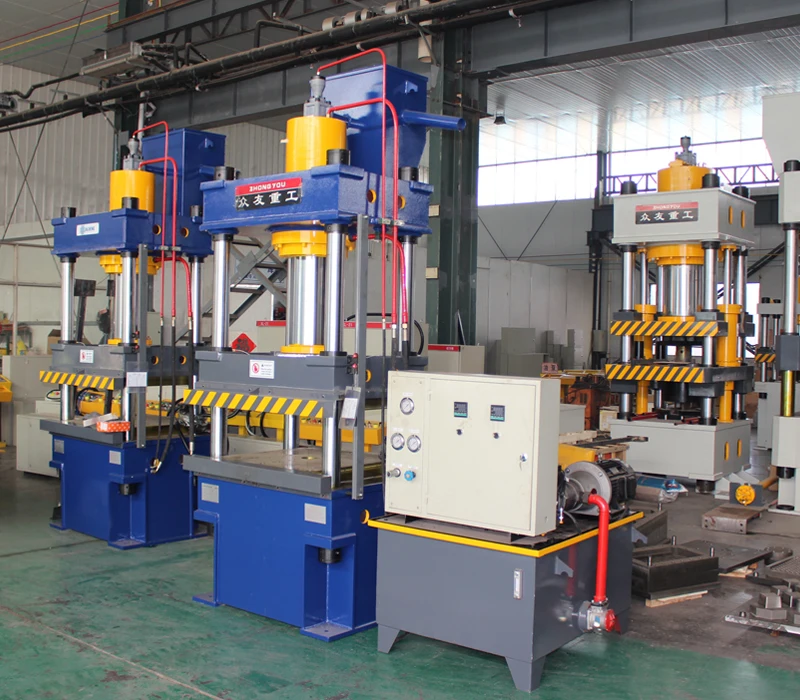

Hydraulic Heating press SMC and BMC Hydraulic press machine details

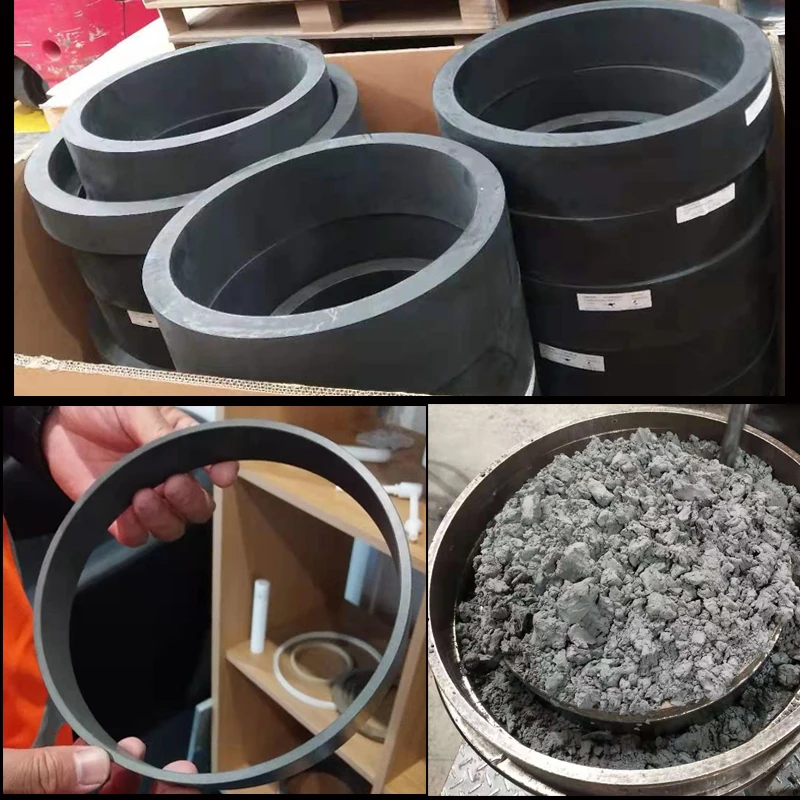

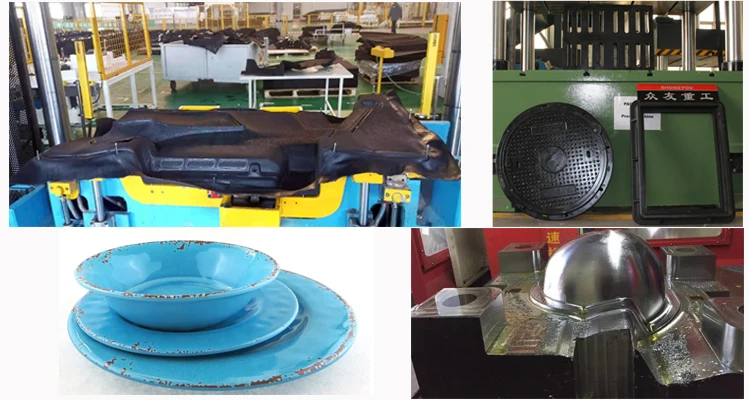

Samples &Application
SMC hydraulic press machine is"Versatile", with four column hyraulic press machine we can get a series of products, including thermosetting products, powder products. For example , Saltblock, Bath Bomb , Seed Tray, Aluminum Foil Container, Souvenir coin, Wheel Barrow, SepticTank, Manhole Cover, Stainless Steel Cookware, Kitchen Sink and Car Brake Pad.Now take car parts for example , images as follow:
Packaging & Shipping
Packaging Details for SMC hydraulic press machine:
- Packaging Details
Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport. - small metal stamping press machine
- Delivery Time
- Shipped in 30-35 days after payment

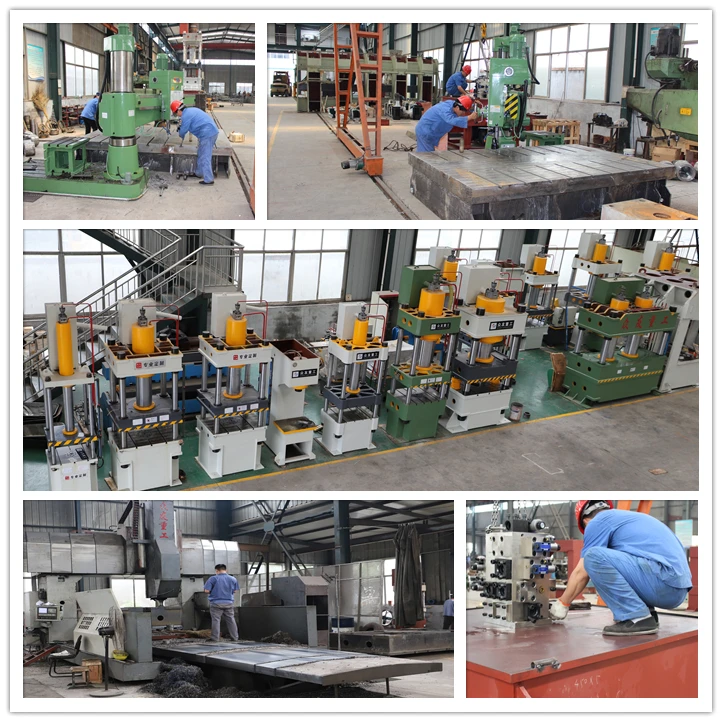

Our Company
The company is a professional hydraulic press, press, four-column hydraulic machine, automatic BMC/SMC hydraulic HEATING press machine, gantry press equipment research and development, design and manufacturing and marketing services of private enterprises.The company relies on a strong economic strength, advanced sophisticated professional production equipment, strong technical force, and a standardized enterprise management system model to operate.
Certificates:
Contact
FAQ:
Whether the independent production and processing?
YES!
We have been done it for 16 years in the Hydraulic Press Machine field.
Whether to provide technical support?
YES!
We can provide free design, drawings manuals, and even technical staff overseas field guidance when needed.
Whether allowed to put my logo on ?
Sure!
whole press customized.
Whether to accept the site inspection?
Sure!
address:
Economic Development Zone Industrial North Road ,TengZhou ,ShanDong province in China.
You may contact us when arriving in TengZhou CITY.
Whether the motor voltage can be changed?
sure!
machine motors installed as your voltage.
Whether it is prone to problems?
NO!
Electric welding of high precision Usage of high-tech boring machines for extreme precision parts
Production workers have rich experience over the years
Each of the factory products after repeated testing adjustment
