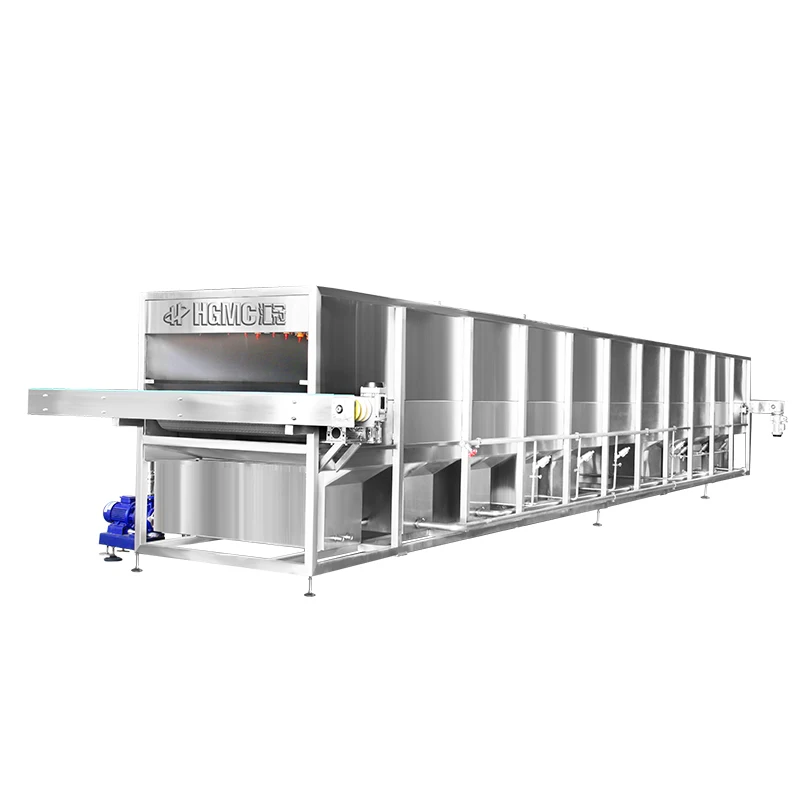

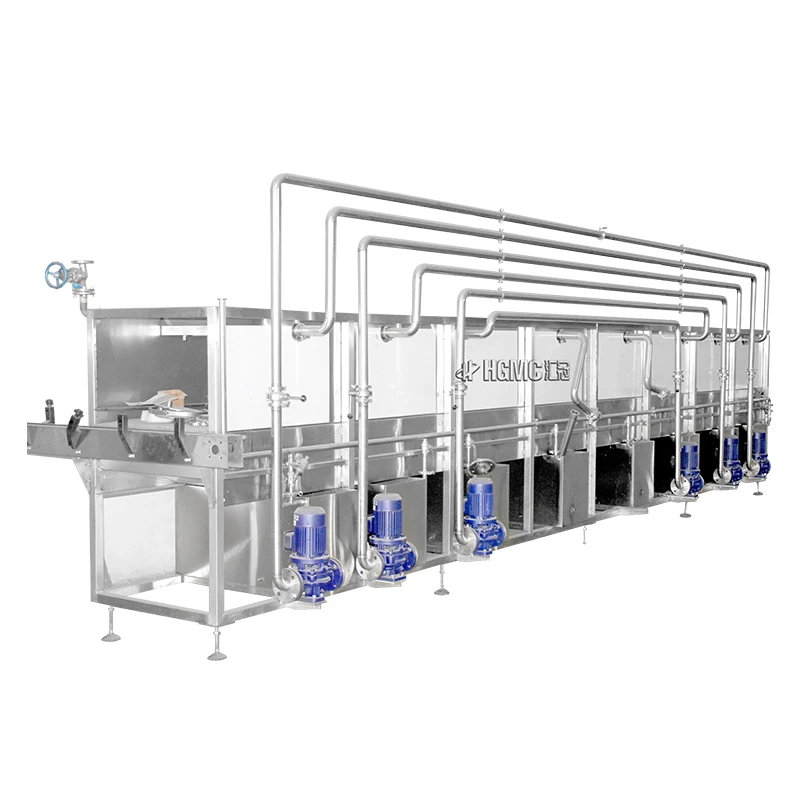

Горячая Распродажа, машина для пастерилизации томатной пасты, туннельный стерилизатор для сока, пивных бутылок, пастеризатор
- Category: Pasteurizer >>>
- Supplier: Shandong HG Machinery Co. Ltd.
Share on (1600204887480):
Product Overview
Description
Hot selling tomato paste pasteurizer machine sterilizer tunnel juice beer bottle pasteurizer
Model | HG-SJ-2000 |
Capacity | 2000BPH |
Quantity of Temp area | 8 set |
Final temperature outlet the machine | 20~35℃ ( it can be changed according customer’s situation) |
Width of mesh belt | 1250mm |
Total power of motors | 18.75kw |
Power of speed reducer on mesh-belt conveyor | 1.5kw |
Power of speed reducer on bottle input conveyor | 0.37kw |
Power of speed reducer on bottle output conveyor | 0.37kw |
Power of centrifugal pumps (8sets) | 0.55×8=4.4kw |
Net weight of the machine | 2800kg |
Overall dimensions | Customized |

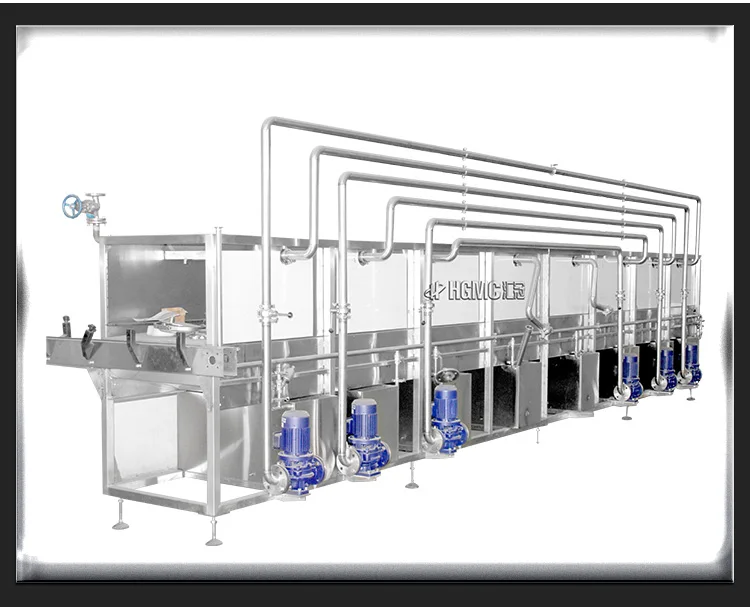

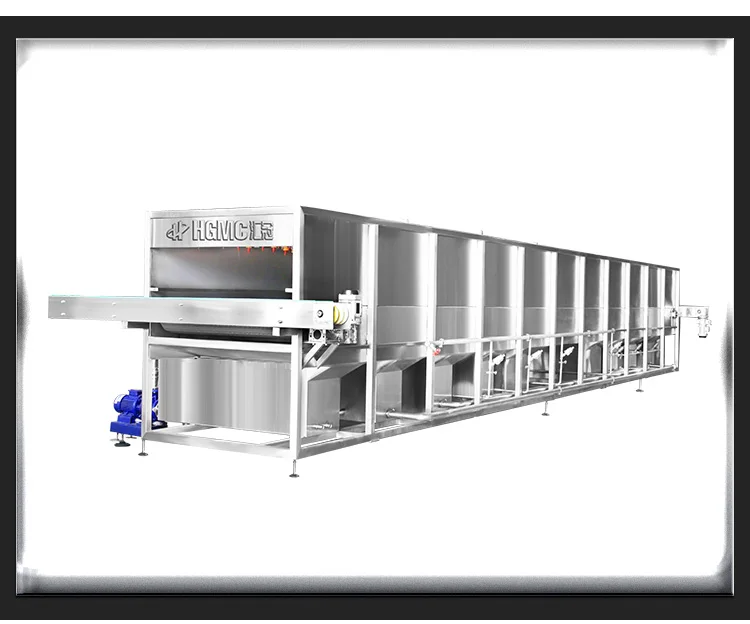

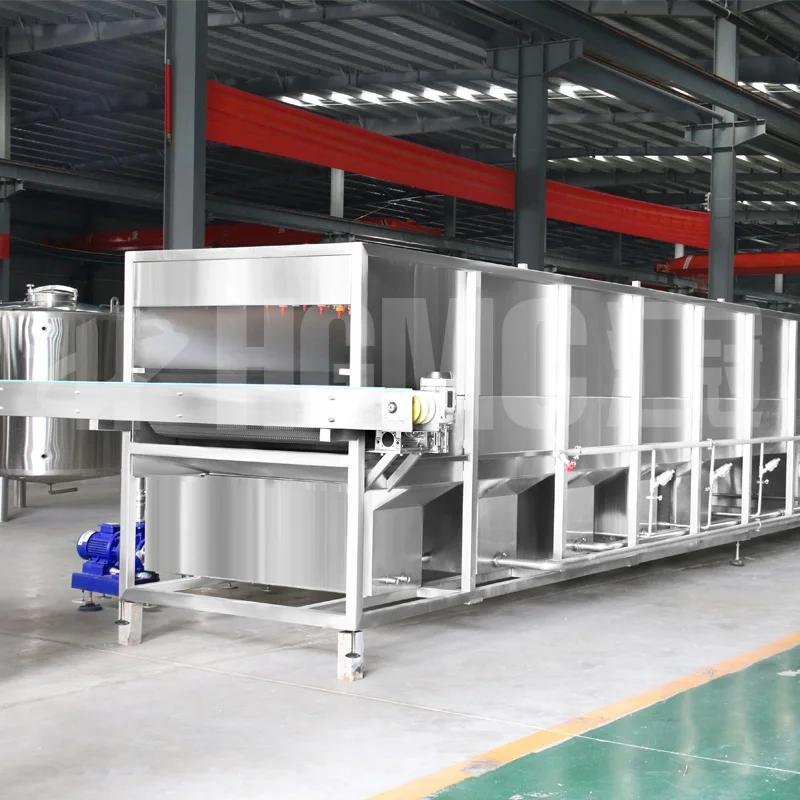

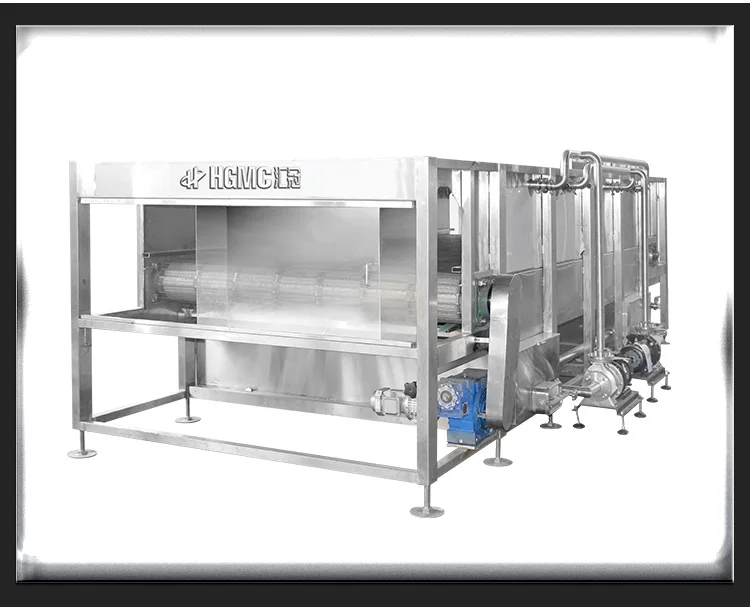

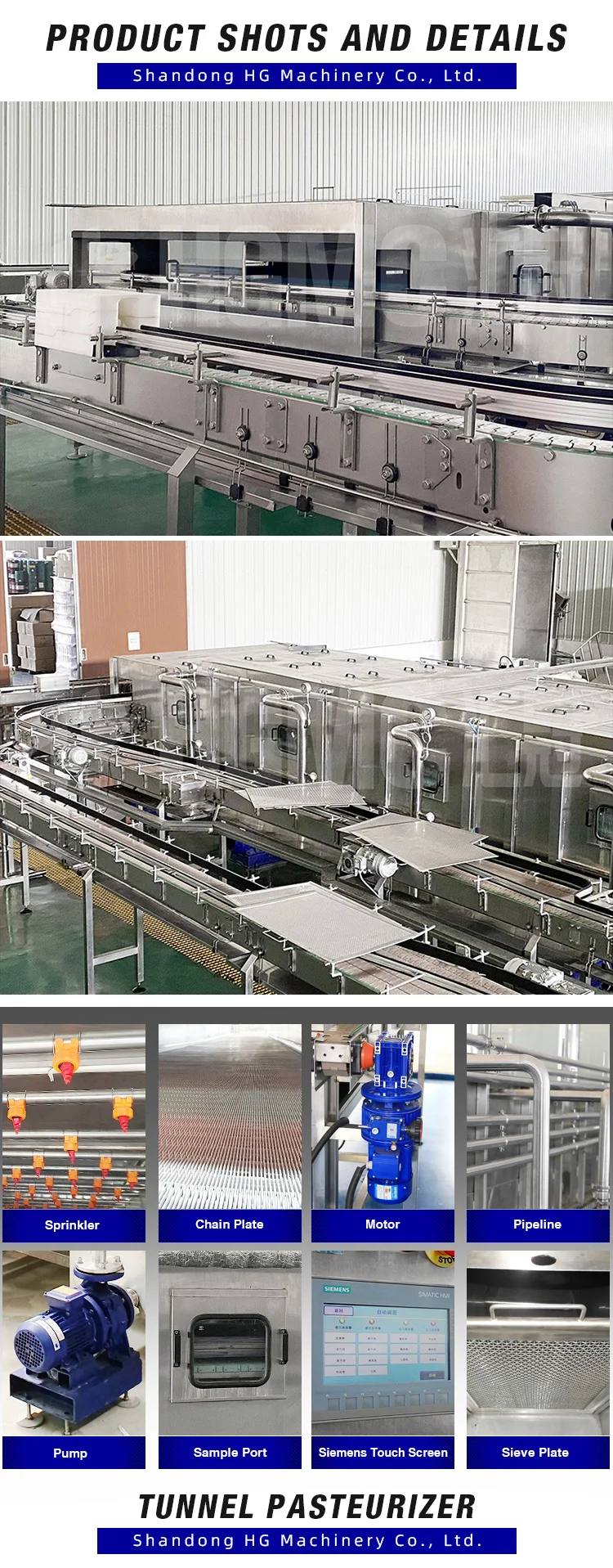

Tunnel Pasteurizer
Tunnel Pasteurizer is widely used in beer factory to sterilize the beer with the bottle or cans. It is also called water spraying
type bottle warming/cooling machine. Different from directly heating type flash sterilizing machine, this series Tunnel
Pasteurizer could sterilize liquid product together with its package (glass bottle or PET bottle or can). It can kill all bacteria
which possible exist in liquid product or package. Liquid product and its package are heated to sterilizing temperature, keep this
temperature for a certain time, and then drop temperature to surrounding temperature by spraying cool water onto package.
type bottle warming/cooling machine. Different from directly heating type flash sterilizing machine, this series Tunnel
Pasteurizer could sterilize liquid product together with its package (glass bottle or PET bottle or can). It can kill all bacteria
which possible exist in liquid product or package. Liquid product and its package are heated to sterilizing temperature, keep this
temperature for a certain time, and then drop temperature to surrounding temperature by spraying cool water onto package.
Advantage：
1、The frame mainly is SUS304, surface is the stainless steel of 304, and the stainless steel frame of 304, the stainless steelfoot margin is adjustable.
2、Optional temperature zones
This equipment has 8 temperature zones, customers can choose any one of the temperature zone. Facilitate the adjustment and save
cost.
3、Adjustable temperature

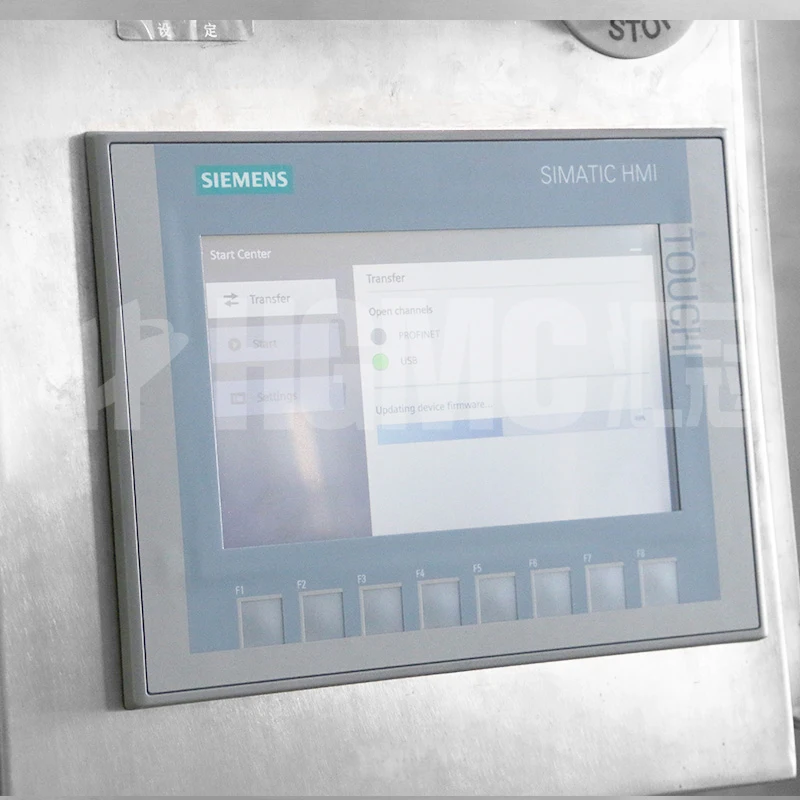

On the PLC control panel, one control button can control one temperature of each zone. The customer can adjust it into any
temperature.
4 、Adjustable speed
It equipped with PLC control panel, customers can be adjusted chain board speed.
5、Equipped with waste treatment system
Q: Are you a manufacturer?
A:Yes, We have more than 20 years in brewing and beer filling equipment.
Q: What is your available port of shipment?
A: Qingdao, Tianjin, Ningbo, Shanghai
Q: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm before production.
Q: How long the warranty will be?
A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries.
1years warranty for filling machine.
Q: How about the installation and training?
A: We can supply the installation and training. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.
Q: How do you guarantee the filling machine operation?
A: Before the delivery, we will test and debug all machines in good condition and record the video for your checking.
A:Yes, We have more than 20 years in brewing and beer filling equipment.
Q: What is your available port of shipment?
A: Qingdao, Tianjin, Ningbo, Shanghai
Q: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm before production.
Q: How long the warranty will be?
A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries.
1years warranty for filling machine.
Q: How about the installation and training?
A: We can supply the installation and training. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.
Q: How do you guarantee the filling machine operation?
A: Before the delivery, we will test and debug all machines in good condition and record the video for your checking.
Our service
1. Manules / Videos of machine installation, adjusting, setting, maintenance are available to you.
2. If any problems occured and you can not find out the solutions, Telecom or Online face to face communication are available around 24 hours.
3. HG engineers & technician are ready to your countries for services if you agree to pay the expenditure.
2. If any problems occured and you can not find out the solutions, Telecom or Online face to face communication are available around 24 hours.
3. HG engineers & technician are ready to your countries for services if you agree to pay the expenditure.
4. The machine will have 1 year warranty. During the warranty year, if any of the parts are not broken because of misoperation, we guarantee to replace free of charge. The warranty will start counting after the machine is sent out and you received the machine.
5. HG company has an independent team for after-sale service. If any emergency please call the saleman or our after-sale's manager.
5. HG company has an independent team for after-sale service. If any emergency please call the saleman or our after-sale's manager.
