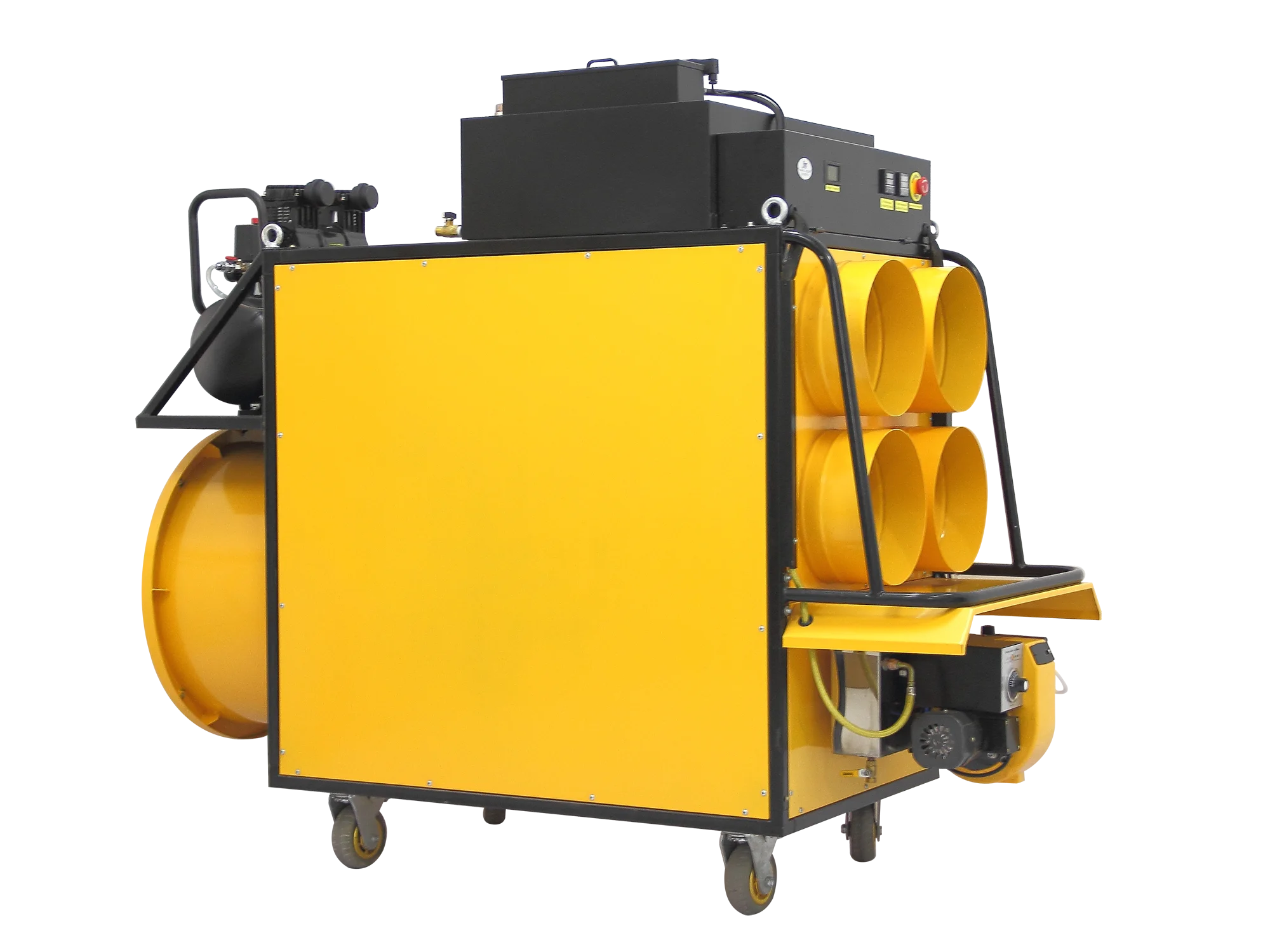

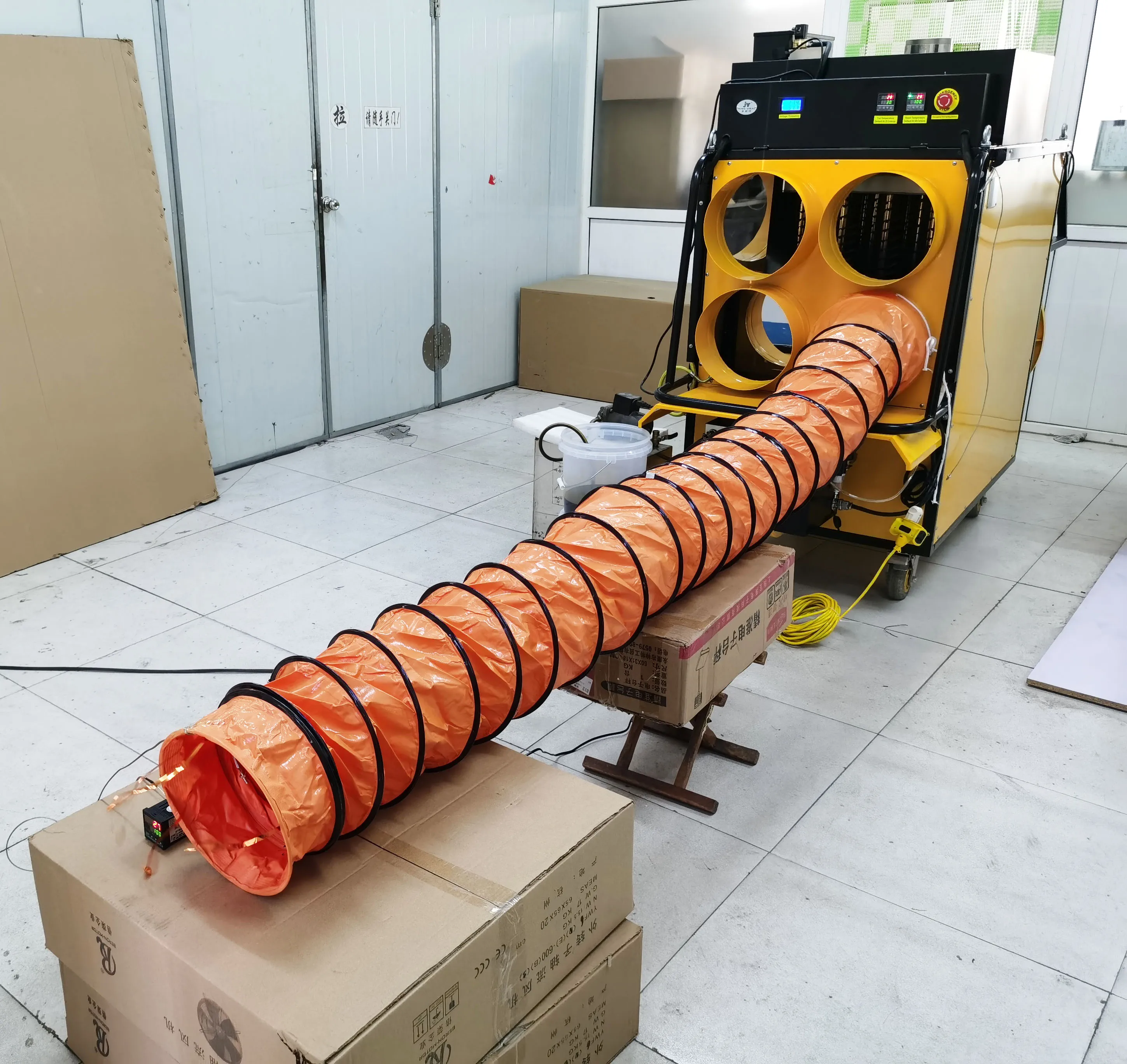

Wood Dryer 100C KVH6000 Hot Air Generator With Waste Engine Oil
- Category: >>>
- Supplier: Qingdao Kingwei Energy Saving Equipment Co. Ltd.
Share on (1600205100352):
Product Overview
Description

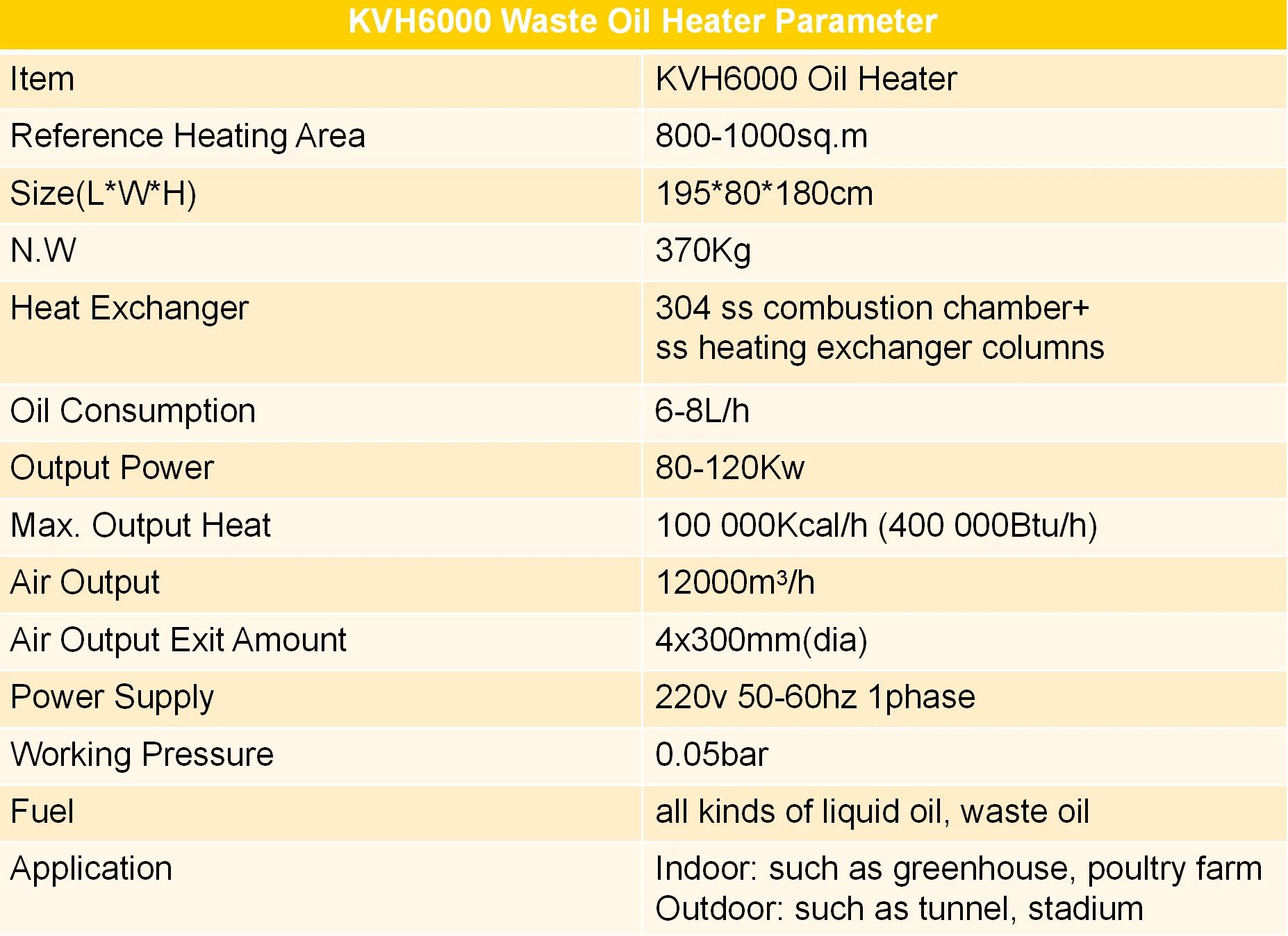

Picture & Parameter
Product Feature

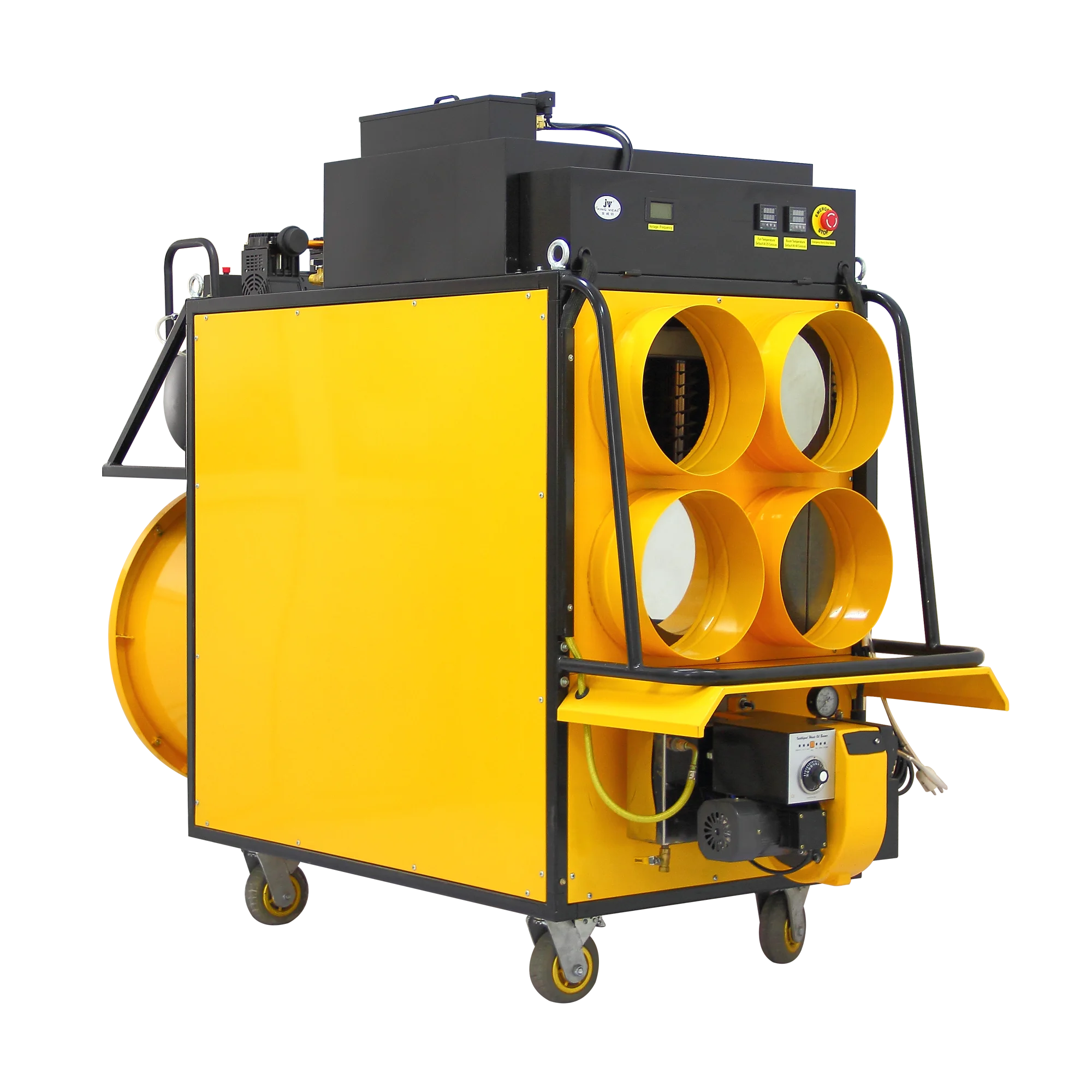

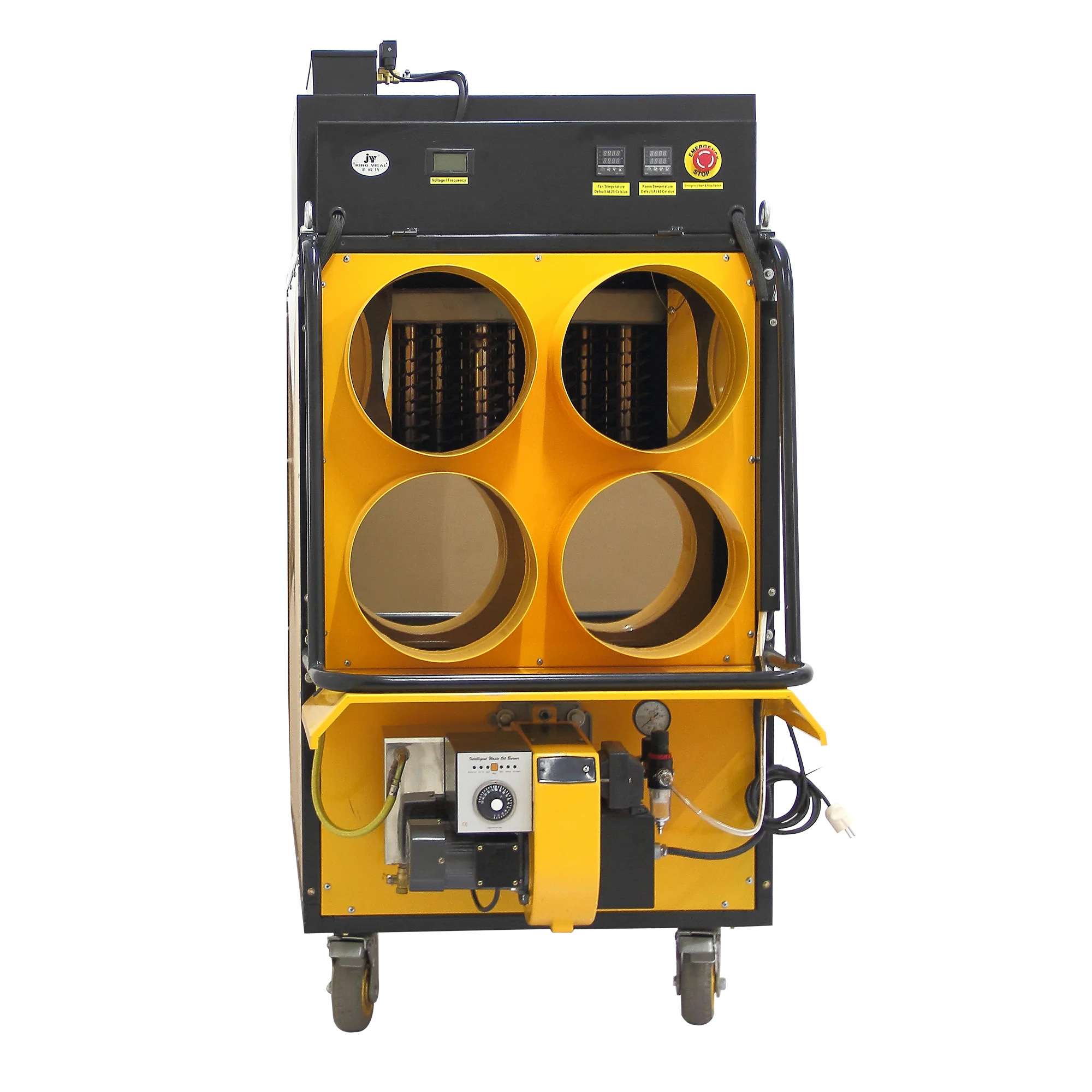

KVH6000 heater has an upgraded blade-type chamber, which leads to higher heat efficiency.
Less oil consumption: 6-8 Liter per hour.
An economical choice for warehouse, factory, etc.
Integrate-

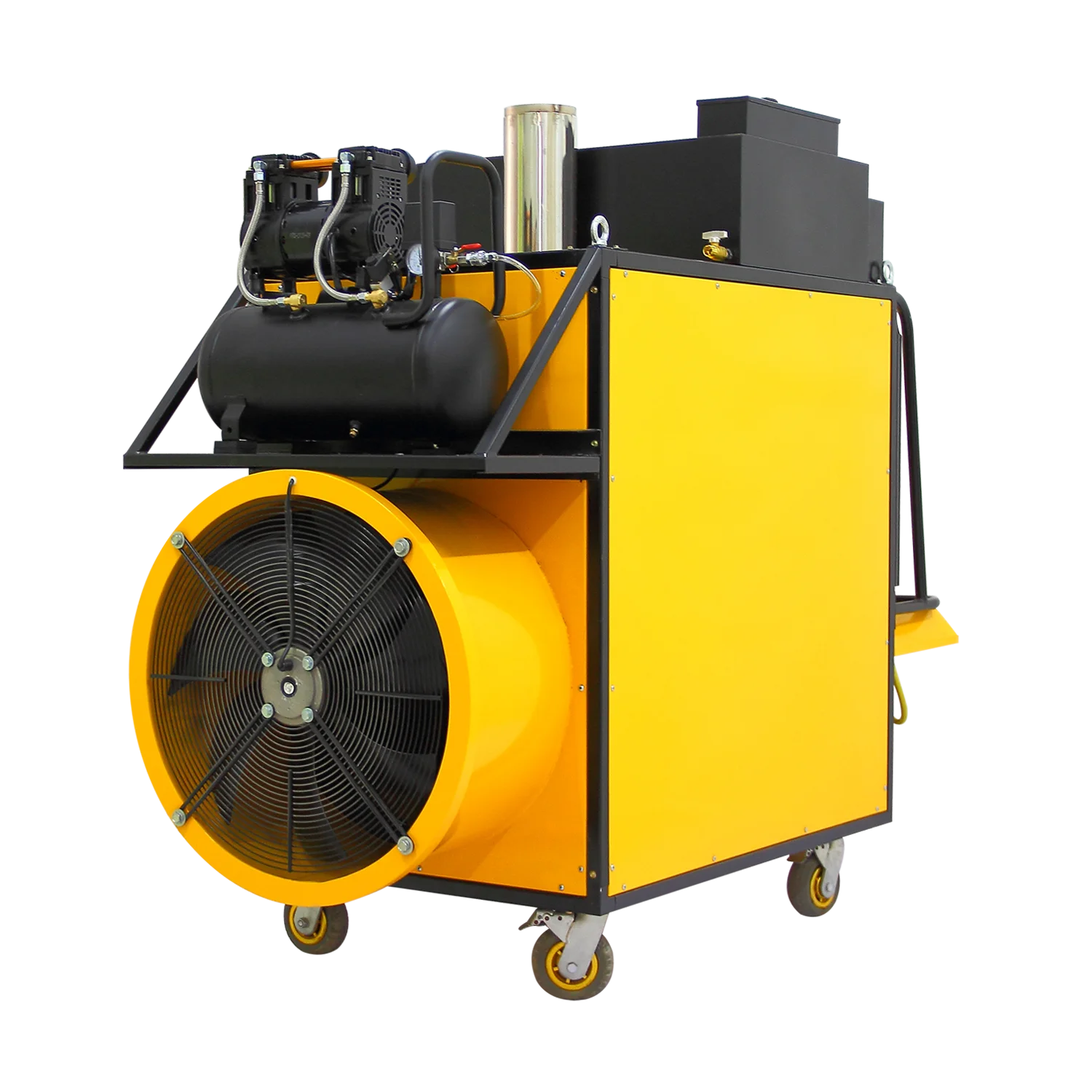

1.We have installed everything for the KVH6000 heater, such as air
1.We have installed everything for the KVH6000 heater, such as air
compressor, 100L oil heating & storage tank, deodorant box, and the whole filter system.You only need to connect with external power (220volt/110volt); KVH5000 will work all by itself.
1.KVH6000 heater can run on all kinds of liquid oil/waste oil with or without impurities, such as waste car oil, soybean oil, diesel oil, etc.
2.KVH6000 has four wheels and brakes; one person is easy to push around.
3. Four air ducts come with the heater for distant heat transfer.
Efficiency-
1.The heater releases warm air within four minutes.
2.The alarm sound comes at once if a malfunction happens.
Safe-
1.KVH6000's combustion chamber is 100% sealed, which means the burner's fire can't go outsides.
2.Fan keeps blowing cool air until the chamber temperature reduces to a certain number.
No smoke-
1.The chamber's chimney connector is 100% sealed with asbestos pads and flanges. So there is impossible to smoke leakage indoors.
2.With the correct setting, the heater can have no smoke outdoor as well.
2.With the correct setting, the heater can have no smoke outdoor as well.
Heater Test

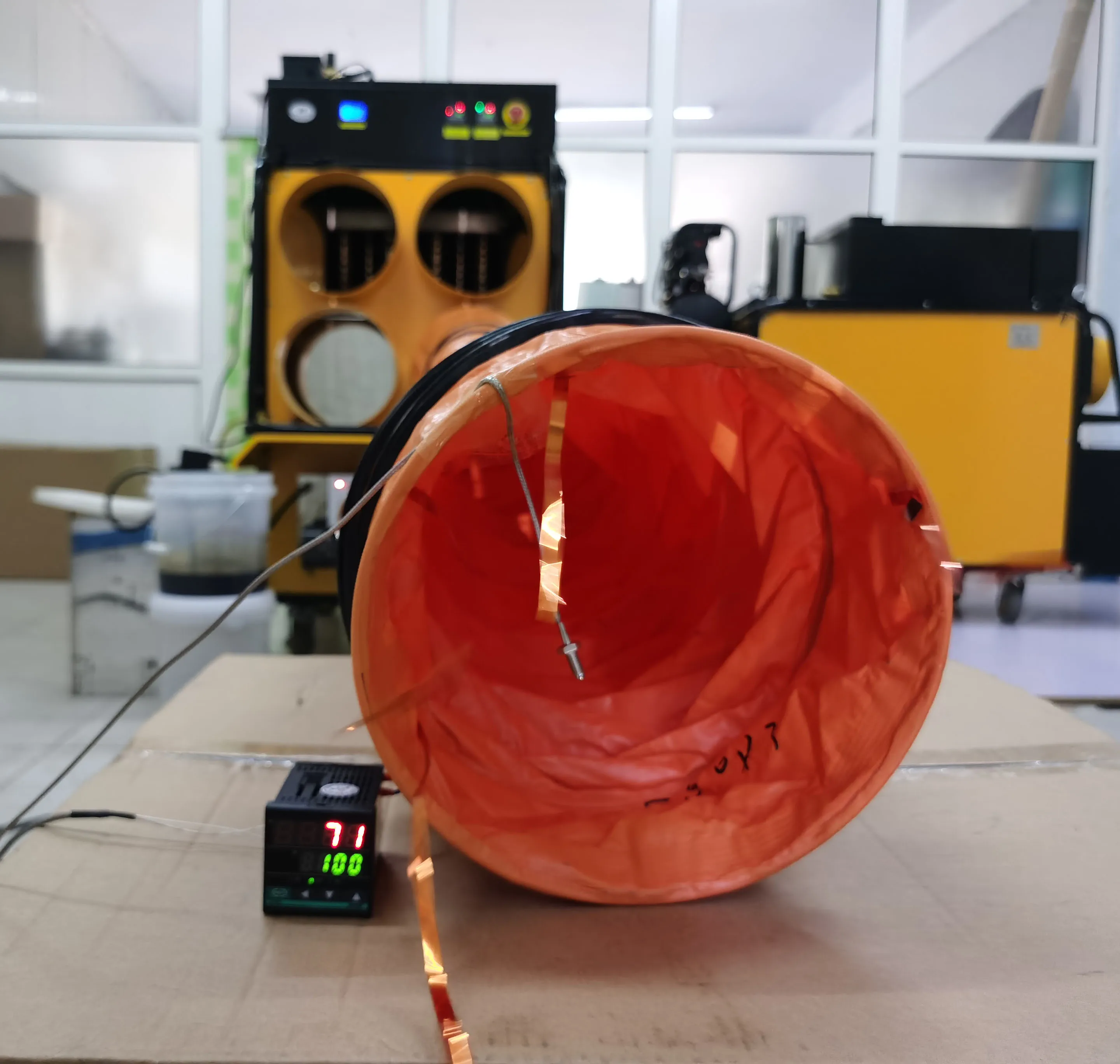

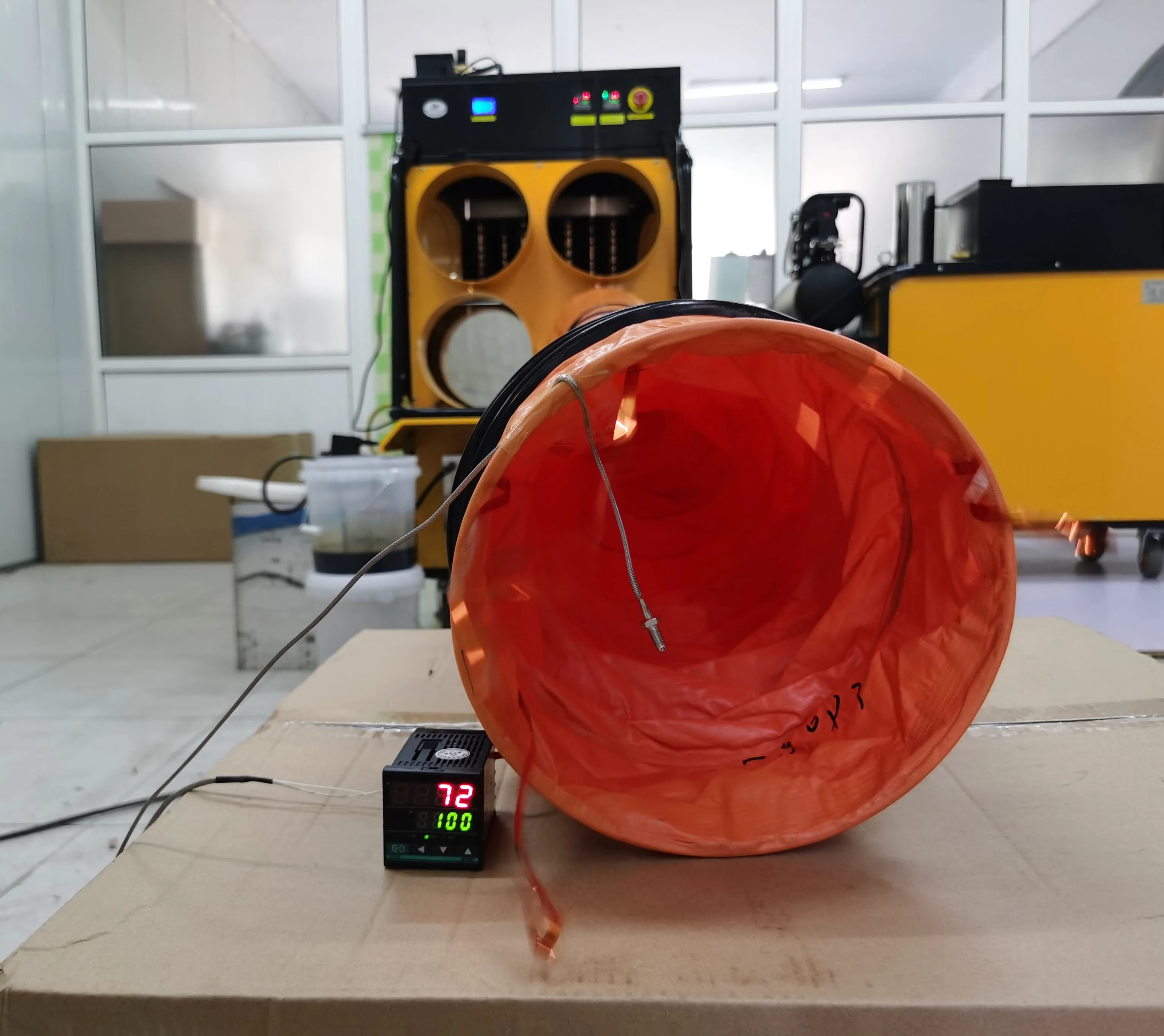

Kingwei Oil Heater Test(V)- How long reach 100℃
Test result, The hot air outlet, raise from 26 to 100℃ takes 6 minutes 26 seconds
Video link, https://youtu.be/liVvfBJzh7Q
Test result, The hot air outlet, raise from 26 to 100℃ takes 6 minutes 26 seconds
Video link, https://youtu.be/liVvfBJzh7Q
Kingwei Oil Heater Test (VI)- What's the smoke temp
We first tested the smoke temperature on 30th April 2020. Four minutes the smoke temp rise from 31 to 260 Celsius. The rising speed is breakneck. Video link, https://youtu.be/471Fv0ecTGI
We first tested the smoke temperature on 30th April 2020. Four minutes the smoke temp rise from 31 to 260 Celsius. The rising speed is breakneck. Video link, https://youtu.be/471Fv0ecTGI
We took this second video on 22nd March 2021, in which the heater has an updated smoke construction. You can see that the smoke temp rises from 31 to only 140 celsius in the same four minutes, which means smoke has a slower pass speed, which leads to less heat loss. The heater's current heat efficiency is around 90%.
Video link, https://youtu.be/k8quwdG2r9I
Kingwei Oil Heater Test (VII)- How the air compressor works
Test result, The compressed air, raise from 0 to 7bar, takes two minutes.
Each working period uses 2 bar compressed air, which takes one minute 30 seconds—thirty seconds to raise compressed air from 5-7 bar, the left one minutes for burner's consumption. After compressed air reduces to 5bar, the air compressor starts to work again.
Video link, https://youtu.be/uvC_zhkW7Lk
Test result, The compressed air, raise from 0 to 7bar, takes two minutes.
Each working period uses 2 bar compressed air, which takes one minute 30 seconds—thirty seconds to raise compressed air from 5-7 bar, the left one minutes for burner's consumption. After compressed air reduces to 5bar, the air compressor starts to work again.
Video link, https://youtu.be/uvC_zhkW7Lk

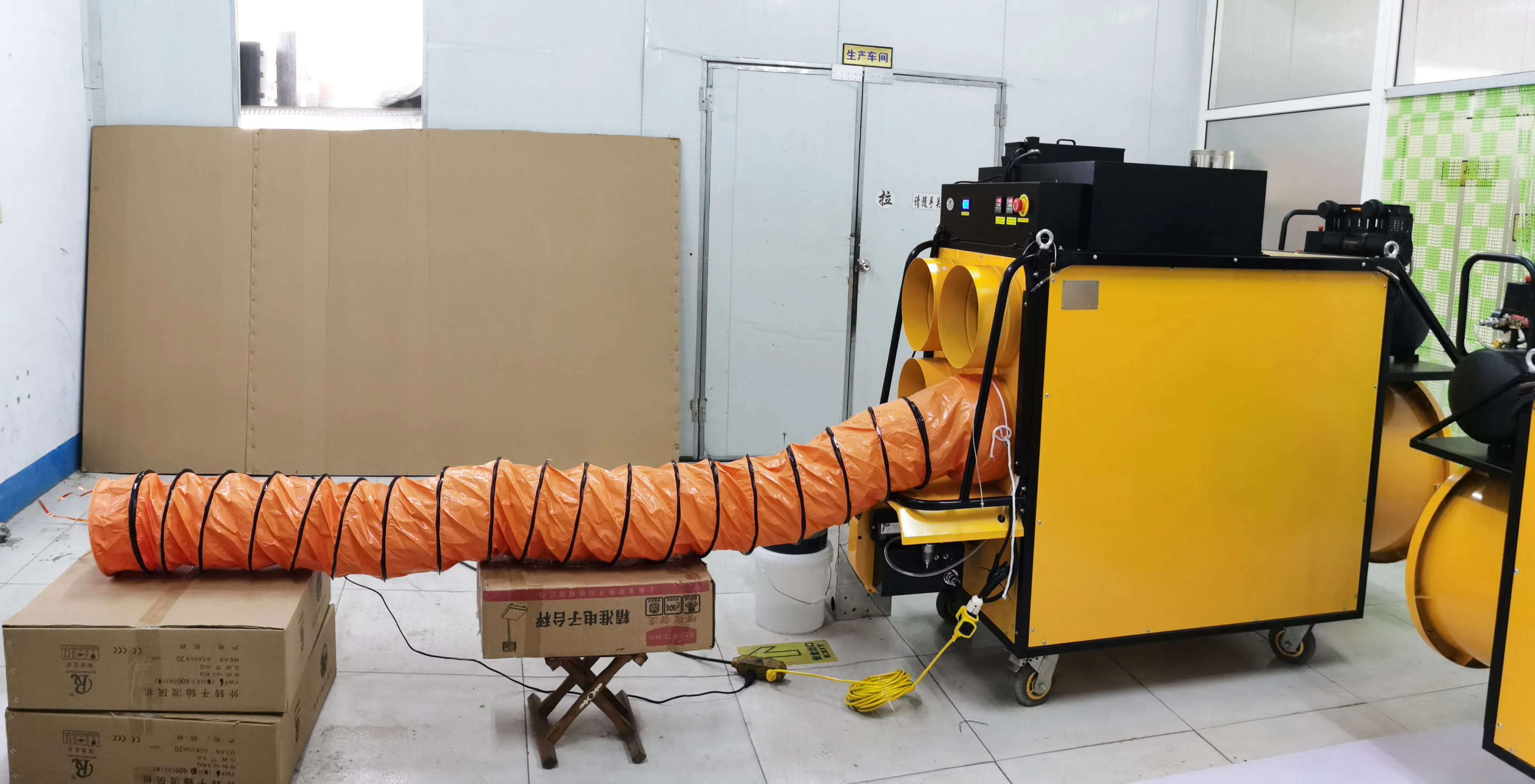

Kingwei Oil Heater Test (VIII)- What's the 3 meter air hose temp
Test result, The end of the 3-meter hot air hose, raise from 29 to 48℃ takes 2 minutes
Video link, https://youtu.be/7QVXIPLOGYc
Test result, The end of the 3-meter hot air hose, raise from 29 to 48℃ takes 2 minutes
Video link, https://youtu.be/7QVXIPLOGYc
Description, When the room’s temperature(near the hot air outlet
hole) is 19℃, ice melts. Heater starts to blow out hot air, which accelerates its process.
hole) is 19℃, ice melts. Heater starts to blow out hot air, which accelerates its process.
Test result,
The first three minutes, room’s temperature rases 6℃, from 19℃ to 35℃
The ice block can still see its shape.
From the fourth minutes to the eighth minute, the room’s temperature rases 10℃, from 40 to 50℃.
The ice block still melts, sleeks and becomes smaller.
From the ninth minutes to the final 14th minutes 30 seconds, room’s temperature rases 4℃, from 54℃ to 58℃
The ice block can’t see its shape anymore and melt completely to water.
It takes 14 minutes 30 seconds to melt 200g ice block completely. Waste engine oil consumption is 1.75L.
Video link, https://youtu.be/G6NJJ1-QT0Y
The first three minutes, room’s temperature rases 6℃, from 19℃ to 35℃
The ice block can still see its shape.
From the fourth minutes to the eighth minute, the room’s temperature rases 10℃, from 40 to 50℃.
The ice block still melts, sleeks and becomes smaller.
From the ninth minutes to the final 14th minutes 30 seconds, room’s temperature rases 4℃, from 54℃ to 58℃
The ice block can’t see its shape anymore and melt completely to water.
It takes 14 minutes 30 seconds to melt 200g ice block completely. Waste engine oil consumption is 1.75L.
Video link, https://youtu.be/G6NJJ1-QT0Y

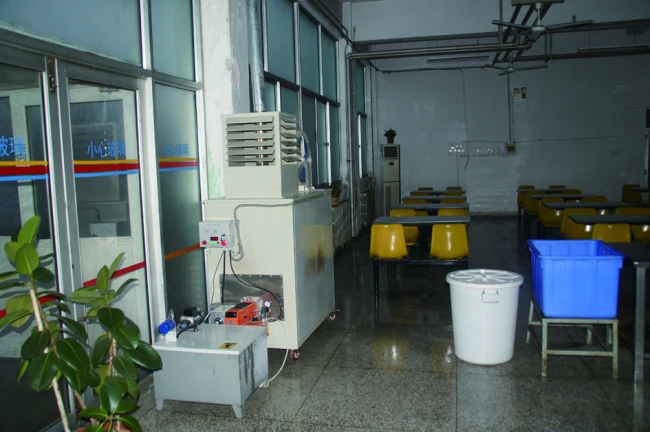

Test Explanation
We tested the heater in a 34sq.m(6.1*5.64m), 3.4-meter height, unsealed workshop
Test day’s weather is sunny and windy.
Temp is 15-21℃
The test date is the 29th-30th of April 2020.
Fuel: waste engine oil
Model: KVH6000(400 000Btu/h)
All the data will change in a different environment.
Test day’s weather is sunny and windy.
Temp is 15-21℃
The test date is the 29th-30th of April 2020.
Fuel: waste engine oil
Model: KVH6000(400 000Btu/h)
All the data will change in a different environment.

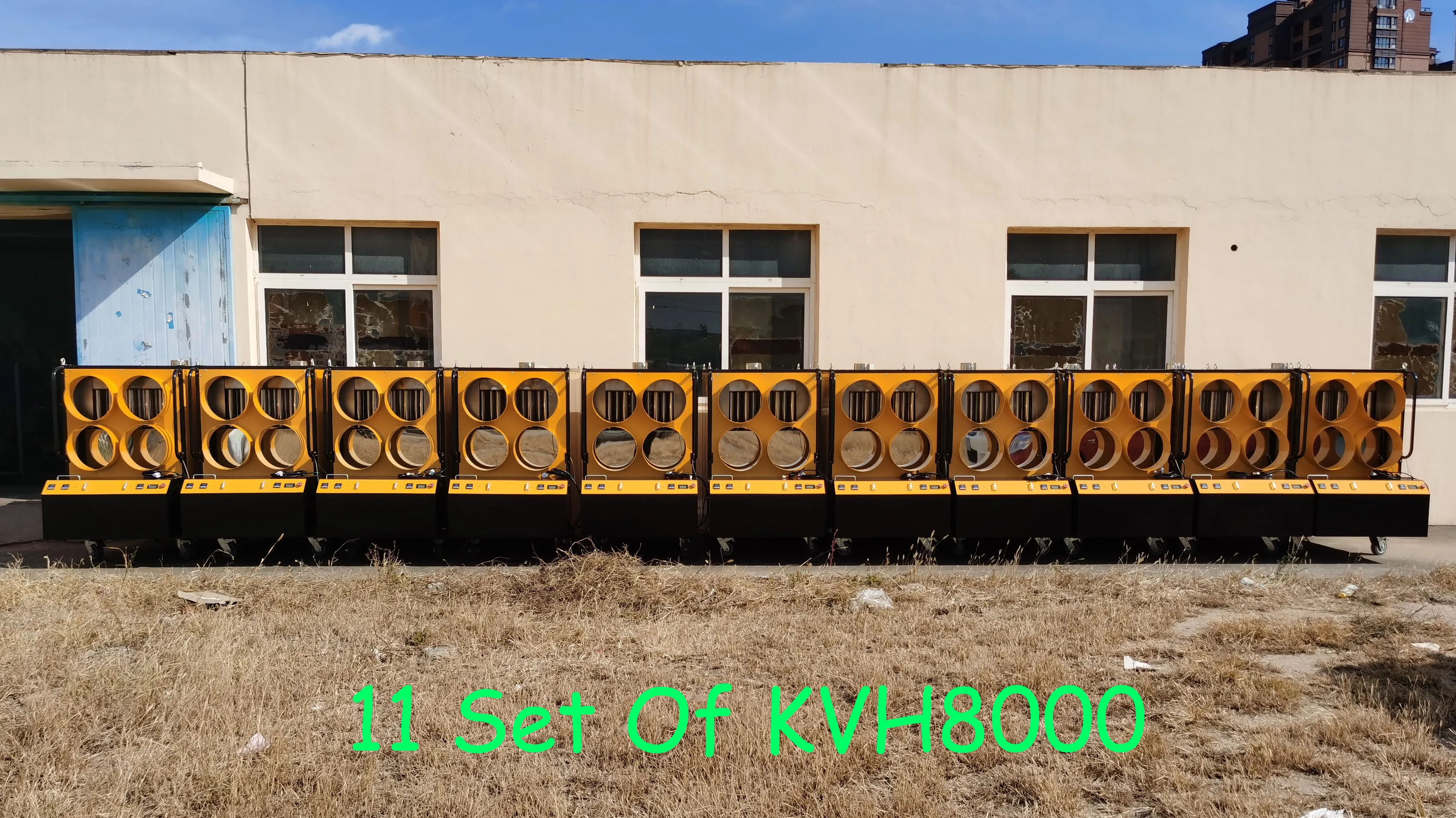

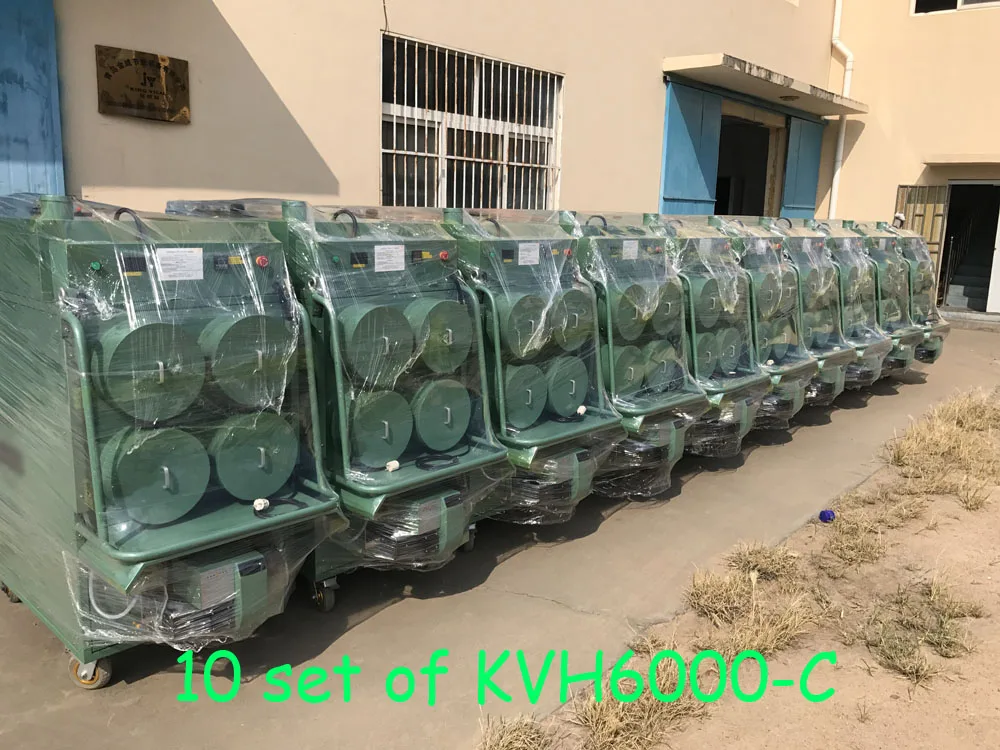

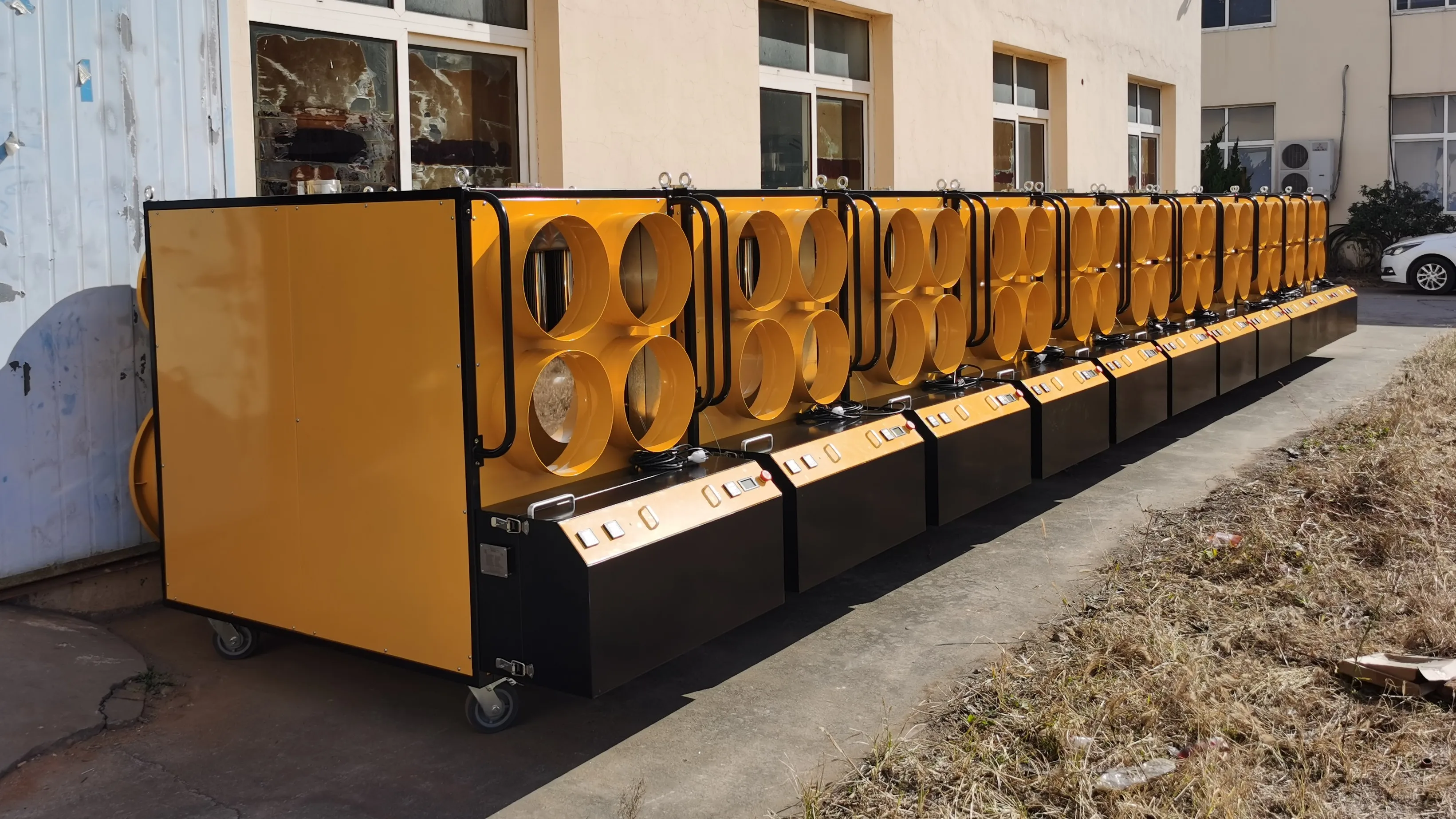

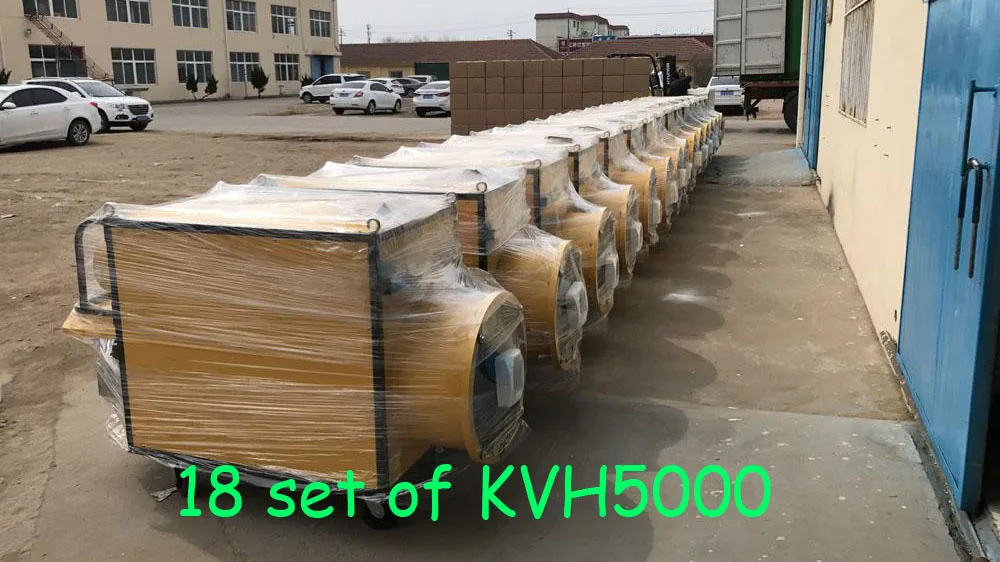

Order Display
Application
Our waste oil heater has many applications,can be used both indoor and outdoor.Such as garage,workshop,factory,poultry house,greenhouse,drying kiln,tunnel,stadium,snow melt,warm airplane engine etc.

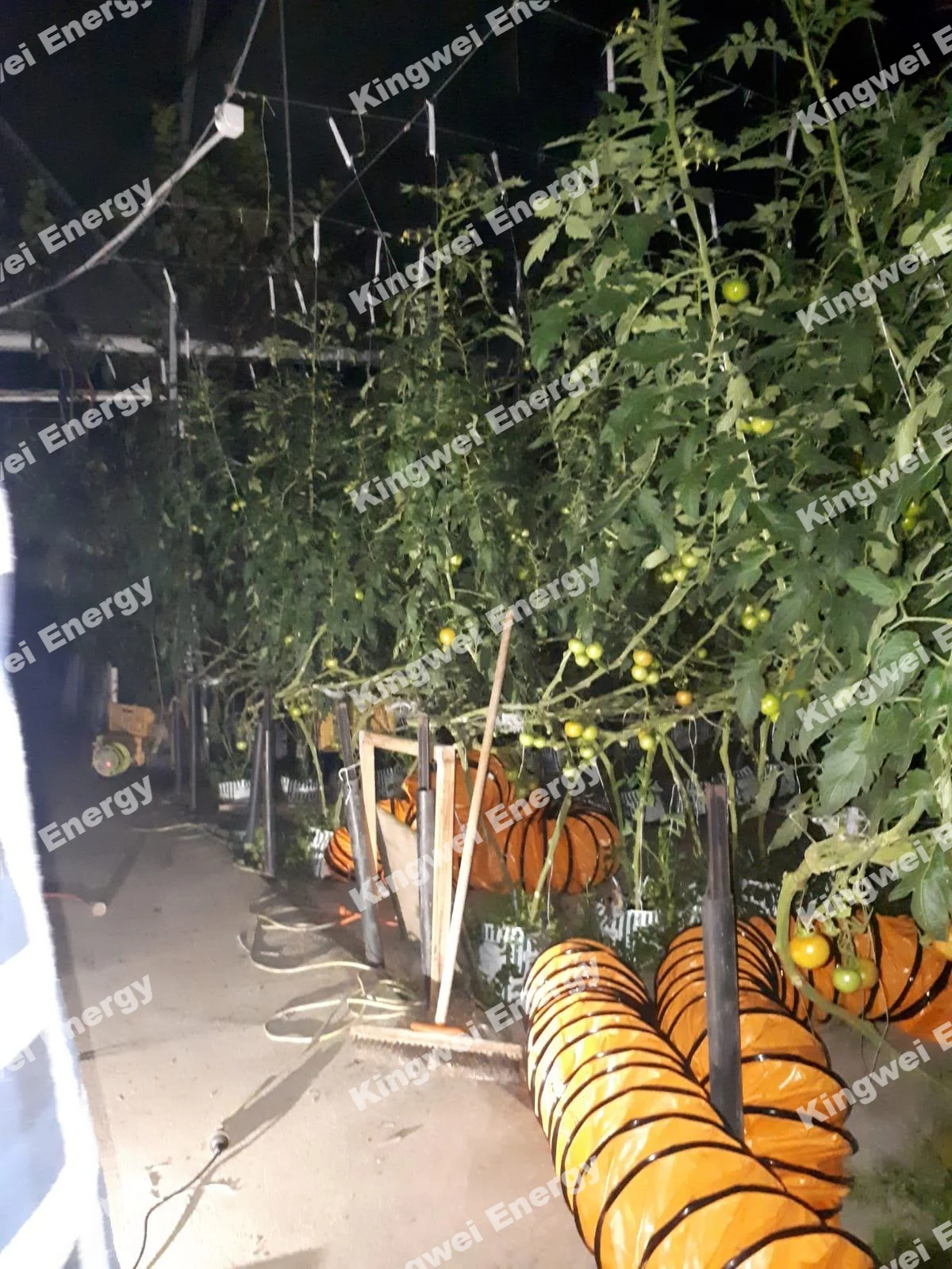

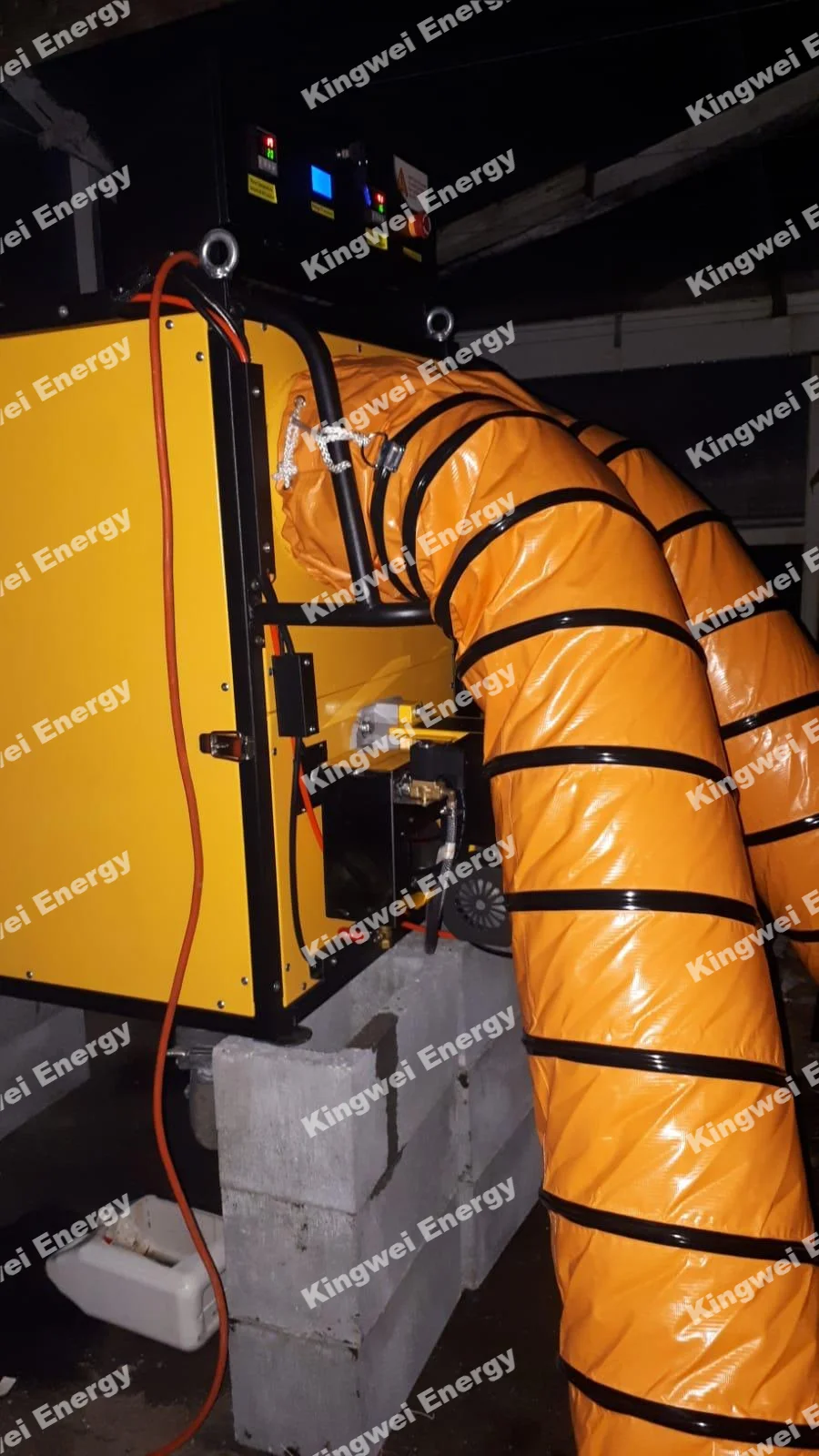

Farm Installation

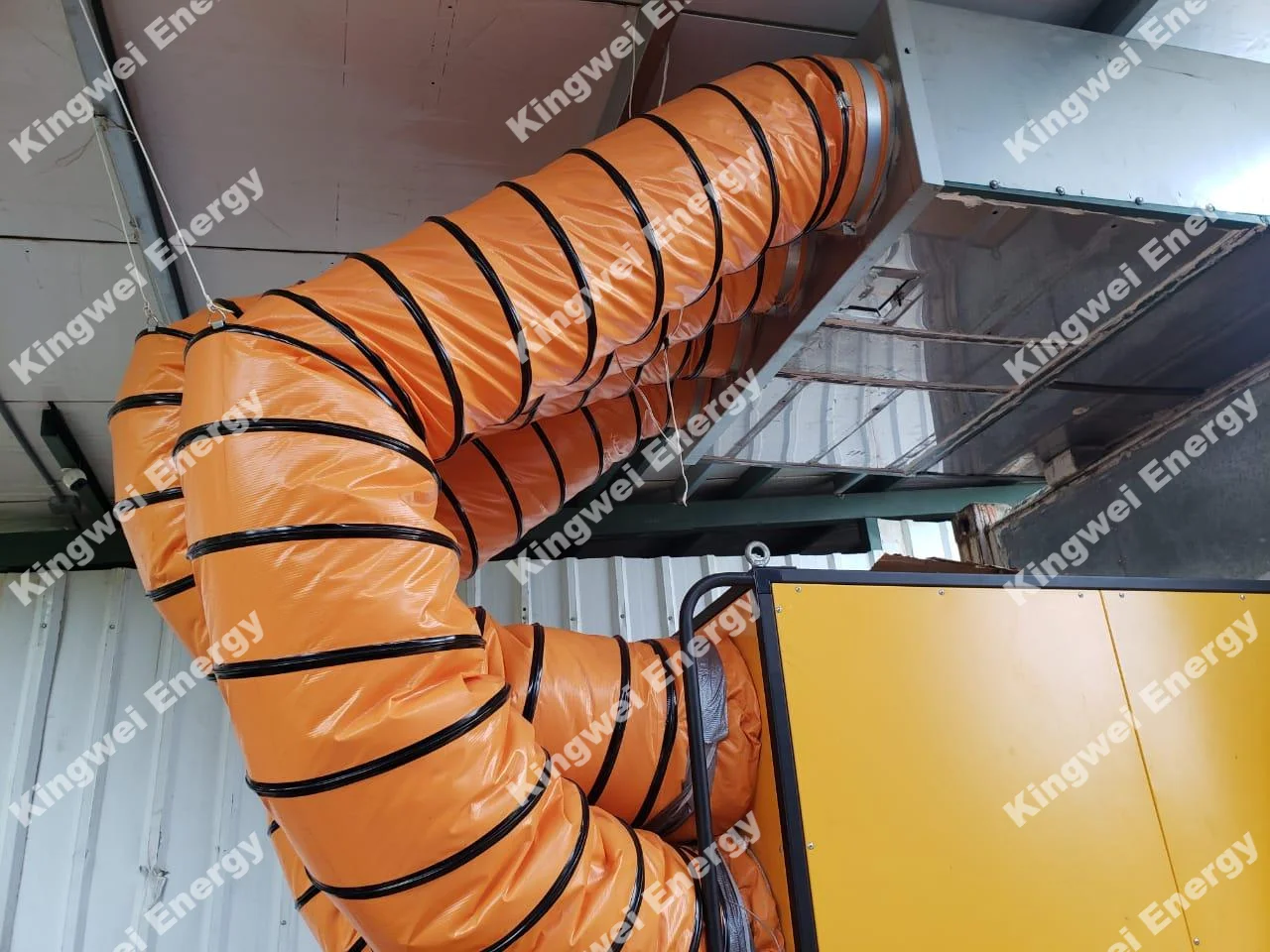

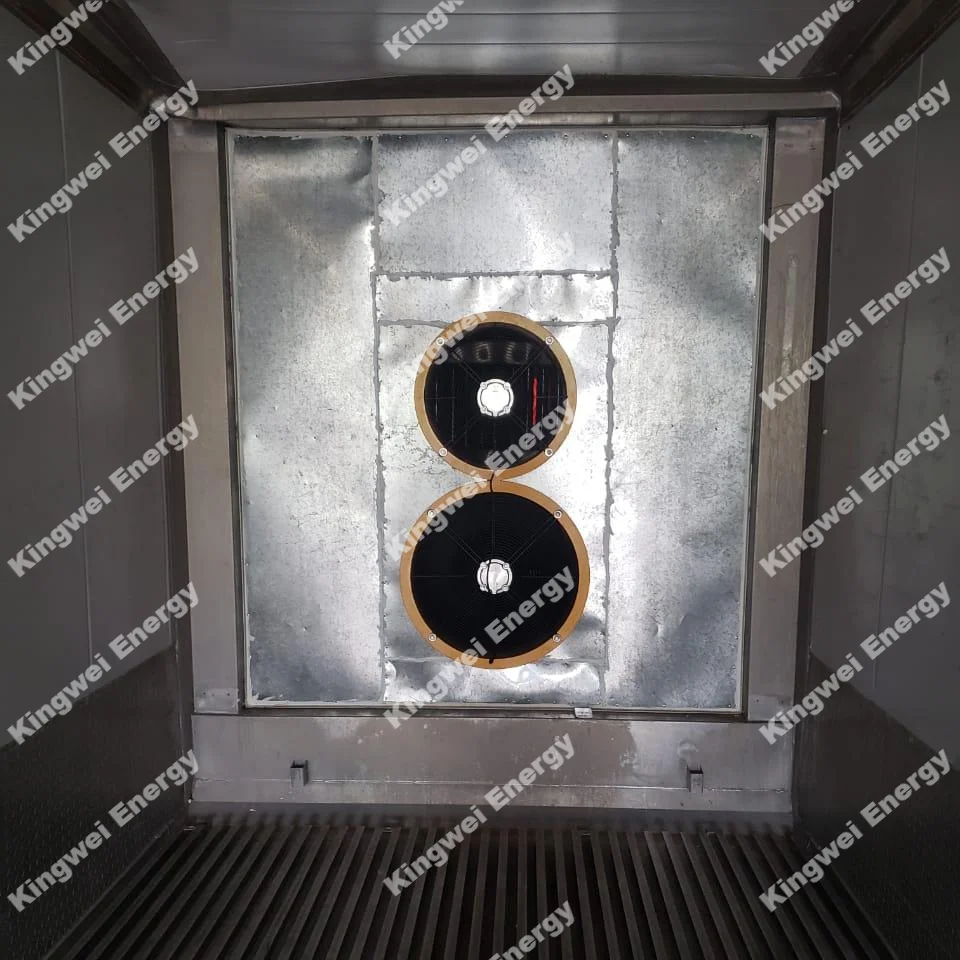

Drying Installation

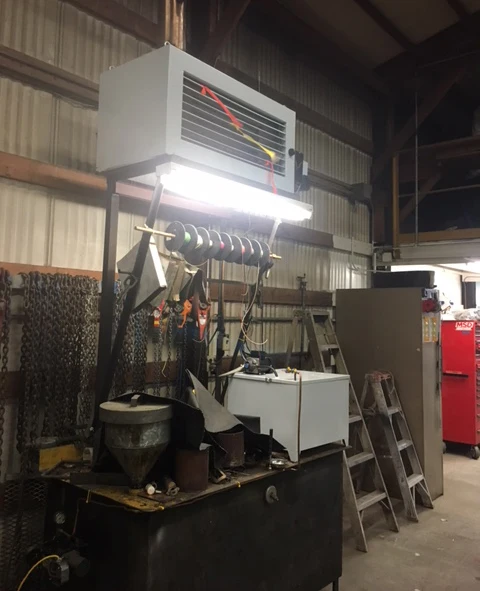

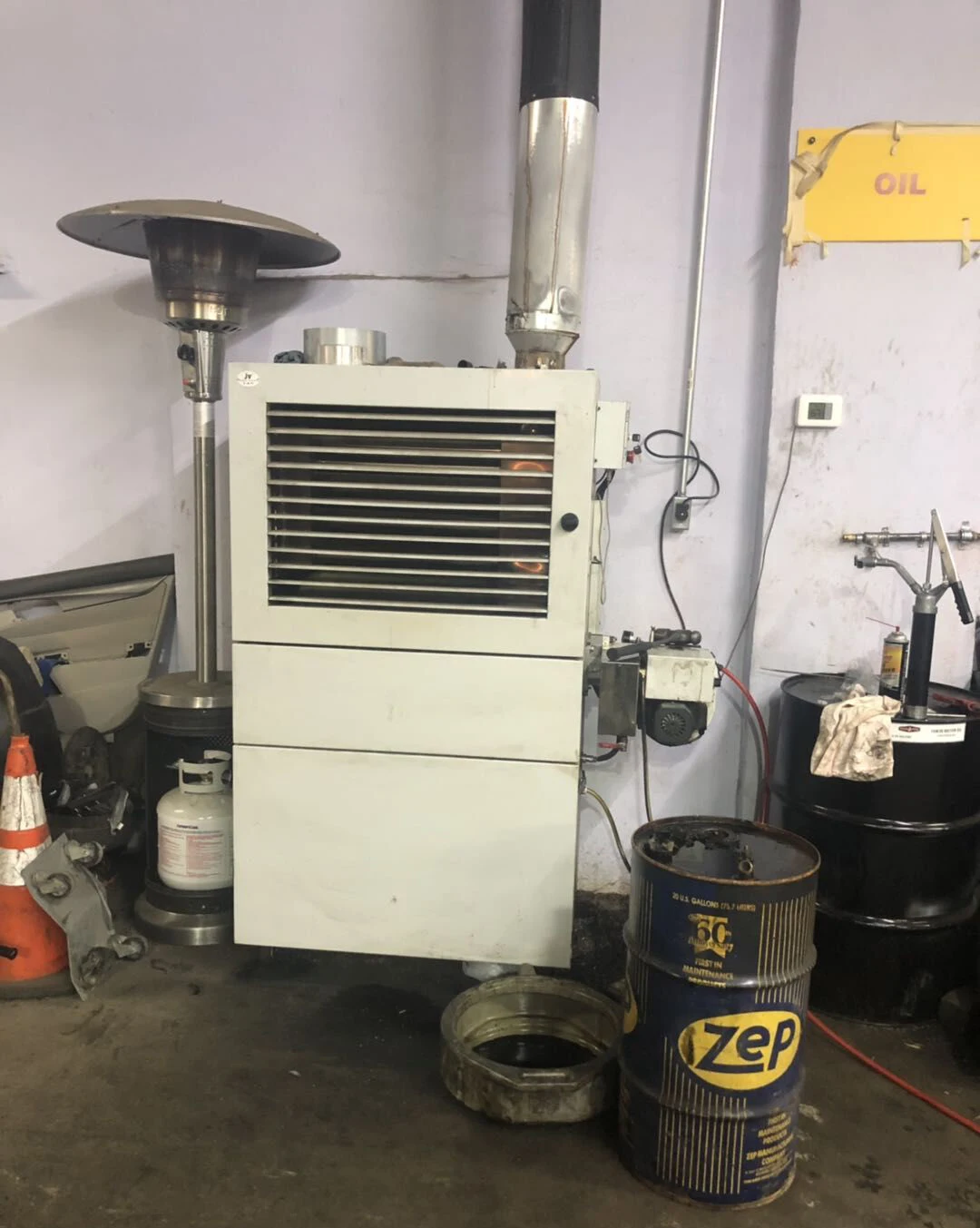

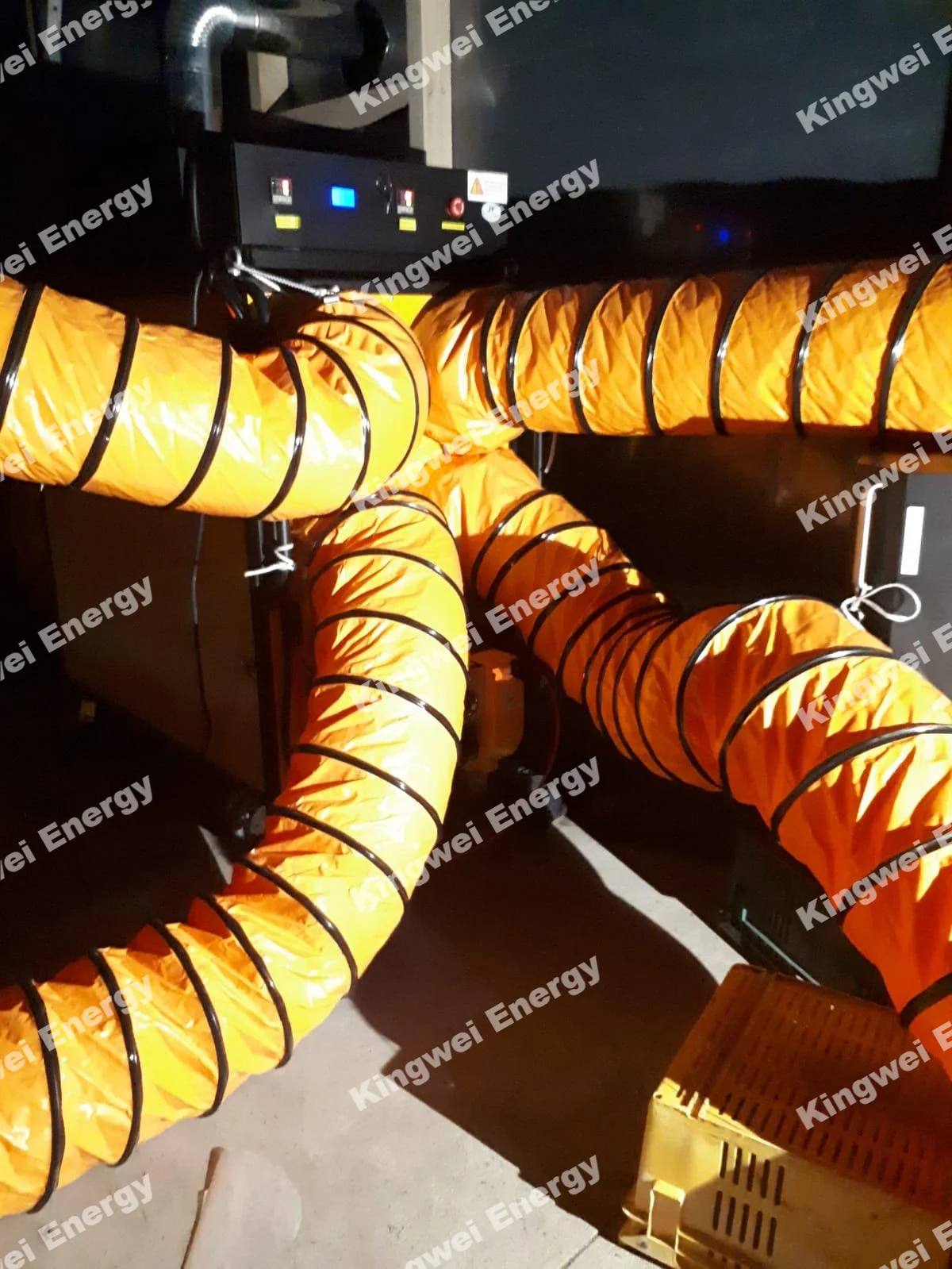

Workshop Installation
Company Profile
Kingwei Energy is a direct factory for waste oil heater, waste oil burner for 18 years; We set up the international sales team in 2013. Our Band is KING VITAL & KINGWEI ENERGY.

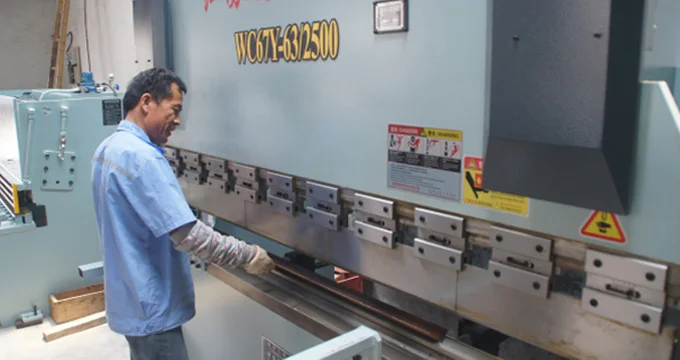

-Kingwei Workshop
Our factory mainly includes two workshops and two-section,
machine tool workshop,
burner&heater assemble workshop,
burner&heater test section,
package section
-Kingwei Team
Since the international sales team was set up, We are honored to have several reliable clients stood by us all way along. Happy
to see several customers trust us and started a dealership. We also supply burner&heater to end-users directly. We learn from all
clients&customers above. It is a fantastic journey that we may never meet but benefit from each other now.
to see several customers trust us and started a dealership. We also supply burner&heater to end-users directly. We learn from all
clients&customers above. It is a fantastic journey that we may never meet but benefit from each other now.
Andy has long exprience dealing with waste oil heater, waste oil burner. Get in touch today to discover how to utilize your waste oil once for all.
Email: andyzhang_ceo@kingweienergy.com
Helen is in our sales team since the begining. She is happy to help you find the ring product and help you ship it anywhere in the world.
Email: helenjiang_sales1@kingweienergy.com
Phone number/ Whatsapp Number/ WeChat:
+8613012513355
Tom is responsible for product quality and customized products. He has a long experience as a engineer to make sure that every component is designed and delivered to the highest possible standards.
Email: tomzhou_techsupport1@kingweienergy.com
-Company News
Factory and office are now merged together. All orders will be arranged more efficiently. All advice will be executed immediately. The Boiler workshop was set up in the year of 2018. We are ready to provide a one-stop service to utilize your waste oil!
Contact Information
Contact name: Helen Jiang
ID: cn1513245264
Phone/whatsapp/wechat: 86-130 1251 3355
Fax: 0532-68876247
Email: helenjiang_sales1@ kingweienergy.com(no blank after @)
Facebook: https://www.facebook.com/wasteoilburnersupplier
Youtube channel: https://www.youtube.com/channel/UCd2DtCB7ma4BzUwCRPVs4ow
Alibaba shop: //jinweijieneng.en.alibaba.com/
Office&factory address: No997 Wangsha Road Chengyang District Qingdao Shandong China
