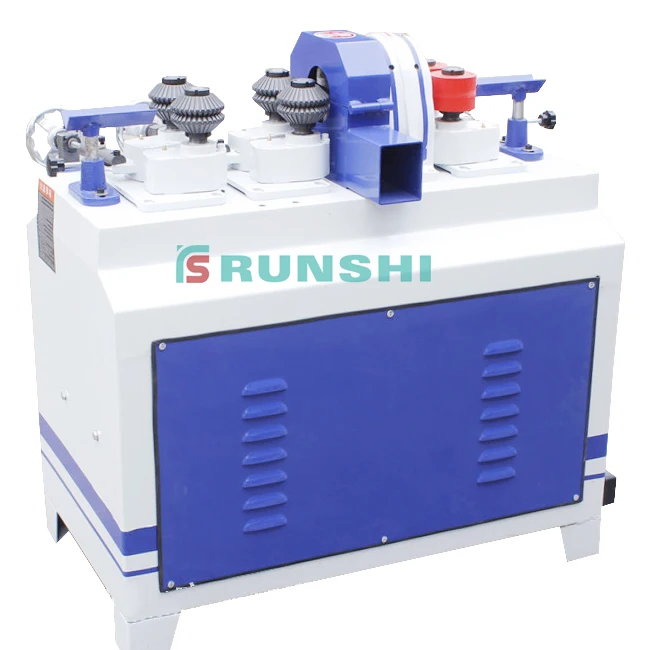

Good Price Threaded Wooden Round Sticks Maker Broom round rod stick making machine

Share on (1600205126331):


Price:

Quantity:


Product Overview

Description



Product Description


Description of Broom round rod stick making machine

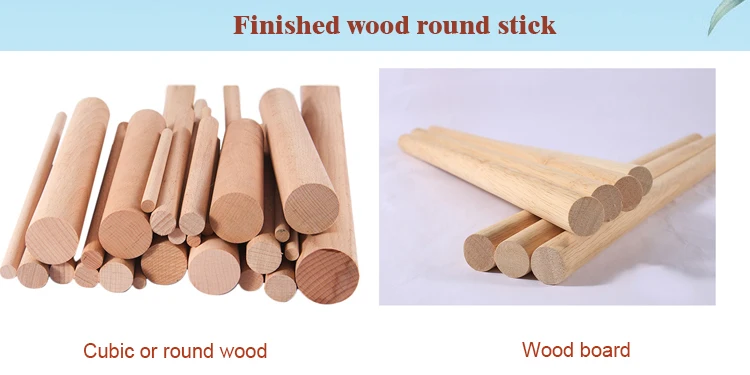

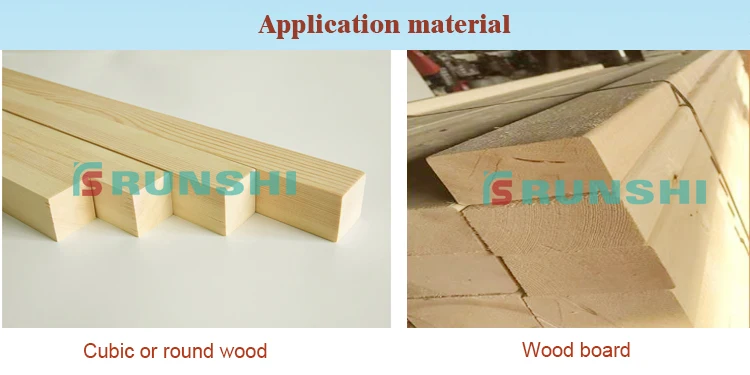

Wood round stick machine is mainly used to do wood round stick.Usually the wood will be cubic long wood and round wood,after being milled,it will be wood round stick,according to different diameter round stick needed,We have different model,usually 9020 model For 6-20mm,9050 model for 15-50mm,9060 model for 15-60mm,9080 model for 20-80mm,50-150mm,so if you tell me the diameter you need,so We can do a professional quotation for you.


.jpg

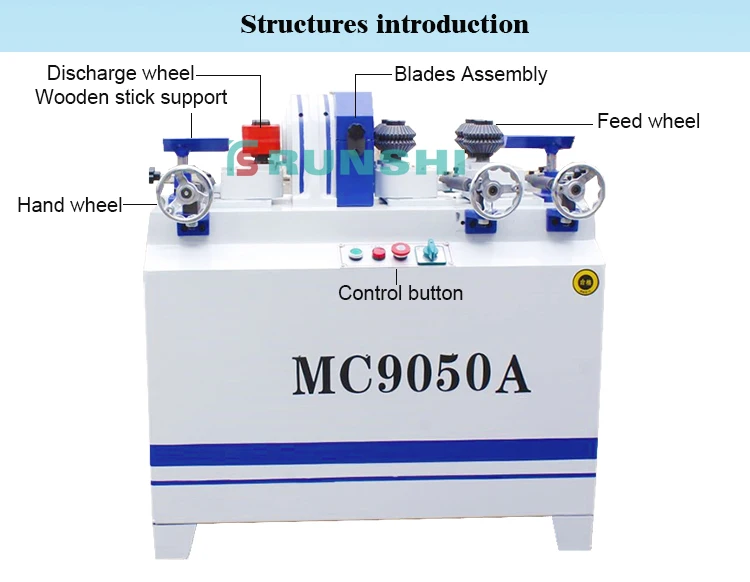

Structures introduction.jpg


.jpg





Specification Data

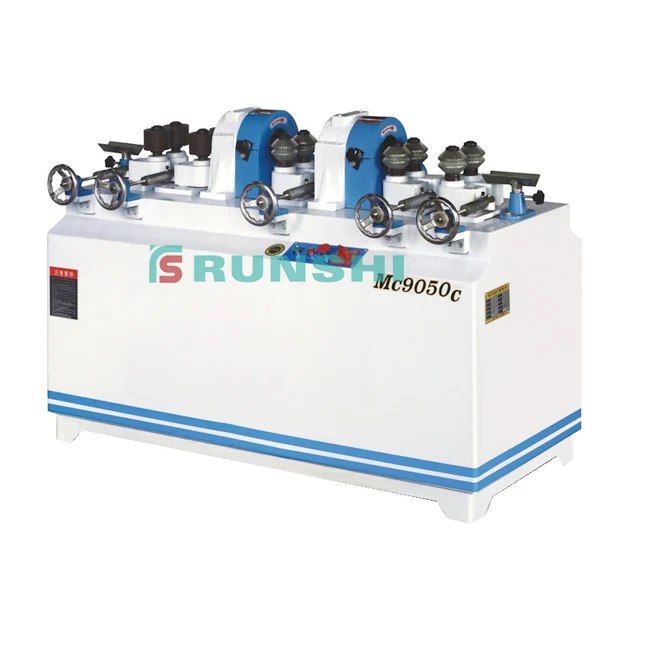

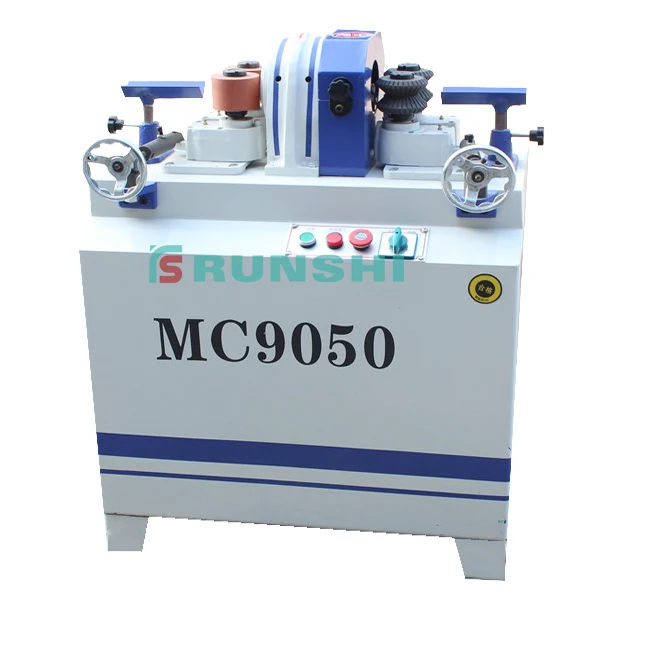

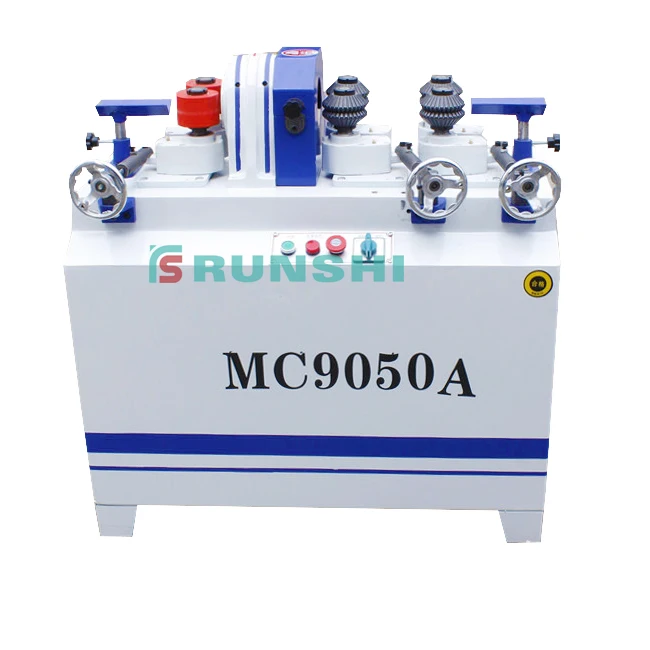

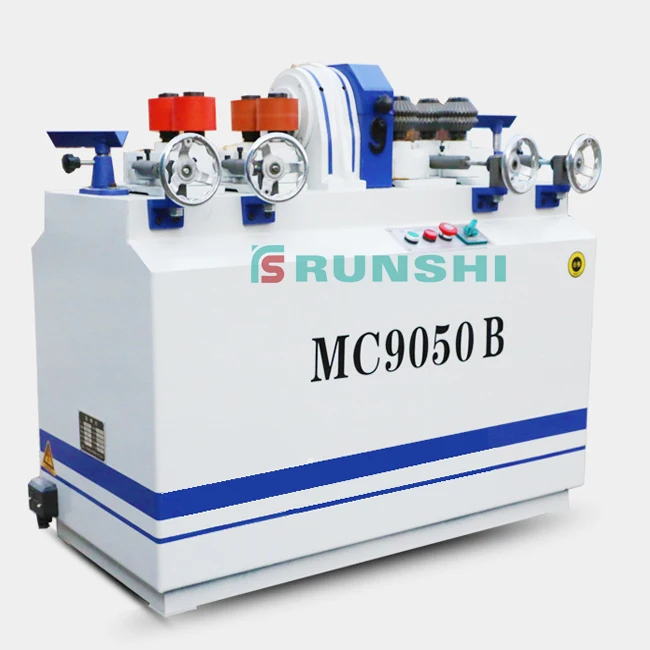

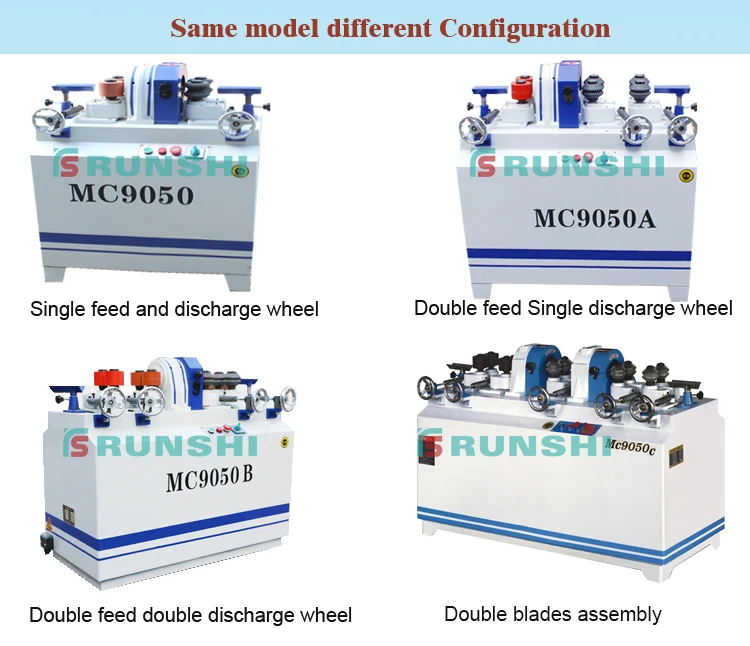

Specifications of Broom round rod stick making machine













































































Model



MC9050



MC9050A



MC9050B



MC9050C



Main power



3kw



3kw



3kw



3kw



Feeding power



0.75kw



0.75kw



0.75kw



0.75kw



Work wheel decelerator



50:1



50:1



50:1



50:1



Spindle speed



4000r/min



4000r/min



4000r/min



4000r/min



Feeding speed



3/5m/min  Double pully gear



Cutting diameter



15-50mm



15-50mm



15-50mm



15-50mm



Max cutting quantity



2mm(Semidiameter)



Min working length



400mm



500mm



600mm



1000mm



Dimension



860*650*980mm



970*650*980mm



1100*650*980mm



1470*590*1000mm



Weight



250kg



310kg



350kg



525kg

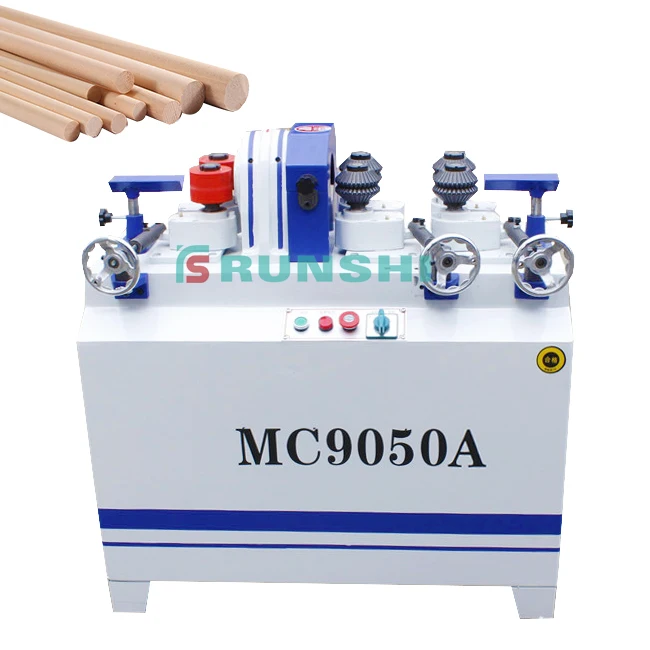

Photos show


Photos of Broom round rod stick making machine

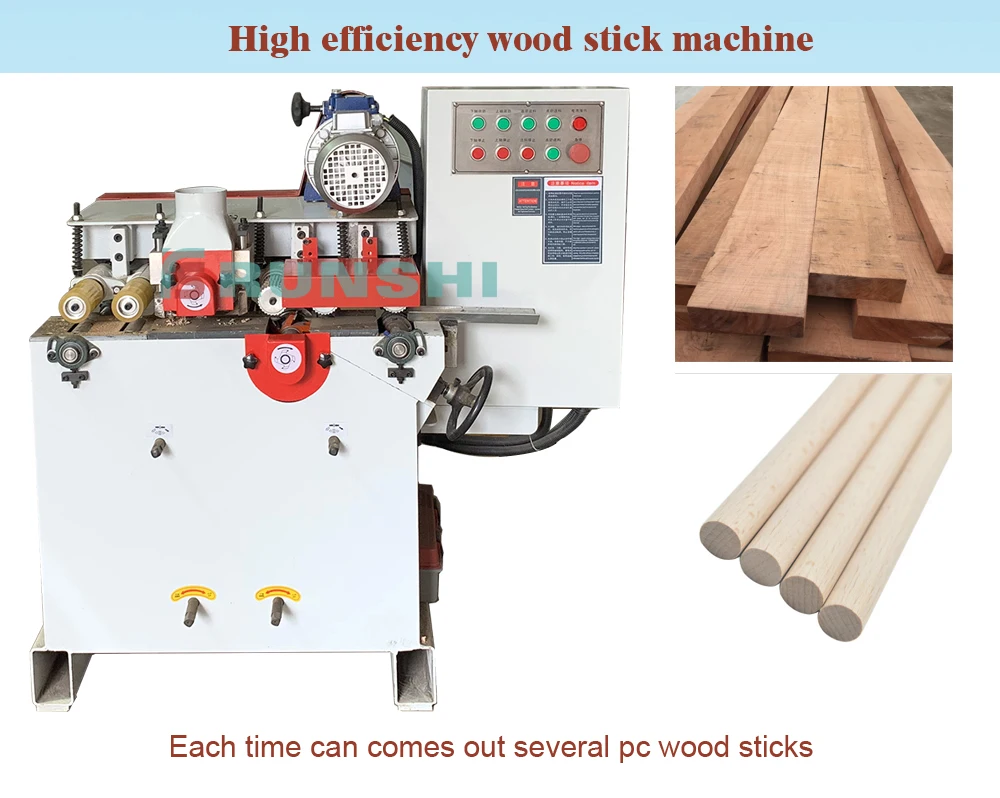

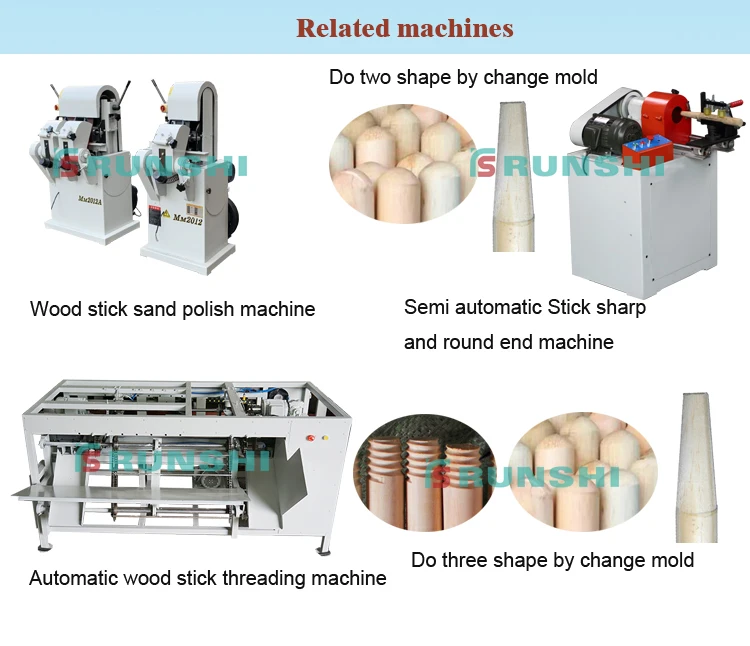

 MB2012A-1.jpgRelated machines.jpg

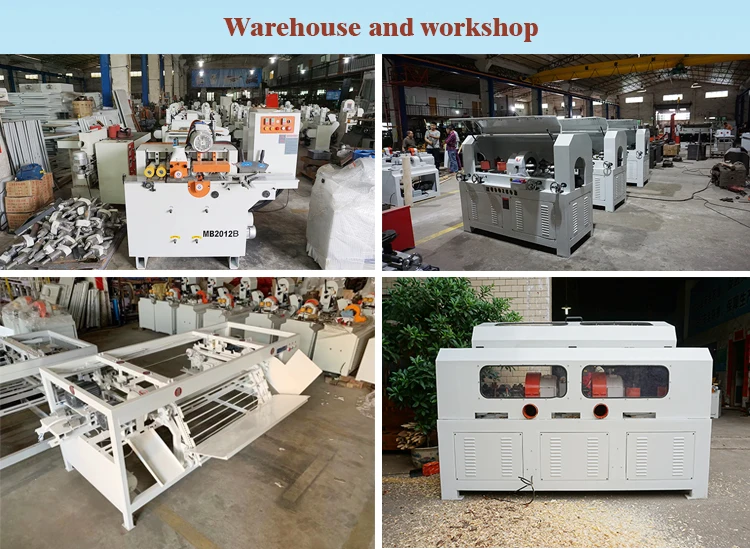

warehouse and workshop.jpg





Our Services


Q1.About installing:


We have video and photos to show you how to intall and use our Broom round rod stick making machine.


Q2.About quality:


We provide customers with the most resonable and excellent proposal,We can accept trade assurance which can protect  your profit.


Q3.What is your warranty service?


We supply one year free warranty,after years with favorable price for spare parts.
